Shenyang J-11, J-16, J-15, History, Performance & Discussion

Sweet, ty

Pretty sure it copies all of f-15e radar scan patterns.

1 Like

Probably every single Chinese radar from now on will be some form of copy paste/frankensteining of other radars, I don’t think gaijin can access any info on scan patterns or the such

3 Likes

Yeah that’s probably the case.

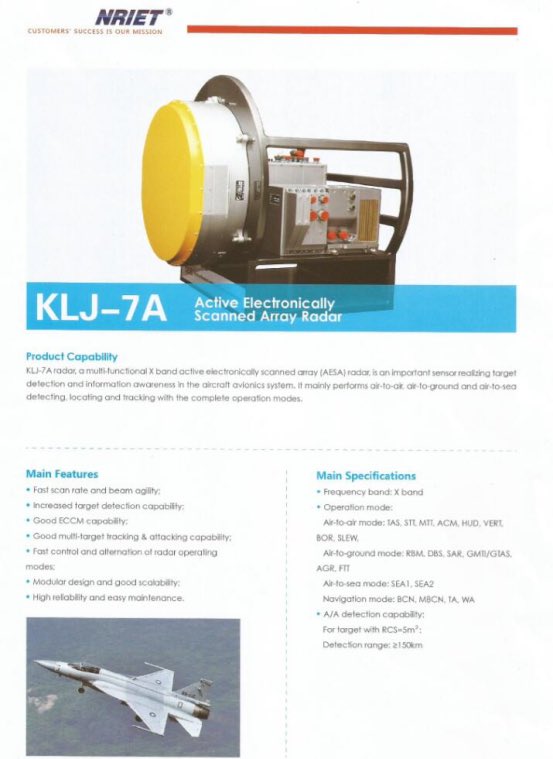

The JEFF3 if or when it’s added has some information available but still no scan angles and such
EVLDC_vUUAAJ5rH

2 Likes

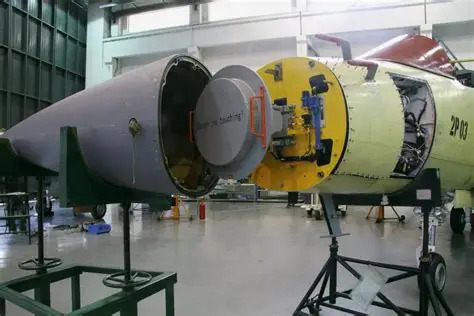

usually an ESA radar can provide 60 degree beam synthesis angle, but JF-17 Block3’s radar is not fixed, so it can scan and lock over 90 degree like SU-35
SU-35

That’s cool to know, if tought the JEFF had a fixed Radar, thanks for the information

is it mentioned that it has a swash plate or has high azimuth coverage ? , su35 has an azimuth coverage of ±120*

no, we have to do some assume

±125*

iirc search azimuth is ±125* n track is ±120* right ?

yeah. in wt you’re gonna be mostly in tws so ±125 most of the time

1 Like
