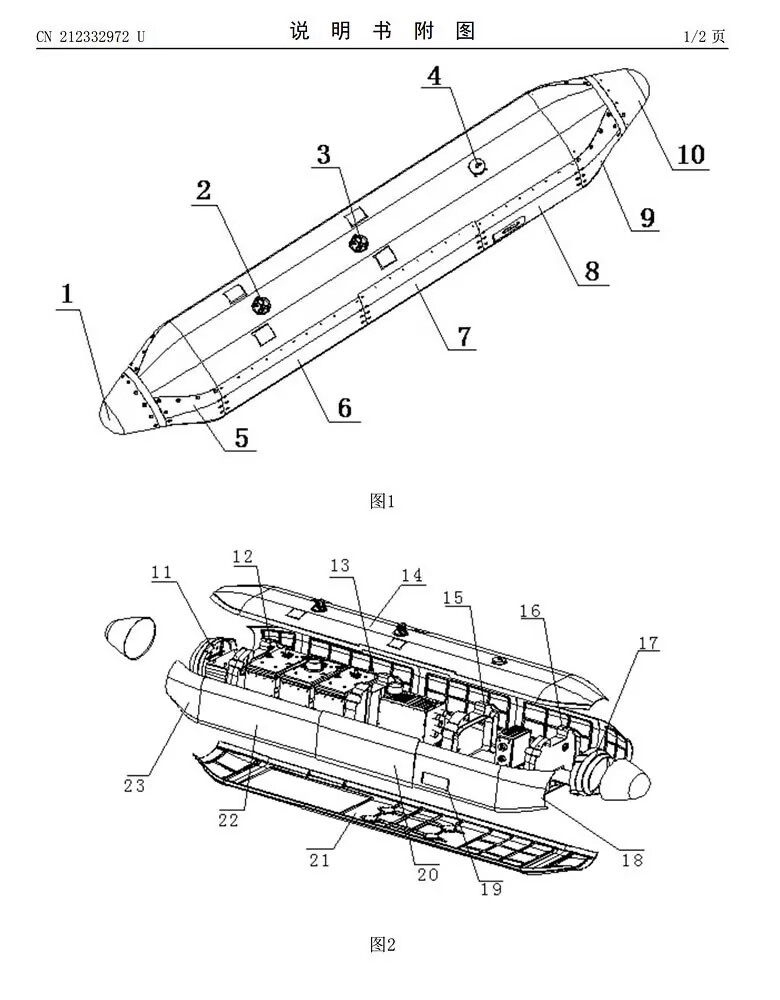

1.29 DCT Type Electronic Protection Pod, patented as “An Aircraft Electronic Protection Pod”
Patent Publication Number: CN212332972U
Application Date: May 20, 2020
Authorization Announcement Date: January 12, 2021
Patentee: Jiangxi Aerospace Haihong Measurement & Control Technology Co., Ltd. (a subsidiary controlled by Hongdu Aviation Industry Group of AVIC, possessing qualifications for R&D and production of airborne aviation equipment and suspension systems)
The pod adopts a modular segmented design and is mainly composed of two core parts: the pod structure and the deployment equipment, specifically arranged as follows:
It consists of a forward fairing, an equipment installation compartment, and an aft fairing, forming an overall streamlined external pod configuration. It is equipped with standard front and rear suspension points, with a suspension point spacing of 355.6 mm (14 inches). The interface meets national military standards and can be directly mounted on standard weapon pylons of fighter aircraft without modifying the aircraft structure. (Applicable to J-7/J-10/J-11/J-15/J-16/J-20)
Internal Bay Layout:
Bay Number Bay Name Core Configuration
First Bay Equipment Bay Counterweight blocks used to adjust the center of gravity of the pod to meet mounting balance requirements

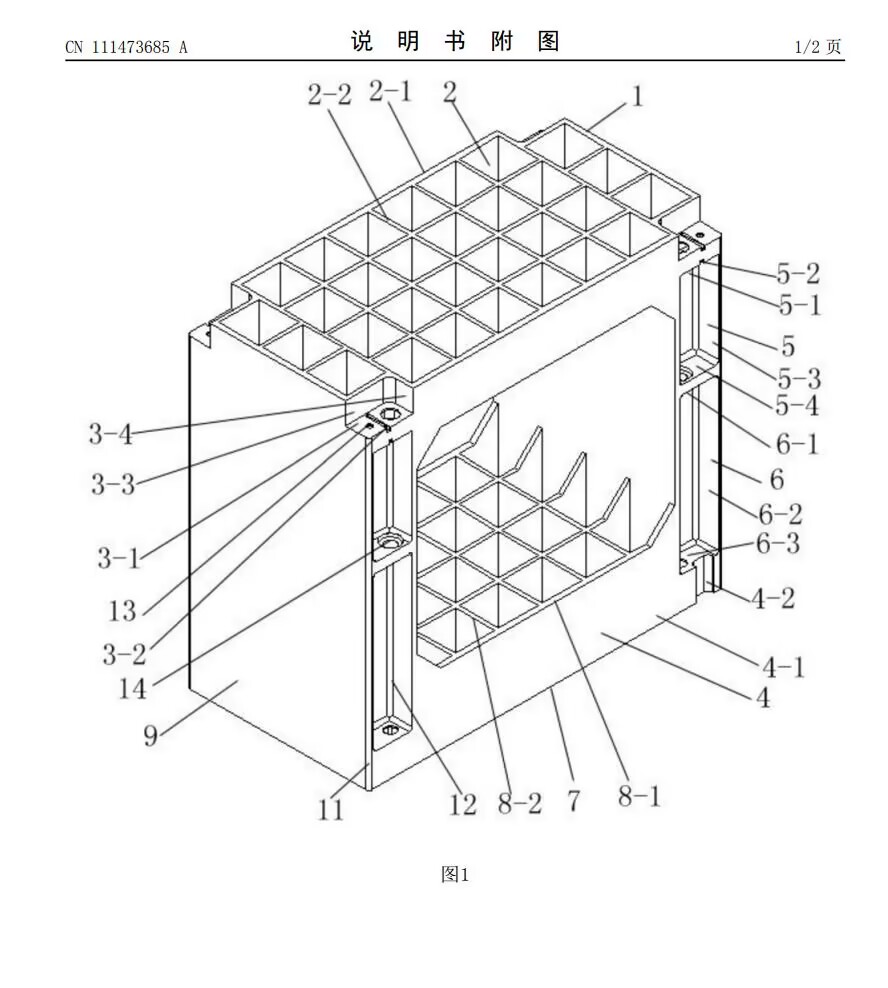

Second Bay Equipment Bay Launcher bay integrating 3 independent countermeasure dispensers, compatible with chaff/infrared countermeasure cartridges
Third Bay Controller Bay Core control unit of the pod, responsible for system-wide logic control, signal interaction, and status monitoring
Fourth Bay Sequencer Bay Deployment timing control unit, controls the sequence, interval, and quantity of the dispensers according to preset programs/instructions
Fifth Bay Reserved Expansion Bay Empty bay, reserved for the installation of active electronic countermeasure equipment and detection units (The second bay launcher bay integrates 3 independent countermeasure dispensers totaling 30 countermeasures per 3 sets)
Operating Modes:
- Manual Program Deployment Mode: Receives deployment program number and discrete control signals from the carrier avionics system, executes countermeasure deployment according to preset sequence, quantity, and combination mode
- Infrared Jettison Mode: In emergency combat scenarios, all infrared countermeasures (including reserved backup rounds) can be deployed at once
http://epub.cnipa.gov.cn/patent/CN212332972U
https://pss-system.cponline.cnipa.gov.cn/documents/detail?prevPageTit=changgui
https://pss-system.cponline.cnipa.gov.cn/documents/detail?prevPageTit=changgui

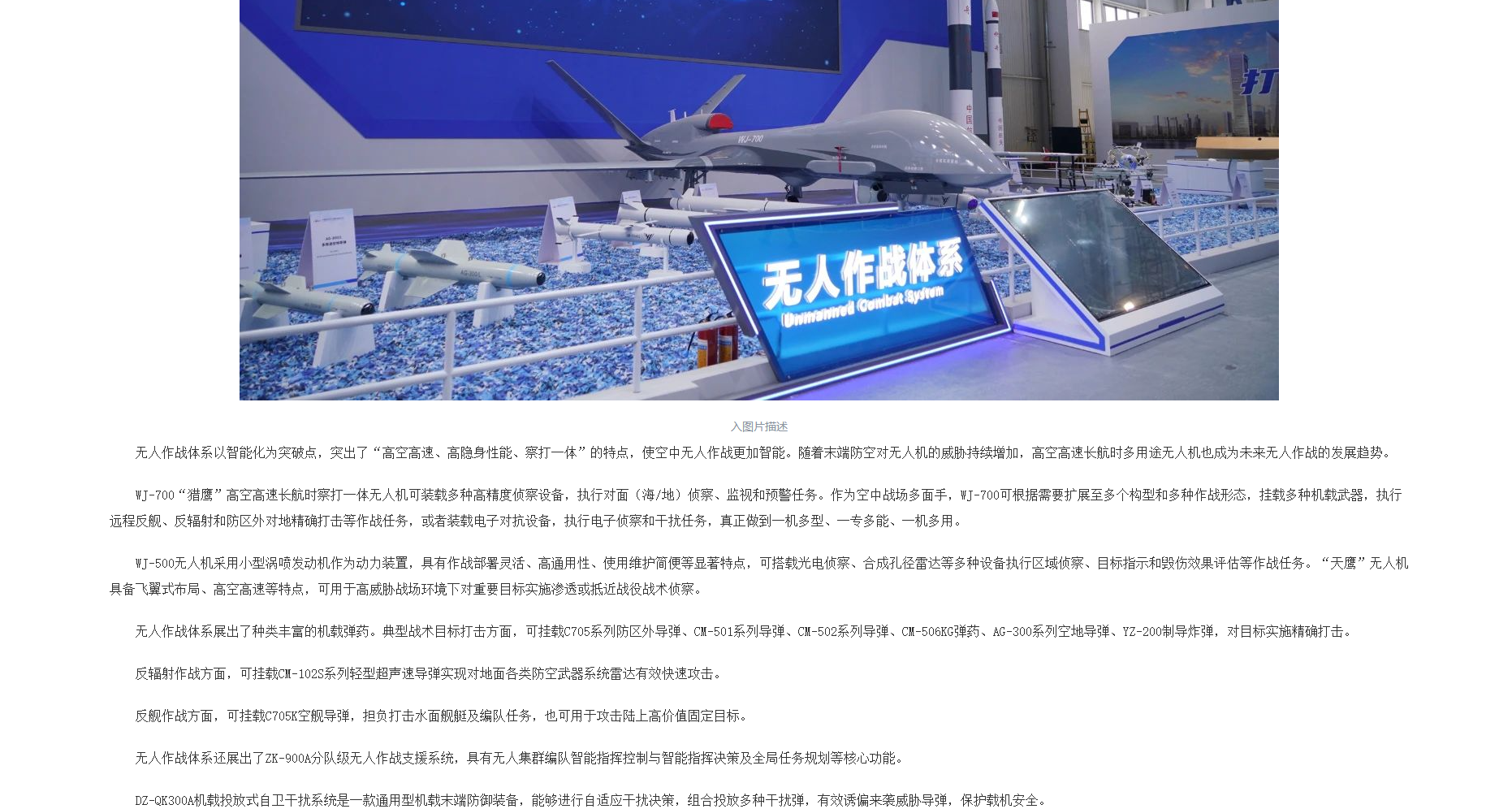

2.DZ-QK300A Airborne Deployable Self-Defense Jamming System
The DZ-QK300A Airborne Deployable Self-Defense Jamming System is a general-purpose airborne terminal defense device capable of adaptive jamming decision-making. It can deploy a combination of various jamming devices to effectively decoy and deflect incoming threat missiles, ensuring the safety of the host aircraft.
http://www.casic.com.cn/n12377419/n12378166/c30393697/content.html
https://www.sastind.gov.cn/n10086200/n10086331/c10627687/content.html
航天科工携全域攻防装备六大体系亮相中国航展 - RKZ930 Series Electronic Warfare Pod
The pod body is equipped with an internal storage compartment for towed passive chaff strips and a release/recovery mechanism, capable of deploying long-length towed chaff countermeasures.

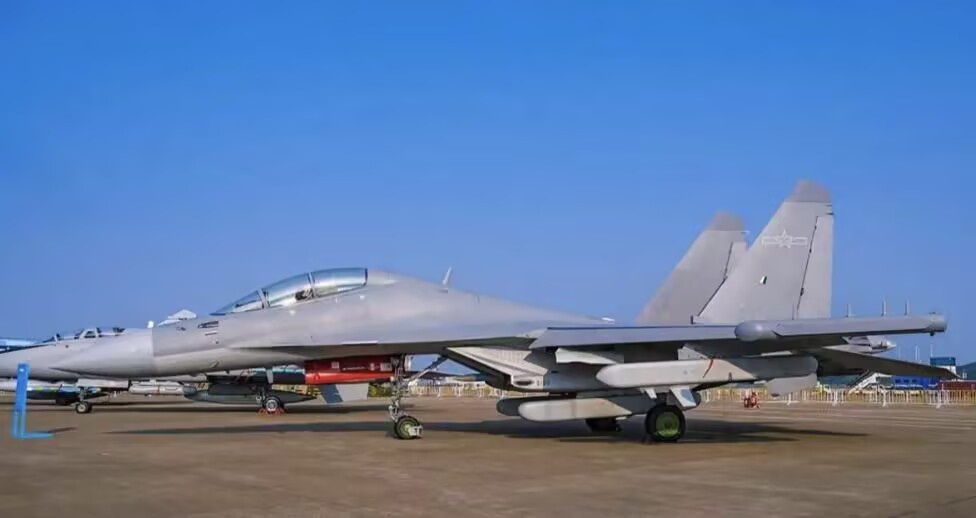

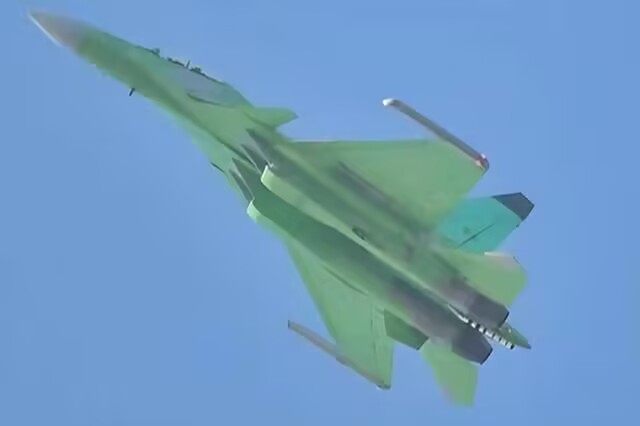

- J-15D Carrier-Based Electronic Warfare Pod
This pod is a dedicated equipment for the J-15D carrier-based electronic warfare aircraft, designed with corrosion resistance and high reliability for the high-salt, high-humidity maritime environment. It features a built-in drag-type passive foil strip storage and release mechanism.

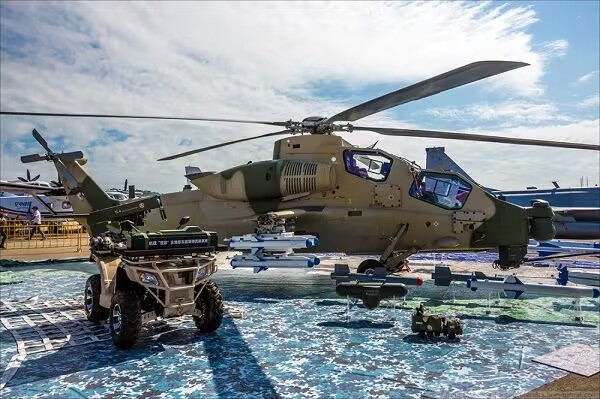

http://www.81.cn/szb_223187/szbxq/index.html?articleid=955112&f_link_type=f_linkinlinenote&flow_extra=eyJkb2NfcG9zaXRpb24iOjAsImRvY19pZCI6IjZmYjlhN2VhYzM5MjE2YTYtNjhjY2U0MTBhNWNlNjQwMyIsImlubGluZV9kaXNwbGF5X3Bvc2l0aW9uIjowfQ%3D%3D&paperDate=2025-05-16&paperName=jfjb&paperNumber=09&enable_bottom_share_style=1&hybrid_event_param=HybridEventParams(enterMethod%3Dmessage_markdown_url%2C%20localPage%3Dchat%2C%20chatType%3Ddefault_new%2C%20duration%3D0%2C%20isRichMediaPictureLink%3Dfalse%2C%20mobMap%3D{recommend_from%3Dchat_list%2C%20message_id%3D41127610368978690%2C%20previous_page%3Dchat_list%2C%20is_immersive_background%3D0%2C%20chat_type%3Ddefault_new%2C%20reply_id%3D41127610368972034%2C%20enter_method%3Dclick_chat%2C%20conversation_id%3D38418725230759682%2C%20enter_chat_method%3Dclick_chat%2C%20bot_id%3D7234781073513644036%2C%20current_page%3Dchat}%2C%20extra%3Dnull)&use_xbridge3=true&loader_name=forest&need_sec_link=1&sec_link_scene=im&theme=light - CLA-01W Laser-Directed Infrared Countermeasure Pod

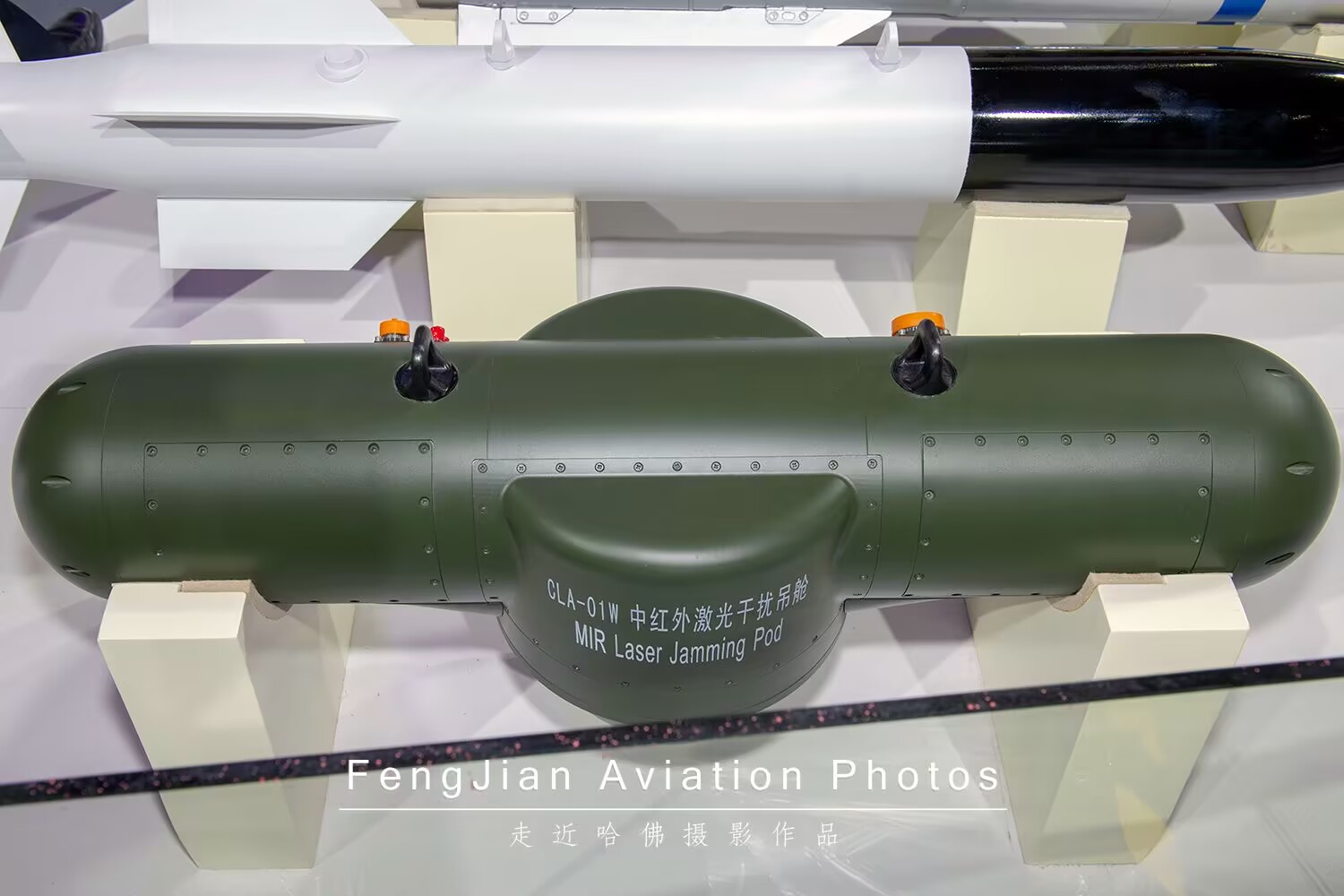

This is a specialized active jamming pod designed for infrared-guided missiles, including infrared imaging-guided combat missiles and man-portable air-defense systems (MANPADS). Compared with traditional flares, it features continuous jamming, reusability, and an absolute advantage in countering advanced infrared imaging missiles, effectively jamming the vast majority of existing infrared-guided missiles. It has a rapid response, with the time from threat detection to jamming activation not exceeding 0.5 seconds, and can simultaneously counter multiple incoming missiles without pilot intervention to complete the full jamming process. It can be mounted on the Z-10 and Z-19 series attack helicopters, large transport aircraft such as the Y-20, and is also compatible with light fixed-wing fighters such as the J-7 and J-10 series.
