Today I’m going to suggest a real old ship of the Dutch Navy.
This is the “Ramtorenschip 2de klasse” HNLMS Buffel (1868)!
A painting of HNLMS Buffel in her original refit with the breachloading guns
Source: -
About the “Ramtorenschip 2de klasse” classification
As the name suggests, what this simply means is turret ram ship 2nd-class. And there is something interesting about this. Back in the day when ships like these were being built, the Dutch Navy didn’t quite use “proper” class names for their ships.
Nowadays we all know ships by their class names, Yamato-class battleship, Admiral Hipper-class cruiser, etc etc.
What the Dutch Navy had back in the day was a more simple system using 1st and 2nd-class names to group certain ships together. HNLMS Buffel (1868) was not the only turret ram ship 2nd-class, there were three more. These four ships were build in three different shipyards, and so the ships all different in design. But all four of the ships had a primary gun turret, and all ships fulfilled the same role they were designed for. Therefor the four ships were put under the same classification of “Ramtorenschip 2de klasse”.
A very nice illustration showing the different hull and bow designs of different turret ram ships of the Dutch Navy. Top and bottom left is the HNLMS Prins Hendrik der Nederlanden, which is a turret ram ship 1st-class, but all the others are the turret ram ship 2nd-class. Here we perfectly see the differences between the ships. Two of the ships (Buffel and Guinea) were build at the same dockyard however, so these are the same in design.
Source: “Zr.Ms. Schorpioen, Van ramschip tot museumschip” book by Jan Klootwijk and Dick VriesIf we wanted to be super specific about the classification of the HNLMS Buffel (1868), and it’s “sister ships”, then this is how we would do it:
- Turret ram ship 2nd-class
- Buffel-type
- HNLMS Buffel (1868)
- HNLMS Guinea (1870)
- Schorpioen-type
- HNLMS Schorpioen (1868)
- Stier-type
- HNLMS Stier (1868)
History
Spoiler

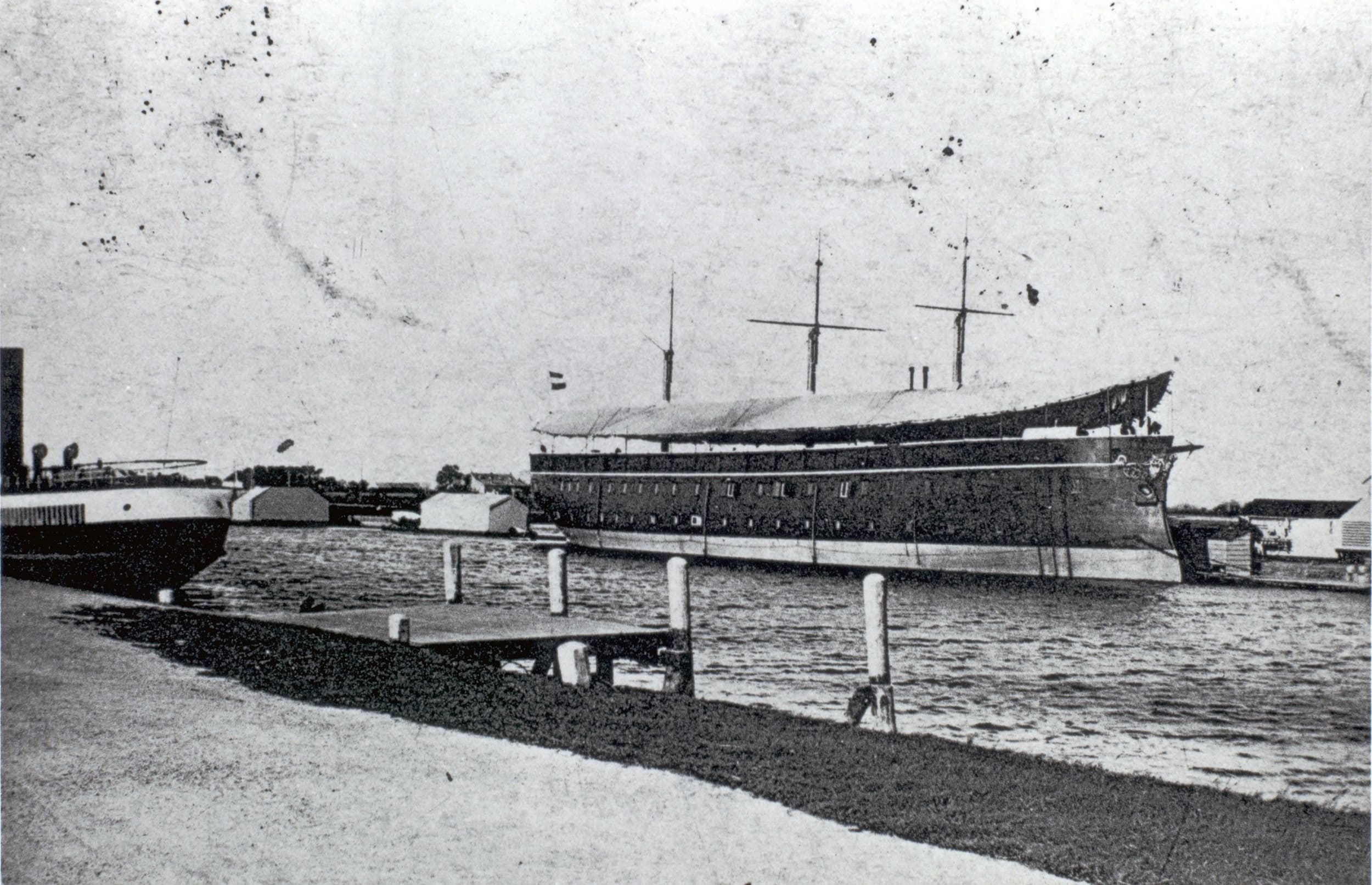

HNLMS Buffel now as a lodging vessel
Source: Foto'sHNLMS Buffel was launched on the 10th of March 1868, and would be accepted into service on the 22nd of July 1868. The Dutch Navy didn’t have any experience with the construction of these new turret ship designs, so she would be made abroad, at the Robert Napier and Sons, Glasgow, Scotland.
HNLMS Buffel would stay in the homewaters of the Netherlands for all of her carreer. And sadly there isn’t really anything to mention here. She would remain in service from 1868 till 1896.
HNLMS Buffel getting towed
Source: Foto'sIn 1896 the ship was taken out of service and turned into a lodging vessel. She had all her propulsion systems, guns and armour removed. Her interior was completely changed, and on one deck six 12 cm guns were added, most likley for basic gunnery training.
As a lodging vessel she would stay in service till 1974! She even survived the second world war in one piece. She would be refitted slightly over time, and she would be towed all over the place, wherever she was needed really. She would also recieve the pennant number A-884 in 1954.
She was finally put out of service in 1974, and she was sold to the city of Rotterdam to be modified into a museum ship. She has been build back into her original 1868 Ram Turret Ship refit, and is now on display in the town of Hellevoetsluis, South Holland.

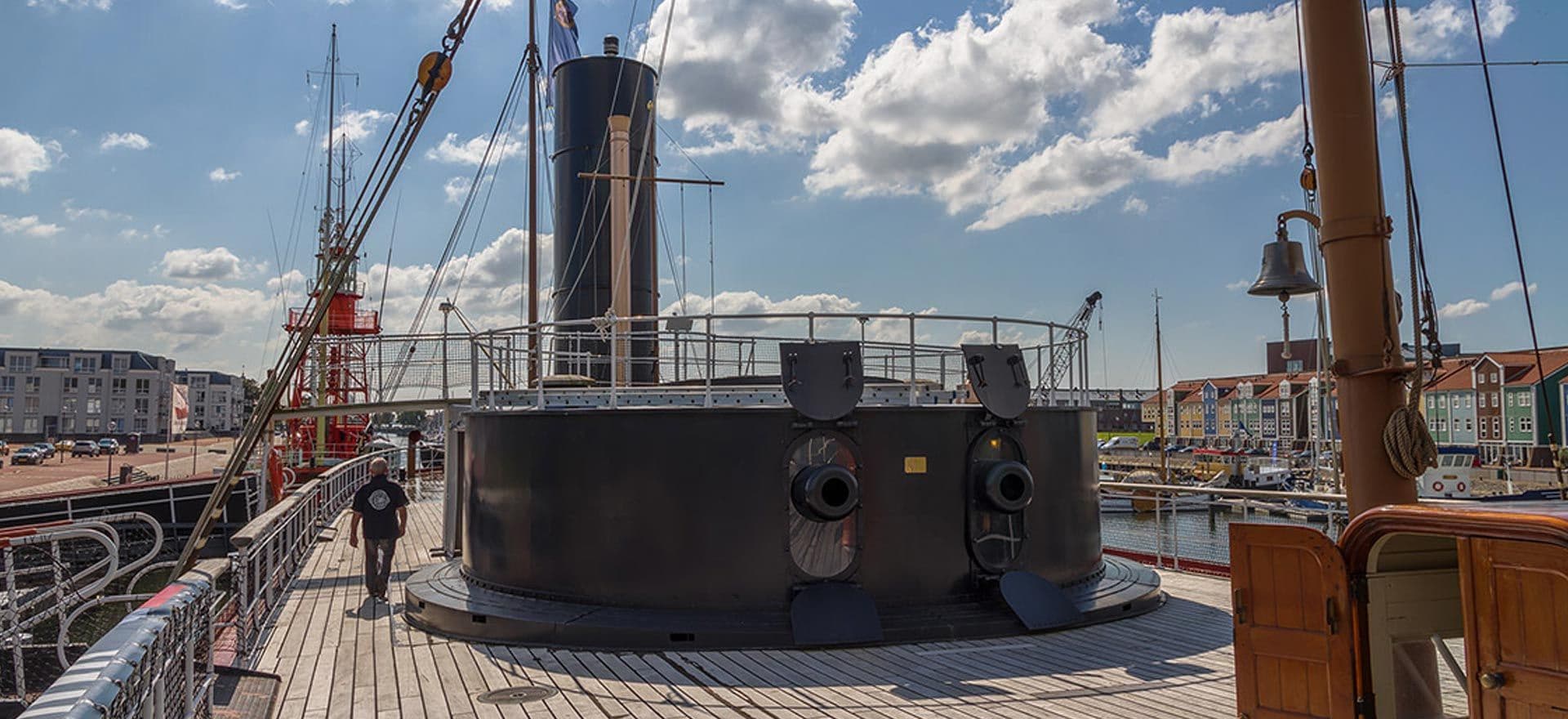

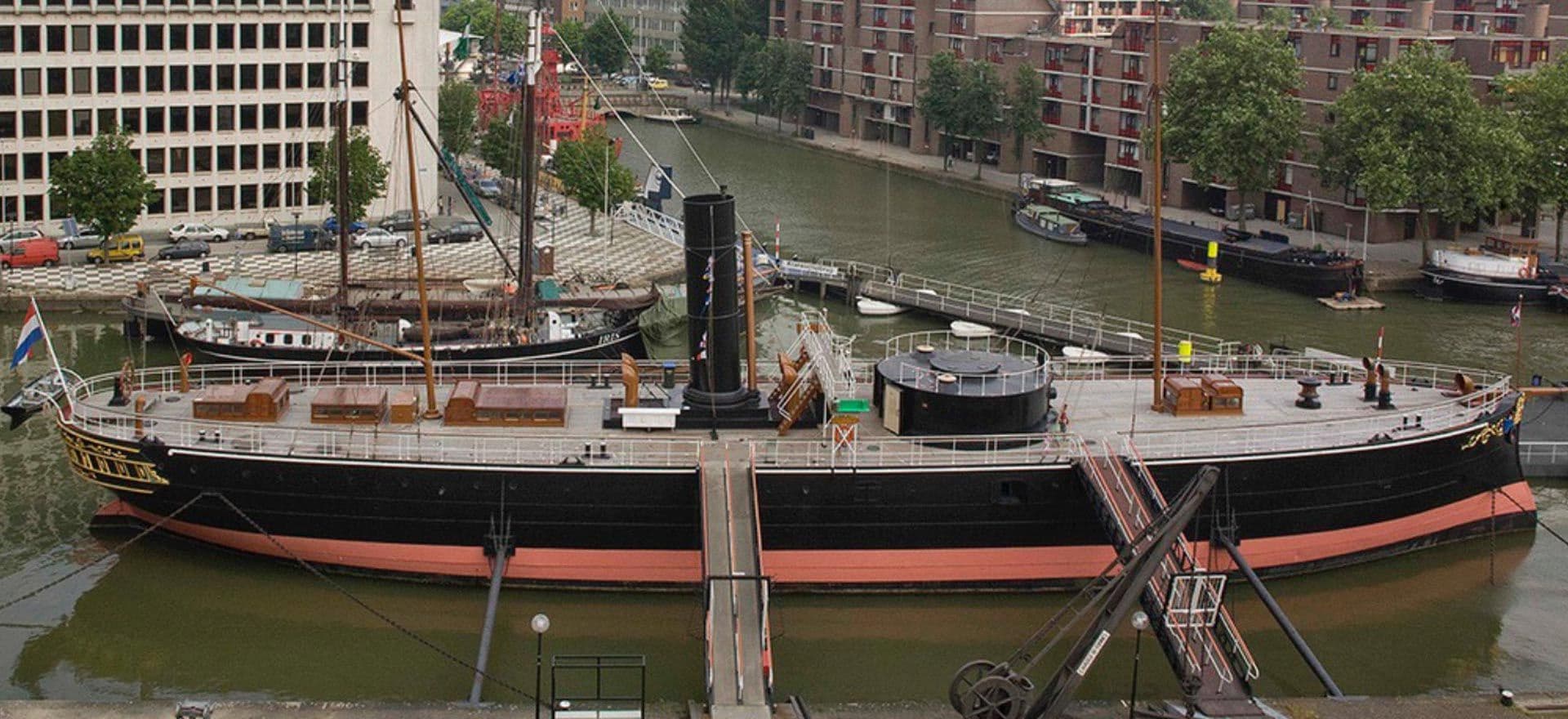

Two photos of HNLMS Buffel as a museum ship
Source: https://debuffel.nl/
Design
Spoiler
A blueprint of the 1888 refit where the 28 cm A No. 1 breachloading gun was added to the turret
Source: | Nationaal ArchiefHNLMS Buffel was 62,68 metres long, had a beam of 12,25 metres and a draft of 4,75 meters, and had a displacement of 2.198 tons. She had a crew of 117 men (This was later expanded to 159) and was able to reach a top speed of 11,2 knots.
[u]She was originally armed with a two 23 cm RML 9-inch Armstrong guns in one central turret.
These guns had acces to various AP and Schrapnel rounds. But ofcourse these are muzzle loading guns, and those don’t really fit ingame at all.Thankfully the ship went through a refit in 1888 that saw the removal of these muzzle loading guns and had them replaced with a single 28 cm A No. 1 breachloading gun.
This gun was capable of firing Common, AP and Canister rounds.During this 1888 refit four 37mm Hotchkiss guns were added too. Two five barrel revolving guns were added to each side of the rear superstructure. And two single barrel guns were added to the ends of the ship. One was at the front in a crows nest, and the other at the very rear.
Some sources keep mentioning that two additional 75 mm guns were added to the ship during this 1888 refit, but I can find no hard proof of this.HNLMS Buffel was again refitted in 1896. But sadly during this refit all her propulsion and armour was removed, so this cannot be added ingame as a playable ship. But still, during this refit the ship was turned into a lodging vessel, and so all her guns, propulsion systems and armour were removed. However on one of the decks, six 12 cm K.A guns were added, with three on each side of the ship. This was most likely done for basic gunner training, but technically speaking the ship was still armed so I just had to mention it.

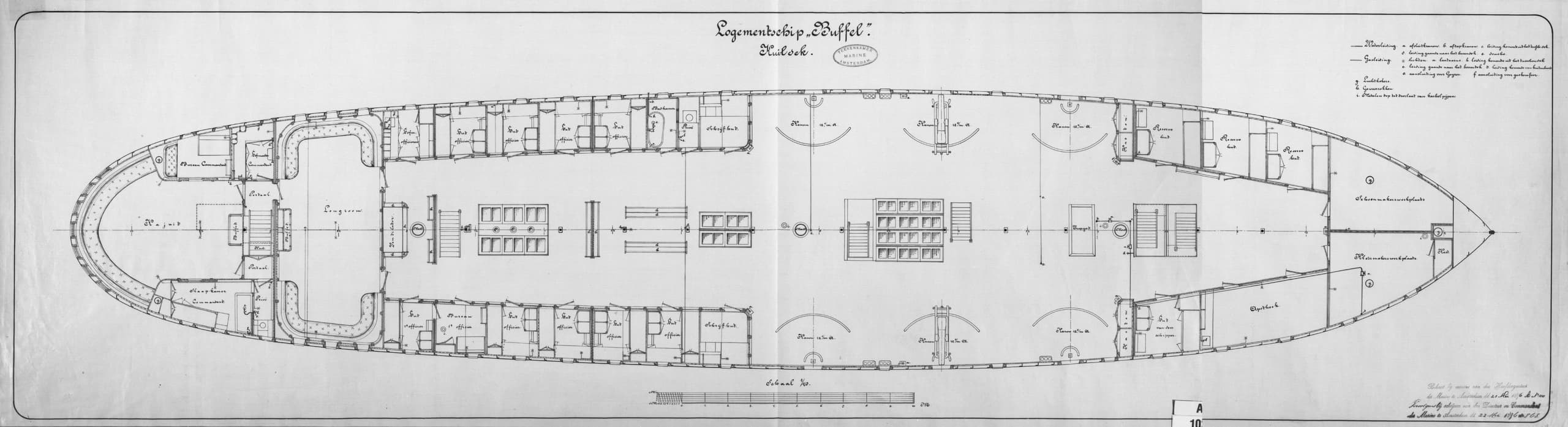

A blueprint of the “Kuildek” of HNLMS Buffel in her original lodging vessel refit. Note the six 12 cm guns
Source: | Nationaal ArchiefHNLMS Buffel was protected by a 152 - 76 mm thick belt. The deck was 25 - 19 mm thick, and the command tower was 114 mm.
The gun turret was 280 - 203 mm thick.

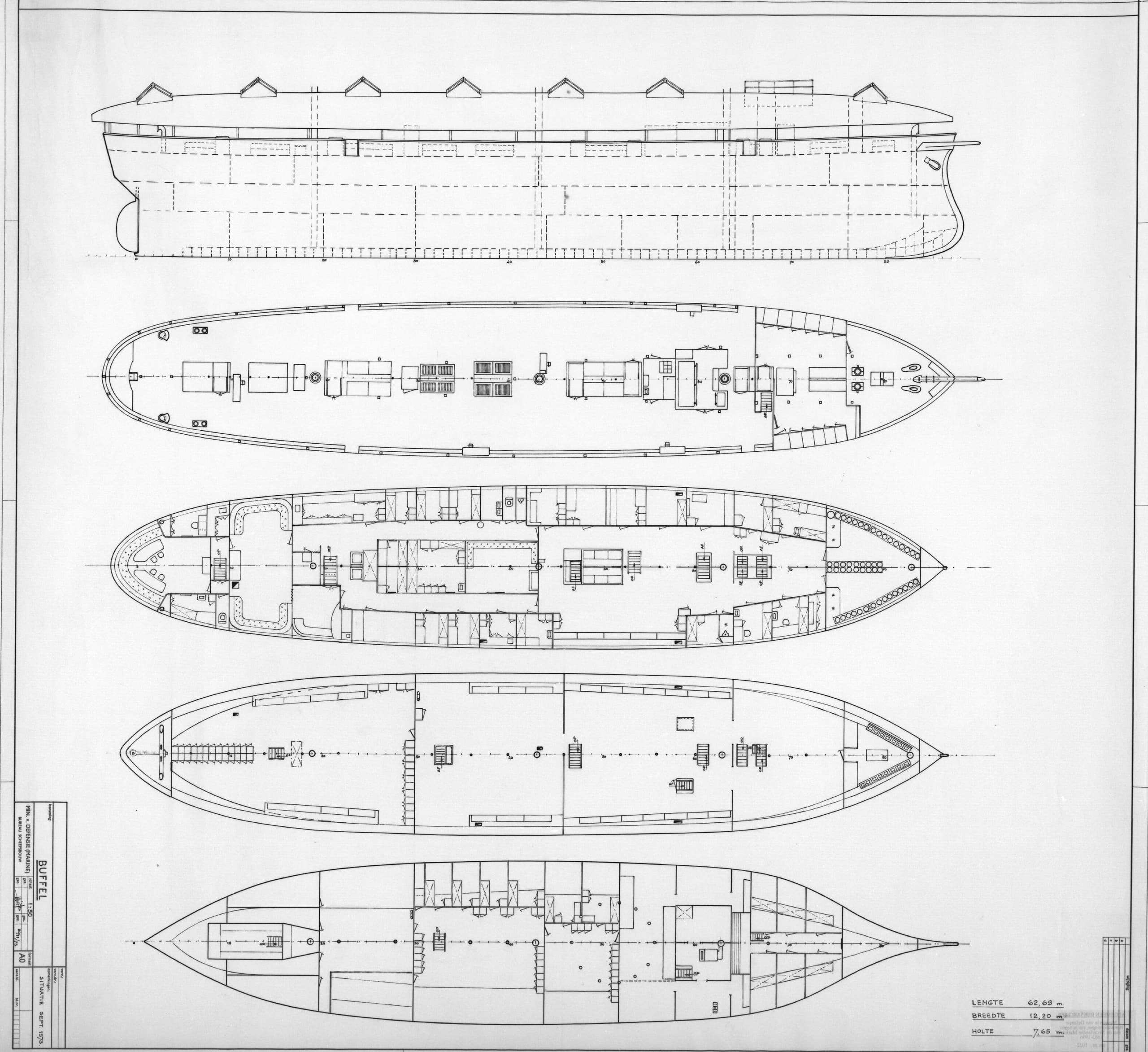

A blueprint of HNLMS Buffel in her final lodging vessel refit
Source: | Nationaal Archief
Ingame
Spoiler
The HNLMS Buffel would be a real weird ship to add ingame. The current Naval gamemode is not really made for these very old ships. This ship would be best added in some sort of Pre-WW1 Naval gamemode for it to be really fun to play ingame. HNLMS Buffel is very closely related to 1860’s to 1900’s monitors. Luckily HNLMS Buffel does have a breachloading gun that is still capable of dishing out some damage against lower rank Naval Vessels. If Buffel had to be added somewhere ingame right now, I would say put her in the Coastal Fleet. I think a ship like her is best added there.
Now where should these boats go to? As usualy with my Dutch vehicle suggestions, I ofcourse want to see this ingame in a Dutch or BeNeLux techtree. Ofcourse the BeNeLux has been added to France, so this is now the only option where Dutch vessels will go to. But it must be said that the Netherlands and France have nothing in common, and do not make sense to combine together ingame.
I’m not very well versed with early French Naval stuff, so I don’t know if France has many ships like HNLMS Buffel. But in the French tree the HNLMS Buffel would most likely fit right in with other older French vessels.
Specifications
Spoiler

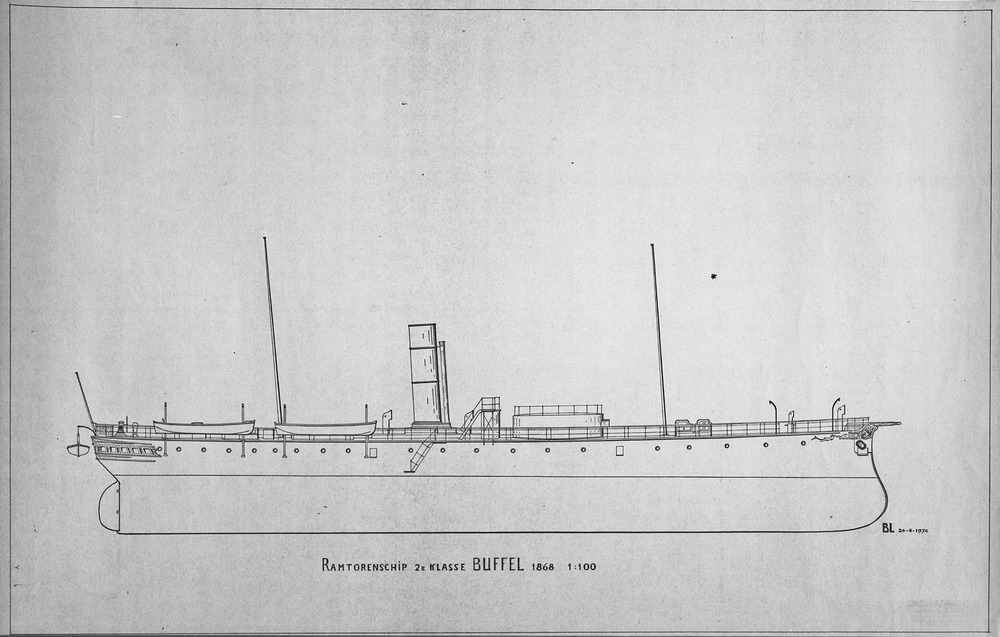

Blueprint of HNLMS Buffel in her original refit
Source: | Nationaal ArchiefDisplacement: 2.198 tons
Length: 62,68 m
Beam: 12,25 m
Draft: 4,75 m
Powerplant: 2 x steam engines, 4 x boilers
Power output: 2.000 hp
Maximum speed: 11,2 knots (20,37 km/h)
Crew: 117 men (This was increased to 159, but unclear during what time this was)Armor:
Belt: 152 - 76 mm
Deck: 25 -19 mm
Command tower: 114 mm
Turret: 280 - 203 mmArmament: (As laid down)
1 x 2 23 cm RML 9-inch Armstrong muzzleloading guns1888 refit:
1 x 1 28 cm A No. 1 breachloading gun
2 x 5 37 mm Hotchkiss revolving guns
2 x 1 37 mm Hotchkiss guns
Some sources say two 75mm guns were added too, but I can find no hard proof of this anywhere1896 refit: ← NOT viable for ingame, all propulsion and armour was removed during this refit. However she could be used in this refit as a stationairy AI controlled ship
6 x 1 12 cm K.A guns (Unclear which exact types used, most likely the No. 1 or No. 2)Ammunition:
23 cm RML 9-inch Armstrong muzzleloading gun
- [AP] Iron Projectile
–Length: 68 cm
–Weight: 105 kg- [AP] Hardened Projectile
–Length: 52 cm
–Weight: 112 kg- [AP] Steel Projectile
–Length: 51 cm
–Weight: 109 kg- [AP] Pointed Bullet (“Puntkogel”)
–Length: 46 cm
–Weight: 113 kg- [Schrapnel] Three types were used, all of the same weight
–Length: Unknown
–Weight: 68.5 kg28 cm A No. 1 breachloading gun
- [Common] Gewone granaat v/ 28cm A L2,8
–Projectile: 206,7 kg round with a 9,3 kg filling, for a total weight of 216 kg
–Charge: 60 kg prismatic gunpowder No. 2
–Velocity: 510 mps- [AP] Glasharde Puntgranaat v/ 28cm A L2,8
–Projectile: 251 kg round with a 2,7 kg filling, for a total weight of 253,7 kg
–Charge: 58,5 kg prismatic gunpowder No. 2
–Velocity: 475 mps (453,5 mps when fired with 50 kg prismatic gunpowder No. 1)
–Penetration: 454 mm of iron at 0 meters- [AP] Stalen Puntgranaat v/ 28cm A L2,8 (1ste model)
–Projectile: 247,25 kg round with a 4,95 kg filling, for a total weight of 252,2 kg
–Charge: 58,5 kg prismatic gunpowder No. 2
–Velocity: 475 mps (453,5 mps when fired with 50 kg prismatic gunpowder No. 1)
–Penetration: 454 mm of iron at 0 meters- [AP] Stalen Puntgranaat v/ 28cm A L2,8 (2de & 3de model)
–Projectile: 250 kg round with a 3,7 kg filling, for a total weight of 253,7 kg
–Charge: 58,5 kg prismatic gunpowder No. 2
–Velocity: 475 mps (453,5 mps when fired with 50 kg prismatic gunpowder No. 1)
–Penetration: 454 mm of iron at 0 meters- [Canister] Kartetsgranaat v/ 28cm A
–Projectile: 124 kg round filled with 251 zinc balls of 0,368 kg each.
–Charge: Unknown
–Velocity: Unknown12 cm K.A gun
- [Common] Gewone granaat v/ 12cm K.A
–Projectile: 12,55 kg round with a 0,8 kg filling, for a total weight of 13,35 kg
–Charge: 1,1 kg gunpowder No. 1
–Velocity: 292,5 mps- [AP] Glasharde granaat v/ 12cm K.A
–Projectile: 18,4 kg round with a 0,2 kg filling, for a total weight of 18,6 kg
–Charge: 1,1 kg gunpowder No. 1
–Velocity: 260 mps- [AP] Kartetsgranaat v/ 12cm K.A (1ste en 2de model)
–Projectile: 12,1 kg round filled with 41 zinc balls of 0,18 kg and 9 composite of 0,048 kg each.
–Charge: Unknown
–Velocity: Unknown
HNLMS Buffel on the 2nd of Juli 1891, during a visit from the German Emperor Wilhelm II
Source: Foto's
And there you have it! I hope you enjoyed reading about interesting ship of the Dutch Navy.
See you on the battlefield!
