Hi everyone! Me and others have been comparing the Bofors 40 mm Automatic Gun L/70 ammunition as it appears across different nations in-game, and after plotting the data and checking basic performance specs, I’ve run into several inconsistencies that don’t really line up with how this gun system was standardized in real life. It’s time to point out what looks off and to hopefully gather better information and sources with help from the community.
List of potentially affected vehicles
Ground Vehicles:
(USA) Sgt. York M247, (Italy) Bofors 40/70, (France) AMX-13 DCA 40, (Sweden) Lvkv 42, (Sweden) VEAK 40
Naval:
(Ger) Jaguar, (Ger) Köln, (Ger) Hugin, (Ger) Pfeil, (Ger) Schütze, (Ger) Lübeck, (Ita) Saetta P-494, (Ita) Albatros, (Ita) Alcione, (Ita) Freccia P-493, (Ita) Baleno MC-492
Disclaimer: We will not cover the Bofors 40mm L/70 B It is the modernised and more modular Variant meant to be fitted into various Platforms in the late 90s-2000s, Such as the CV-9040 and K21 etc. And neither the L/70 Mark 3 either as its the most modern system and isnt relevant to the vehicles covered in-game at the current time of this post.
Current well Documented Ammunition used across multiple nations.
As Nato had made the 40×365 mm R // Bofors 40 mm Automatic Gun L/70 Standard November 1953. There were a number of standardised rounds.
Current Documented Ammunition
HE Variants:
HE-T
Projectile mass (g) 964
Propellant mass (g) 480
Explosive mass (g) 83
Complete round mass (g) 2500
Complete round length (mm) 535
Explosive type: RDX
Muzzle velocity (m/s) 1005
Self-destruction time (s) 8-13HEI-T
Projectile mass (g) 964
Propellant mass (g) 480
Explosive mass (g) 83
Complete round mass (g) 2500
Complete round length (mm) 535
Explosive type: RDX+AI
Muzzle velocity (m/s) 1005
Self-destruction time (s) 8-13AP Variants:
AP-T
Projectile mass (g) 930
Propellant mass (g) 480
Explosive mass (g) None
Complete round mass (g) 2470
Complete round length (mm) 497
Explosive type: None
Muzzle velocity (m/s) 1025
Self-destruction time (s) NoneSub-Calibre Variants:
M/49 40 mm(24mm) Bofors SABOT-T
Core Diameter: 24mm
Projectile mass (g) 705
Propellant mass (g) 480
Explosive mass: None
Complete round mass (g) 2250
Complete round length (mm) 474
Explosive type: None
Muzzle velocity (m/s) 1200
Self-destruction time: None
Detailed In-Game Values(Ground Vehicles only for now)

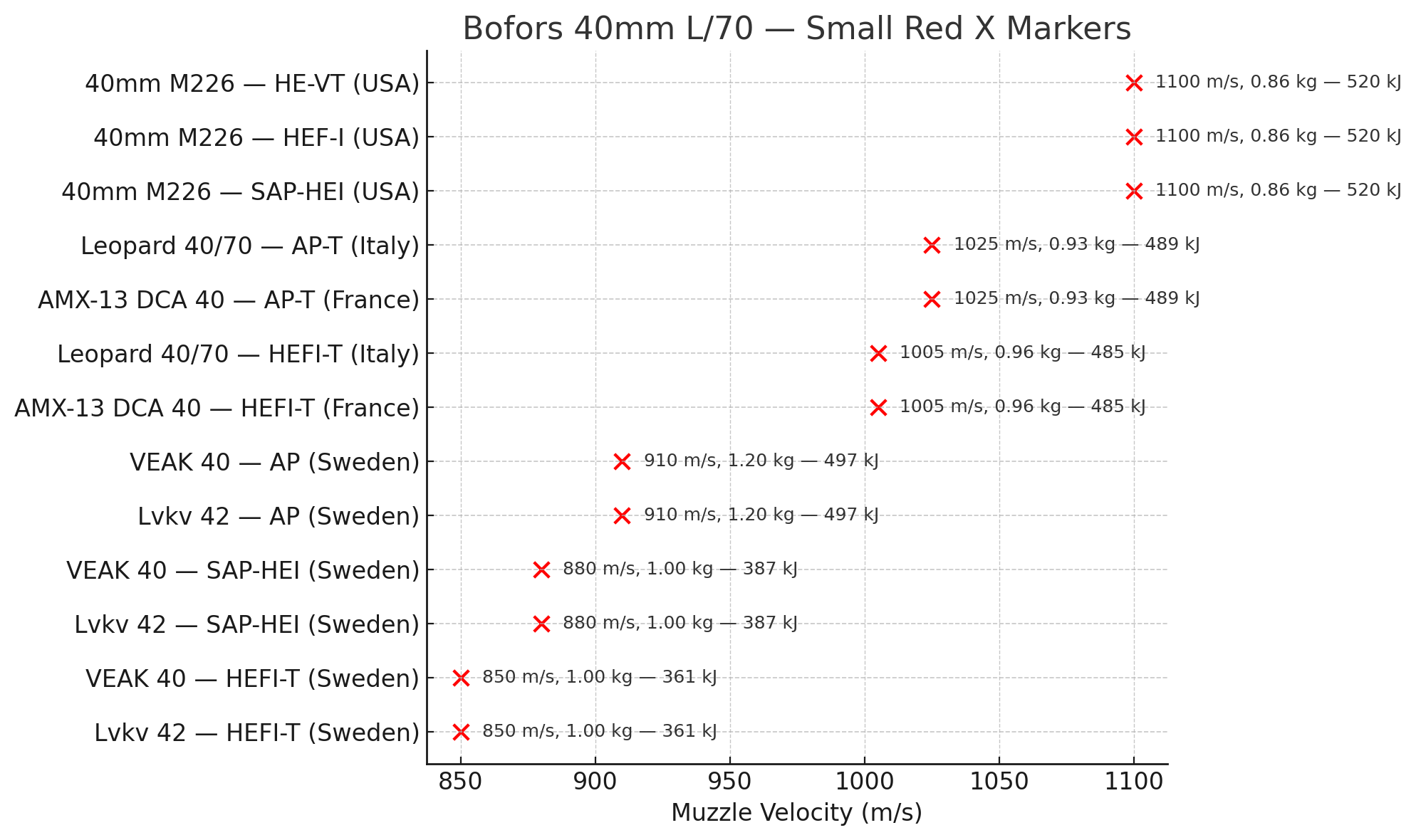

Detailed In-Game Values: And Performance Chart.
Swedish 40mm Bofors L/70 (Designated “Lvakan 48”)
Lvkv 42
- SAP-HEI : Muzzle V/o 850 m/s // Mass: 1 kg
- AP : Muzzle V/o 910 m/s Mass: 1.2 kg
- HEFI-T : Muzzle V/o 880 m/s // Mass: 1 kg
VEAK 40
- SAP-HEI : Muzzle V/o 850 m/s // Mass: 1 kg
- AP : Muzzle V/o 910 m/s Mass: 1.2 kg
- HEFI-T : Muzzle V/o 880 m/s // Mass: 1 kg
Edit: Lvakan 48 is known to be incorrect an Bug reported(Here) is currently suggested to the developers as a “Historical error”
French 40mm Bofors L/70 (French License production designated “40mm Mle51 T1”)
AMX-13 DCA 40
- HEFI-T : Muzzle V/o 1,005 // Mass: 0.96 kg
- AP-T : Muzzle V/o 1,025 // Mass: 0.93 kg
Note: The values for this SPAA seems to line-up.
Italy 40mm Bofors L/70 (Italian License production designated “Breda-Bofors 40mm L/70”)
Leopard 40/70
- HEFI-T : Muzzle V/o 1,005 m/s // Mass: 0.96 kg
- AP-T : Muzzle V/o 1,005 m/s // Mass: 0.96 kg
Note: Its strange these rounds share the exact same stats despite being different ammunition types, and could be potentially incorrect.

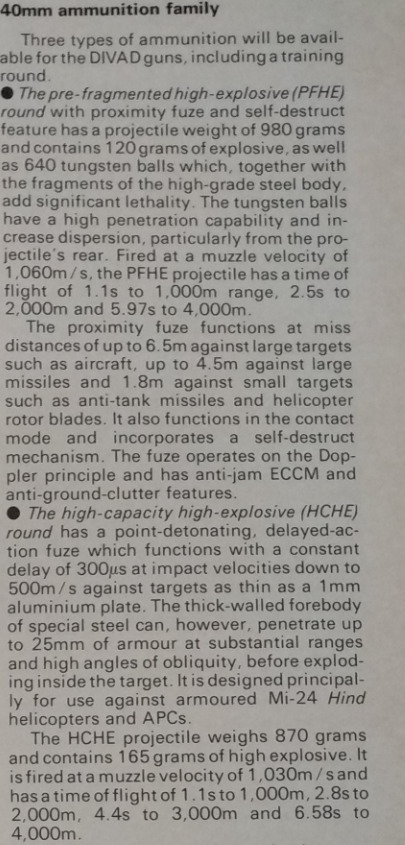

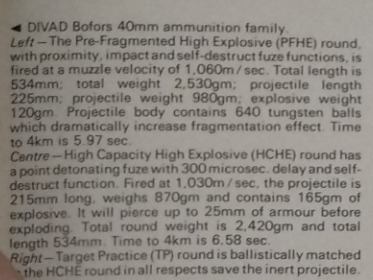

USA 40mm Bofors L/70 (American License production designated “40mm M226”)
Sgt York M247 (DIVAD)
- SAP-HEI : Muzzle V/o 1,100 m/s // Mass: 0.86
- HEF-I : Muzzle V/o 1,100 m/s // Mass: 0.86
- HE-VT: Muzzle V/o 1,100 m/s // Mass: 0.86
Note: Its strange that all rounds are performing exactly equally to each other And there could be a potential error involved.
Documentation folders (work in progress):
US. L/70 documentation
If you have sources that confirm correct values, please share them so this can become a proper Bug report. velocity charts, projectile mass comparisons, and historical references.
NOTE: Specific Issues with only one Vehicle affected can and should be Bug Reported
If you have anything to add use this formula below:
Nation:
Round Type:
Specs:
Source:Then Ping “karnitin75”(Author of post) So i can see it and look at it and determine if its relevant and can be added to the collective folder.
Reminder: Do not post or share any classified, export‑restricted or otherwise restricted military‑technical documents on the War Thunder forums Documents/Pictures you have definite proof the material has been officially declassified. See Guidelines For more information
Thanks and Happy Hunting!
