ARMAMENT
Spoiler
-
1x Kongsberg Protector M151 Crows Remote Controlled Weapon station
-Weight: Approximately 135 kg (298 lb) (excluding weapon and ammunition).
-Height: 749 mm (29.5 in) above the roof.
-Stabilization: Fully stabilized, allowing for accurate firing on the move.
-Rotation: 360° continuous rotation, with a rotation speed of 90 degrees per second.
-Elevation: -20° to +60°, with an elevation speed of approximately 70 degrees per second.
-Operating Temperature: -46°C to +65°C.
-Control: Operated from a control console safely inside the vehicle, using a display and joystick.
-NVD: 3rd generation- Main integrated weaponry: 4x 70mm rocket launcher tubes of either CVR7PG, HYDRA70PG or FZ90PG - Precision Guided rockets
TECHNICAL DATA
Length: 305 cm
Width: 152.4 cm
Height: 130 cm
Dry Weight: 641 kg
Wheelbase: 229 cm
Ground Clearance: 18.25 cm
Engine: Liquid-cooled, 499cc, Single-Cylinder, 4-Stroke OHV.
Horsepower: Around 30 HP.
Transmission: Automatic (CVT) with high/low range.
Drive: On-Demand True 6WD with 4x4/6x6 selection and standard rear differential lock.
Top speed: Approx 100kmh
HISTORY
Kongsberg Defence & Aerospace is a leading Norwegian technology company wich is a part of Kongsberg Gruppen and is a direct continuation of Kongsberg Våpenfabrikk which was funded in 1814. When this company went through a composition and restructuring in 1987 due to it’s financial problems (including those related to the Toshiba case), the defense division was continued in a new company, Norsk Forsvarsteknologi (NFT), which then changed its name to Kongsberg Gruppen in 1995. Kongsberg Defence has since the 1990’s been developing remote weapon stations which has been sold to many different nations and been adopted on a number of vehicles trough the years. These weapon stations has been in continuous development, with new models being released every now and then and has underwent major changes.

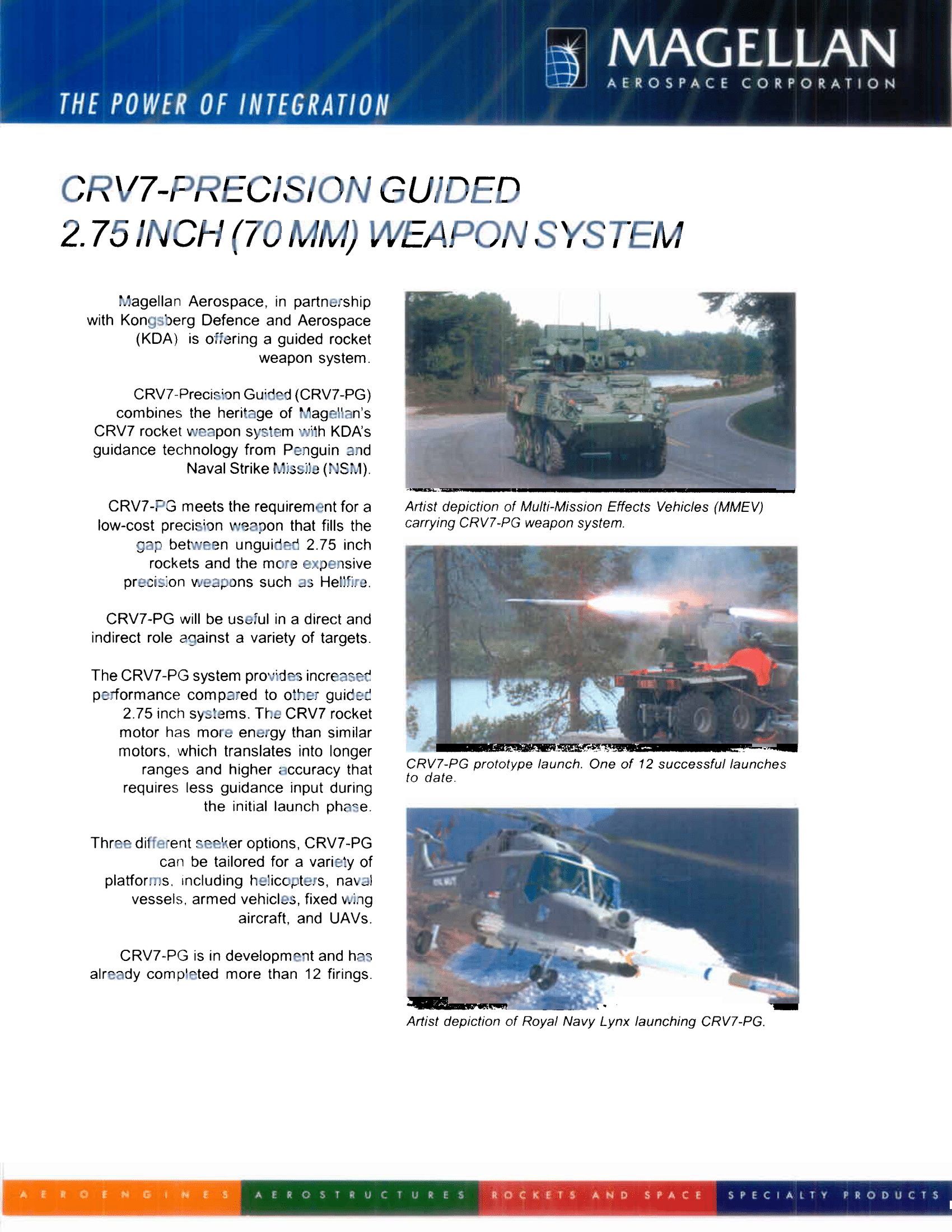

Kongsberg Defence & Aerospace has also collaborated with a number of other companies, in other to for example win contracts or to demonstrate their products and their possibilities. This specific vehicle, was an collaboration between Norwegian Kongsberg Defence & Aerospace and the Canadian Magellan Aerospace, this was in an attempt to win an contract for the United States requested an offer for, but it never went anywhere and the system never left the testing stage. The purpose behind this was to have a highly mobile system to reach almost everywhere, in addition to being a Low Cost Precision Kill system, with cheap 70mm cvhr7 rockets/missiles which were made controllable by mounting a smart viewfinder. The idea was to reuse different types of viewfinder technology developed through the NSM project. This system is also fire both Hydra 70 and FZ90 rockets with a pg kit, making it very versatile with ammunition.

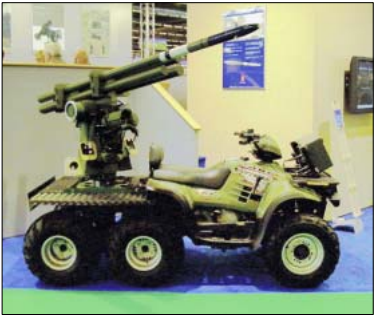

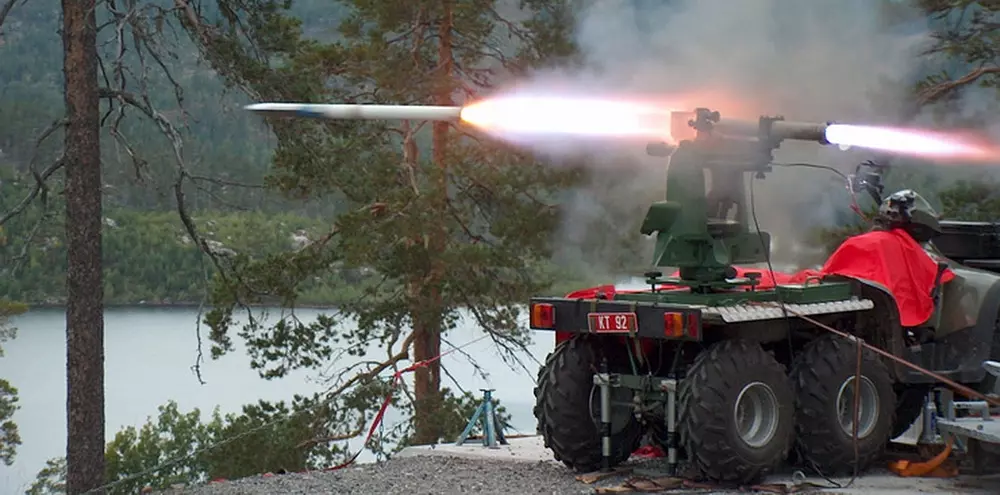

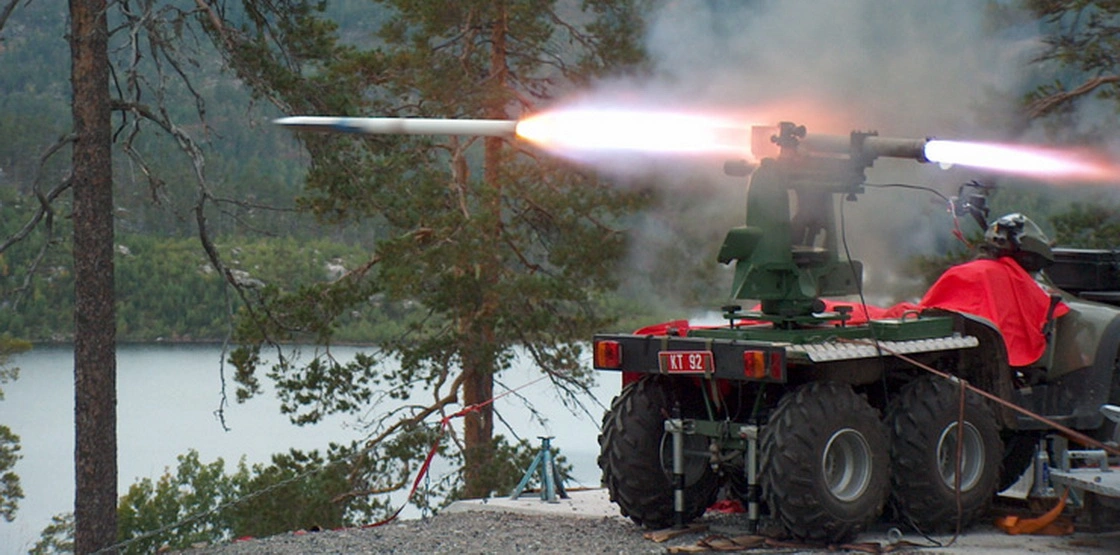

The vehicle is a 6x6 Polaris Ranger which has been modified with a platform instead of the trunk that were there before, and has been fitted with a Kongsberg Protector M151 Remote weapon station in the center of this. In the image above we can see the vehicle being test fired in Norway at Kongsberg’s own firing range at Hengsvann, if you look closely you can see the rws has clamps for 4x tubes. The reason only one tube is being used here is likely because of the testings, below is an image of this specific vehicle with 4 tubes. The vehicle has integrated command controls for the rws in the front of the atv. This was all done around 2004, the fate of the project and prototype is unknown. This vehcile is valid for both Norway and Canada, but this specific suggestion is for Norway.
IN GAME
In the game this could be a powerful and highly mobile tank destroyer, with a wide variation of warheads, it is very versatile against both heavier and lighter armored vehicles, it will even be useful against helicopters with its high speed and precision. It’s an ATV, so it will be very very agile, and can reach sones and tactical spots faster than most others. What br and rank this would be is hard to decide.
CRV7PG Ammunition
Spoiler
General Technical Data
-length ~1.6 m,
-diameter 70 mm
-weight ~16 k
-speed Mach 3+g
-range 14 km (ground)
-Warheads are interchangeable modular components from the CRV7 family
-with weights around 4.5-6 kg
-
WDU-50001/B Kinetic Energy Penetrator (KEP)
-Description: Solid tungsten rod for high-velocity impact.
-Effects: Penetrates >1 m concrete or 13 mm steel at 5 km; kinetic energy causes spalling and fragmentation inside bunkers or light armor.
-Use: Anti-bunker, anti-structure; effective against fortified positions or lightly armored vehicles. -
WDU-5002/B Flechette Anti-Tank (FAT)
-Description: Deploys 80 tungsten-steel flechettes (darts) upon approach.
-Effects: Each dart penetrates light/medium armor (up to 20 mm RHA); designed for tanks, APCs, or helicopters. Spread pattern covers ~10 m area for multiple hits.
-Use: Anti-armour, anti-personnel in open areas; specialized for mobility kills on vehicles. -
WDU-5003/B High Explosive Incendiary Semi-Armor Piercing (HEISAP) or RA-79:
-Description: 6 kg HE with incendiary fillers and a piercing nose.
-Effects: Penetrates 13 mm steel, then detonates with fragmentation and fire (equivalent to ~4-5 kg TNT). Causes internal damage via spall and ignition of fuel/ammo.
-Use: Anti-vehicle, anti-bunker; versatile for semi-hardened targets. -
WDU-500X/B General Purpose (GP):
-Description: Multi-purpose HE fragmentation warhead.
-Effects: 6 kg payload with proximity or impact fuze; scatters shrapnel over a 20-30 m radius.
-Use: Anti-personnel, soft targets, or light vehicles; less specialized for armor but effective with precision guidance.
HYDRA70PG Ammunition
Spoiler
General Technical Data
-Length: 1.4-1.8 m (varies by warhead/motor
-Diameter: 70 mm
-Weight: 12-15 kg (full rocket 11.3 kg)
-Warhead: Modular options (4.5-7.7 kg class)
-Speed: Mach 2.2+ (700-1,000 m/s muzzle velocity)
-Range: 5-8 km effective ground launch (guided equivalent via APKWS benchmarks)
-Propulsion: Mk 66 Mod 4 solid rocket motor
-
M151 HE (10 lb “10-Pounder”):
-1.04 kg Comp B
-blast radius 10 m
-fragments lethal to 50 m; anti-personnel/light vehicles. -
M229 HEPD: 2.9 kg Comp B (7.7 kg total);
enhanced range/effects vs. soft/light armor -
M247 HEDP/HEAT:
-0.91 kg shaped charge Comp B
-penetrates ~300 mm RHA;
-anti-armor (side/roof hits on MBTs) -
**M255A1 Flechette: **
-1,179 × 28-grain tungsten darts; area suppression
-13-20 mm RHA per dart; anti-infantry/APCs -
M156 WP Smoke/M264 RP Smoke:
-Obscuration/marking; non-lethal support
FZ90PG Ammunition
Spoiler
General Technical Data
-Length: 1.5-1.6 m
-Diameter: 70 mm
-Weight: ~14 kg (engine + 4.3 kg warhead)
-Warhead: 3-6.2 kg
-Speed: Mach 2.5 (680 m/s burnout)
-Propulsion: FZ90 wrap-around solid motor
-
FZ71 HE: 4.3 kg, >8,000 fragments; lethal radius 18-21 m; anti-personnel.
-
FZ49 Anti-Armor: 3 kg shaped charge; >350 mm steel penetration; heavy armor/bunkers.
-
FZ319 HEAP: 4.3 kg (1 kg explosive); light armor piercing + frag.
-
FZ100 Cargo: 6.2 kg, 9 × 0.48 kg bomblets (105 mm pen each); anti-personnel/tank area denial.
-
FZ122 Flechette: 2,200 flechettes; anti-vehicle/personnel spread.
-
FZ149 Multidart: 36 darts; light armored vehicles
