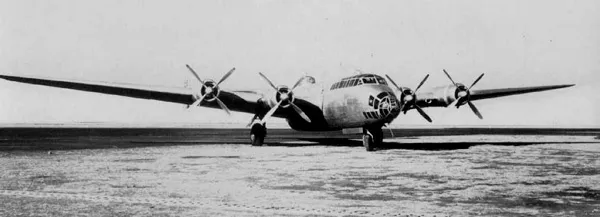

Nakajima G5N2 (中島 深山改)
The Nakajima G5N2 is a Japanese prototype bomber produced between 1941 and 1943. Four prototypes of the G5N2 were built, which in the second half of 1943 were converted into Nakajima G5N2-L transport planes.
History

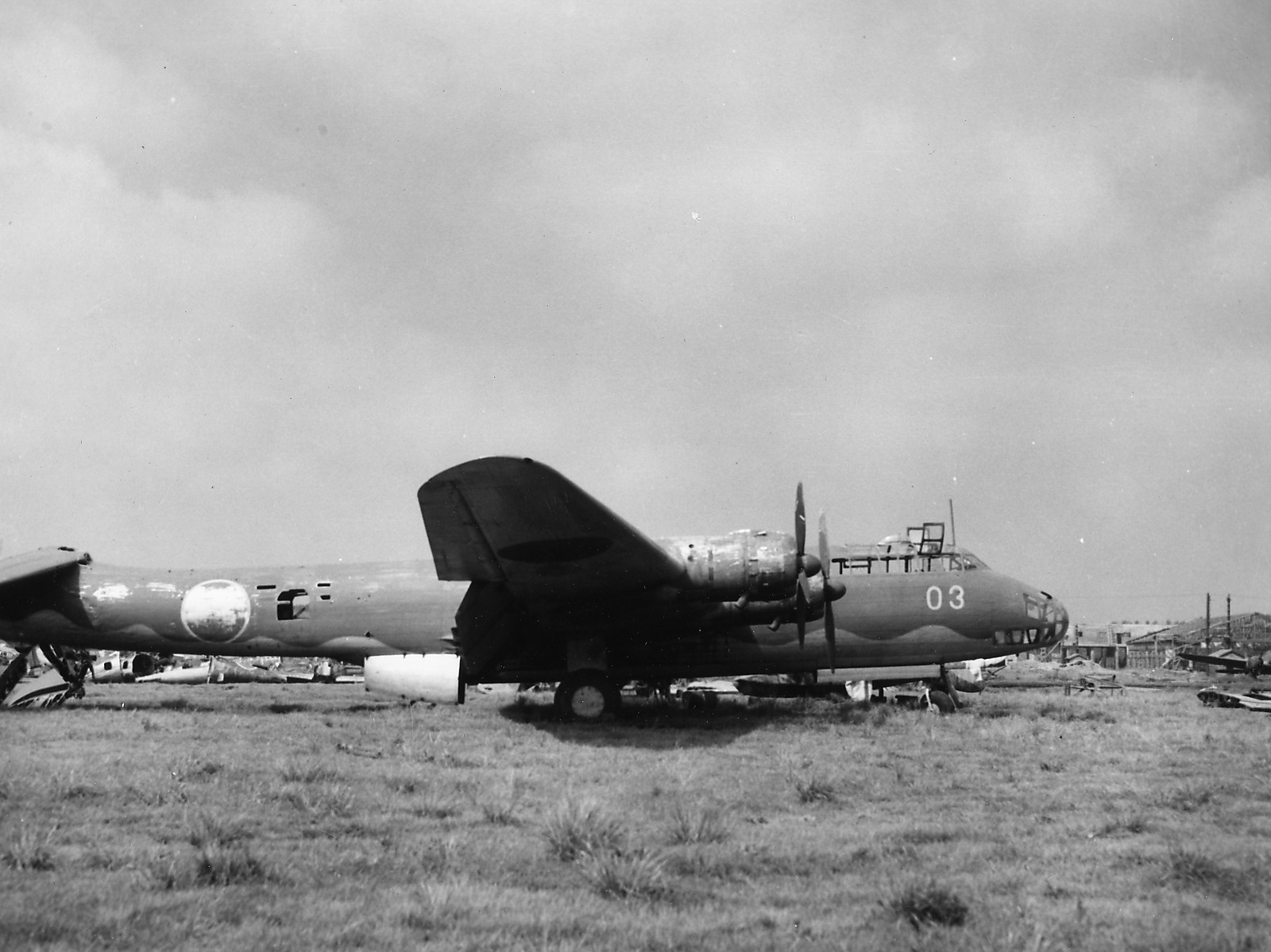

In April 1941, the prototype G5N1 was equipped with a Mitsubishi MK4B Kasei 12 engine, which was a temporary solution while waiting for deliveries of the more powerful Nakajima NK7A Mamori 11 engine. During test flights, the Japanese discovered that the prototype G5N1 was overloaded (by 20% compared to the design), and its performance in the air was disappointing. After the first G5N1 prototype, the second prototype also used the Mitsubishi MK4B Kasei 12 engine. However, in the second quarter of 1941, production of the Nakajima NK7A Mamori 11 engine began, and the next G5N bomber prototypes were equipped with it. The planes with the Nakajima engine turned out to be disappointing, not significantly improving the aircraft’s performance. The Nakajima G5N with Mamori 11 engines were named Miyama Kai (深山改) or G5N2, and four of these planes were built. They were used for testing and development purposes until mid-1943, providing valuable experience for Nakajima engineers, who later used it in the G8N1. In mid-1943, the decision was made to convert the unsuccessful Nakajima G5N2 prototype bombers into huge Nakajima G5N2-L Model 12 transport planes with serial numbers 21-01, -02, -03, and -05. By the end of the war, two G5N2-Ls survived, with numbers 21-03 and 21-05 (plane 21-02 crashed in 1944 at Kanoya Air Base, and 21-01 was destroyed by the Americans at Tinian).

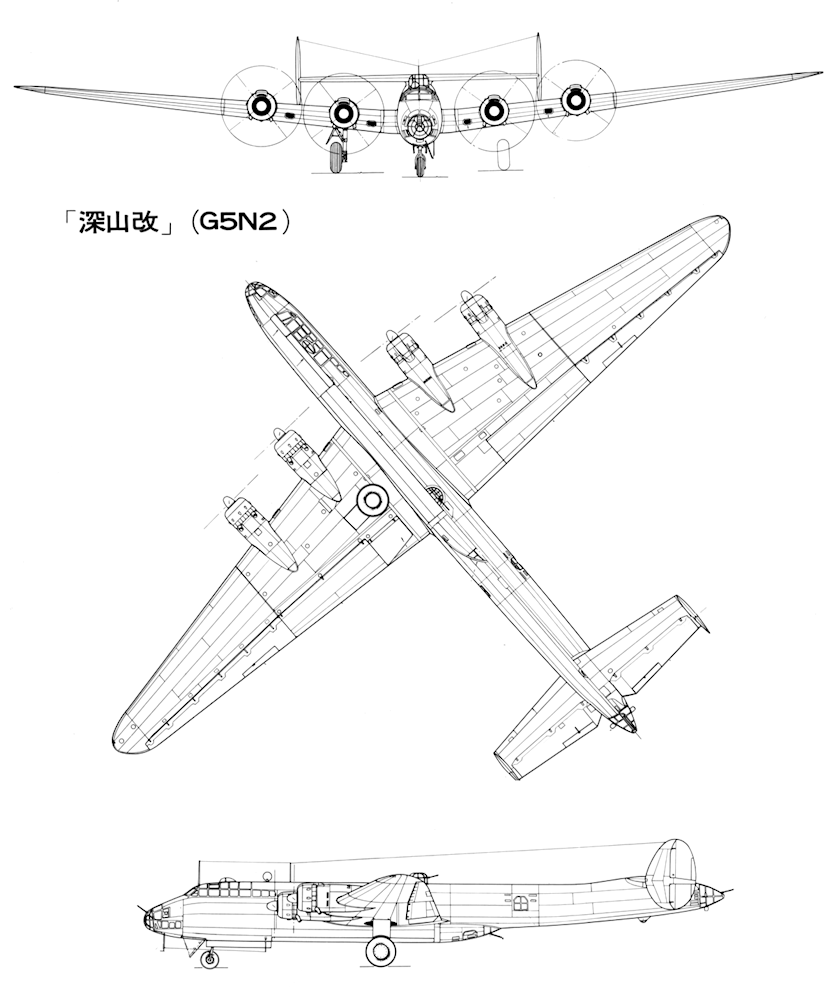

The art of the Nakajima G5N2

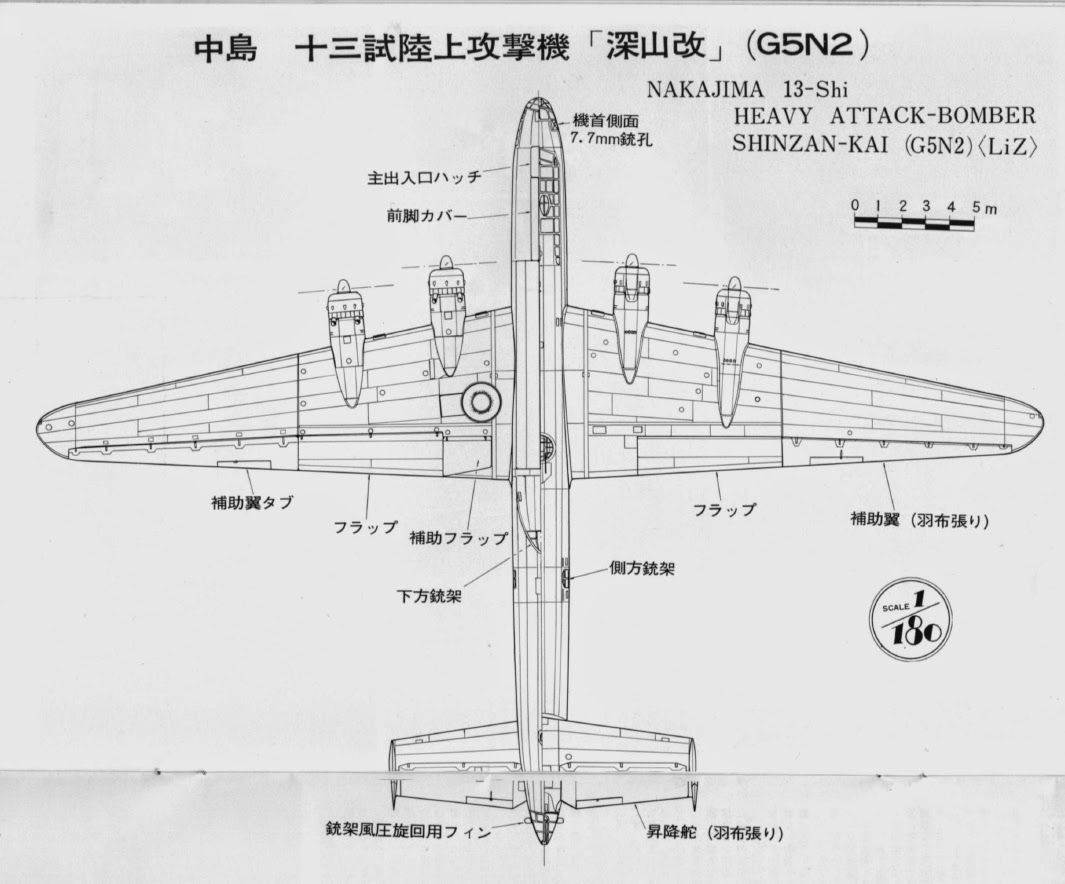

Construction description

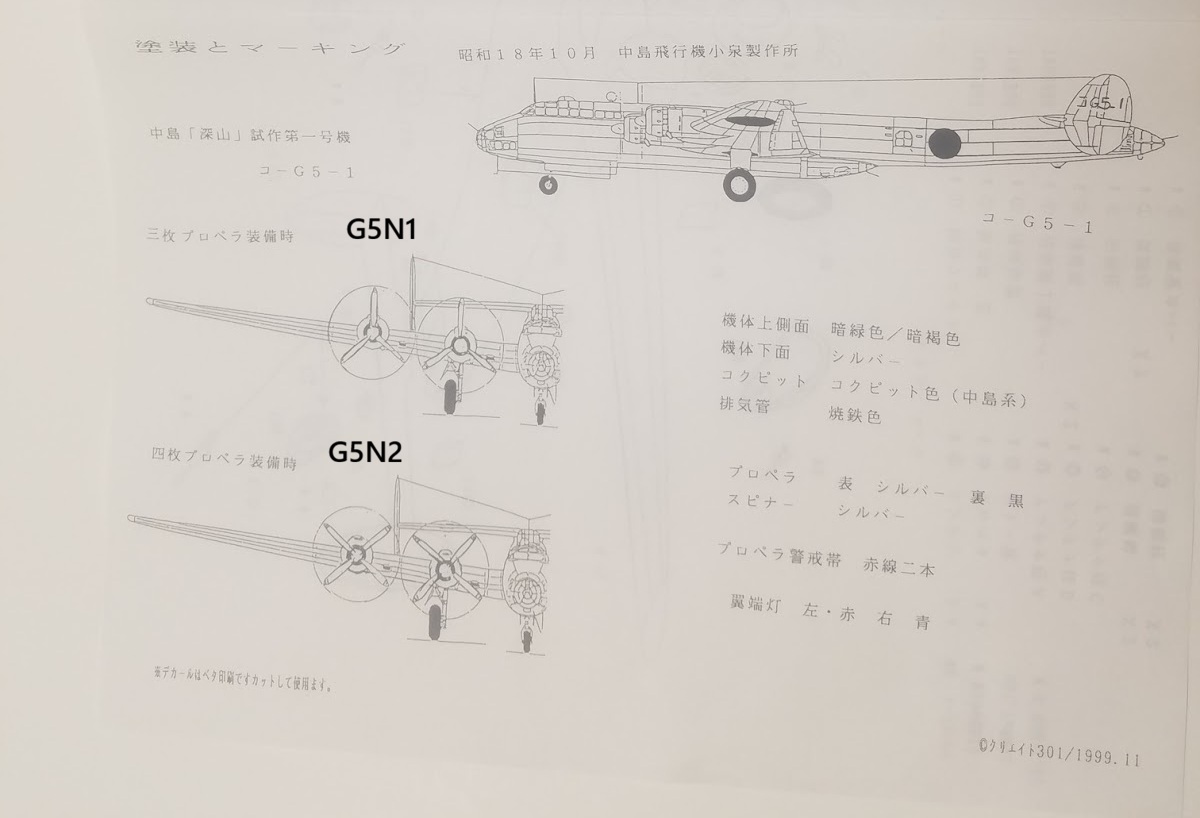

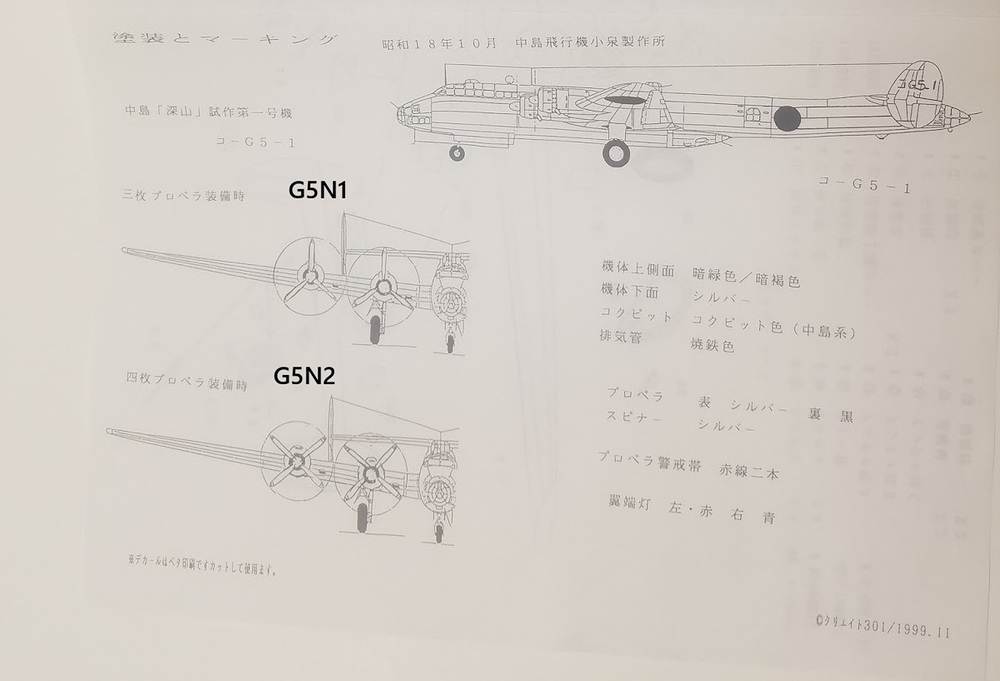

The Nakajima G5N2 is almost identical to the Nakajima G5N1 plane in War Thunder. There are only minor differences between them. The first is the use of Nakajima NK7A Mamori 11 engines with 1,870 hp (1,375 kW) instead of the Mitsubishi MK4B Kasei 12 engines with 1,530 hp (1,140 kW). The second change was the use of four-blade metal propellers with a diameter of 4,250 mm instead of three-blade metal propellers with a diameter of 3,900 mm (in the game, the G5N1 has incorrectly modeled four-blade propellers).
General characteristics
- Crew: 7
- Length: 31,02 m
- Wingspan: 42,14 m
- Height: 6,13 m
- Wing area: 201,80 m2
- Empty weight: 20 100 kg
- Gross weight: 32 000 kg
- Maximum weight take-off: 36 000 kg
- Powerplant: 4 x Nakajima NK7A Mamori 11 ,14-cylinder air-cooled radial engine with with a take-off power of 1,870 hp (1,375 kW)
- Propellers: Adjustable four-blade metal propeller with a constant rotational speed and a diameter of 4,250 mm.
Performance
- Maximum speed: 420 km/h
- Cruising speed: 370 km/h
- Range: 4190 km
- Maximum Range: 7760 km
- Service ceiling: 9050 m
- Climb Rate: ?
- Rate of climb: 13 min to 5000

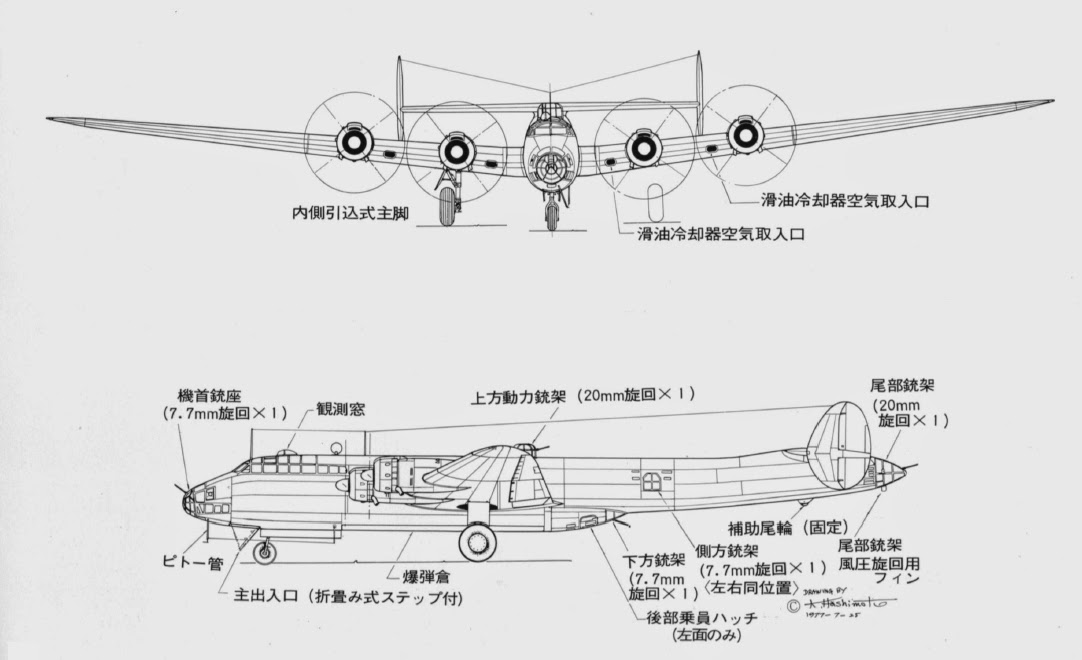

Armament
- Guns:
- 1 x Type 92 7.7 mm machine gun in the nose
- 2 × Type 92 7.7 mm machine guns on the sides of the nose (?)
- 1 x Type 99 Model 1 20 mm cannon in a dorsal turret
- 2 x Type 92 7.7 mm machine guns in side mounts
- 1 x Type 92 7.7 mm machine gun under the fuselage
- 1 x Type 99 Model 1 20mm cannon in the tail
- Bombs
- 2 x 1500 kg bombs (in the bomb bay)
- 4 x 800 kg bombs (in the bomb bay)
- 12 x 250 kg bombs (in the bomb bay)
- 24 x 60 kg bombs (in the bomb bay)
- 2 x 1500 kg torpedo (in the bomb bay) (?)
- 1 x 1500 kg torpedo (in the bomb bay) (?)
- 3 x 800 kg torpedo (in the bomb bay) (?)
Armour
- The same as in the game
Summary
The Nakajima G5N2 is an interesting bomber for Japan in War Thunder. This plane, with its huge bomb load, is an improved version of the G5N1, with better flight performance. This plane would be a good complement to the G5N1, providing better performance. It’s perfect to include in a folder with the Nakajima G5N1. I encourage you to discuss in the comments and to share your own knowledge on this subject.
Finally, I apologize for the linguistic and logical errors because unfortunately English is not my main language and I had to use google translator.
Internet sources
深山 (航空機) - Wikipedia
Nakajima G5N Shinzan - Wikipedia
Nakajima G5N Shinzan (“Liz”) Type 2 Attack Bomber > Transport | Secret Projects Forum
中島G5N「深山」G8N「連山」大型陸上攻撃機：鳥飼研究室
陸上攻撃機 『深山』/中島Nakajima G5N | 大日本帝国軍 主要兵器
Japanese Aircraft of WWII: Nakajima G5N
Nakajima Experimental Attack-Bomber “SHINZAN” - WarHistory.org
Уголок неба ¦ Nakajima G5N Shinzan
Book sources
- 日本航空機辞典 1910年(明治43年)～1945年(昭和20年) 上巻 (Encyclopedia of Japanese Aircraft 1910 (Meiji 43) – 1945 (Showa 20), Volume 1) page 248-249
- 野沢正『日本航空機総集 中島篇』(Masaru Nozawa ‘Comprehensive Collection of Japanese Aircraft: Nakajima Volume’) page 205-210
- Japońskie Samoloty Marynarki 1912-45 część II (Japanese naval aircraft 1912-45 part II) page 74-76

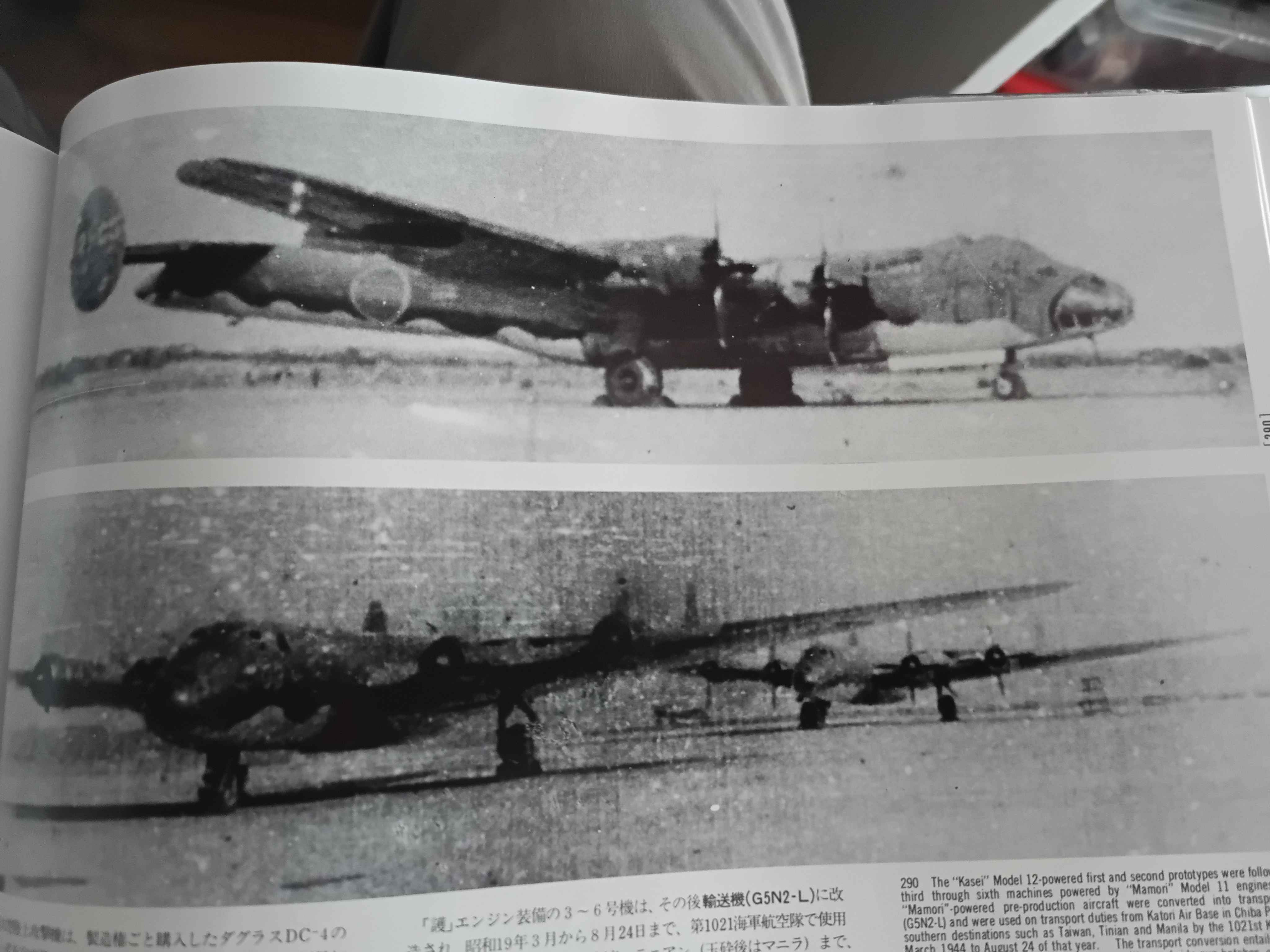

*『日本軍用機写真集』2 (爆撃機),文林堂, (“Japanese Military Aircraft Photo Collection 2 (Bombers)”, Bunrindo) page 198-203 - 世界の傑作機 No. 90: 海軍試作陸上攻撃機「深山 / 連山」 [Famous Airplanes of the World No. 90: Navy Prototype Land-based Attack Bomber “Shinzan” / “Renzan”].
Bunrindo - Famous Airplanes of The World 90 - Nakajima G5N ‘Shinzan’ & G8N ‘Renzan’ | PDF | Foreign Language Studies
Thank you for reading the suggestion, see you in the next one. Good luck pilots
