Modern Chinese Guided/Unguided Incendiary Bombs

China has developed a variety of incendiary/submunitions bombs to date, which can be equipped on modern Chinese aircraft (JH-7A/J-11B/J-15T/J-10A/J-10C). I will list them below with accompanying images:

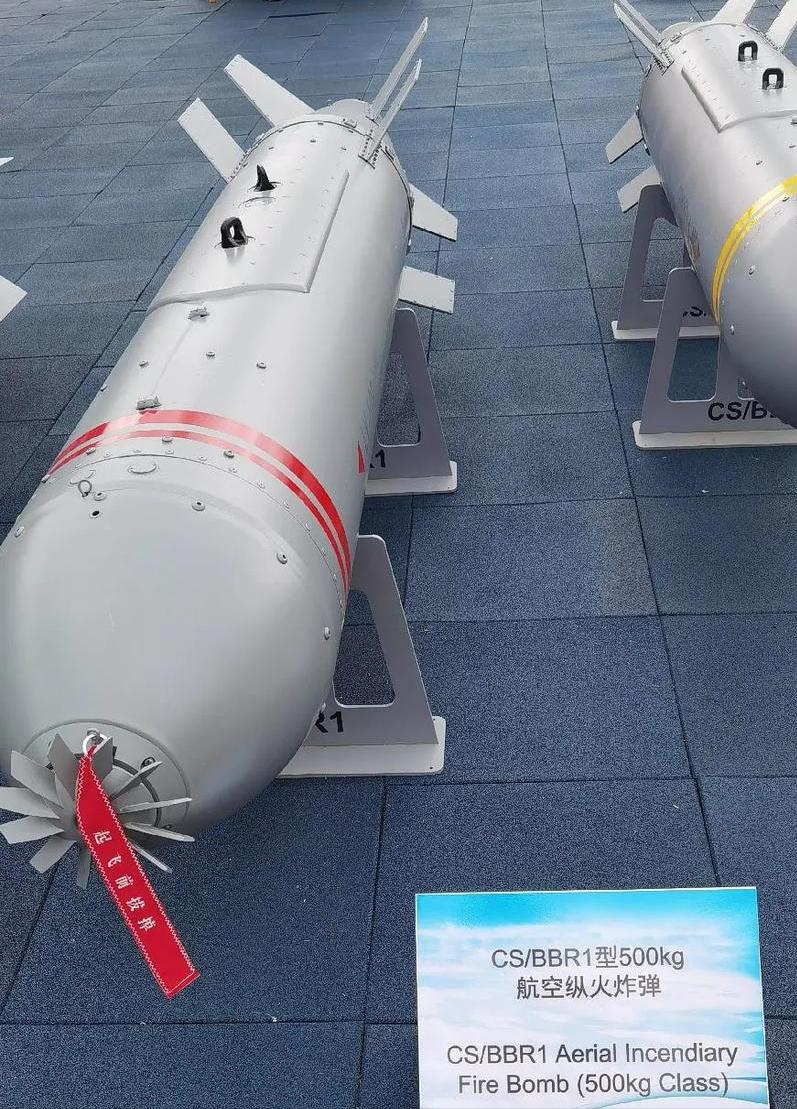

CS/BBR1 Type 500 kg aerial incendiary bomb

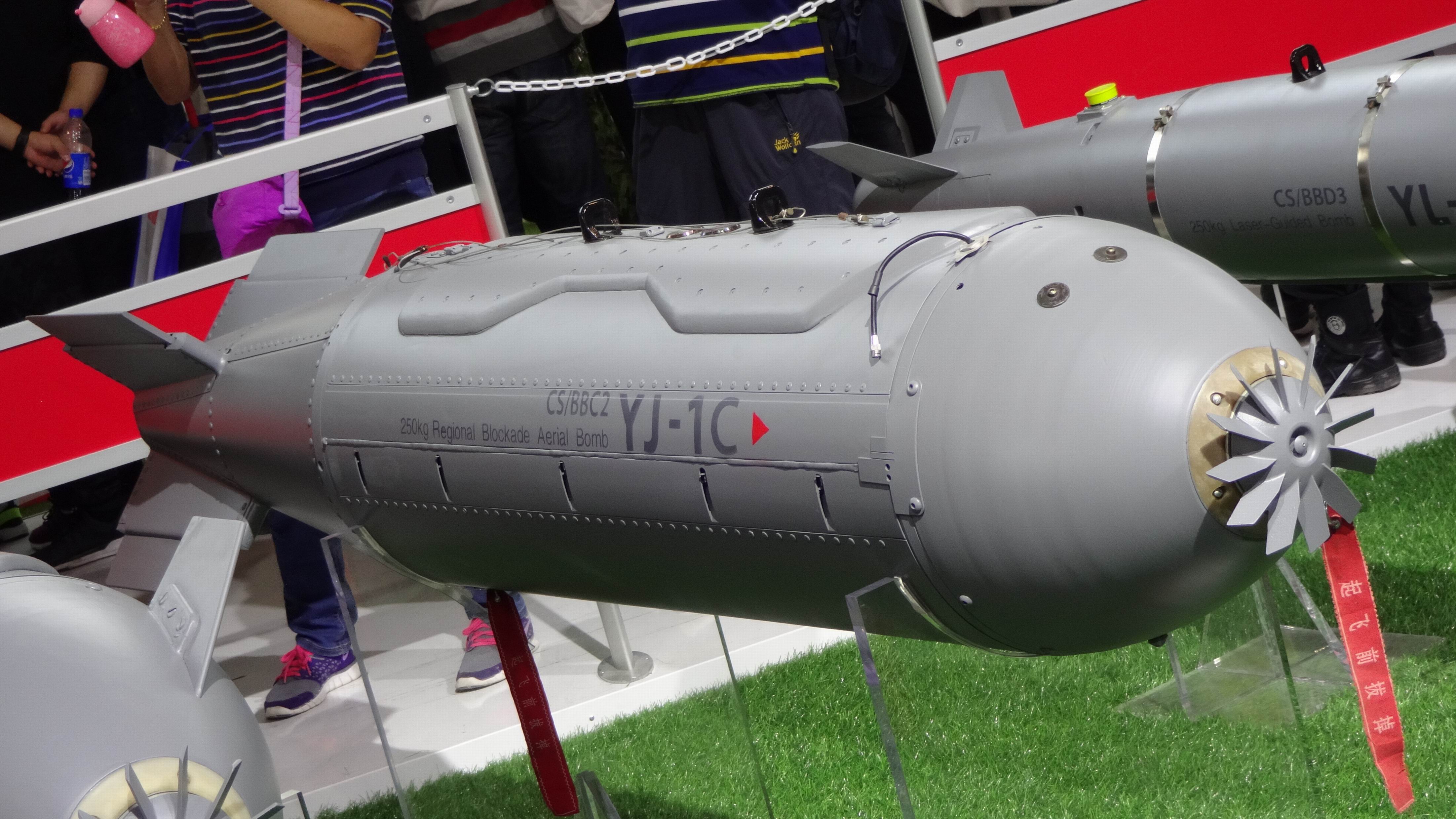

YJ-1 (CS/BBC2) 200 kg guided glide submunition bomb

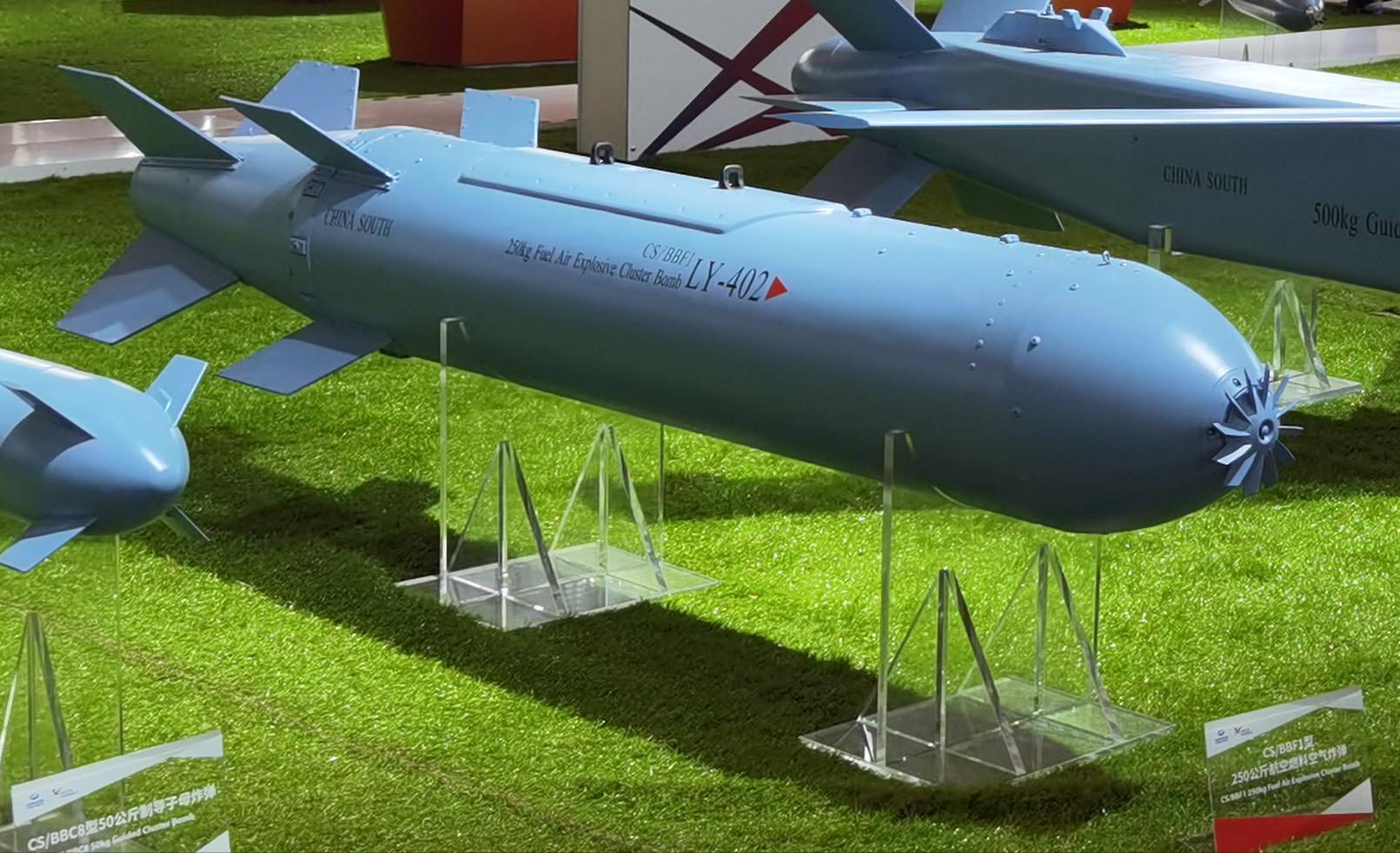

LY-402/YL-3 (CS/BBF1) 250 kg aerial fuel-air bomb

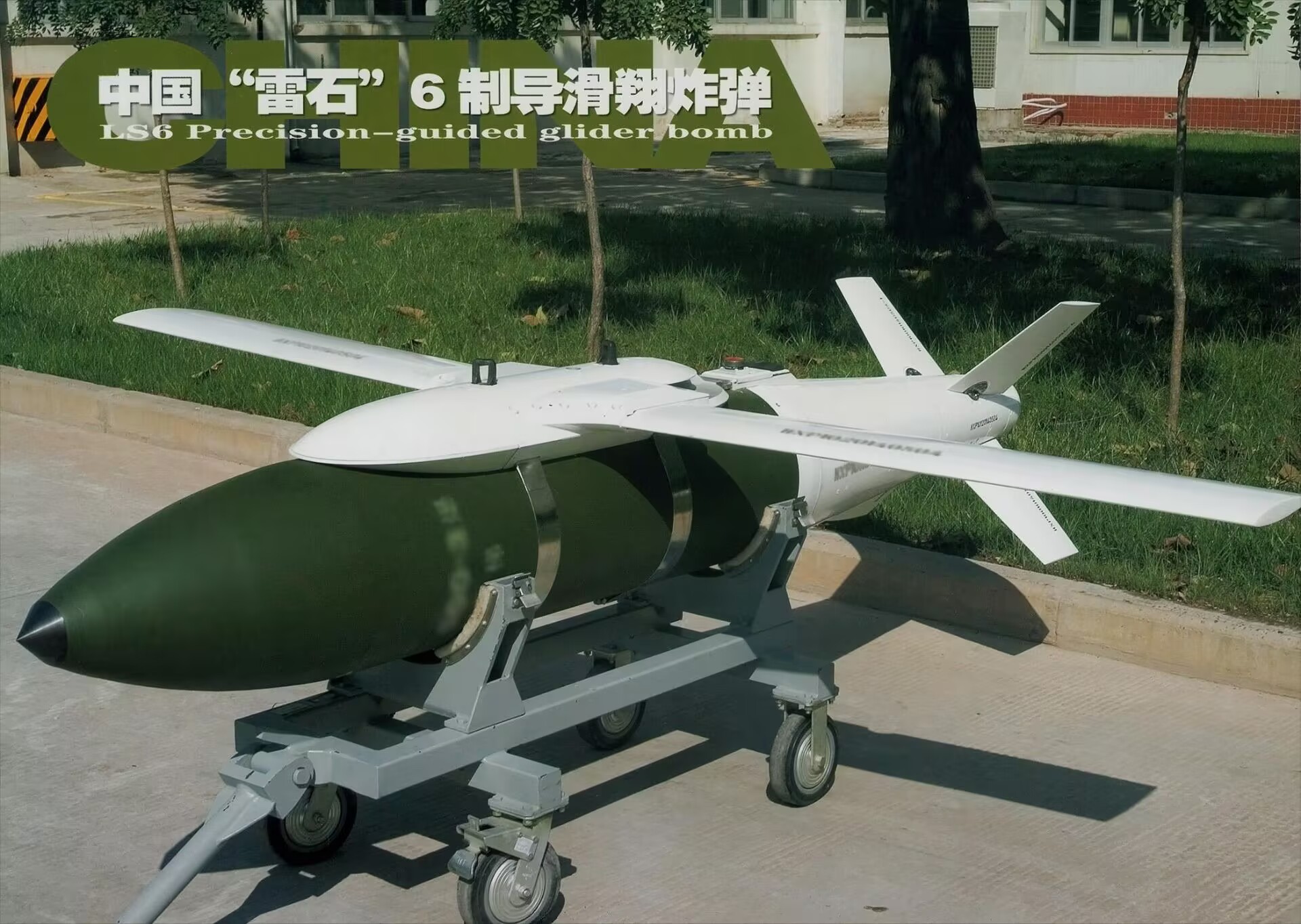

LS-6 500-kilogram bomb, which can also be modified into an incendiary bomb with the appropriate kit

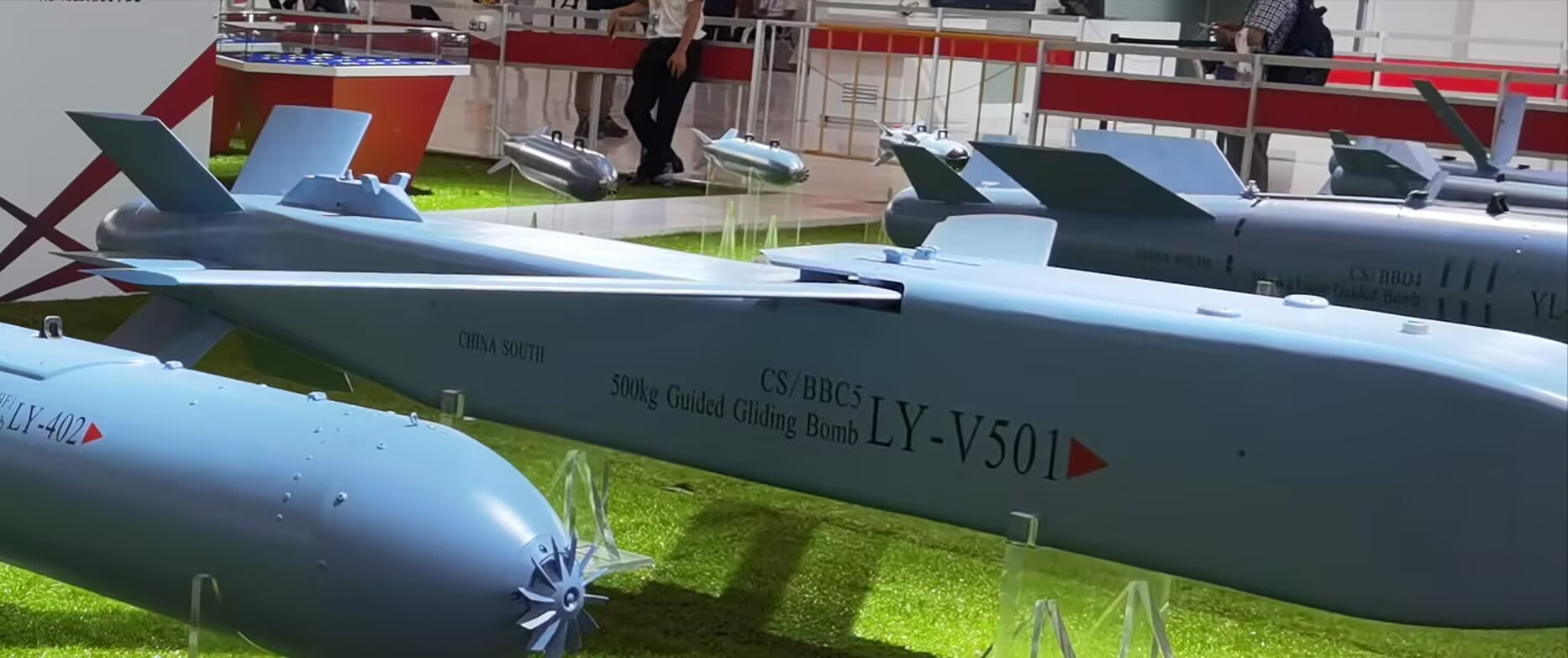

CS/BBC5 Type 500 kg satellite-guided glide submunition bomb, incendiary ammunition type

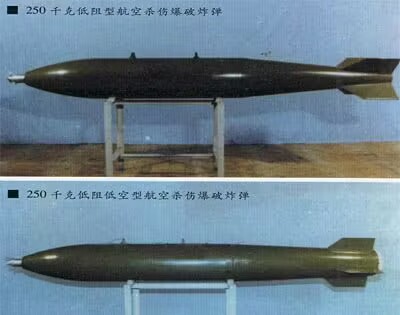

250-1 Type aerial incendiary/blast incendiary bomb
YL-3 (CS/BBF1) 250 kg aerial fuel-air bomb

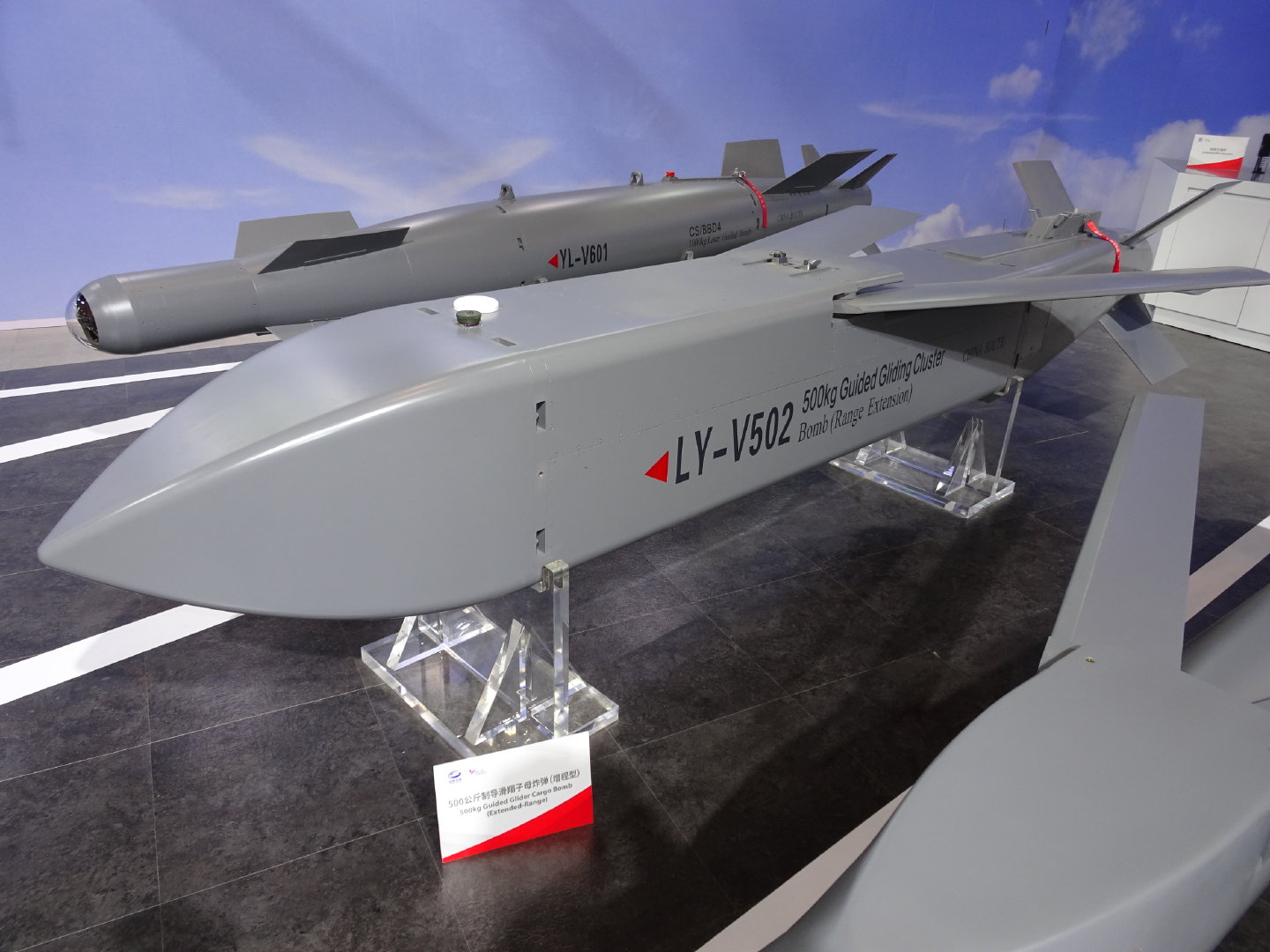

LY-V502 Type 500 kg guided glide submunition incendiary bomb






aa5f631ff12ecb836e57f9a90947c8f3


The images above may not be accurate, but the structure is the same; only the internal explosive charge is different.
