Mikoyan-Gurevich MiG-29SMT (9-18): The RSKs modular 4+ platform

[Would you like to see this in-game?]
  • Yes
  • No
0 voters

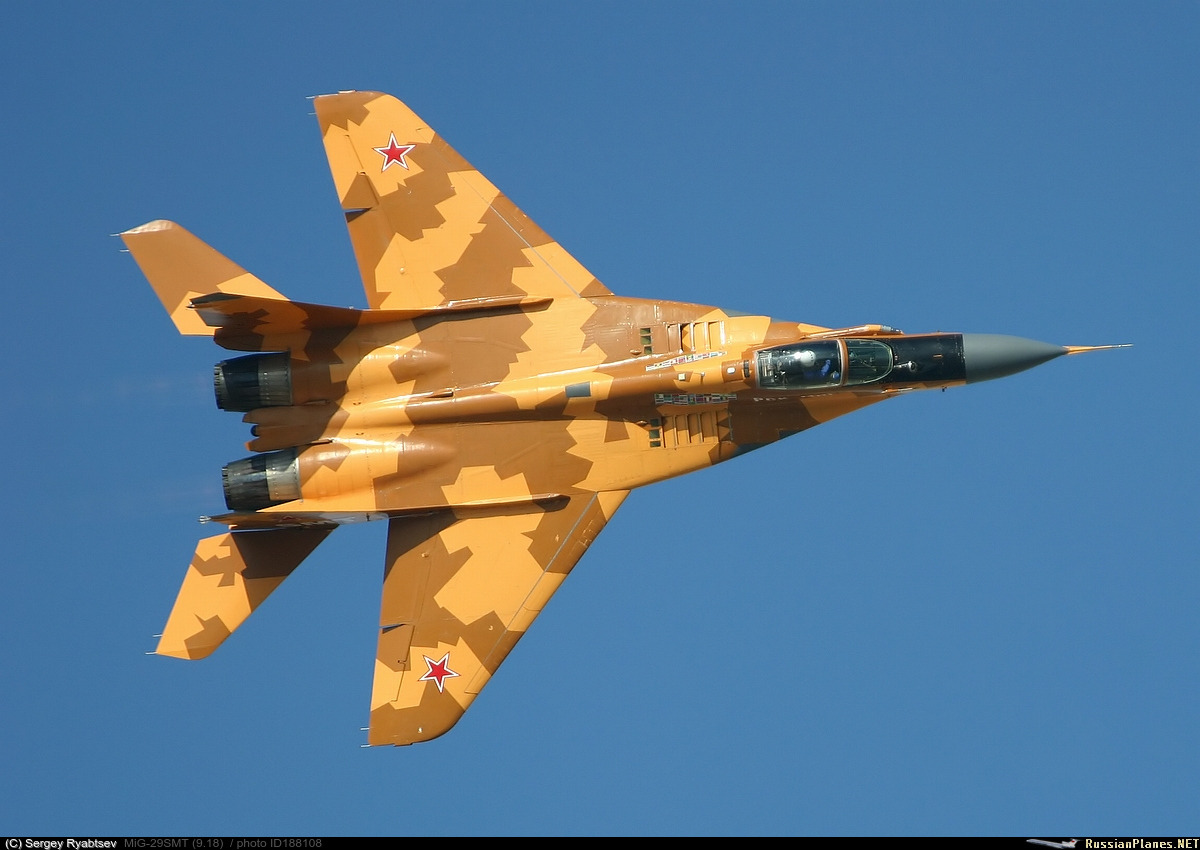

MiG-29 SMT 9-18

Aircraft Info:

Spoiler

The MiG-29 SMT 9.18 is a 4+ generation multirole fighter made by MiG RSK in 1999 and was primarily marketed as an upgrade program for existing MiG-29s for the Russian air force and export customers. MiG-29 SMT 9.18 is the second variant in the SMT line of MiG-29s when compared to the earlier 9.17 SMT prototype and later 9.19 SMT it lacks the expanded dorsal spine to fit more fuel, instead opting for mounting external drop tanks on its fuselage. This would lead to the 9.18 retaining its original look with the slim spine when compared to the 9.17 and 9.19 but still receiving the other upgrades in the SMT program.

Aircraft history:

Spoiler

The MiG-29 SMT 9.18 history starts back in 1999 with the RSK developing upgrade programs for its MiG-29 fighters looking for potential customers with the Russian air force and export customers, after the first SMT prototype the 9.17 fatback was deemed it was to overweight and its agility had been compromised to much. The 9.18 was built with it also receiving an significant overhaul to its avionics aswell including having the N019MP from the 9.17 replaced with the N010ME on the new 9.18. The main advantage of the new 9.18 RSK advertised was the customization that could be offered for each customers need making it be truly tailored for ones needs. RSK would show off the new 9.18 at the MAKS 2003 with white #918 being shown off there it notability lacked the extended dorsal spine found on other SMT models. The 9.18 SMT would find customers in the future with both Yemen and Eritrea having their older MiG-29s upgraded to the 9.18 standard.

Aircraft Specifications:

Spoiler
  • Length: 17.32m
  • Wingspan: 11,36m
  • Height: 4.73m
  • Normal take off weight: 17000kg
  • Max take off weight: 22000kg
  • Service ceiling: 17500m
  • Engine: 2x Klimov RD-33 series 3 turbofan engine
  • Engine output: 2x 8300 kgf (Bench thrust)
  • Radar: N010ME Zhuk-ME
  • RWR: SPO-15T
  • IRST: OEPrNK-29SM
  • Countermeasures: 2x BVP-30-26M CM dispensers (60x regular caliber CM)

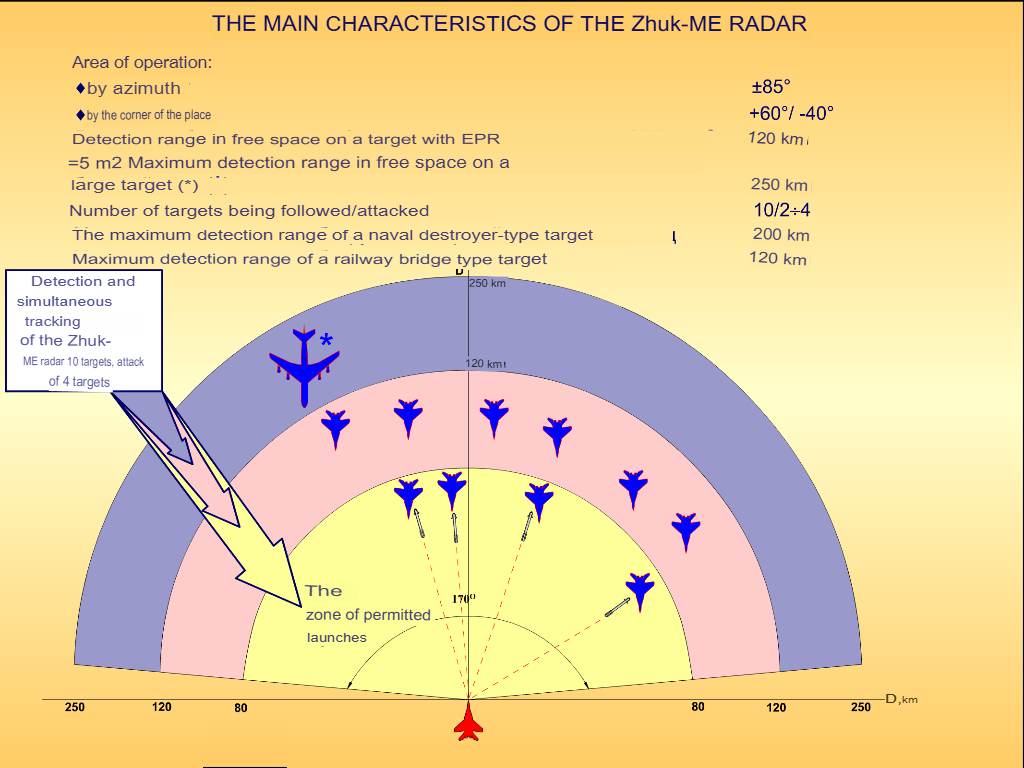

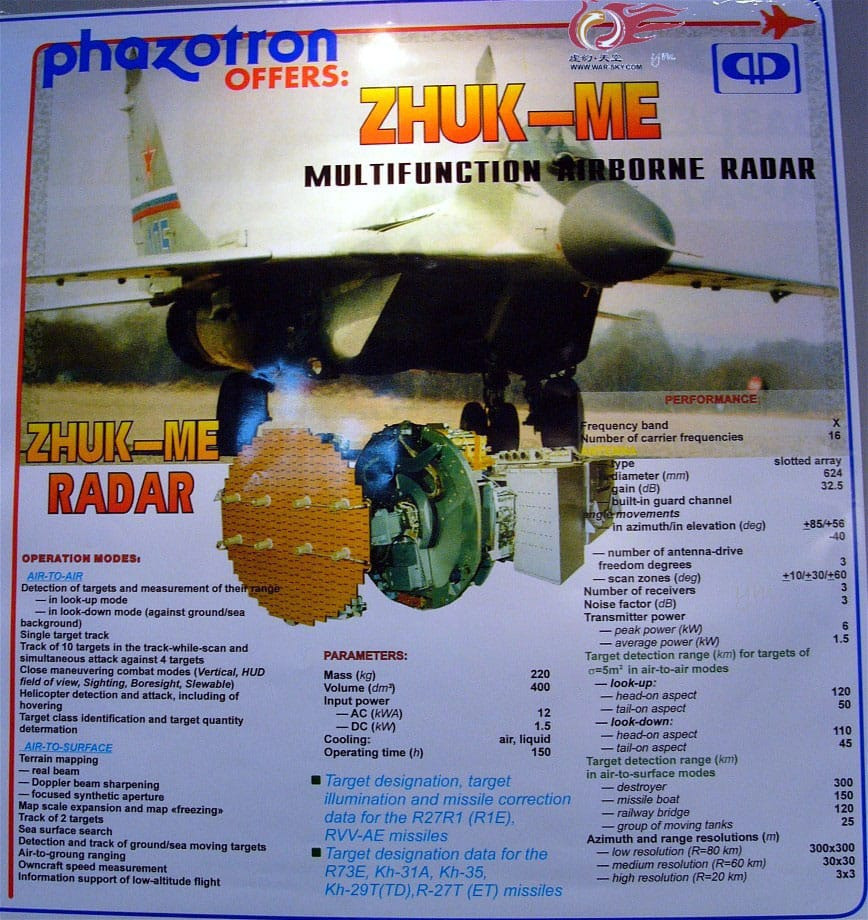

N010ME Zhuk-ME:


Aircraft armanment:

Spoiler

Main armament:

  • GSH-30-1
  • 7 total hardpoints

Additional equipment that can be mounted:

  • 1x 1500 liter drop tank mounted in the center pylon between the engines
  • 2x 1150 liter drop tanks mounted on the inner most pylons on each wing

Air to air missile:

  • 6x R-77
  • 2x R-27E type missiles
  • 2x R-27 type missiles
  • 6x R-73

Anti ship missile:

  • 2x Kh-31A

Anti radiation missile:

  • 2x Kh-31P

Guided bombs:

  • 4x KAB-500Kr
  • 4x KAB-500L

Unguided rockets:

  • 4x B-8M1 rocket pods
  • 4x S-24B rockets

Standard bombs:

  • FAB-250
  • FAB-500

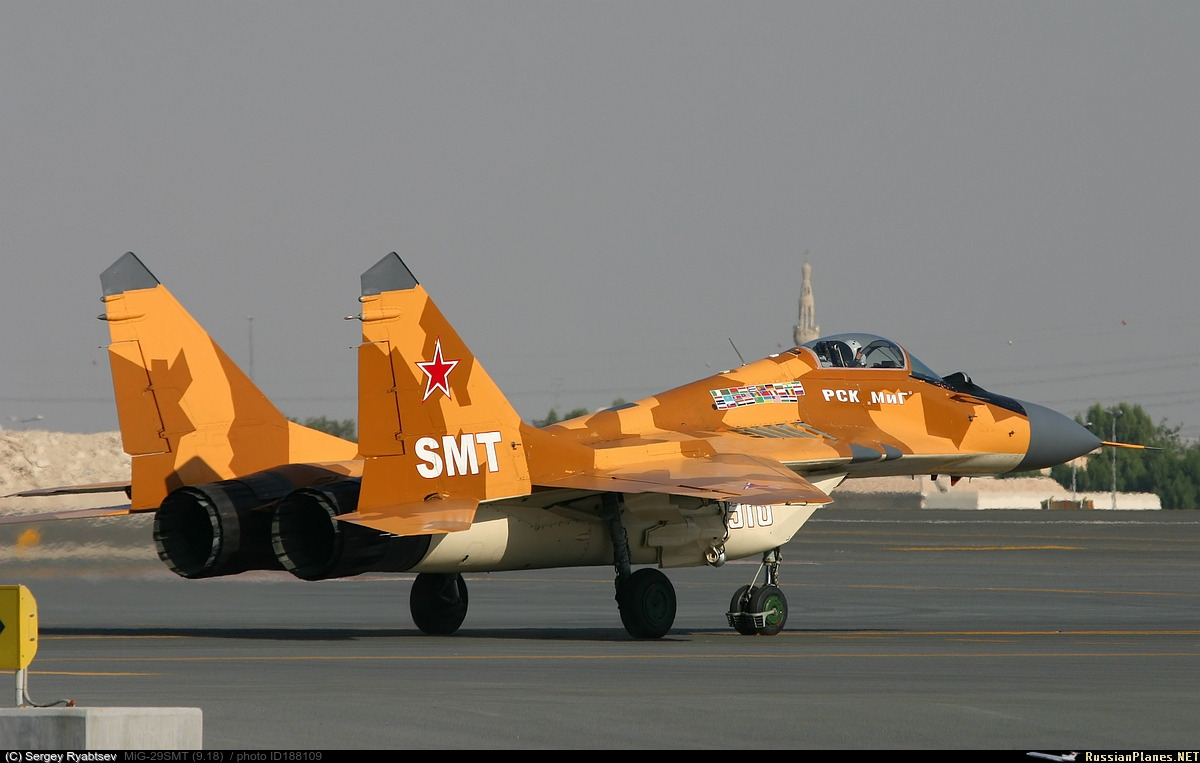

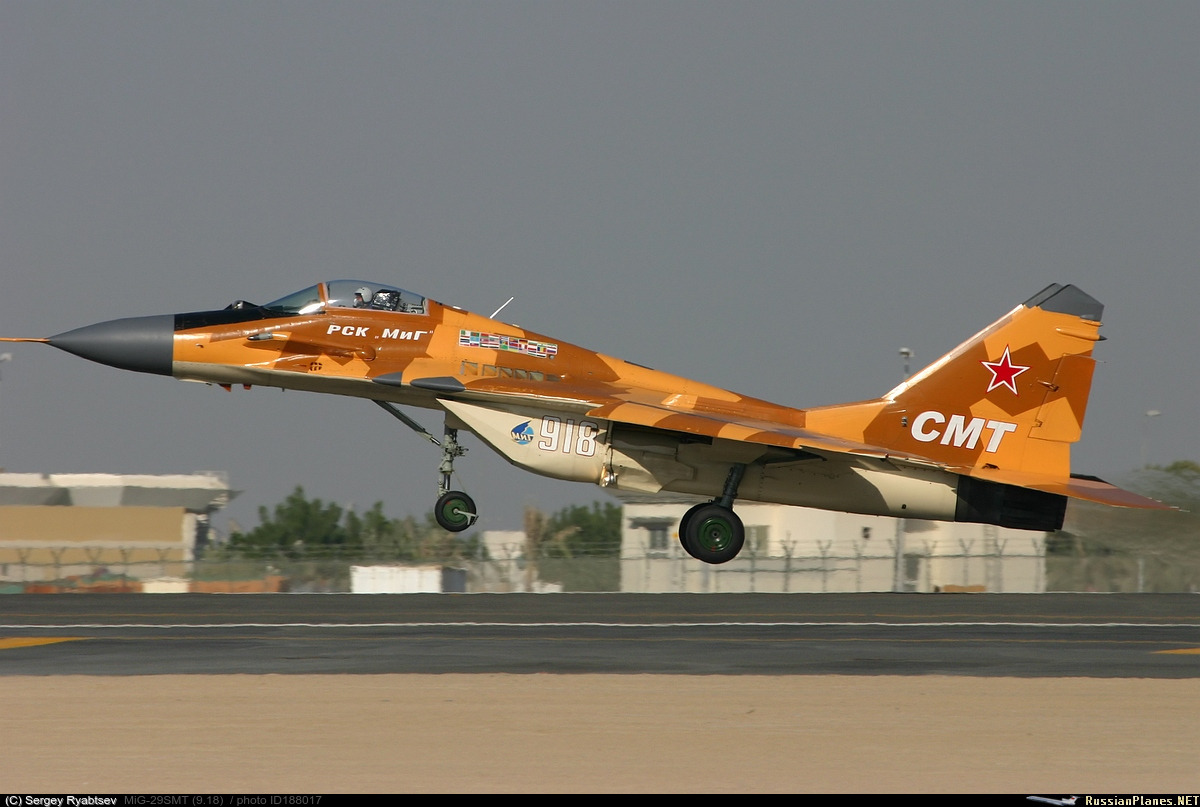

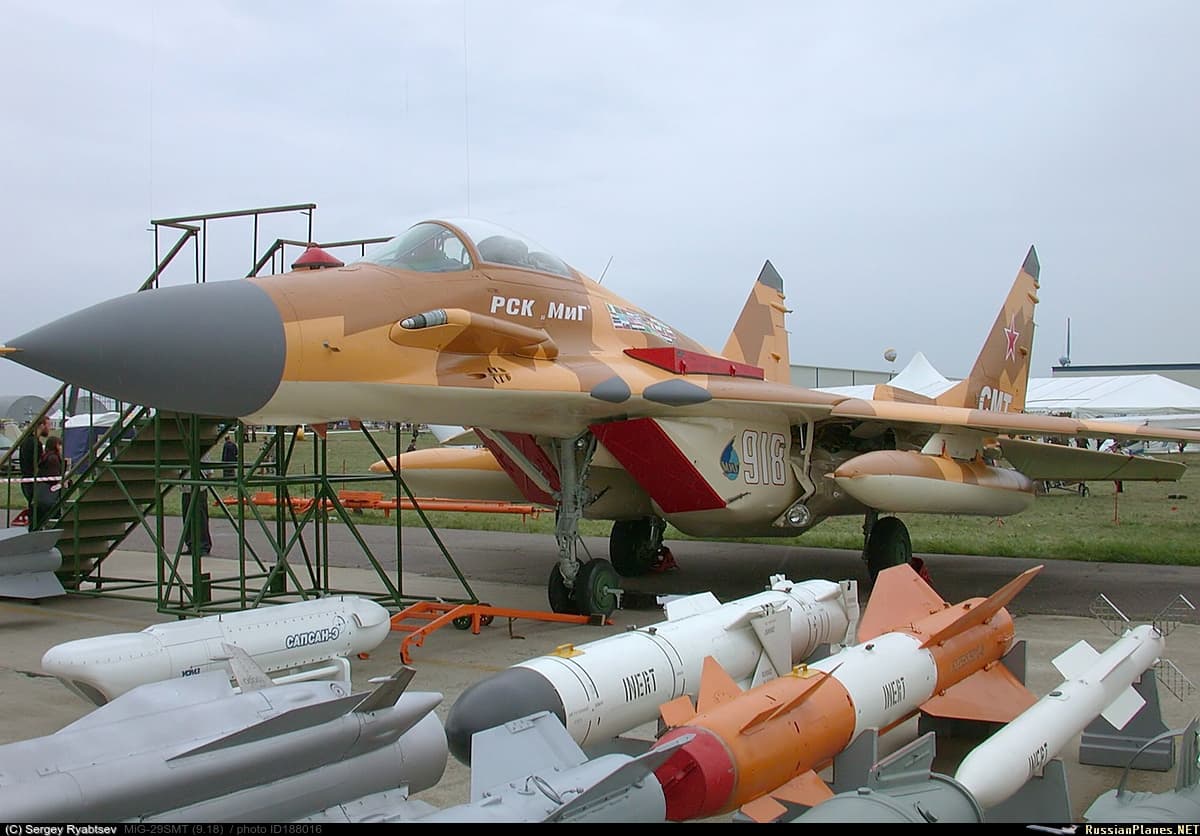

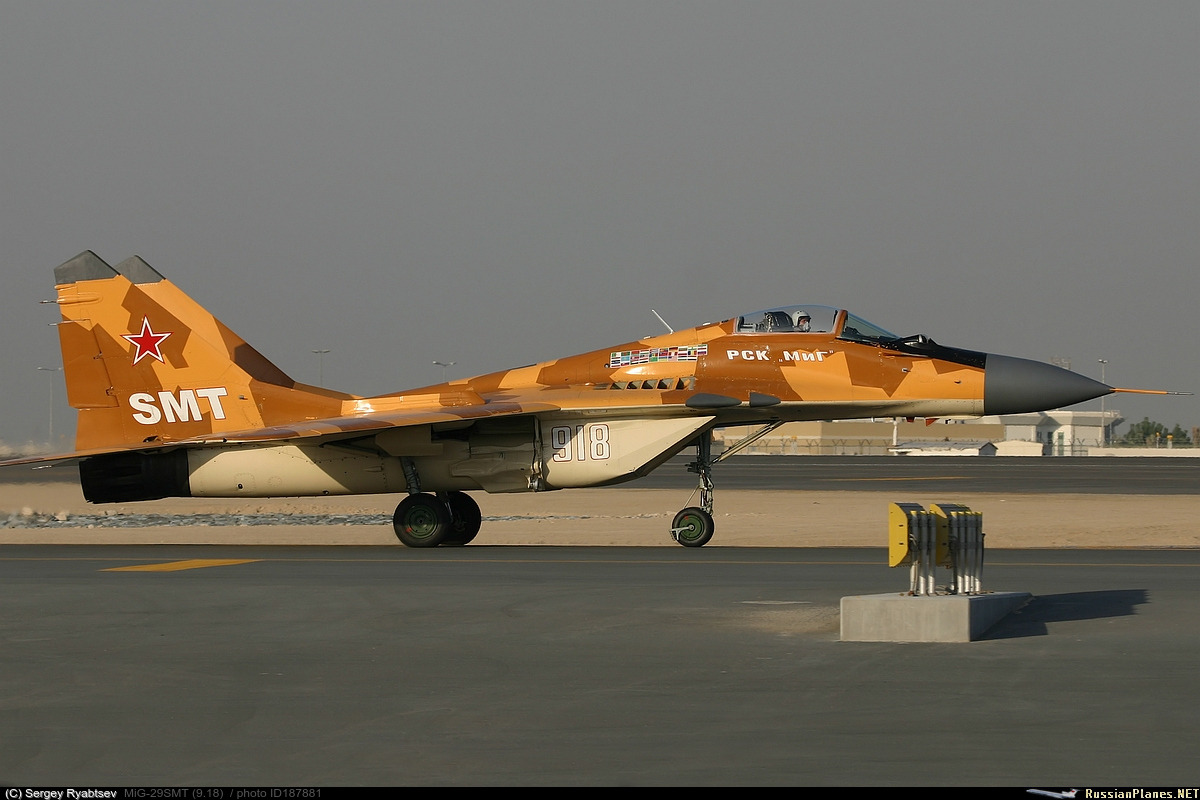

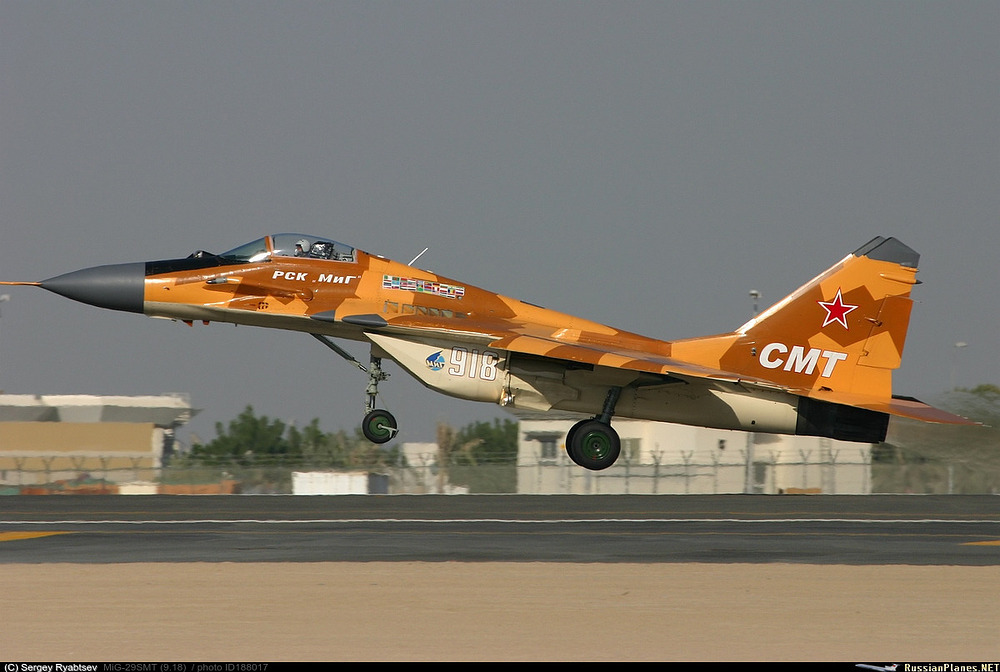

Gallery:

Spoiler








Sources:

Spoiler
