Mikoyan-Gurevich MiG-25 & MiG-31 Foxbat / Foxhound - History, Design, Performance & Dissection

[TPS_Hydra]

The MiG-25PD is going to only have the SPO-10 from the looks of things, a bit unfortunate but if it remains at 10.7 then I see no issue.

Looking forward to the MiG-31 whenever it gets added

[csla1972]

So still chance for PDSG or PDSL in future.

[csla1972]

We should get this one in TT with 2x KDS-155 (60 large flares) and with SPO-15.

[ILuvAnneHathaway]

MiG won’t be test flyable yet from what I understand, will have to wait for the event, sad.

[Blitzkrieg877]

@EstrogenKitten

Any source on this PDSG name? where did it come from

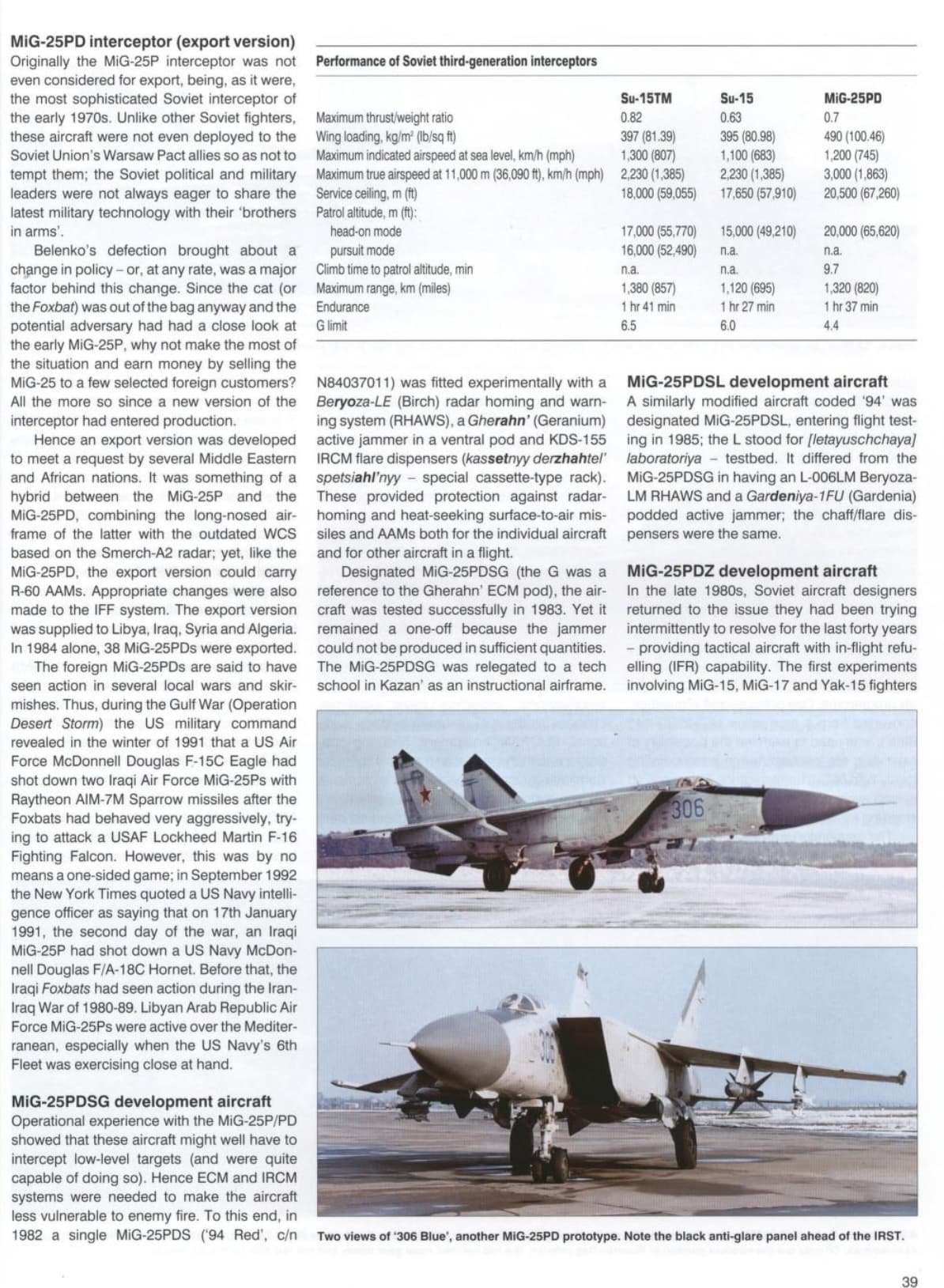

MiG-25 Guardian of the Soviet Borders page 39

[Blitzkrieg877]

@SirinKaslana

So what you’re telling me is, that, this never had a gun pod even fitted for testing purposes?
So missile bus it is.

There was no need for it

[Pvt_Wade]

@Sealboyyo

That’s not true tho, the RGS-24 that the R-40RD gets, is the same as the R-24R, which can do up to 8 or 9Gs, and the R-40RD has the same seeker

friendly reminder the 4G figure is from the official mig25pd manual
an AIM-7C isn’t going to magically pull 35G if i put an R-27 seeker in it

[GitGood]

@Blitzkrieg877

There was no need for it

It still was a drawback, so MiG-31 got an internal GSh-6-23.

[Pvt_Wade]

@Nick_Cloud

Sapfir 25 PD radar

not PD

[Pvt_Wade]

dw he only said 11.7 so it can face his phoenix

[csla1972]

There was some changes in tail part of hull behind wings. On R-40RD/TD was tail part of hull much shorter than on R-40R/T but no idea how much it changed agility if at all.

[csla1972]

I found mention of very limited thrust vectoring on the MiG-25PDZ.

https://ruslet.webnode.cz/technika/ruska-technika/letecka-technika/a-i-mikojan-a-m-i-gurjevic/mig-25pdz/

[ILuvAnneHathaway]

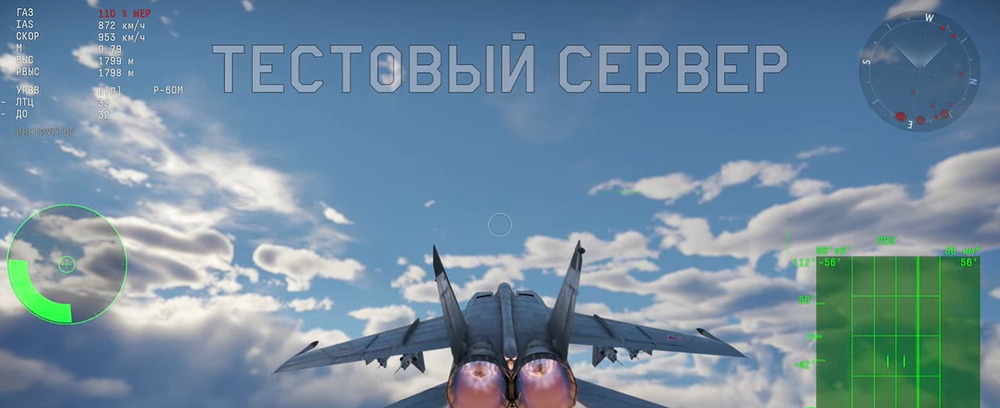

@Smin1080p_WT when will we be able to test the thing?

[naruto24k]

i think there is a way to test drive it already but idk how https://youtu.be/RCRq8ZhtpuY?si=Pzwi8L68PhlSYd35

[noister]

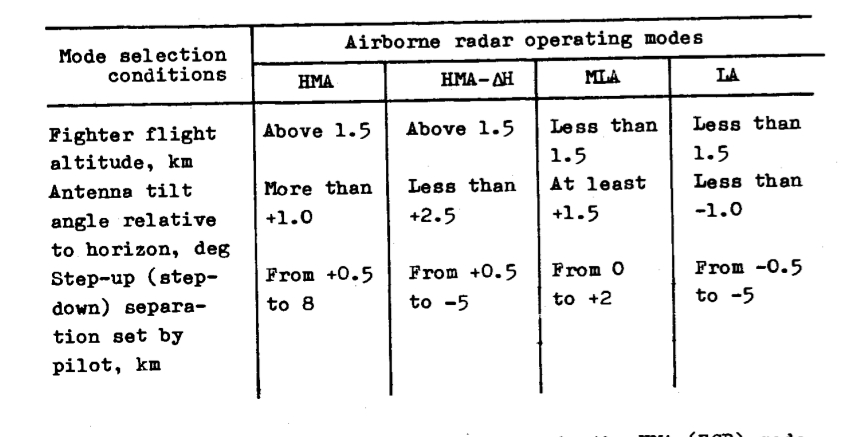

It should have MTI like no restrictions like MiG-23 IRL

@EstrogenKitten do you have docs for it?

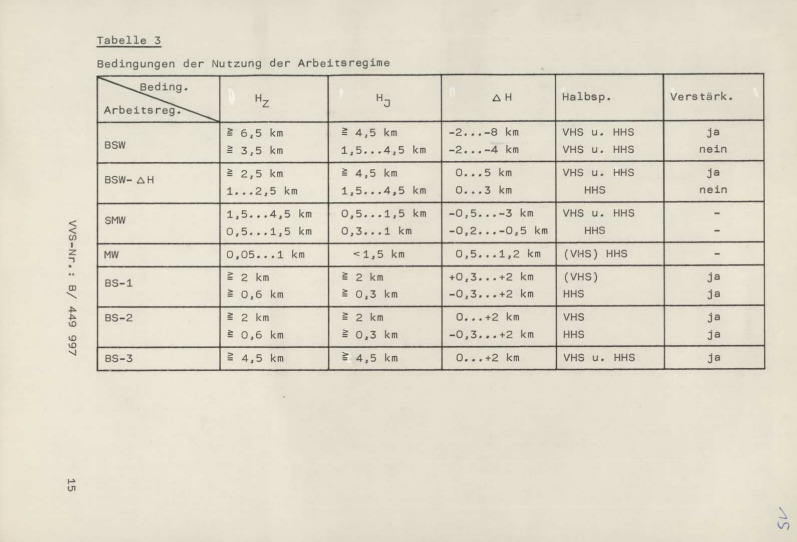

[kizvy]

Mti has restrictions though? I was the one that made the bug report for the mti filters, with sources from estrogen kitten. The argument was that the restrictions are represented wrong in game, not that it doesn’t have restrictions
https://community.gaijin.net/issues/p/warthunder/i/HSeJ1FoUwY4p
23ml a for example

[noister]

I meant a manual override mode one mb

[Pvt_Wade]

MiG-25PD example

[MaMoran20-psn]

So far,
R40RD

• Incorrect life time: It is 75s seconds when it should do 40s max
• Drag is TOO low: The Delta V of the R40RD is 720m/s at deck and 780 m/s up in space.
  It should be +540 m/s (I assume on deck where drag is highest) to 740 m/s(where drag is negligible)

Spoiler

• Incorrect max Gload WHILE launching: It should be 3Gs
• Incorrect Explosive Mass: It is 25 kg when it should be much higher, 38kg***********
• Incorrect missile G overload: It is 20Gs when it should be 15Gs
• same for R40TD: Incorrect Gimbal limits during launch: it it 70°, it should be 45°

R40TD
Incorrect Explosive Mass: It is 25 kg when it should be higher********

For the the explosive mass on both, it may be 25kg. The Warhead is 38kg

Radar

• Incorrect CW transmitter: The current one is a 10° cone when it should be a 20° “cone”(bc its actually a horn). This 2x angle coverage means a 4x total illuminated area coverage.
• It should also be be fixed to the front, not be able to illuminate the sides…

Plane

• STR too high
• Max Gload too high too

[naruto24k]

idk what they will do with the G load. do u have the STR graph ?
