Light Tank Mk VIII (A25) Harry Hopkins Armour layout incorrect in game

Hi guys, another wall of bug reports for the harry hopkins, along with the copies of the historical documentation i will use for the reports, but for the most part the tank’s armour is too thin. Documentation provided by the ever helpful armoured archives :)

Armour bug report:
https://community.gaijin.net/issues/p/warthunder/i/QDSWZCzVVyw5

breakdown for said report:

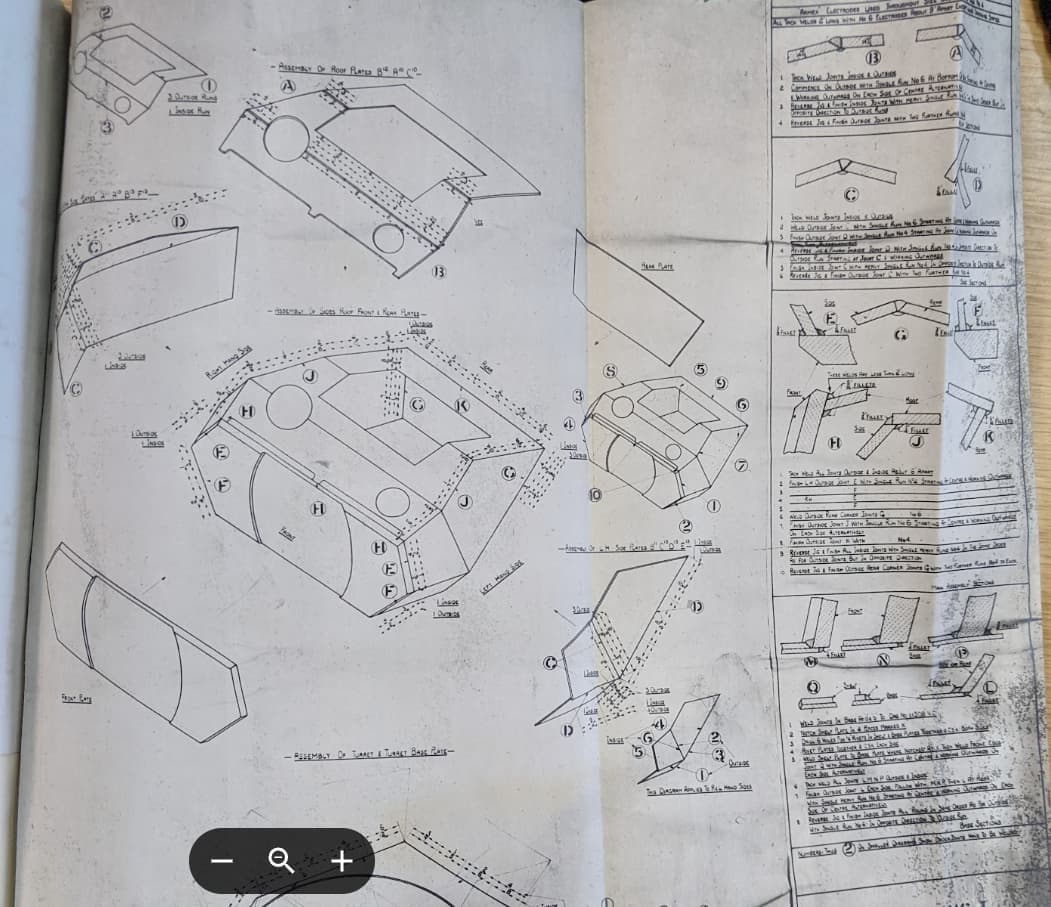

This plate is currently 14mm, should be 32mm according to the drawings


Turret ring is currently 14mm should be 38mm according to armour scheme


top of turret is currently 4mm according to the armour scheme it should be 14mm


top of side of turret is currently 16mm, should be 17mm


bottom of turret sides is currently 16mm should be 17mm


top of hull is 7mm currently, should be 14mm


lower side of hull is currently 14mm, should be 17mm


upper side of hull is 14mm currently, should be 17mm


top rear of hull is currently 10mm should be 12mm


rear of turret is currently 14mm, should be 17mm

top speed bug report:

https://community.gaijin.net/issues/p/warthunder/i/kmnuy43Pcv1g

Documentation, provided by the ever-helpful Ed from Armoured Archives.






Documentation for its insane top speed:

10 Likes

Oh dear, I really wanted that more prototypes were more accessibles and better documented.
