HISTORY

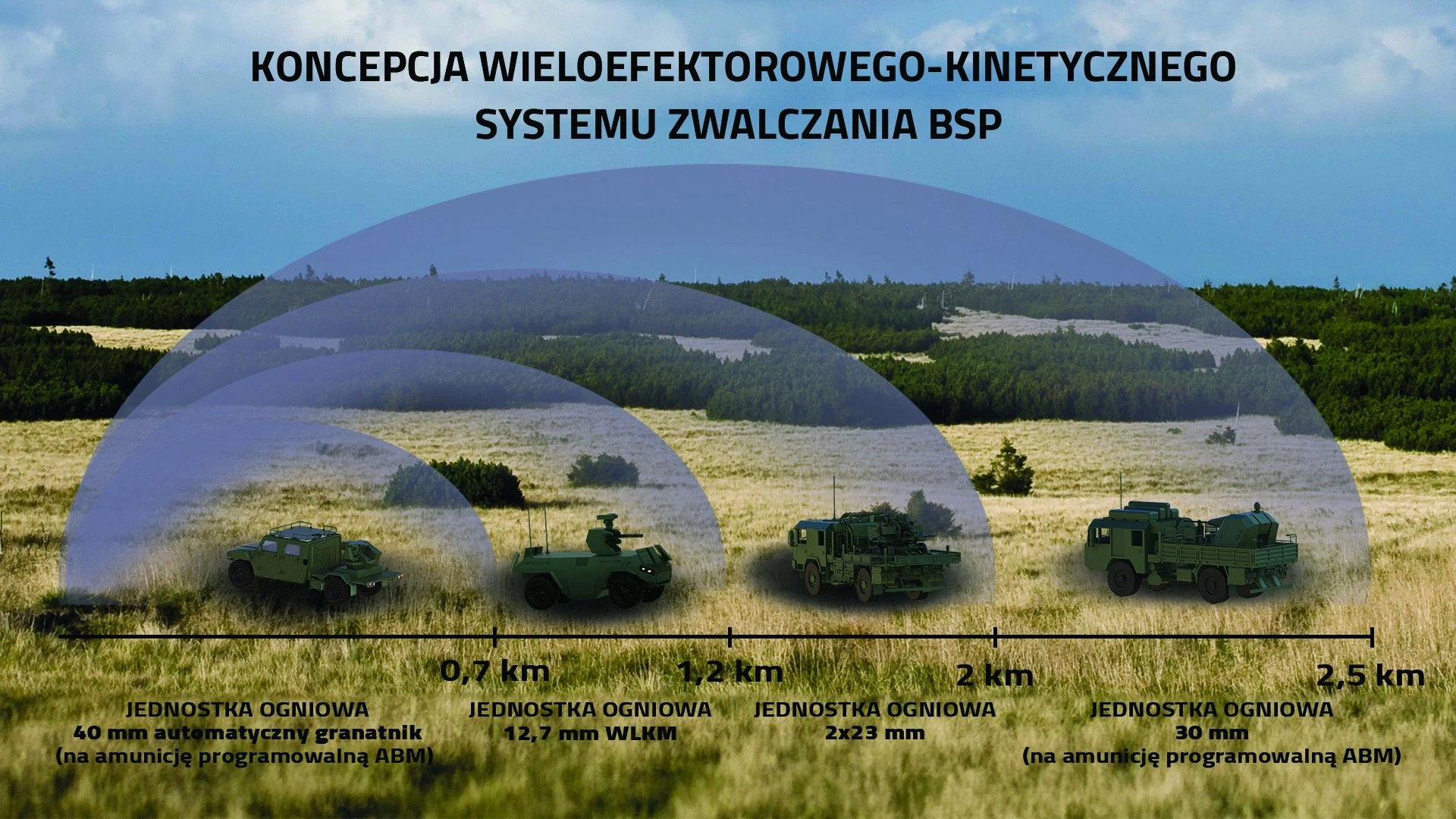

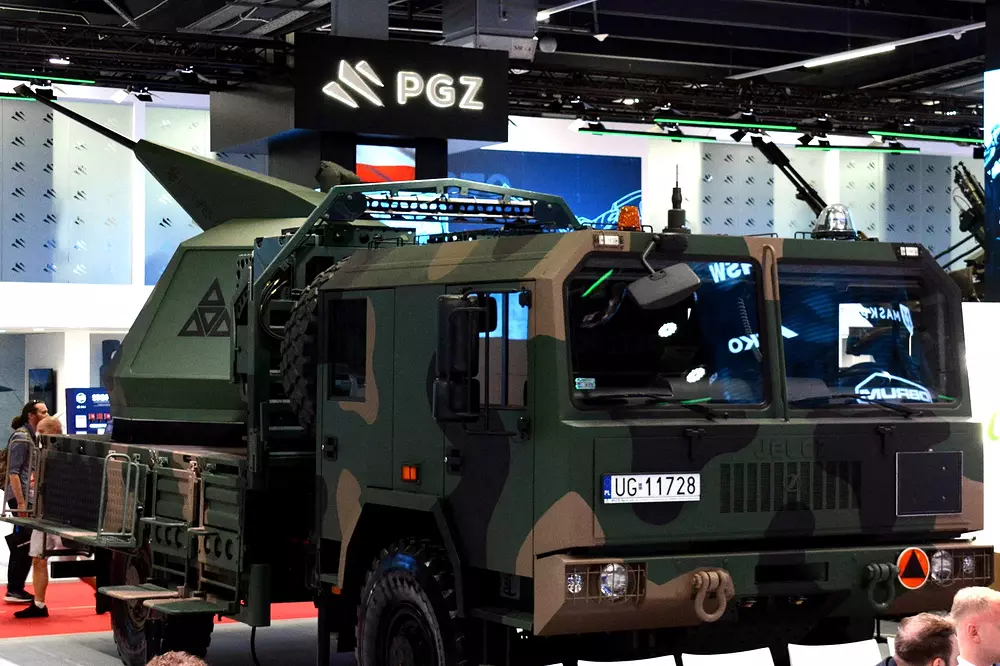

The Jelcz 442.32 platform with the Lionfish 30 turret was showcased by ZM Tarnów at MSPO 2025 as part of an advanced multi-layered short-range C-UAS concept. Designed to meet the growing need for protection against unmanned aerial vehicles, loitering munitions and cruise missiles, the multi-tiered system relies on interconnected firing units capable of autonomous operation or networked command-and-control integration. The Lionfish 30-equipped vehicle represents the 30 mm layer of this system. Other proposed elements include 40 mm automatic grenade launchers, 12.7 mm multi-barrel machine-gun modules and 23 mm autocannons, allowing different effectors to be used depending on the type and range of the target.

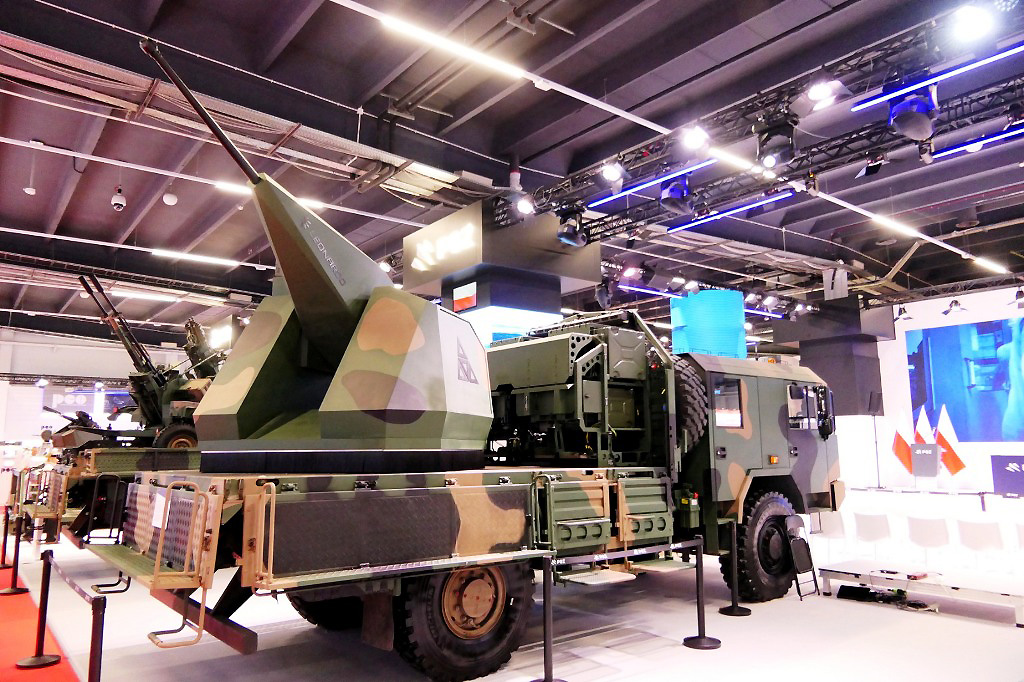

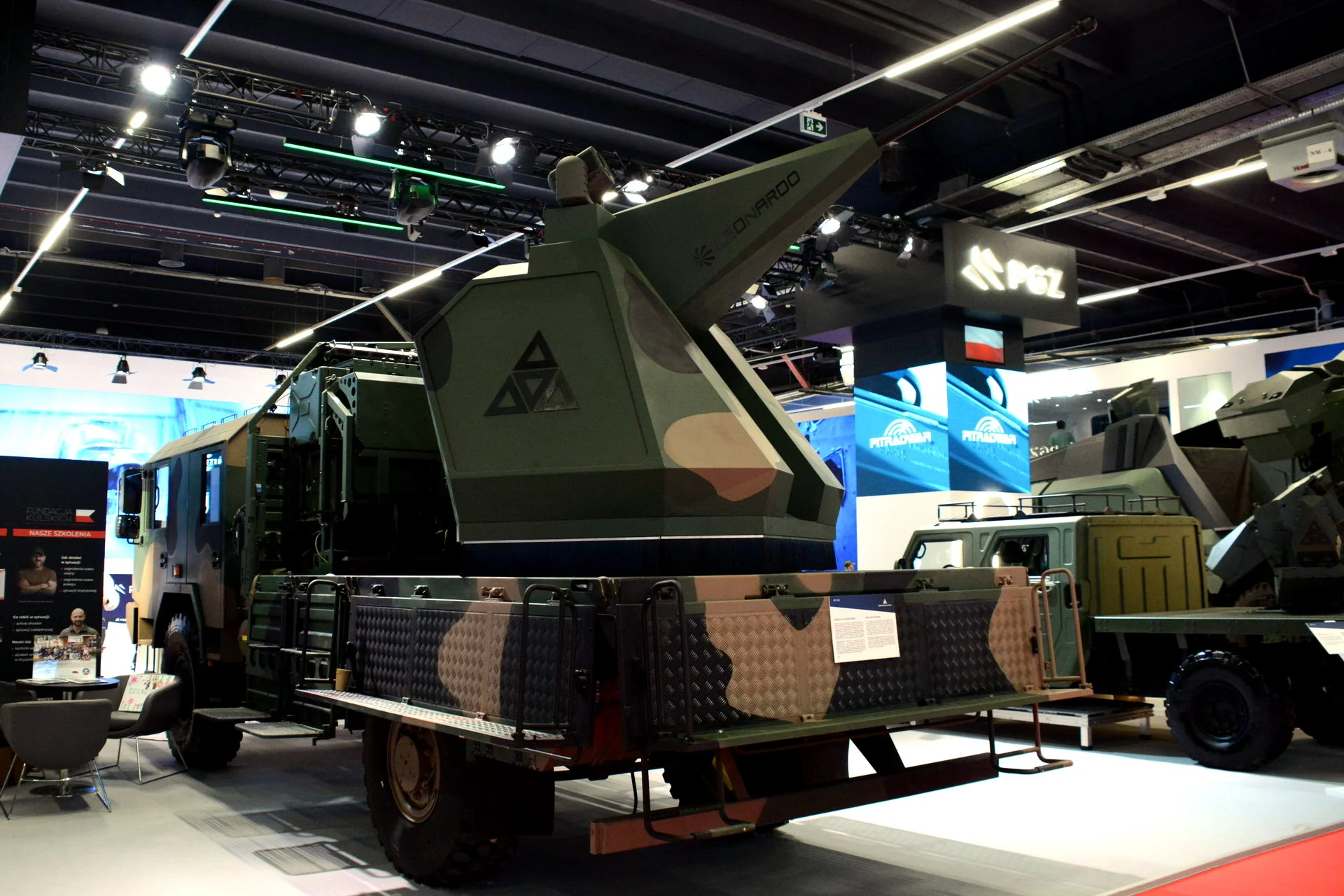

Mounting the fully stabilized, remote-controlled turret onto the high-mobility Jelcz 442.32 4x4 military truck chassis gives the platform rapid strategic road deployment and all-terrain versatility. The turret is armed with the Leonardo 30mm X-Gun which fires Multi-Fragmentation AirBurst Munitions (MF-ABM), it is fitted with a smart fuse which programming is ensured by a fuse antenna setter installed inside the gun. The turret is guided by modern GOC-1 optoelectronic sight with 3rd-generation thermal imaging, a video tracker, and a laser rangefinder. Together with the turret’s high traverse and elevation rates and two-plane stabilization, this gives the system the ability to rapidly track and engage moving targets.
Despite being presented as a promising candidate for the emerging Polish short-range C-UAS requirement, the Jelcz 442.32 with the Lionfish 30 didn’t ultimately made the cut for the SAN program with the contract instead going to Kongsberg for MCT-30 turrets, most likely destined for the KTO Rosomak.
CHARACTERISTICS
ARMAMENT

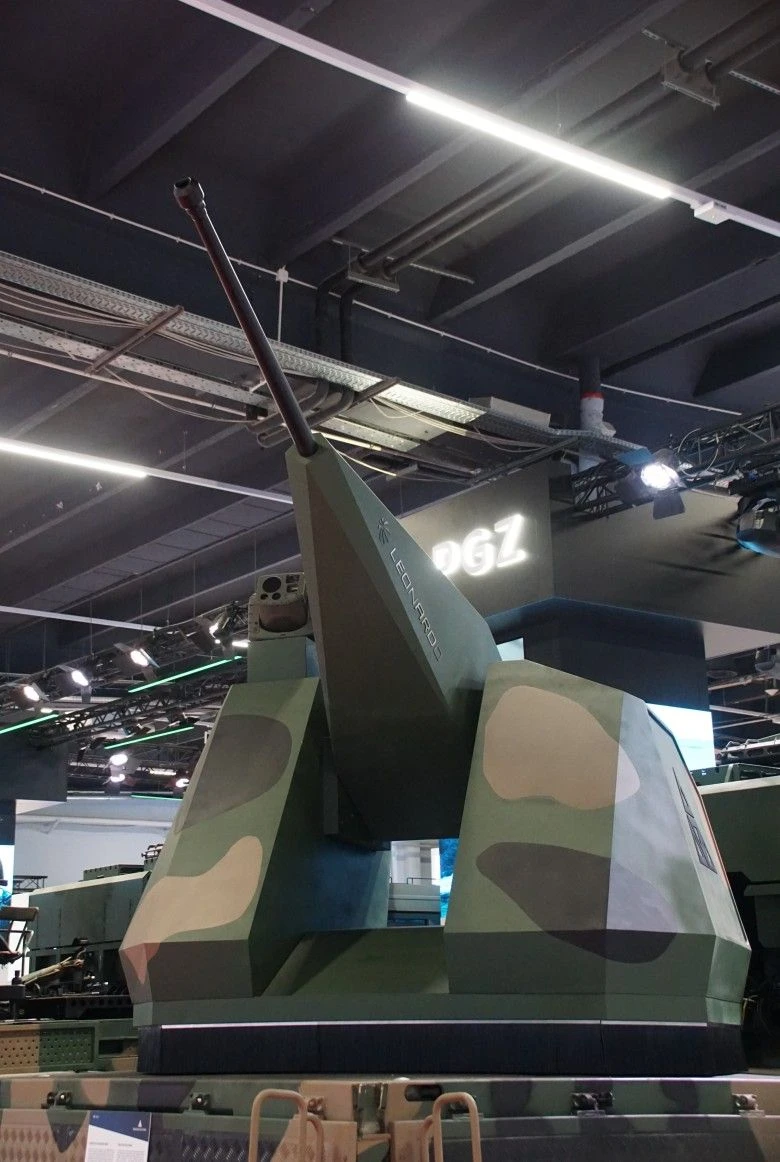

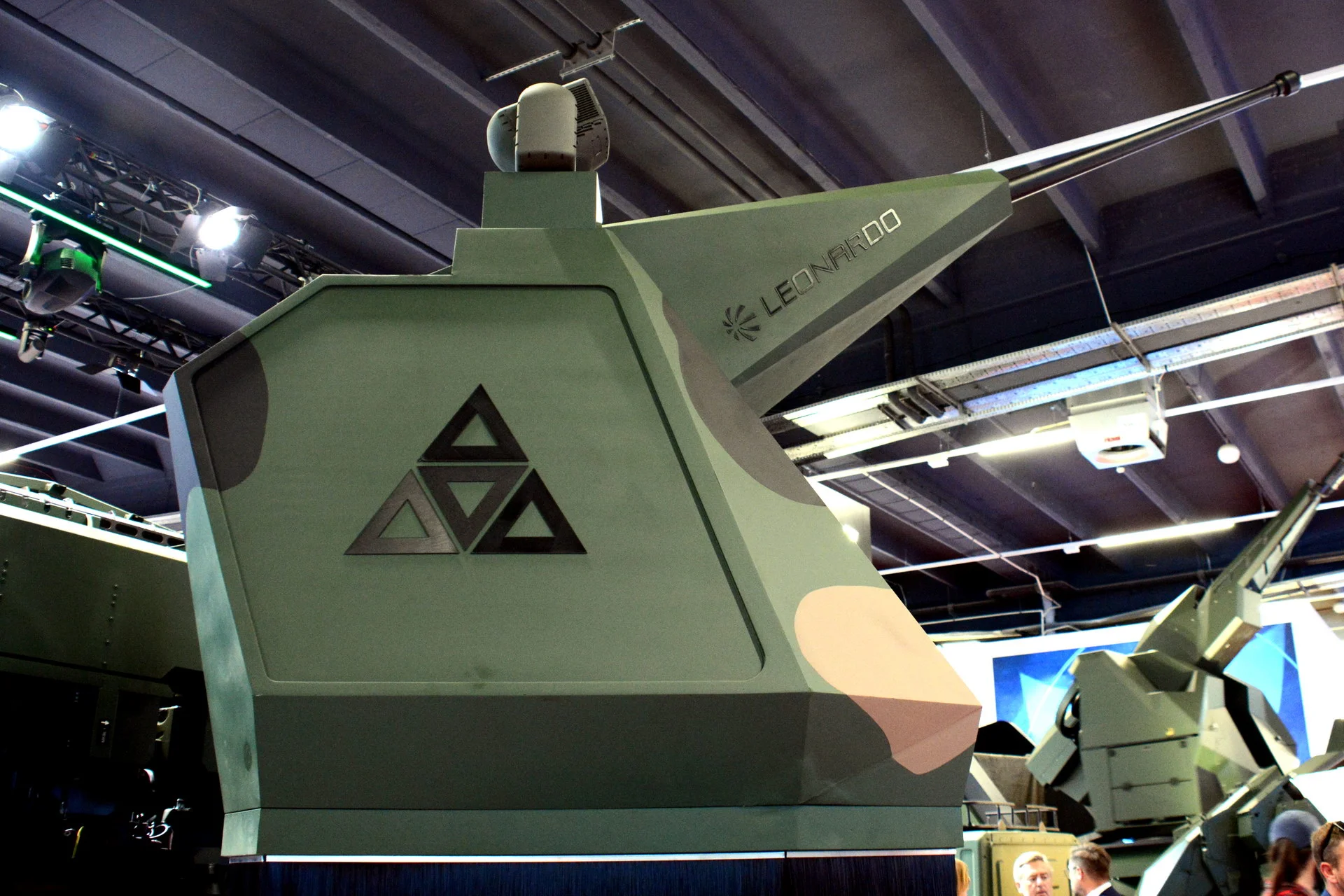

Turret: Lionfish 30
- Horizontal guidance speed: 140 deg/s
- Vertical guidance speed: 90 deg/s
30mm X-Gun
- Elevation: -20°/+70°
- Two-plane stabilizer
- Fire rate: 200 rds/m
- Ammo capacity: 200 rds ready racked
- Ammo:
MF-ABM
- Cartridge length: 290mm
- Projectile filling: RDX composition
- Muzzle velocity: 1070 m/s
- Fragments: Steel (preformed + shell fragmentation)
- Fragmentation: Frontal + lateral
- Max operational range: ~2.500m
- Fuze: Programmable airburst, point detonating
Standard 30mm ammo
MOBILITY
- Crew (2 ?): Driver, Commander/Gunner
- Engine: MTU 6R106TD21
- power: 240 kW / ≈326 PS @ 2200 rpm
- Transmission:
- Gears: 8 forward, 1 reverse
- Max speed: 85 km/h
- Turret weight (w/o ammo): 1450 kg
OPTICS, ELECTRONICS
Gunner optic: GOC-1 NIKE
- Angular guidance speed: 1 rad/s (≈57.3 deg/s)
- Two-plane stabilizer
- Thermal camera
- 3-rd generation
- Wide FOV: 10°
Narrow FOV: 3.1°- Day camera
- Wide FOV: 10.7°
Narrow FOV: 3.3°- Video tracker
- Laser rangefinder
DIMENSIONS
Overall length: 7800 mm
Overall width: 2550 mm
Height with turret: ? mm
Summarized characteristics
- Crew (2 ?)
- Driver, gunner/commander
- 30mm X-gun
- Ammo: MF-ABM, standard 30mm
- Elevation: -20°/+70°
- Two-plane stabilizer
- Fire rate: 200 rds/m
- Gunner sight
- 3rd Gen thermals
- Laser Rangefinder
- Video tracker
- Turret weight (w/o ammo): 1450 kg
- Engine: MTU 6R106TD21 240 kW / ≈326 PS
- Max speed: 85 km/h
- Length 7,8 m Width: 2,55 m Height: ? m
Sources
Armament
Optics, electronics
there are two versions of this optic but the difference is that they’re HD-SDI, no data are available for them
