J-10C Radar Tilt Angle

Dev Server "Line of Contact" General Discussion - Dev Server
1

Hello everyone, before I attempt to submit a bug report I want to see if anyone has more information on the cant angle of the antenna on the J-10C. It is indisputably mounted at a canted angle, not simply suggested by the angled base of the radome itself but also established in photos of the J-10CE with radome removed from Zhuhai airshow. My hand measurements suggest a cant angle of 20 degrees, which would allow a 140 degree FoV array to gimbal to 90 degrees vertically. I would expect the correct implementation of such a canted array to look like -50 to +90 degrees vertically as opposed to the current -70 to +70 vertically. Canted arrays are not exclusive to just the J-10C; a significant number of modern fighter aircraft (ex. F-22, F-35, KF-21, KAAN, J-35, J-15T) have canted arrays, so I think this is an important detail in general for the accurate modelling of modern, sensor-reliant fighters.

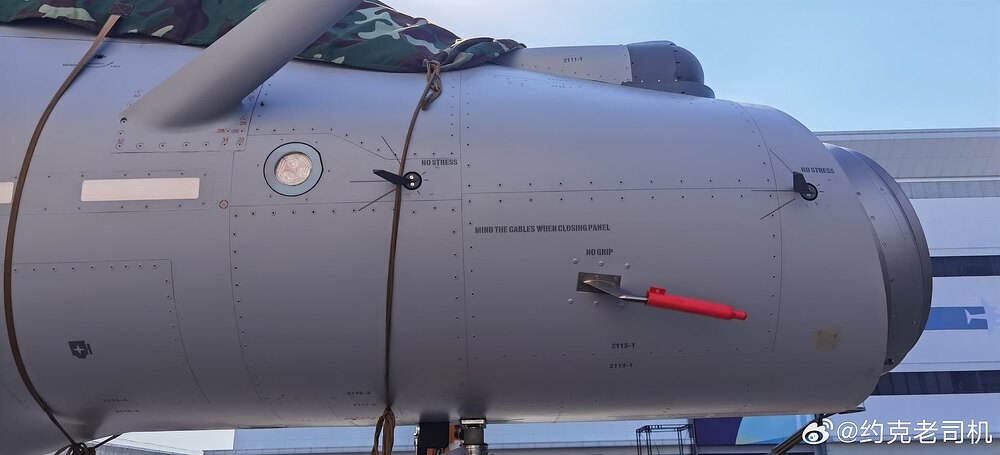

54528062109_261c8a1e59_k
54528062109_261c8a1e59_k2048×933 151 KB

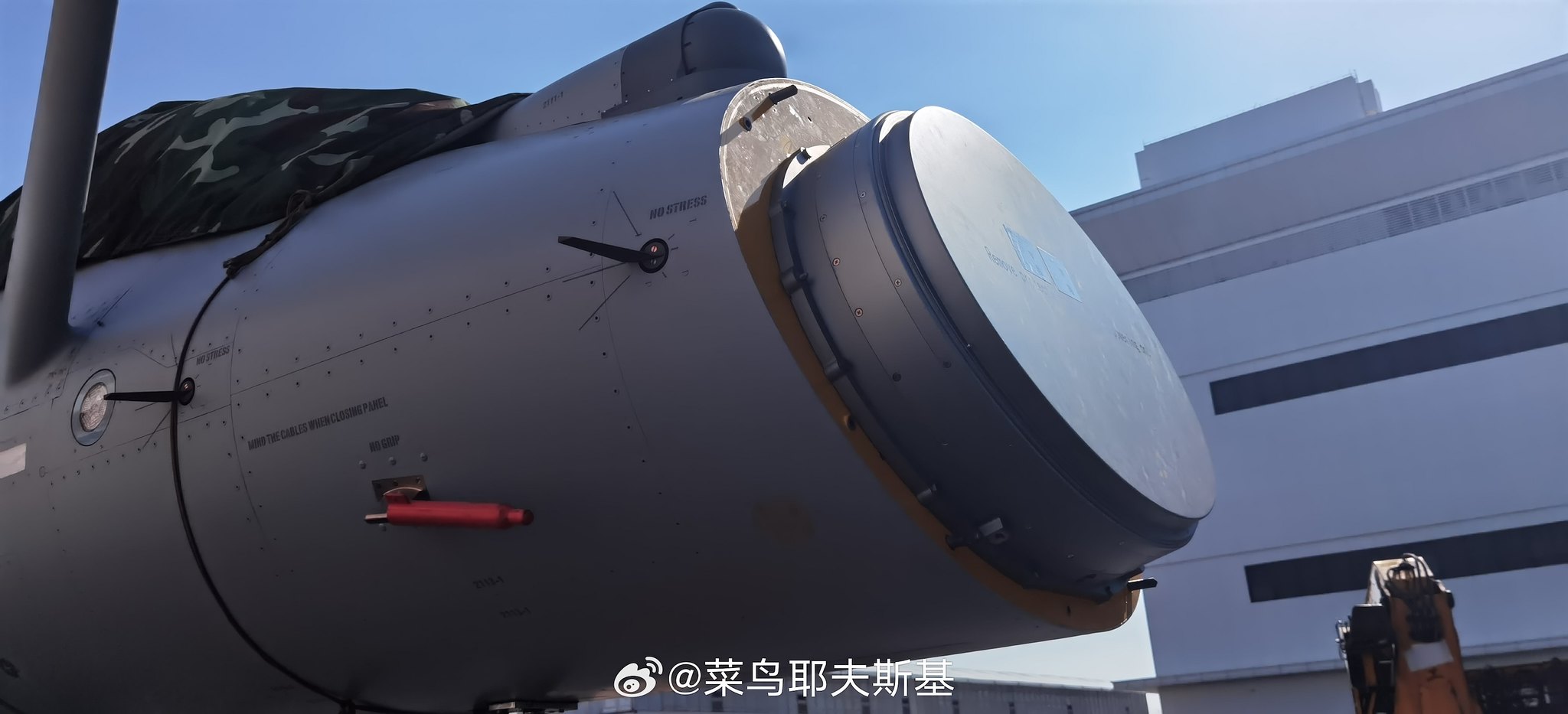

54527755276_5b39b2a900_k
54527755276_5b39b2a900_k2048×933 140 KB

Does anyone have more authoritative sourcing on the precise angle of the antenna tilt on the J-10C? Please don’t cite AI output, I’ve gotten ridiculous answers like “5 degrees” which is obviously nonsense.

3 Likes
2

Yea its definitely tilted in real life… current implementation seems wrong.

2 Likes
3

if modelled correctly, this would reduce the maximum negative angle possible but increase the maximum positive angle (both in vertical)

i think we could find out the irl angle from pictures but it is best to find out from sources if possible

4

The inclined installation is aimed at achieving a larger array size and accommodating more T/R modules despite the limited space available in a smaller radome. In fact, based on the principles of phased array radar, as long as the appropriate T/R modules are correctly positioned, it will not affect the downward-looking capability.

3 Likes
