updated the post
not sure where to include the extra notes
anyone has the source for 74g structural?

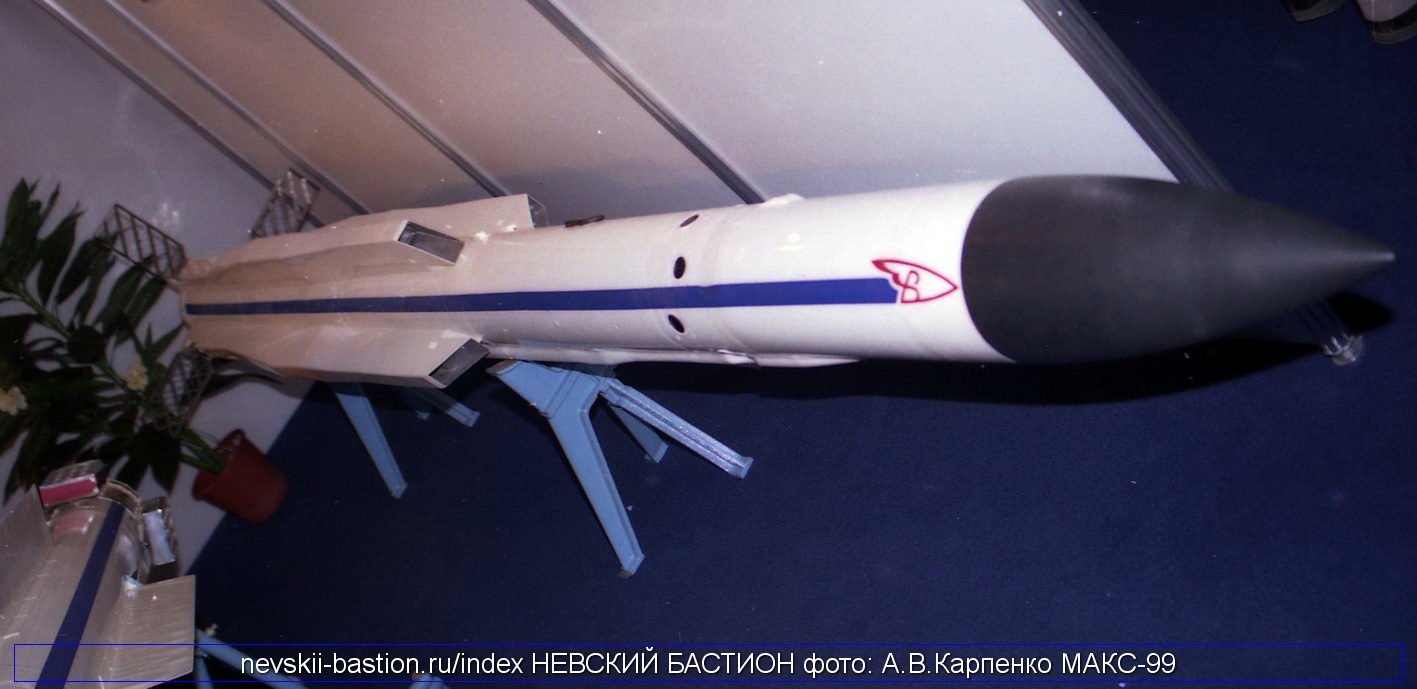

came from this museum
1 Like
interesting…
So far,
R40RD
- Incorrect life time: It is 75s seconds when it should do 40s max

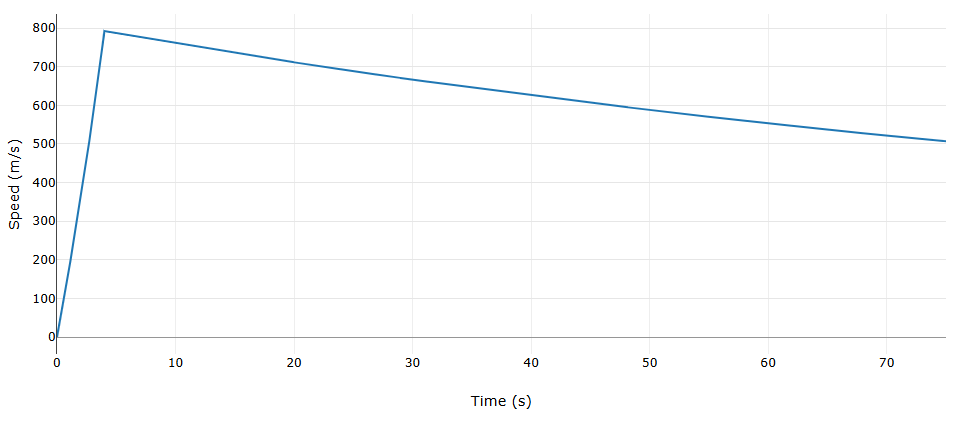

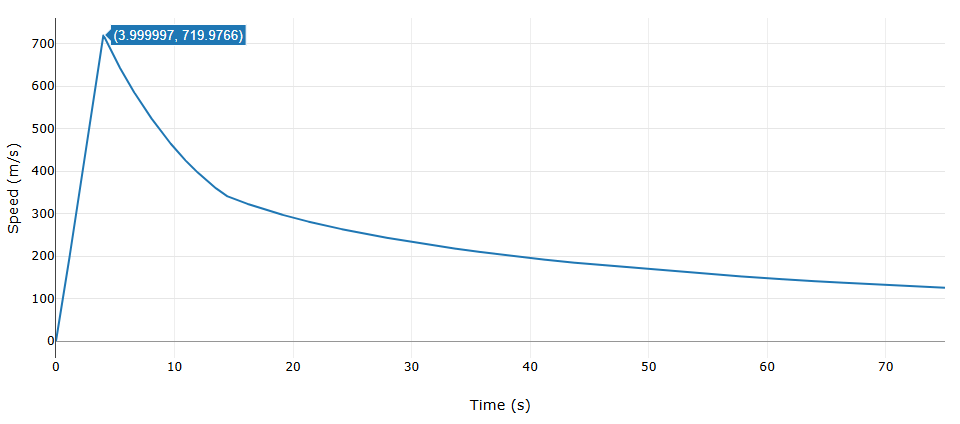

- Drag is too low: The Delta V of the R40RD is 720m/s at deck and 780 m/s up in space.
It should be +540 m/s (I assume on deck where drag is highest) to 740 m/s(where drag is negligible)
Spoiler
- Incorrect max Gload WHILE launching: It should be 3Gs
- Incorrect Explosive Mass: It is 25 kg when it should be much higher, 38kg***********
- Incorrect missile G overload: It is 20Gs when it should be 15Gs
- same for R40TD: Incorrect Gimbal limits during launch: it it 70°, it should be 45°
R40TD
Incorrect Explosive Mass: It is 25 kg when it should be higher********
For the the explosive mass on both, it may be 25kg. The Warhead is 38kg
Radar
- Incorrect CW transmitter: The current one is a 10° cone when it should be a 20° “cone”(bc its actually a horn). This 2x angle coverage means a 4x total illuminated area coverage.
- It should also be be fixed to the front, not be able to illuminate the sides…
Plane
- STR too high
- Max Gload too high too
1 Like
hello, if possible could i see the sources for those stats?
@Blitzkrieg877 hey, someone in my PMs asked where you got the IRCCM for R-40TD from, because currently it doesnt have it on dev, im asking here so others can see it if theyre also wondering
if someone can confirm, will update later
i realised i shouldnt be editing stuff without confirmation from more sources(by sources i mean people)
I can send some information on r27 family for you to update.
also that guy is right on the r40 stuff
corrections:
r-77/77-1
Max gload should be 50gs
Max aoa should be 40-45 degrees
here’s my bug report on it:
https://community.gaijin.net/issues/p/warthunder/i/t87egJpsGQUk
source is r-77 patent

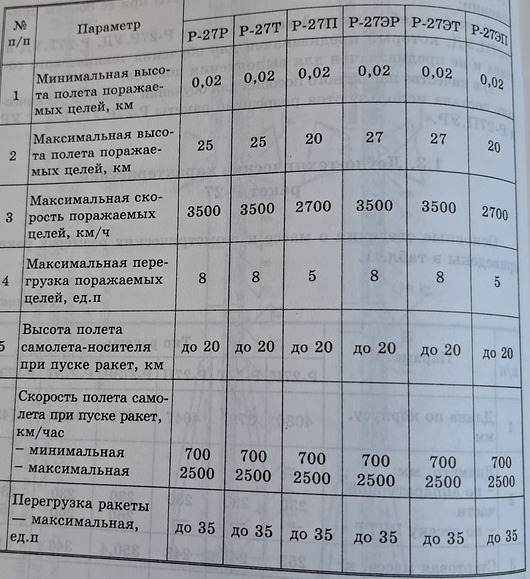

r-27er/r/t/et
max gload of 35 gs
source:
According to the manufacturer of the GCS on R-27 it can only hand a maximum of 35G for 6 seconds
as well as this:
some missiles you can add to this list in the OG post:

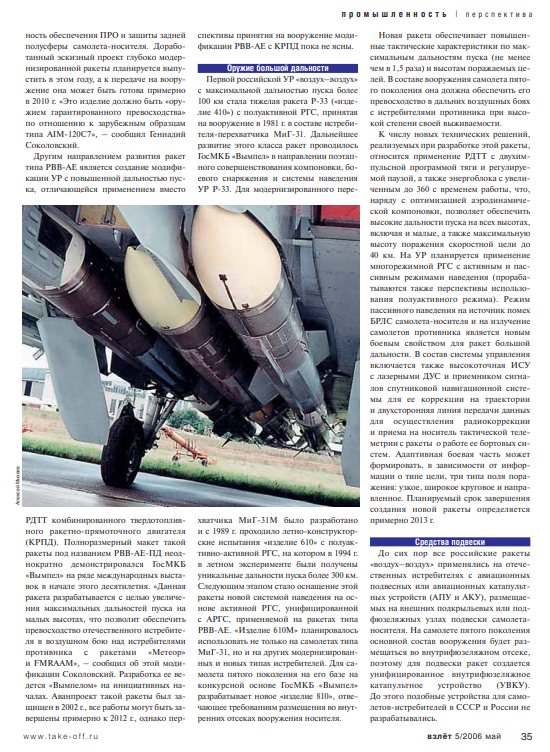

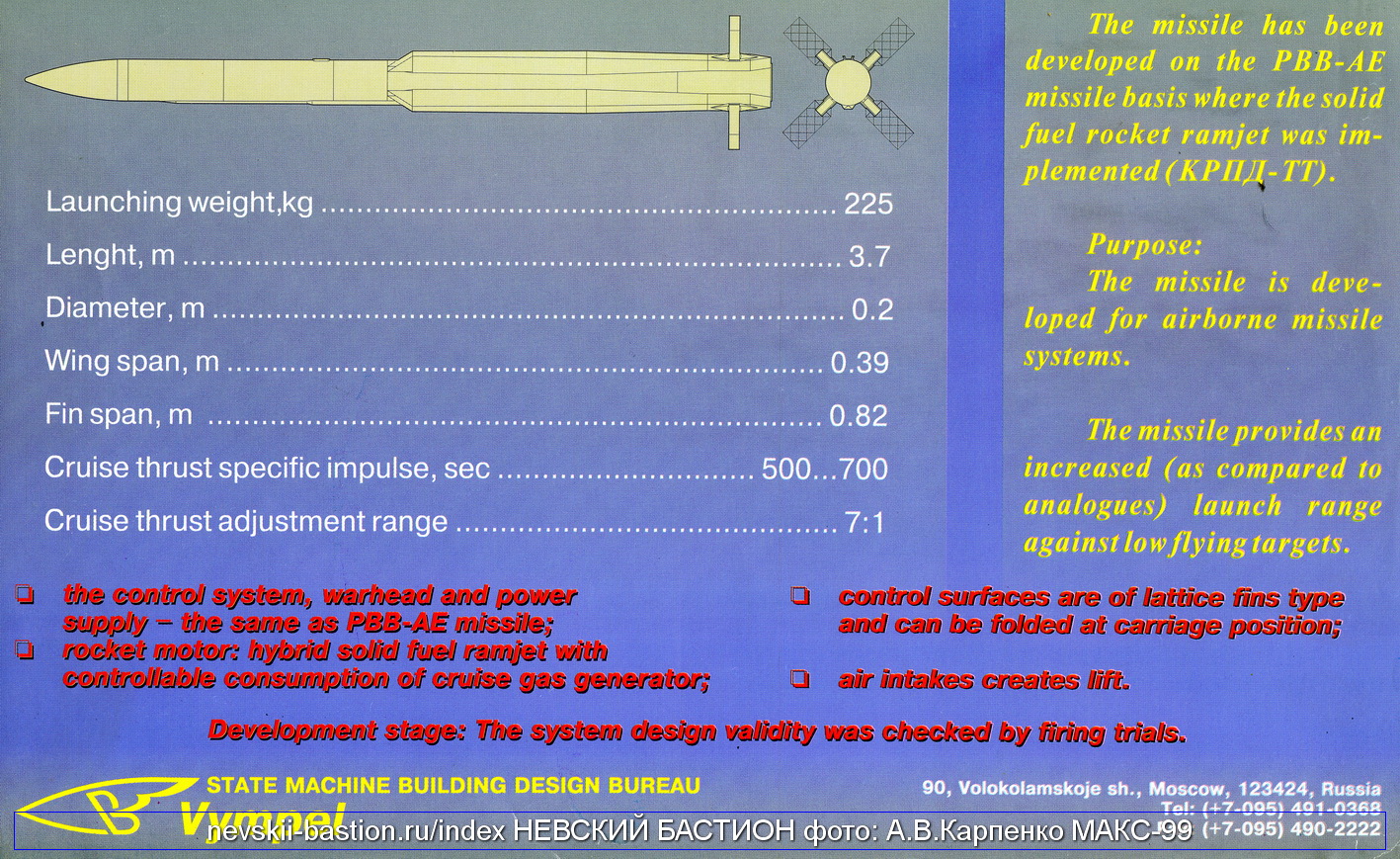

here’s information of rvv-ae-pd (RAMJET R-77)
here’s information on r-77m/izd 180
here’s information on izd-810 (missile that’s replacing r37m)
Spoiler
Do you have a primary source stating the R-40TD had IRCM? Cus me and some friends wanted to bug report it
i have that for r24t… unfortunately not for r40t
Alr, just can’t find a primary source, although I have found 10+ websites old and new stating it had ircm
doesn’t R-40TD use R-24T seeker or is it just a misconception?
yeah idk about that, thats why i said i have r24t docs but not necessarily r40td docs
That’s the 40RD uses a 24R seeker. If not it’s based on it I’m not 100% sure though

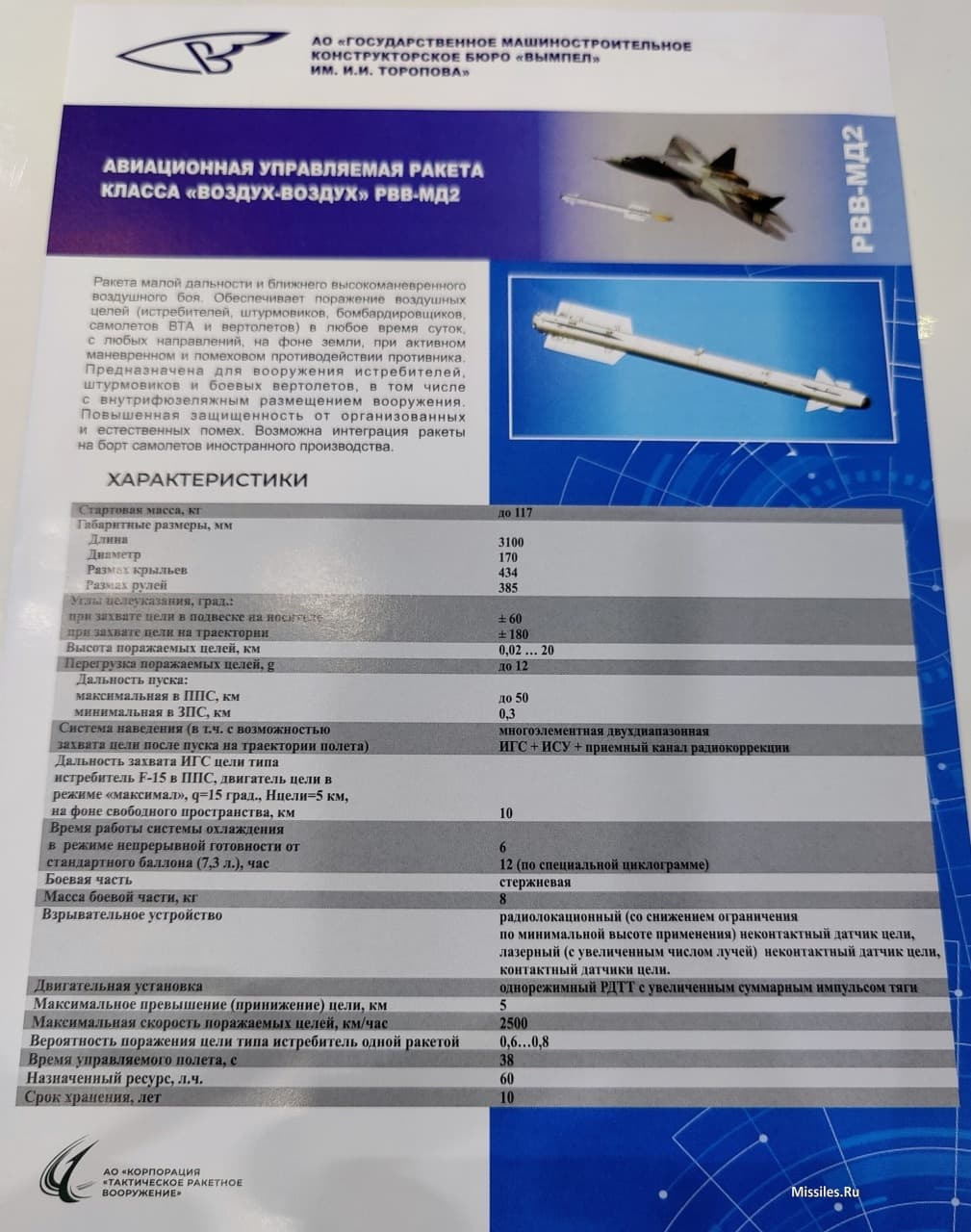

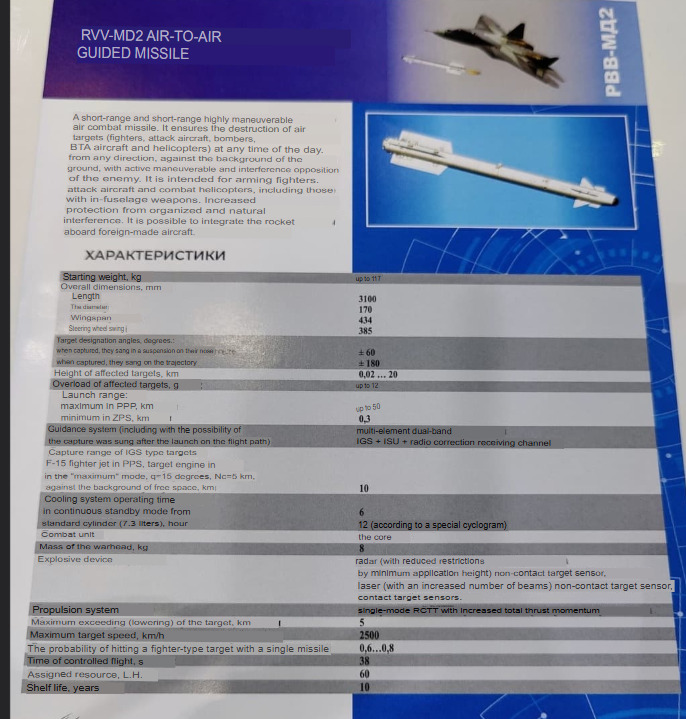

Another missile to add to the list - R74m2/rvv-md2
for su35, su30sm and su57 type fighter
gotta love me my IOG+Datalink on a Fox-2 missile, wonder how this even works
