Need it.
rip to Shah of Iran
ADD IT!
(im sure if he was there in 90s, iran surely would become F-22 operator after US)

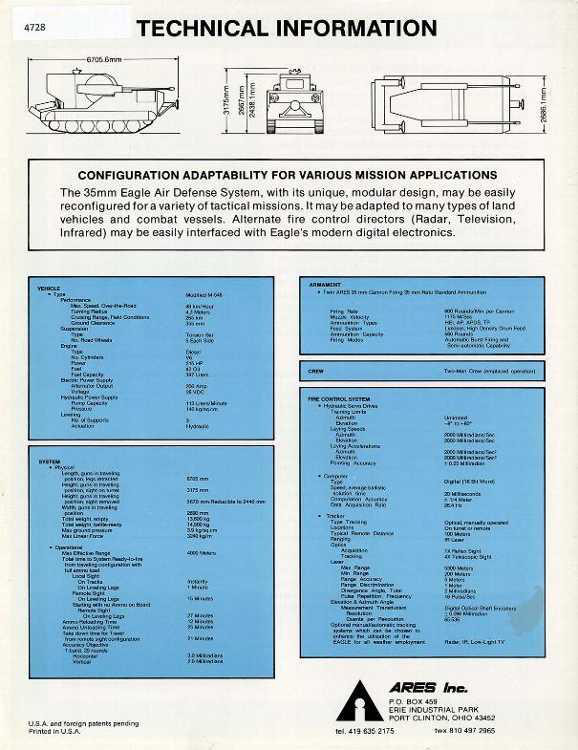

this SPAA had IR guidance system

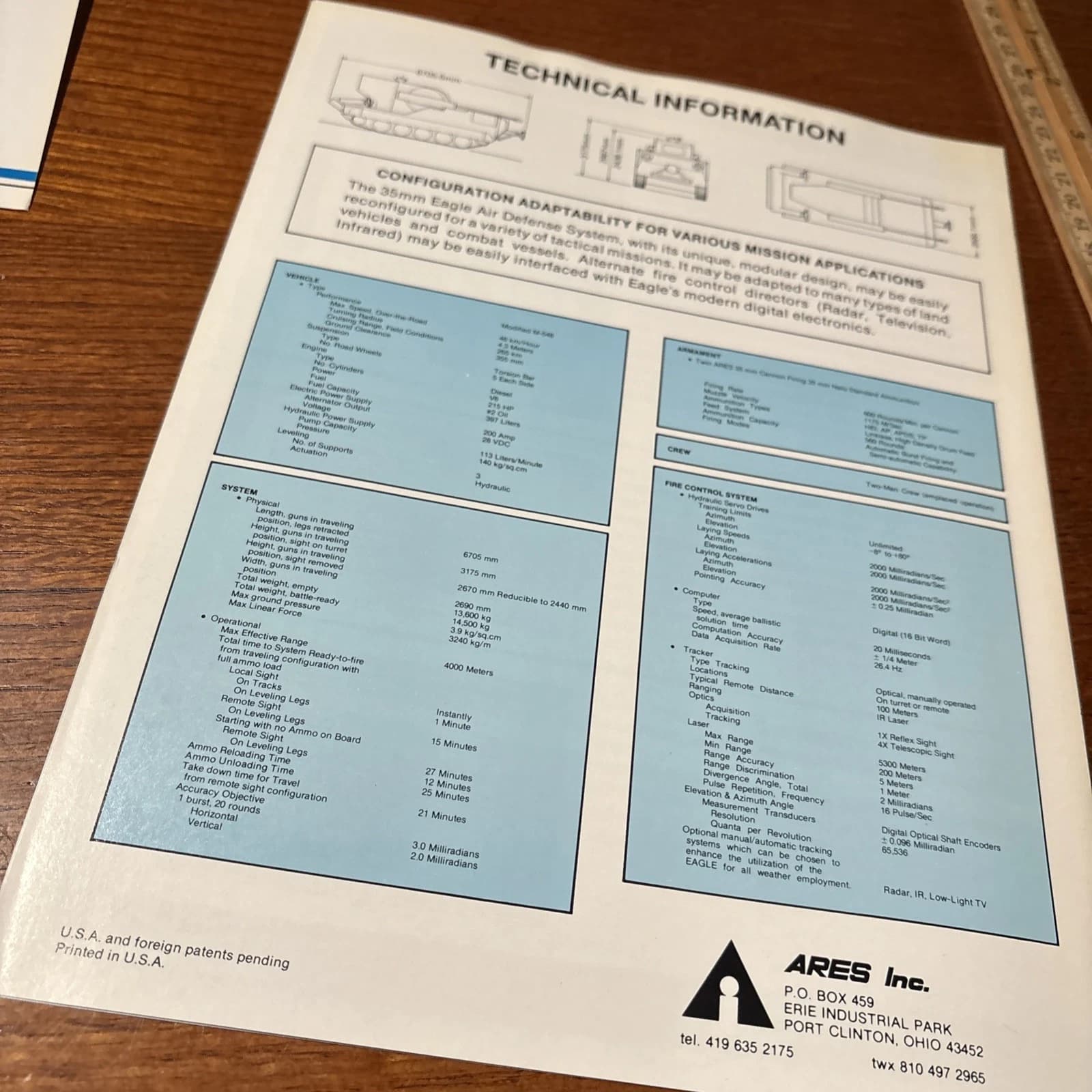

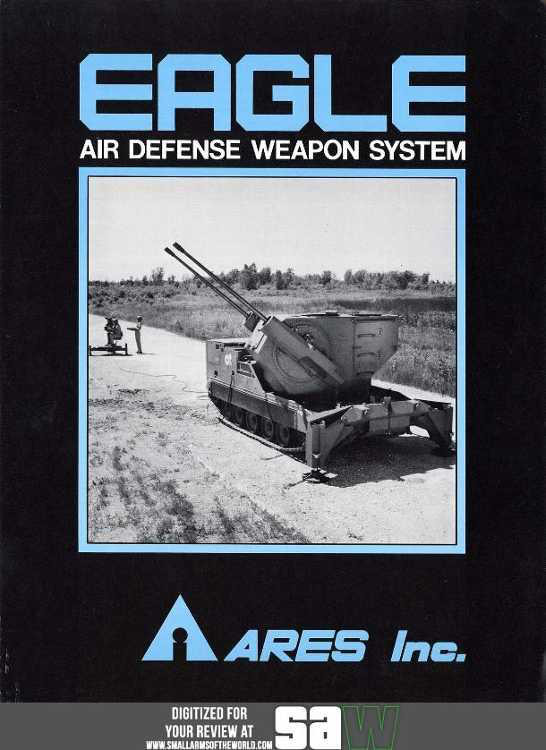

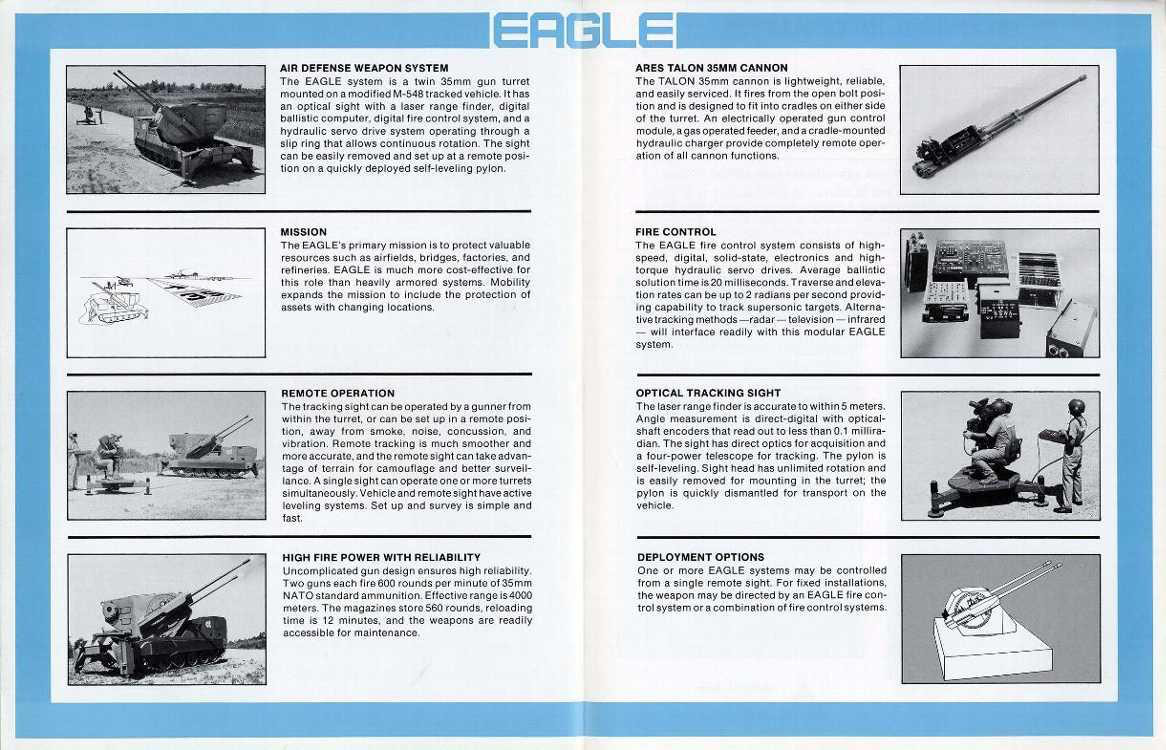

The Falcon and the Eagle.
1 Like

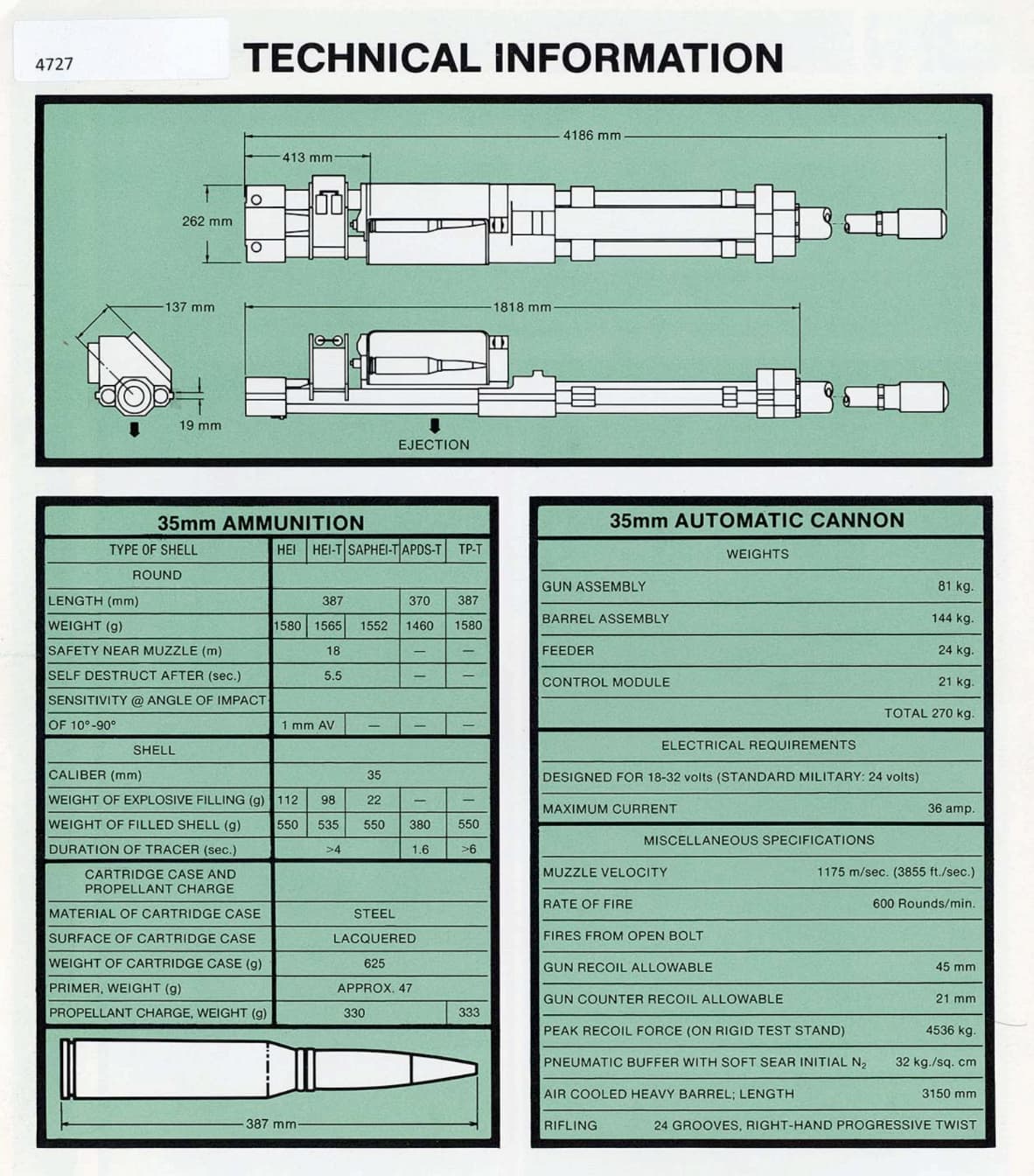

Can help with the 35x228 Oerlikon ammunition ig;

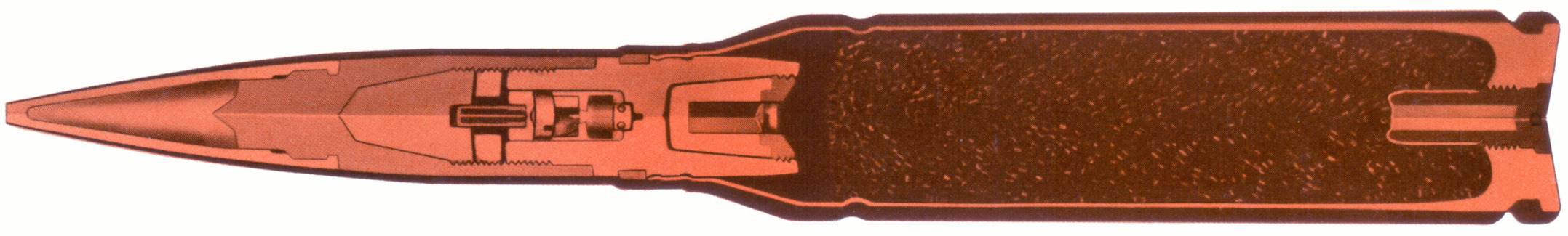

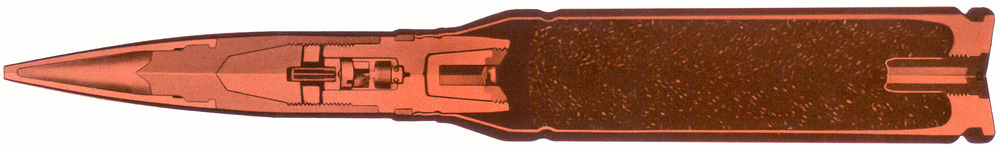

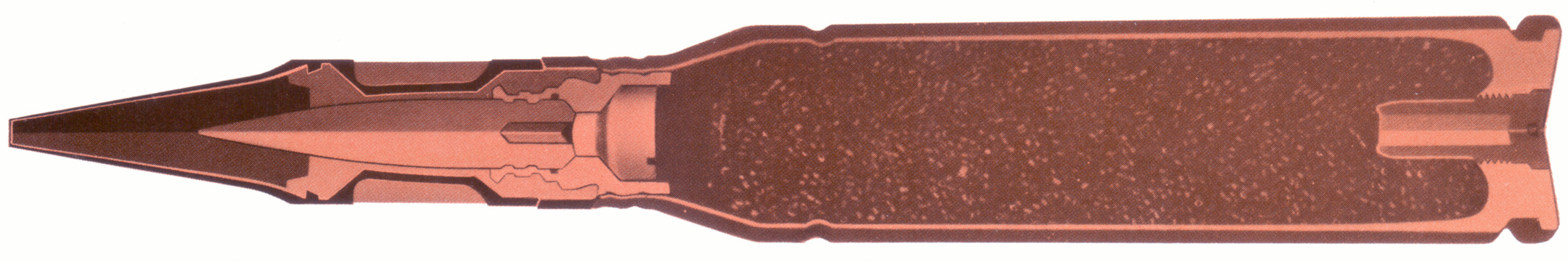

HEI-T – Oerlikon MLD Type
Mine High Explosive Incendiary shell with Tracer
DE: Minen-Sprengbrandgranate mit Leuchtspur
Mass (projectile): 535g
Mass (Total): 1565g
Mass (expl. Filler): 98g
Expl. Filler-Type: Hexal P30
Muzzle-Velocity: 1175m/s (+15°C) // 1180m/s (+21°C)
Fuze: Point Detonating
Fuze-Sensitivity: 1mm Avional (Aluminium), 10°
Self-Destruction: Yes, after 4000m (:= ca. 5.5s)
Tracer-Burntime: >4s

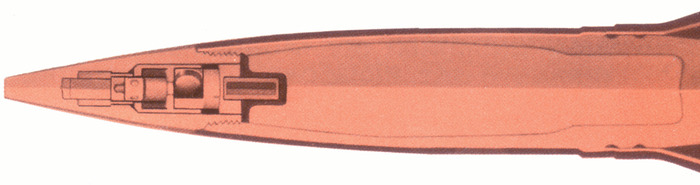

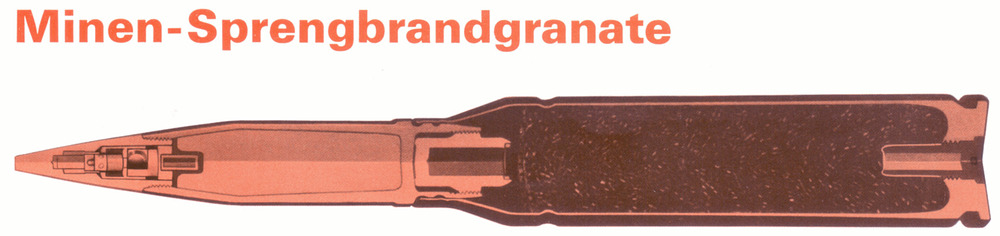

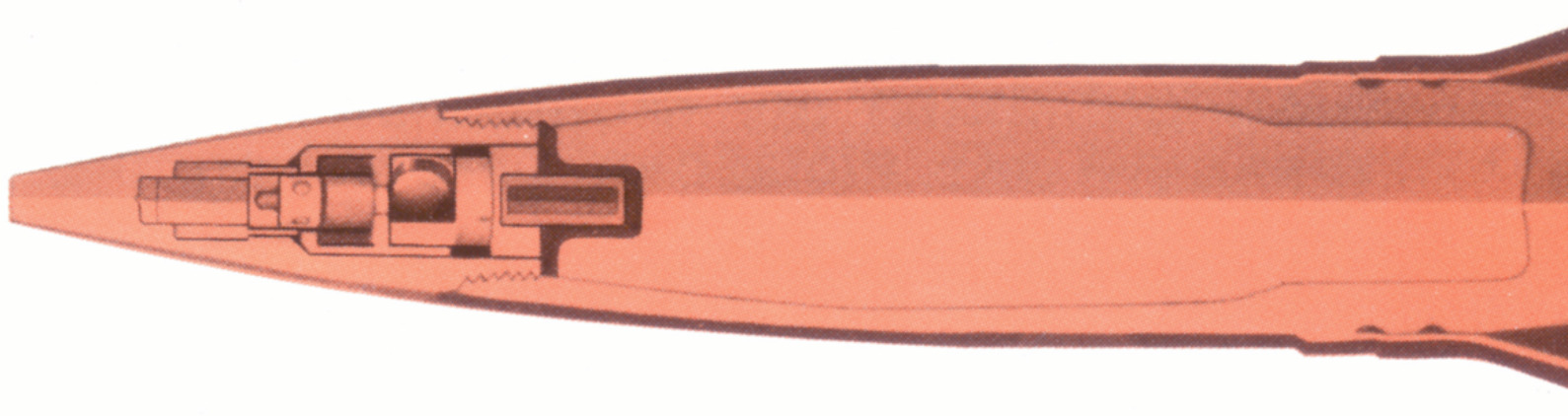

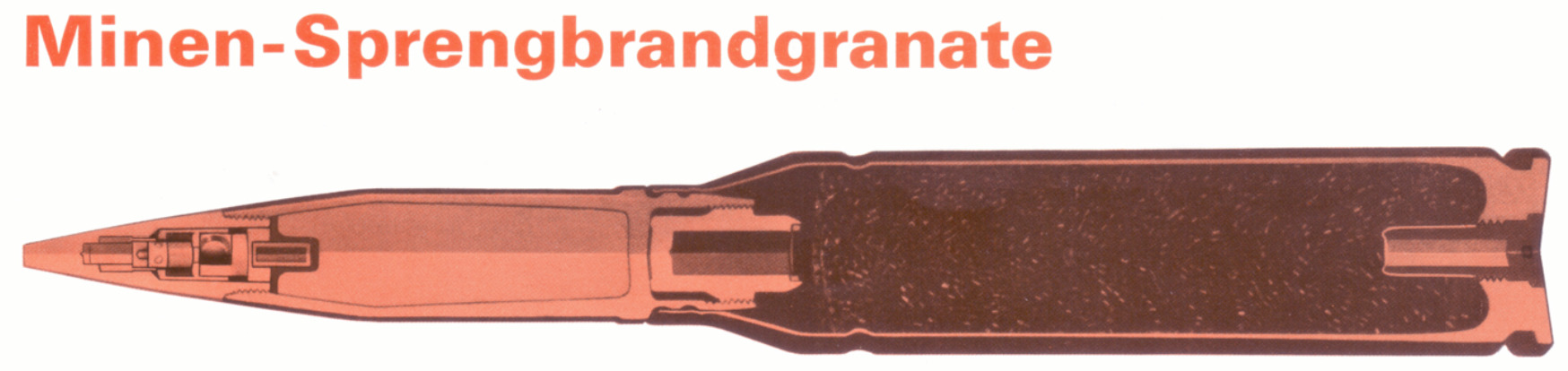

HEI – Oerlikon MSD Type
Mine High Explosive Incendiary shell
DE: Minen-Sprengbrandgranate
Mass (projectile): 550g
Mass (Total): 1580g
Mass (expl. Filler): 112g
Expl. Filler-Type: Hexal P30
Muzzle-Velocity: 1175m/s (+15°C) // 1180m/s (+21°C)
Fuze: Point Detonating
Fuze-Sensitivity: 1mm Avional (Aluminium), 10°
Self-Destruction: Yes, after 4000m (:= ca. 5.5s)
APHEI-T – Oerlikon PLD Type
Armour Piercing High Explosive Incendiary shell with Tracer
(NATO-Designation: SAPHEI-T ; Not to be confused with PD-Fuzed SAPHEI found on e.g. Sgt. York or Begleitpanzer 57 mm)
DE: Panzer-Sprengbrandgranate mit Leuchtspur
Mass (projectile): 550g
Mass (Total): 1552g
Mass (expl. Filler): 22g
Expl. Filler-Type: Hexal P30
Muzzle-Velocity: 1175m/s (+15°C) // 1180m/s (+21°C)
Fuze: Base-Fuze
Fuze-Sensitivity: 3mm Fe (Sheet Metal), 90°
Self-Destruction: Yes, after 4000m (:= ca. 5.5s)
Tracer-Burntime: >4s
APDS-T – Oerlikon TLD Type
Hard-Core shell with Discarding Sabot & Tracer
DE: Treibspiegel-Kerngeschoss mit Leuchtspur
Mass (projectile): 380g
Mass (penetrator): 294g
Mass (Total): 1460g
Penetrator-Material: Tungsten
Muzzle-Velocity: 1385m/s (+15°C) // 1390m/s (+21°C)
Tracer-Burntime: 1.6s (:= 2000m)
Sources (primary):
“Oerlikon 35 mm Munition für die Maschinenkanonen Typen KDB, KDC und KDA” (1975)
Publ.: Oerlikon Machine Tool Works Ltd.
“Oerlikon 35 mm ammunition for the automatic cannons types KDA, KDB, KDC and KDE” (1981)
Publ.: Oerlikon Machine Tool Works Ltd.
Covers, respectively as reference (L: 1975 | R: 1981)
