Daimler Armorer Car Mk II LittleJohn: Revenge of the Reserve

[Would you like to see this in-game?]
  • Yes
  • No
0 voters

By the close of 1942 it was apparent that the Q.F. 2 pounder had reached it’s sell-by date, with the new APCBC ammunition taking the cannon to its current limits. This was acceptable, the 17 pounder was beginning to make its way onto the field and the 6 pounder was beginning to make it’s way onto vehicles, ensuring that the British would continue to have capable Anti-tank weapons in the future. There were, however, niche roles that would continue using the 2 pounder. The first was that of a glider capable tank for the airborne. No 6 pounder equipped vehicle could fit with the gliders, and antitank capability was still needed. The second was armored cars, most of which would still be using the 2 pounder. Increasing the anti-tank potential of the 2 pounder for these roles would be valuable to their continued success.

img_48-1

To improve the 2 pounder, a squeezebore adaptor was created to be fitted to the end of the barrel of the gun. This was to be utilized with special tungsten cored ammunition with a soft steel jacket that would be squeezed down by the adapter, preventing excess gas from passing the round and increasing muzzle velocity. Trials showed that with the MK 1 APSV (armored piercing super velocity) shot the 2 pounder could penetrate 145 mm of flat armor point blank, and could still defeat 100mm of armor at 30 degrees at up to 200 yards. a Mk 2 APSV was developed with a heavier core that could only penetrate 120mm of flat armor, but would behave better against angled armor and performed better at range.

While the adapter did see some limited service with the airborne tanks, its main usage was on the Daimler Armored Car. With a scout troop typically consisting of 2 scout cars and 2 armored cars, having one of the 2 armored cars be issued with a littlejohn adaptor was not uncommon. This was usually viewed as a golden ratio, as the littlejohn adaptor removed the possibility of using a HE shell.

Littlejohn

main-qimg-38d5b08df5b7316ad9eb5ffed2680958-lq

Personally, I think that driving around in this little armored car and zipping through the turrets of Panthers and the hulls of Tigers is just great. Anyway, stats are below, sources for this are the ‘Handbook for the Armored Car, Daimler I and II’,’ Workshop Manual for the Armored Car, Daimler I and II’, and for the proliferation of the Littlejohn adaptor I will quote the following websites

http://www.missing-lynx.com/articles/britain/pbdaim.htm

7 Likes

I want ALL the squeezy bois! +1

2 Likes

a good addition, plus the fact that it would be easy to add, just modify the in-game Daimler a bit and we have it quite quickly I’d hope.

1 Like

+1 might be worth adding the Daimler MK I, and then have this as the next in line after with the little john to differentaite the two

1 Like

Any progress on this?

This would be pretty damn cool. More British Wheelie bois please Gaijin.

i whould love something likre that then britain will have cannons that can penetrate and high speed high pen gremlings is the best

This would be a really cool and fun rank II armoured car.

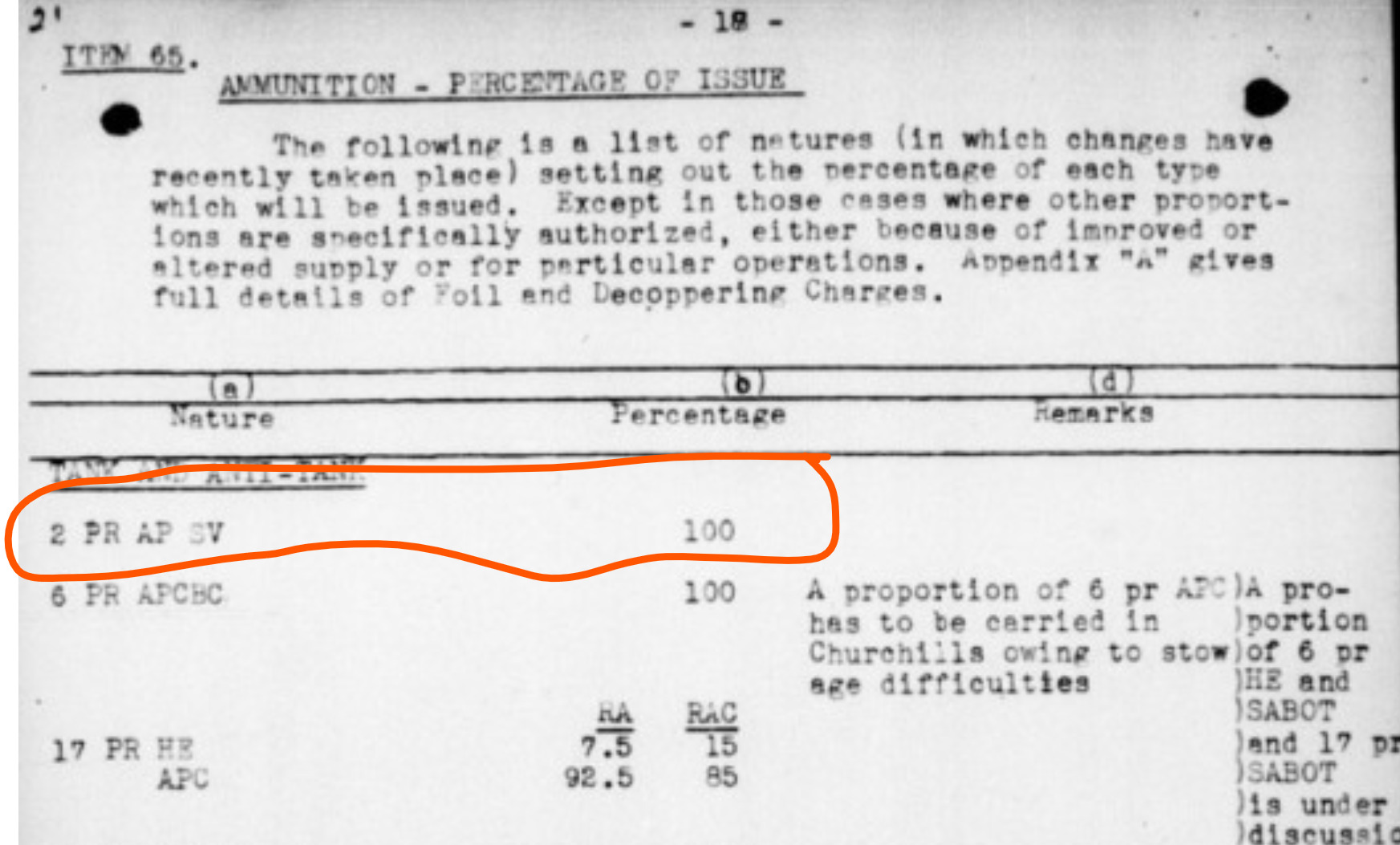

I dont really care about this suggestion, but i found this picture.

Could someone explain how squeeze boar apds works? I cant rap my head around it as how would it work with the saladin with apds and the squeeze board adapter work?

Full send +1

Well the Squeze bore isnt apds.
Instead its closer to a arrowhead APCR, tho as the barrle is conical going to a smaller diameter the projectile fins get pushed closer to the body, (continue to seal the pressure) over a smaller diameter, duo to laws of physics, which then greatly increases velocity.
You can see that even easily in nature, when you are at the beach, make some sand wall and in the middle water, when break a little part of the “dam” the water flowing speed at the thinnest part where it flows out will be the fastest, compared to the rest, and as the water while flowing widens the hole you can also see it flowing slower and slower.

a saladin with the squeeze bore adapter was able to fire apds out of it so i had assumed it would still have a discarding sabot rather than just a simple squeeze bore round but apcr.

1 Like
