THEPolishThunder · October 15, 2026, 3:23pm

Placeholder for what?

Suit yourself I guess

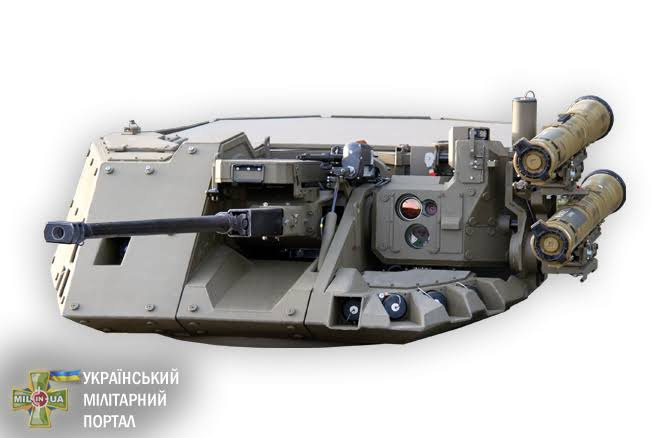

The turret can’t mount them as it’s the older verion of the Turra, which could only be additionally equipped with Konkurs.

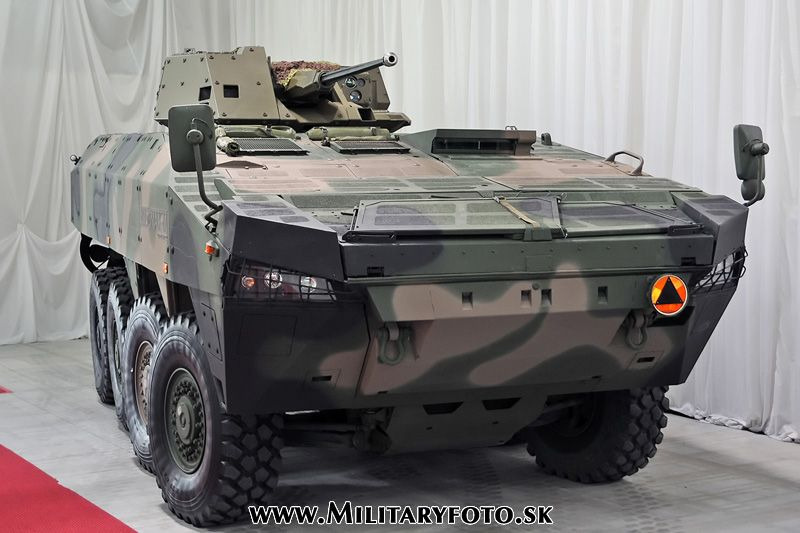

This turret:

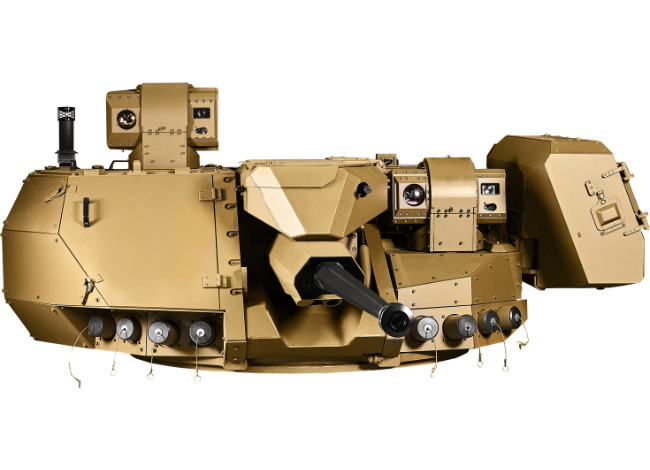

Newer Turret wich can equip spikes:

More pictures

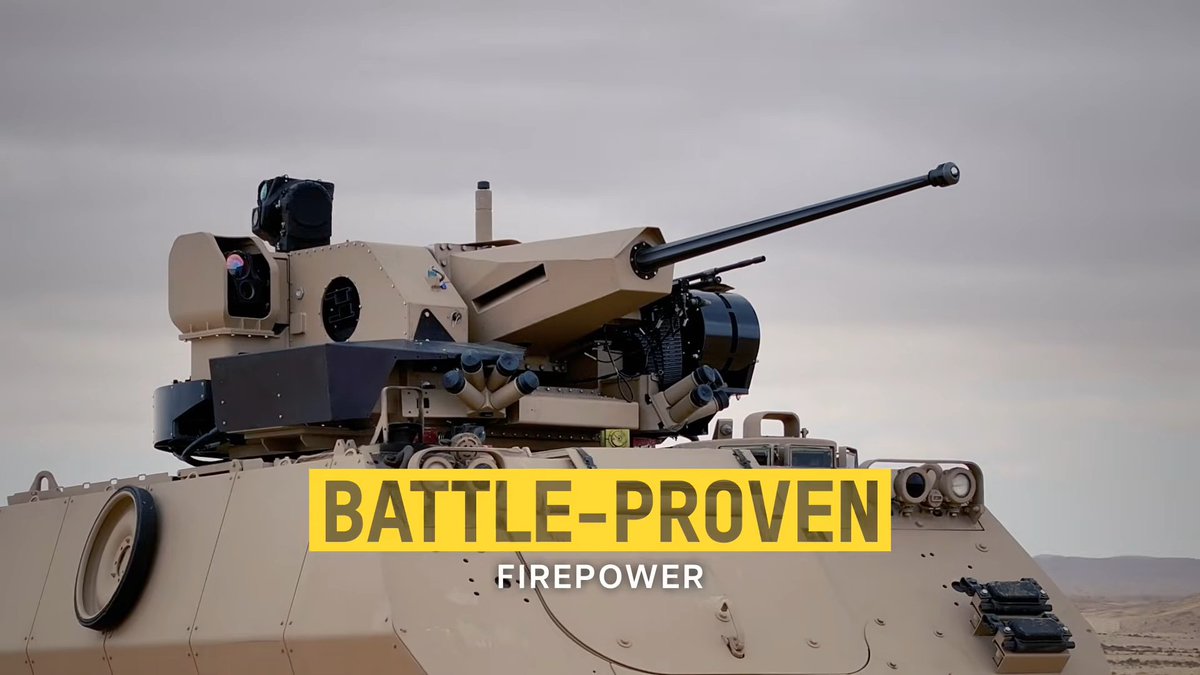

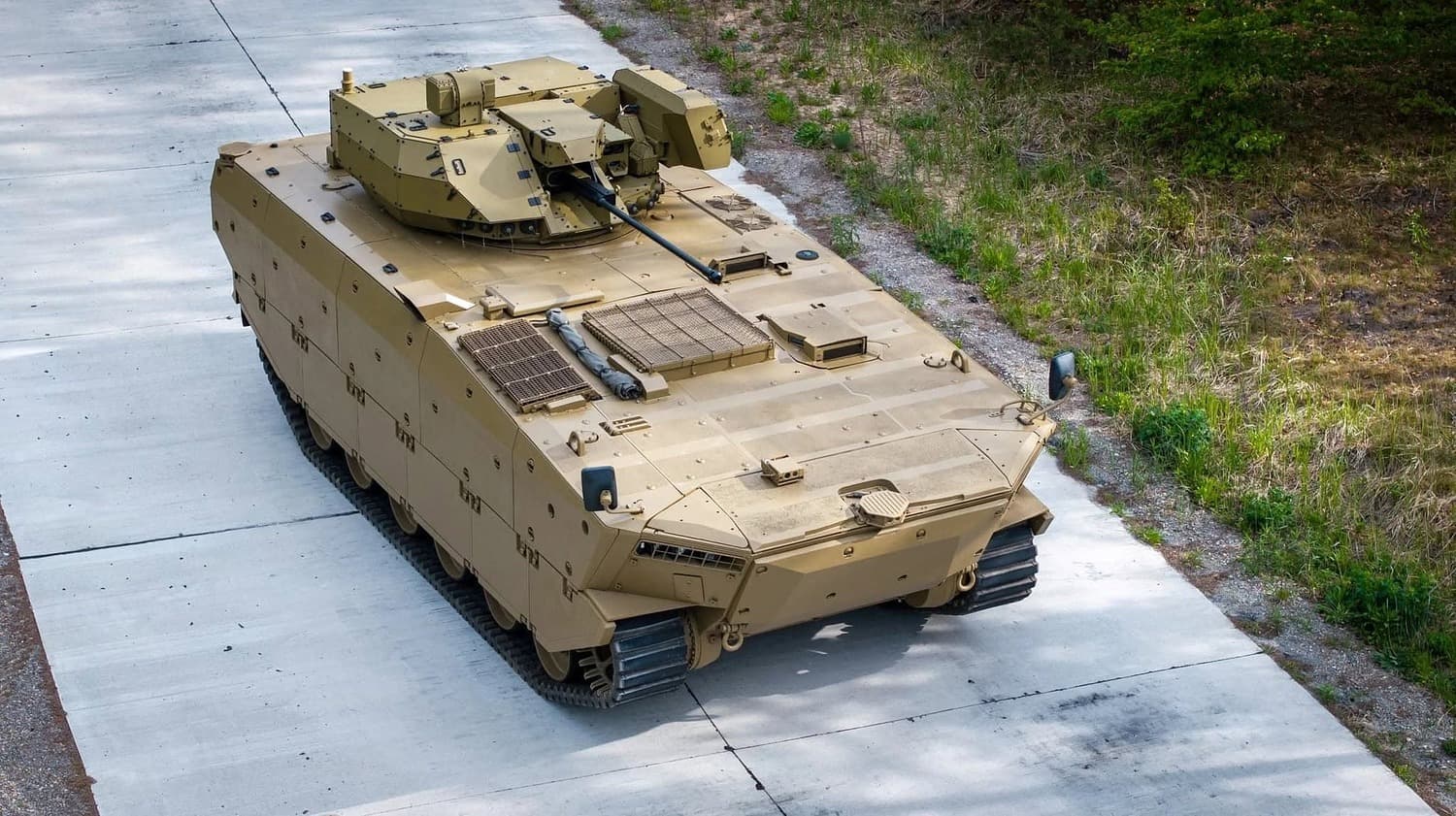

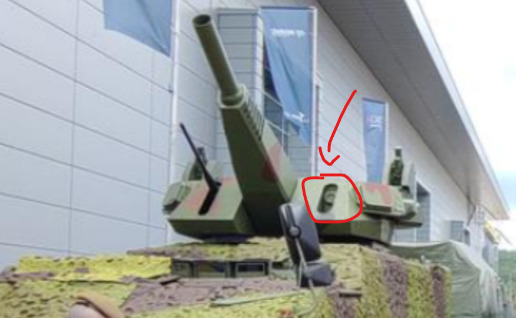

The UT30MK3 is a mock up, the APS on the Crossbow 120 is a mock-up, the turret is self may be a mock up as well, but I’m not sure. (It’s missing a sight, and it looks off compared to the real Crossbow 120 turret)

PiekarzV2 · October 15, 2026, 3:40pm

it is real and it fires. The radars and GATR launcher maybe be mockup though

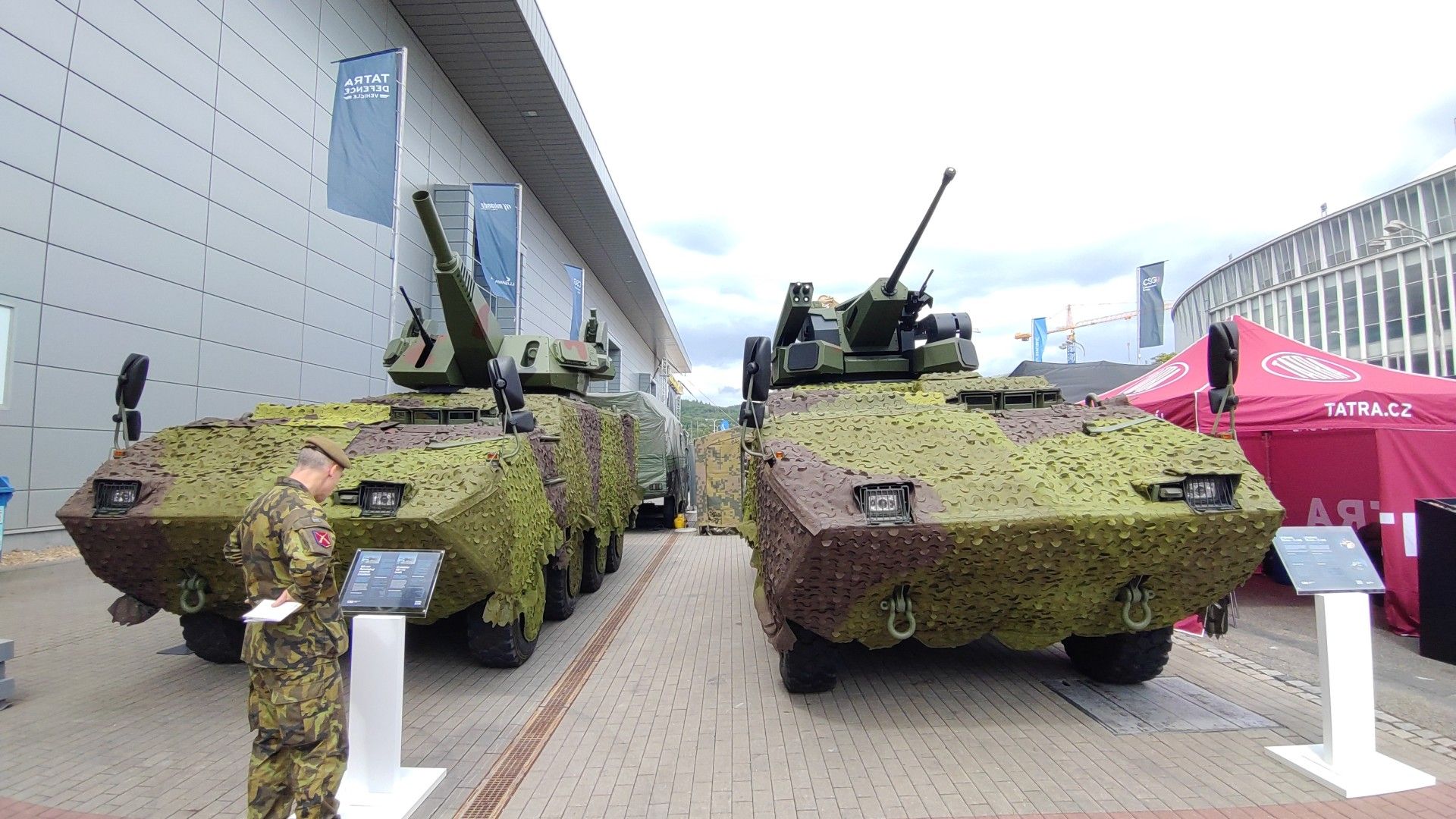

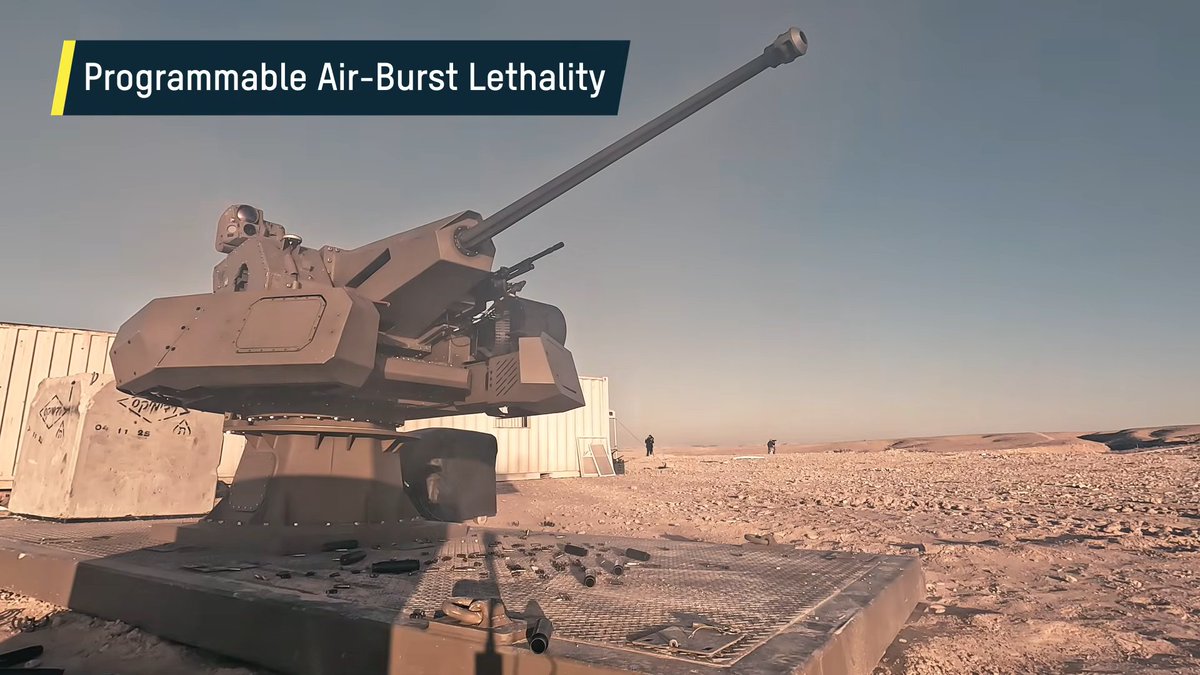

The same turret with different lower structure

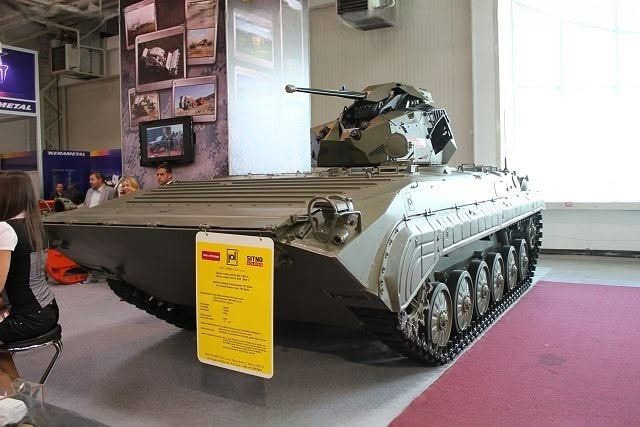

UT30MK3 on some M113 variant

TADAMAT · October 15, 2026, 5:20pm

Placeholder for a more suitable czech variant

I will

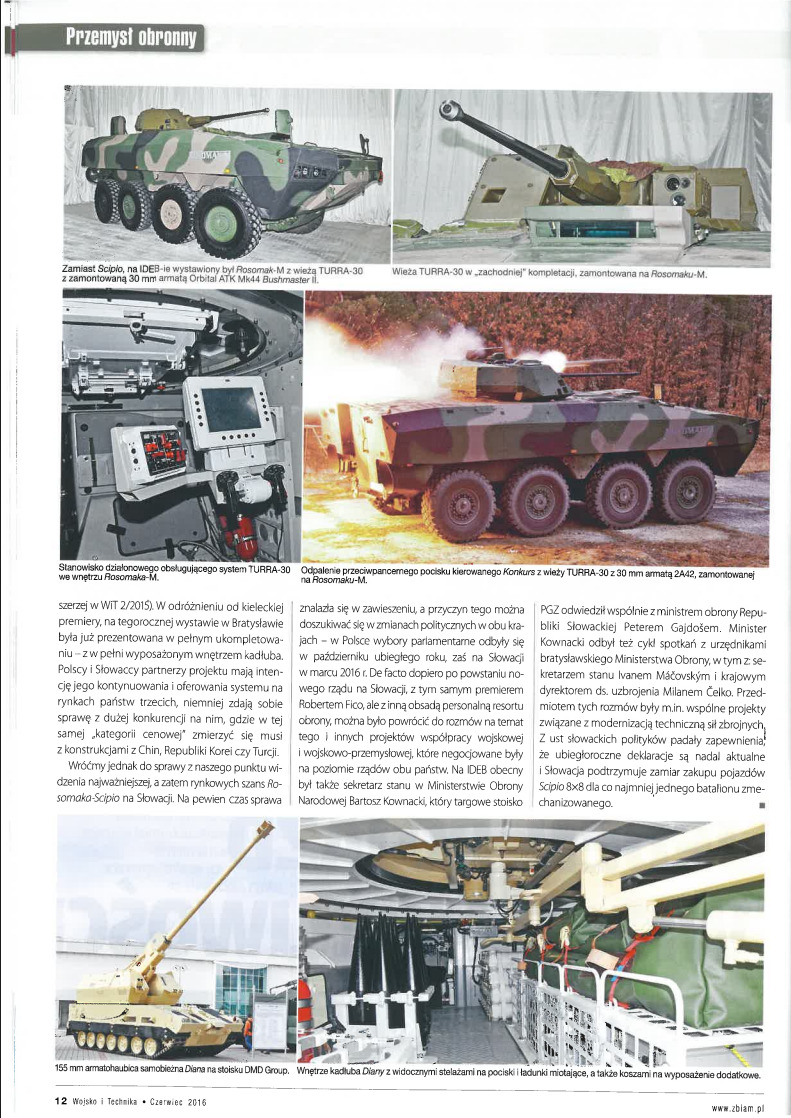

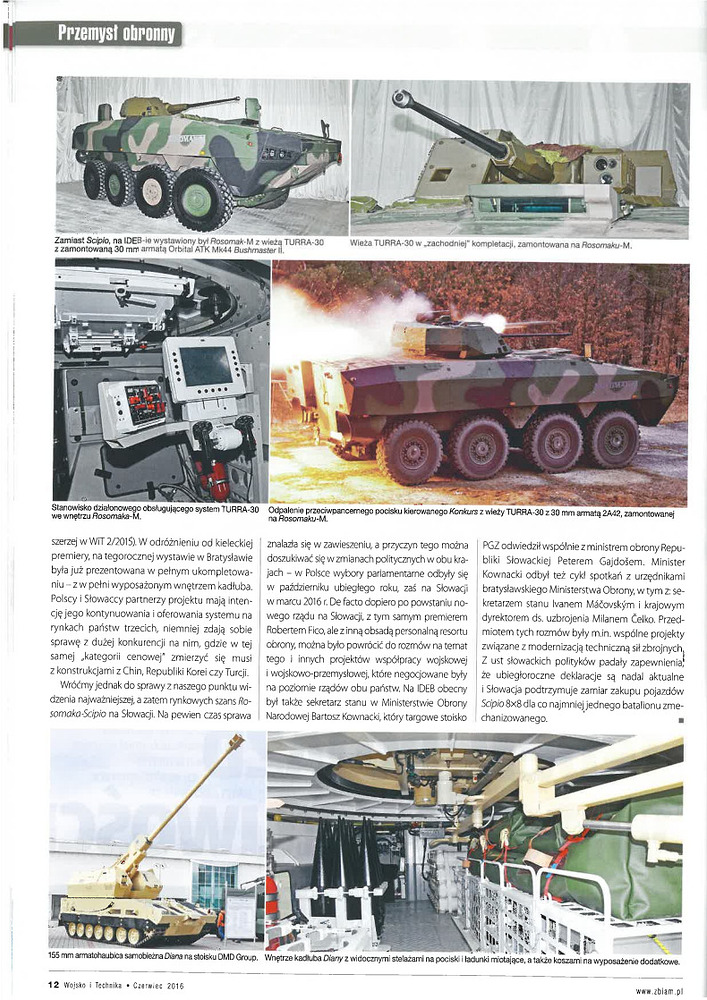

Integration of Spike was possible even on early versions of Turra 30. These two sources are from 2015, a year before the Bushmaster Scipio/Rosomak-M was revealed:

Which still makes these vehicles technological demonstrators and not mockups. Its basically as close to a working prototype as it can get without actually being combat capable

THEPolishThunder · October 15, 2026, 6:24pm

Integration of Spikes was only done on newer versions of the turret, never done on the older ones, I still don’t undertand why you are sticking to this idea, when you already have a existing vehicle that has Spike missiles integrated.

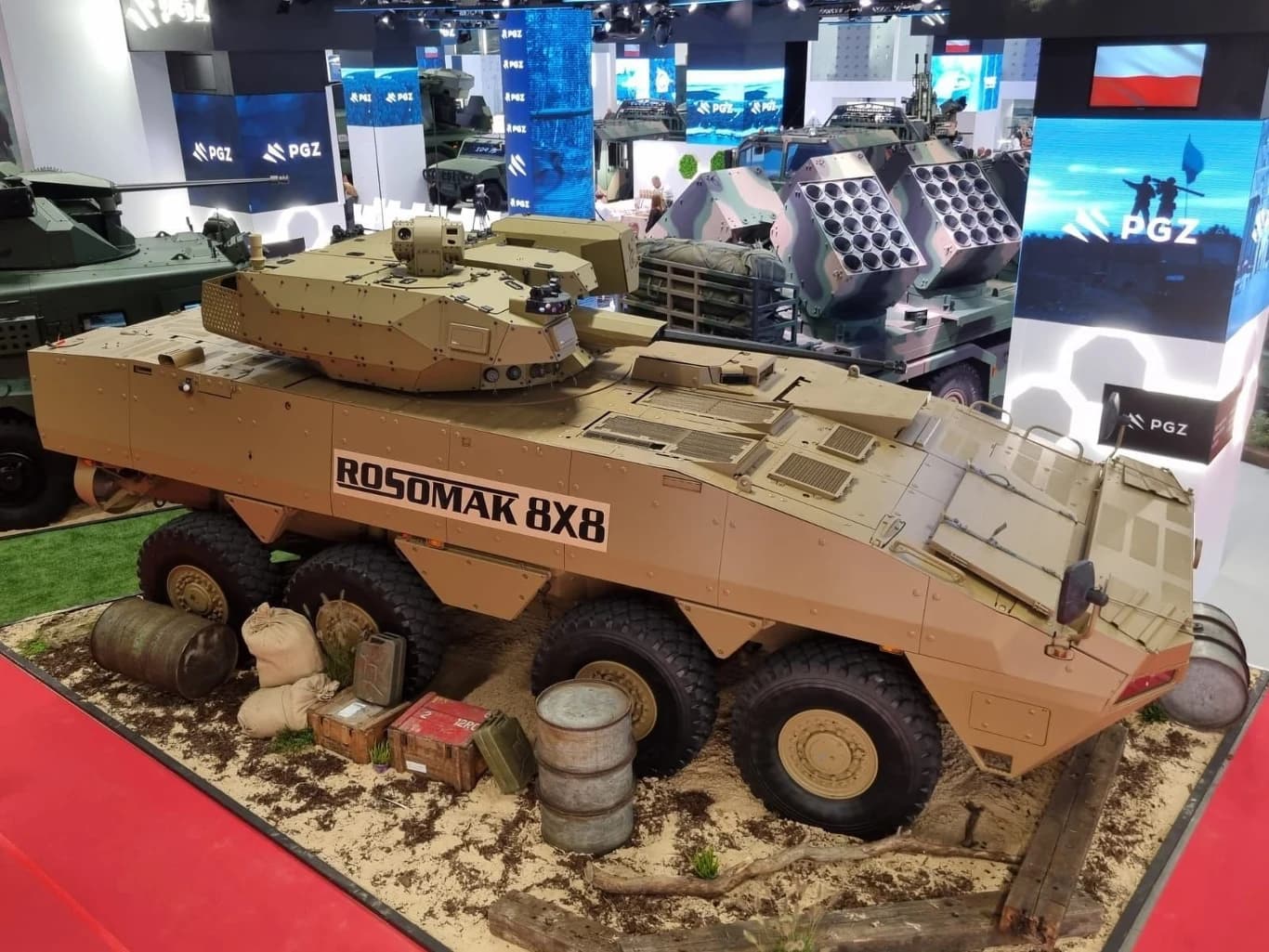

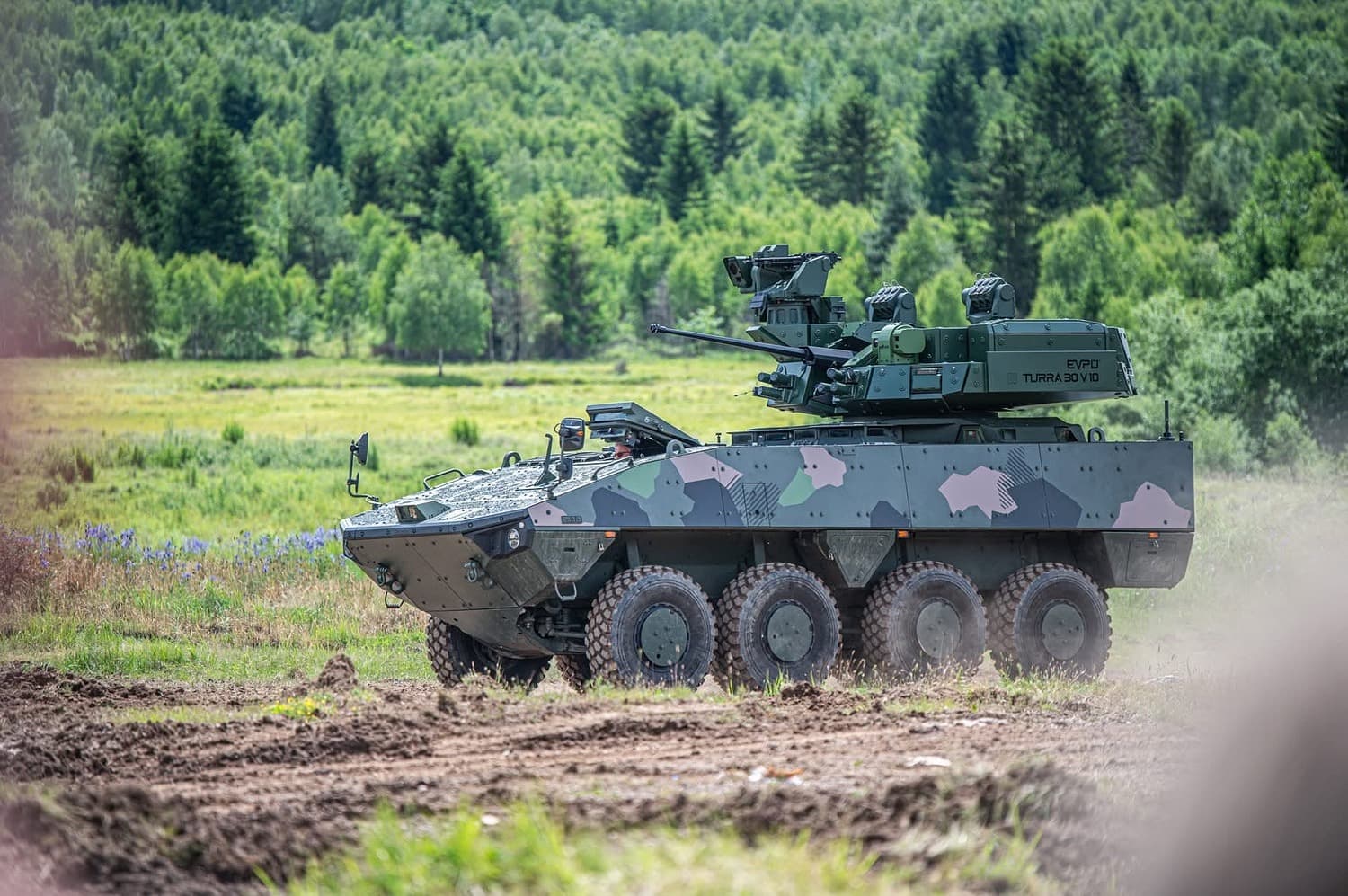

Rosomak-L (Turra 30-SA V9)

UT30MK3 is a mock-up, Crossbow 120 likely is as well

PiekarzV2 · October 15, 2026, 6:45pm

The video was made 6 months before IDET

DrunkenLamp · October 16, 2026, 4:04pm

Czechoslovakia recovered multiple western vehicles that were captured by Germans during ww2.
1 M3 Lee, 1 Churchill III, Matilda II CS and Valentine III
The more interesting vehicles are the Matilda and Valentine, both of these vehicles were modified and tested with 37mm Škoda A7 cannon modified by Škoda.
Sadly no images exist of these vehicles with the 37mm gun.
Source: HPM 2006/6

Edit
Valentine was succesfully converted, Matilda seemingly was not.

DrunkenLamp · October 19, 2026, 7:15pm

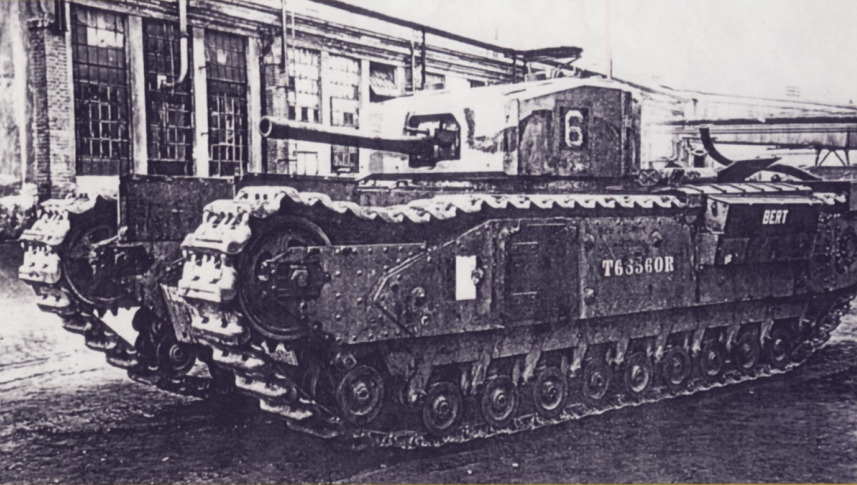

Churchill Mk.III nicknamed “Bert” captured by Germans, originally this tank was in use by Canadian units. It made it’s way to SS Benešov firing range where it was left by the Germans. This is photo of it in 1945 in Škoda, Pilsen after Czechoslovaks captured the vehicle.

TADAMAT · October 20, 2026, 6:48pm

EXTENDED CZECHOSLOVAK GROUND TREE WITH 5 HUNDRED VEHICLES

Hi there. For the 5th anniversary of me participating in professional Czechoslovak techtree autism, i have prepared something truly special. An update to my extended ground tree, which finally brings my techtree to 500 mark.

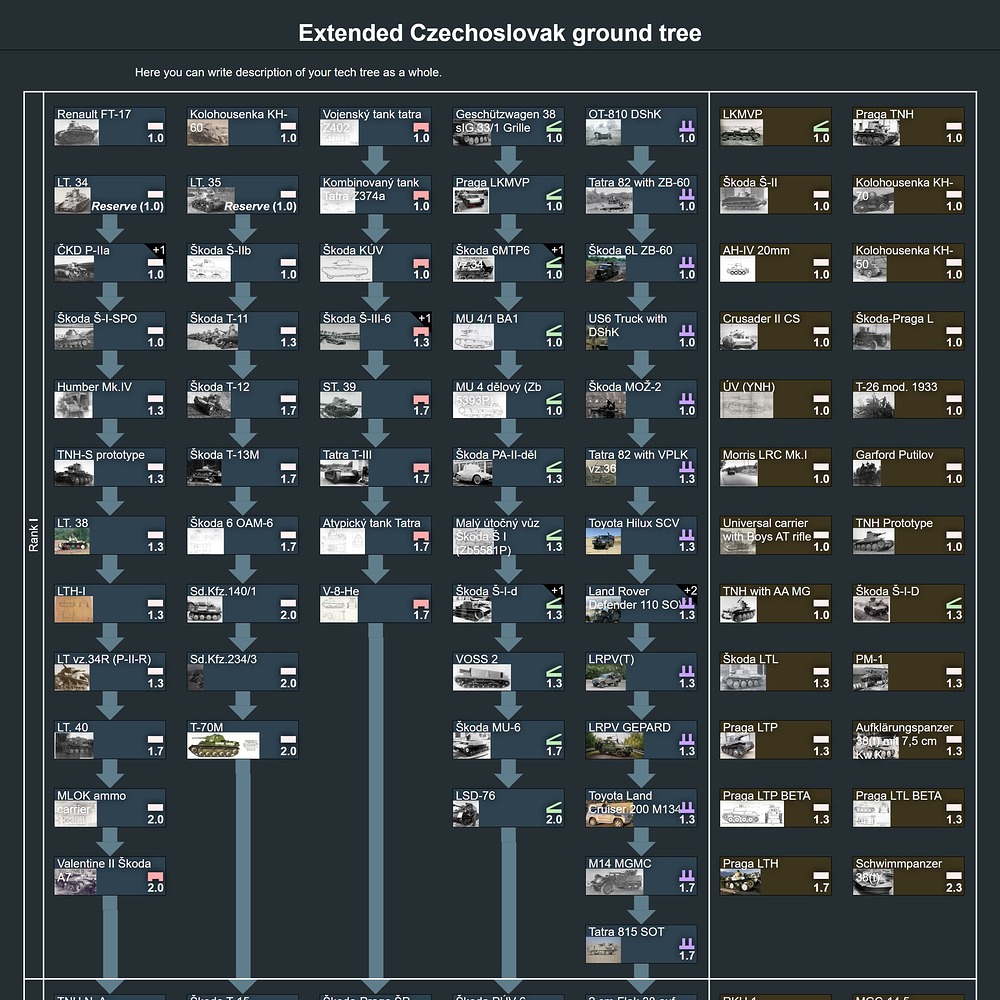

The tree itself

Techtree

Click on the link down bellow to see the tree in all its beauty. With all the foldered vehicles, and also basic information about each vehicle:

Disclaimer

Extended version of the tree is supposed to show all of the possible additions into the tree, no matter how crazy they are. It includes paper designs, captured vehicles, even vehicles that arent specifically Czechoslovak but use czech parts (for example, hull). BRs and placement of the vehicles can be (and is) completely wrong and is for basic visualisation only (it would be quite hard to give each of the 500 vehicles perfect BR).

New vehicles

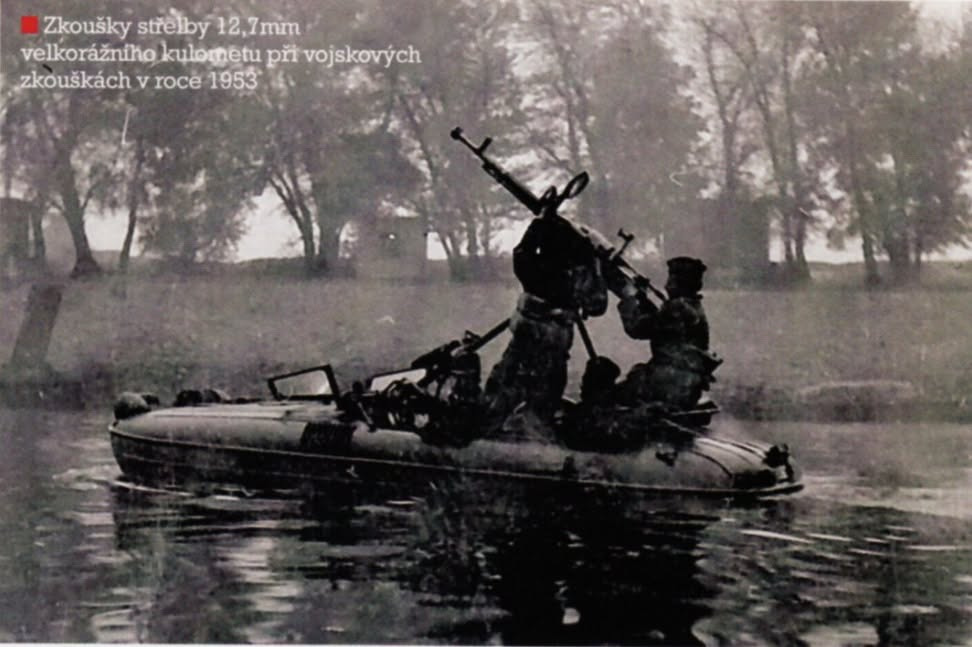

Škoda MOŽ-2 (Rank I, BR 1.0, Researchable)

Armament: 12.7mm vz.38/46 (DŠK)
Max speed: 85km/h
Armor: none

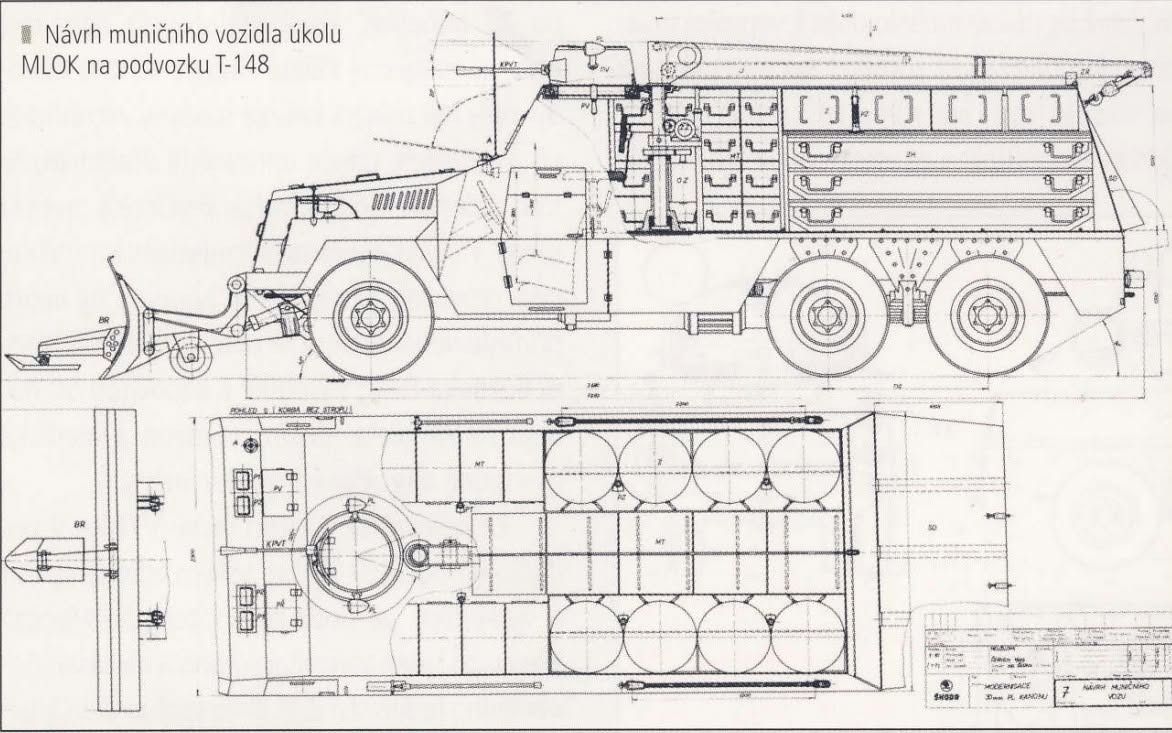

MLOK ammo carrier (Rank I, BR 2.0, Researchable)

Armament: 14.5mm KPVT
Max speed: 80km/h
Armor: can protect from small arms fire

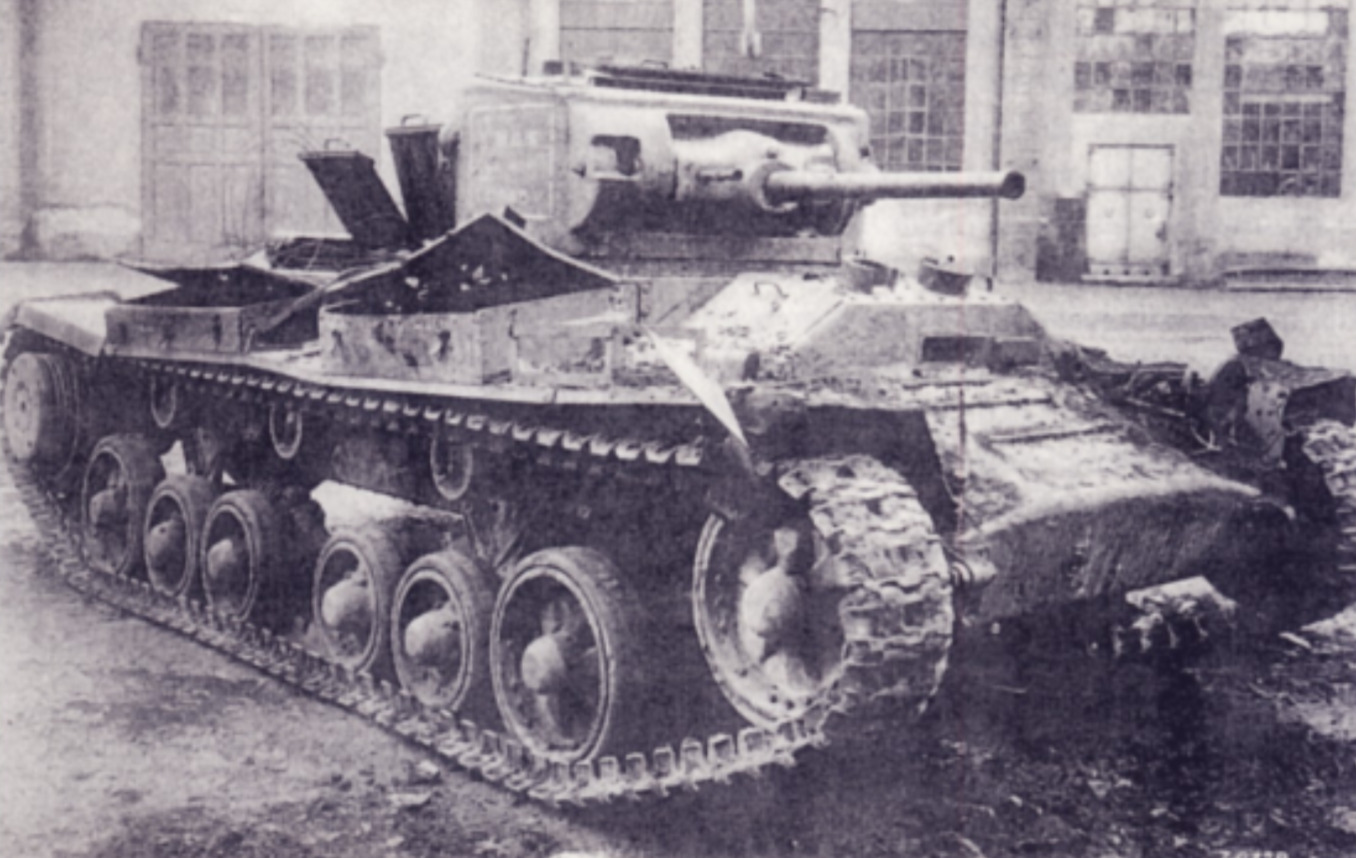

Valentine II Škoda A7 (Rank I, BR 2.0, Researchable)

Armament: 37mm Škoda A7
Max speed: 24km/h
Armor: Max 65mm

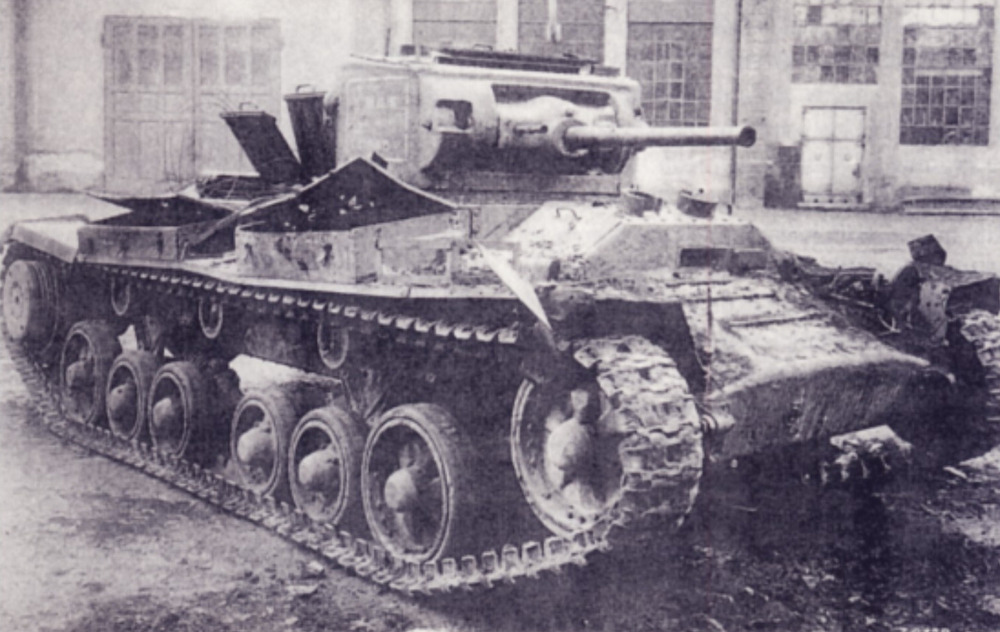

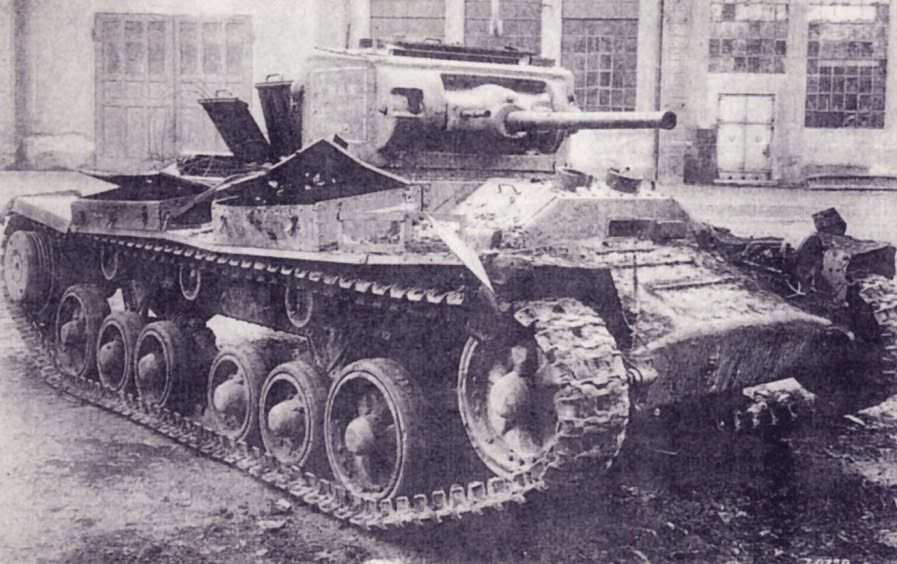

(photo of the tank before modification)

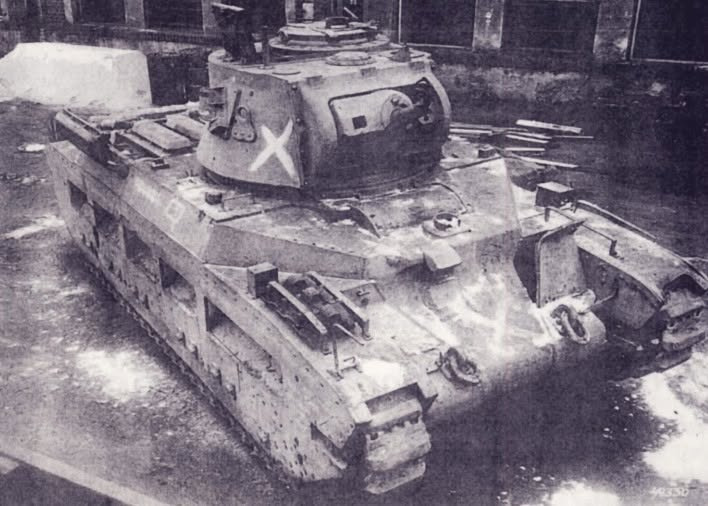

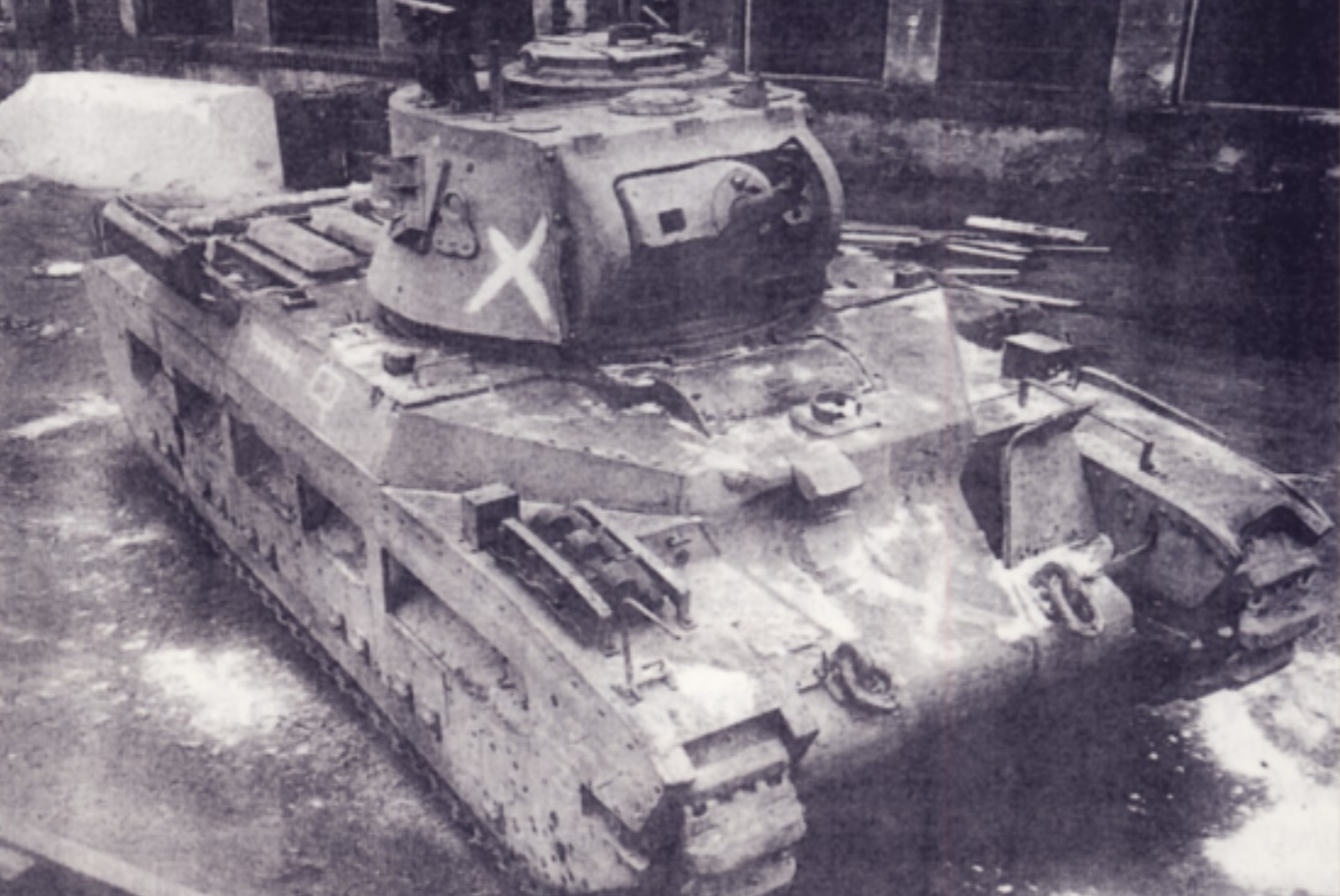

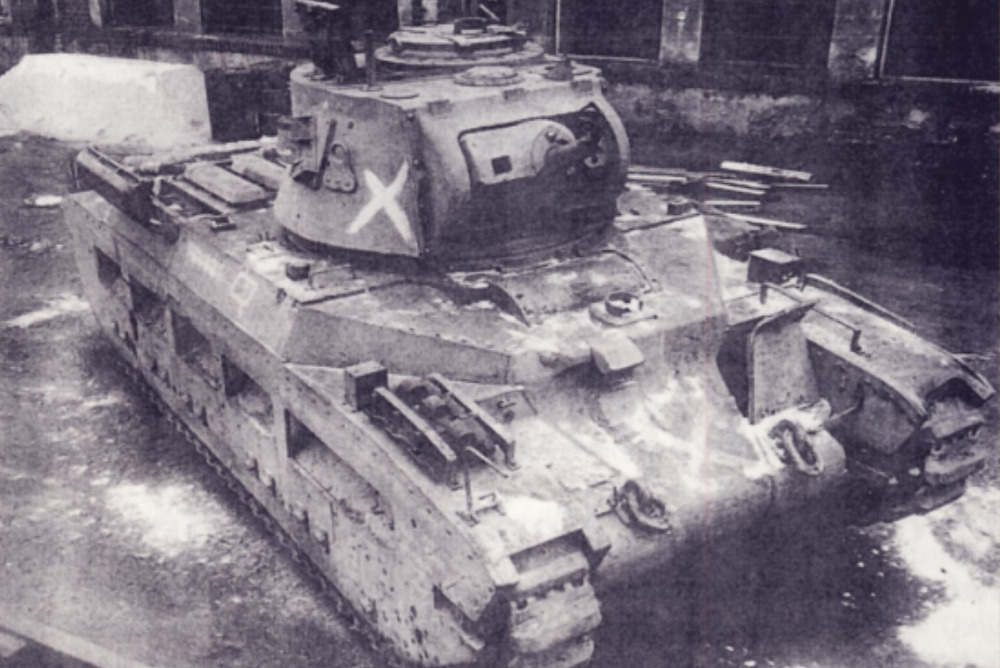

Matilda II CS Škoda A7 (Rank II, BR 2.3, Researchable)

Armament: 37mm Škoda A7 cannon
Max speed: 24km/h
Armor: max 78mm

Work on the modification began, but it wasnt finished for some reason. Just the original, damaged cannon was cut short

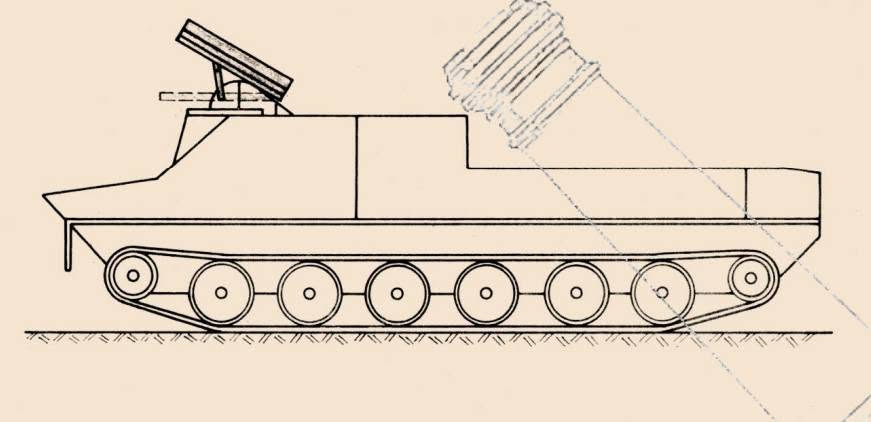

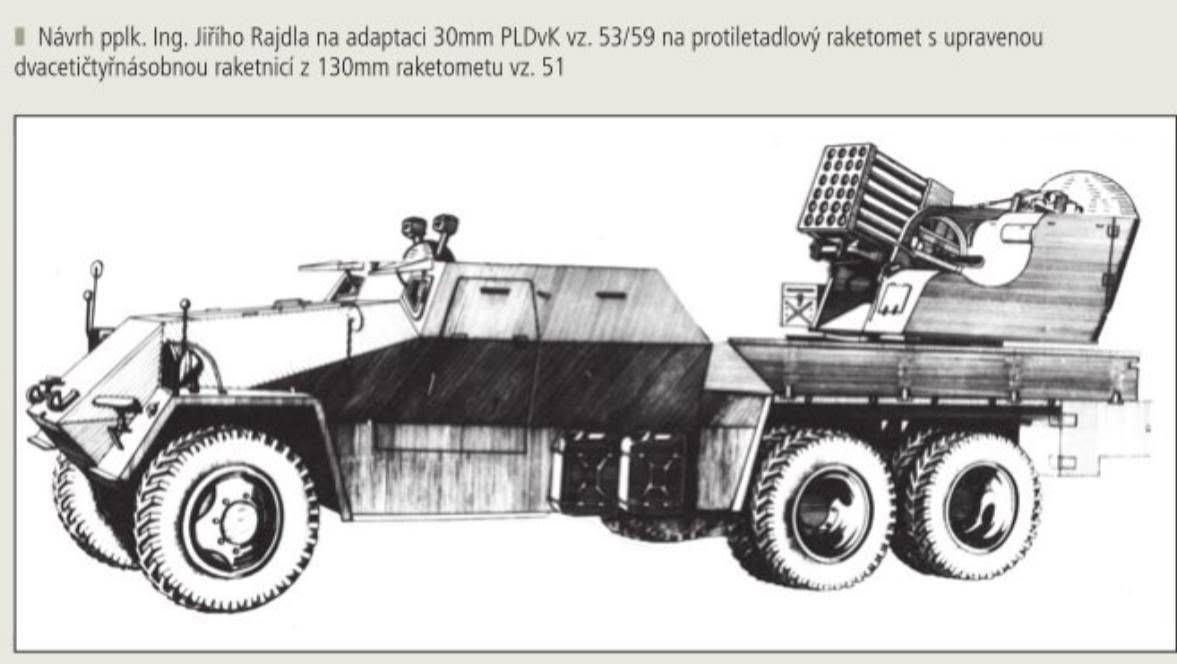

PLDvK vz.53/69 Ještěrka RPL (Rank III, BR 3.7, Researchable)

Armament: AA rockets (likely 100-105mm RPL-1)
Max speed: 60km/h
Armor: can withstand small arms fire

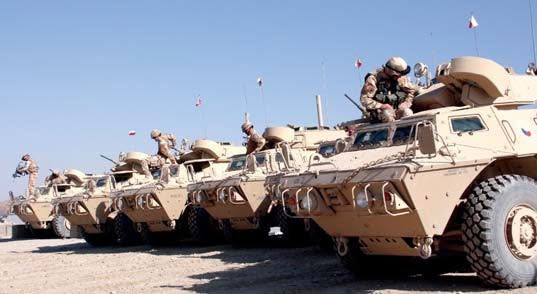

ASV-150 (M1117) (Rank III, BR 4.0, Researchable)

Armament:
40mm Mk 19 grenade launcher
12.7mm M2 Browning
Max speed: 100km/h
Armor: can withstand small arms fire

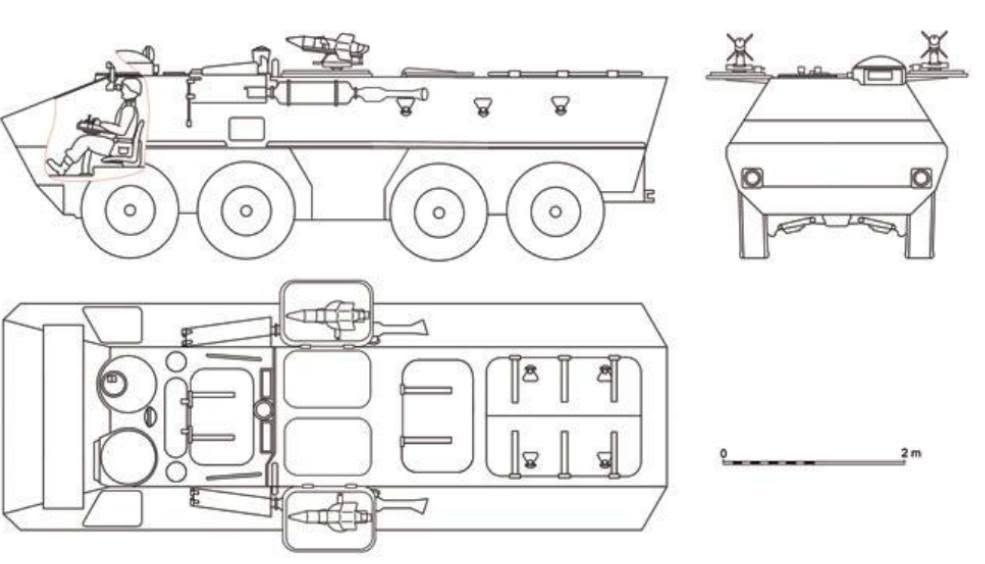

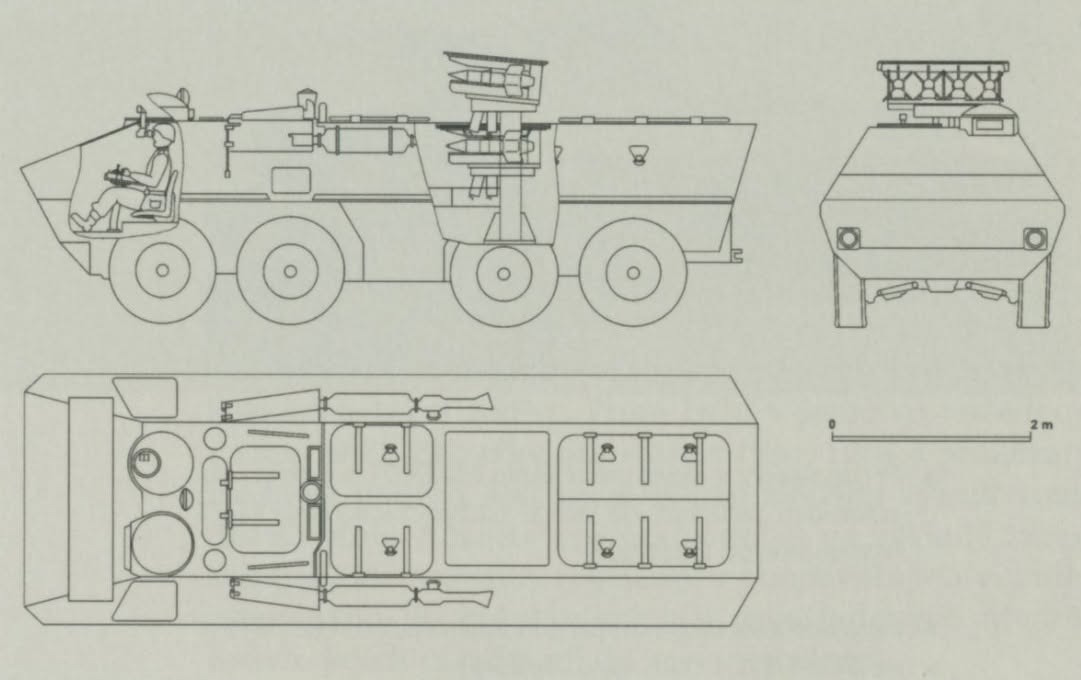

OT-62B POP (Rank III, BR 4.7, Researchable)

Armament:
82mm T-21 recoilless rifle
4x(?) POP rockets
Max speed: 60km/h
Armor: max 17mm

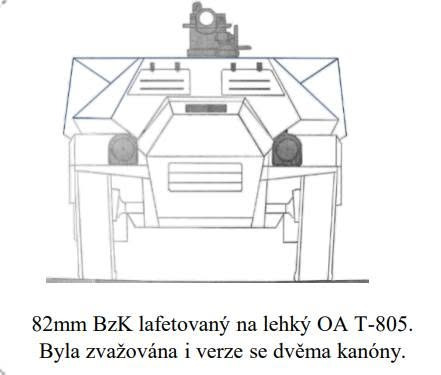

OA T-805 BzK (Rank IV, BR 5.3, researchable)

Armament: 82mm BzK recoilless cannon
Max speed: 80km/h
Armor: can protect from small arms fire

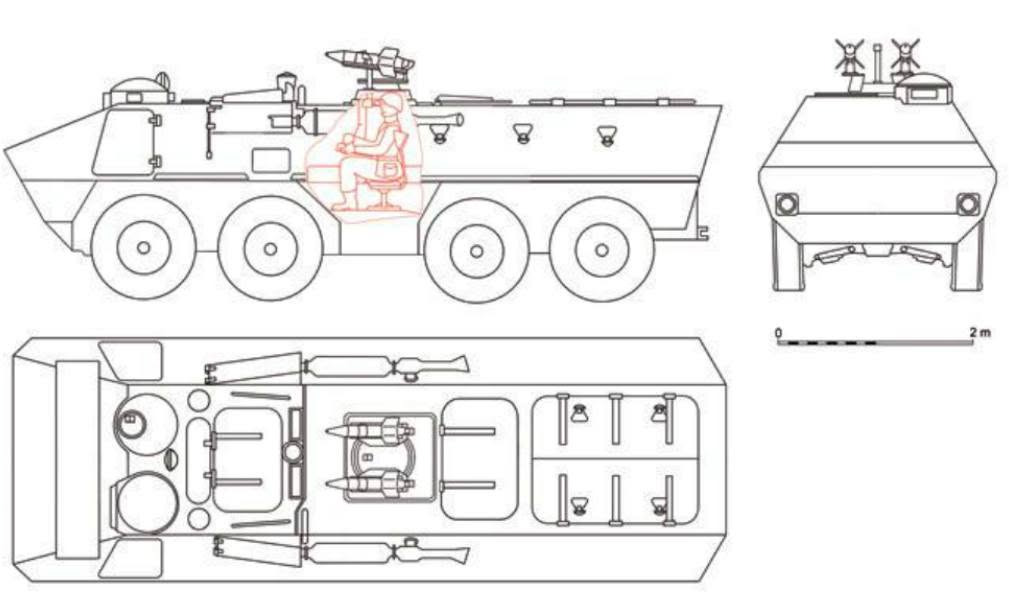

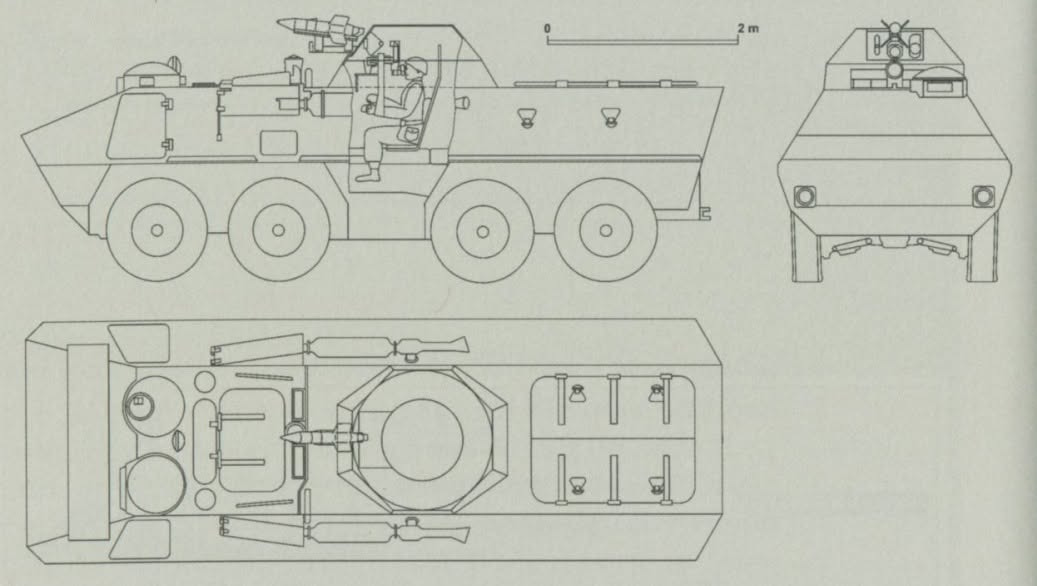

OT-64 (OT-62 turret) (Rank III, BR 5.3, Researchable)

Armament: 82mm Tarasnice T-21
Max speed: 94km/h
Armor: can withstand small arms fire

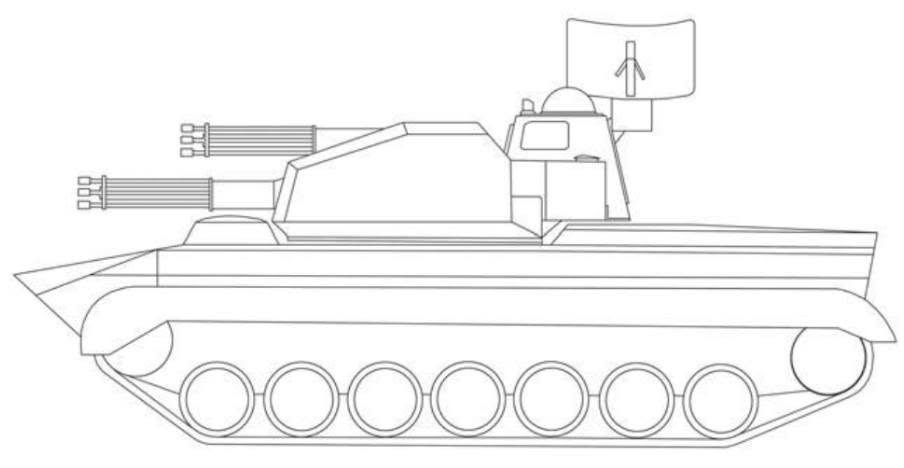

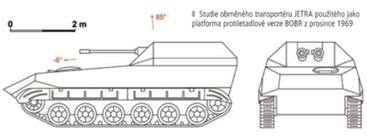

JETRA BOBR (Rank IV, BR 5.7, Researchable)

Armament: 2x 30mm vz.53/59???
Max speed: likely 65km/h
Armor: unknown (can protect from small arms fire)

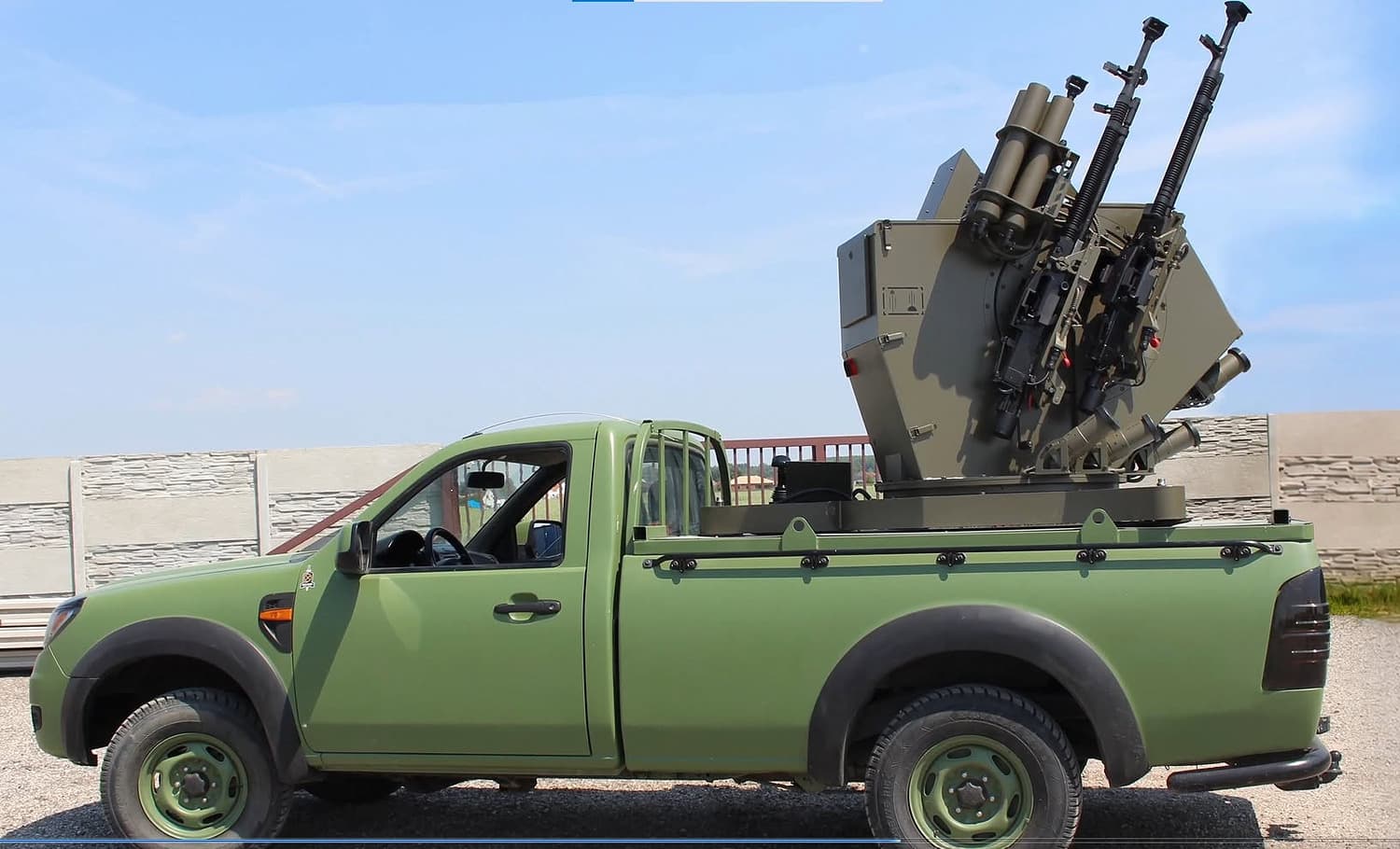

NEMESIS RWS Ford Pickup (Rank IV, BR 6.0, Researchable)

Armament:
4x 12.7mm DShK
4x 75mm defensive anti-drone grenade launchers
Other possible armament configurations:
2x 23mm 2A7M
or
4x SAW .50cal machinegun (KPVT chambered in 12.7x99mm)
or
4x 14.5mm KPVT
(grenade launchers are included in each config)
Max speed: about 180km/h
Armor: none

Vehicle is fitted with a classic day/night sights with 5-25x optical zoom, and also a thermal imagining camera with 4-40x zoom. It also comes with laser rangefinder and a ballistic computer, making it easier to shoot down its targets

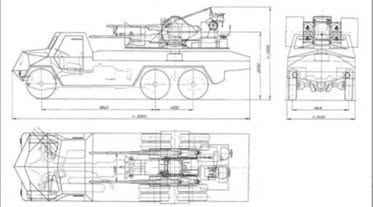

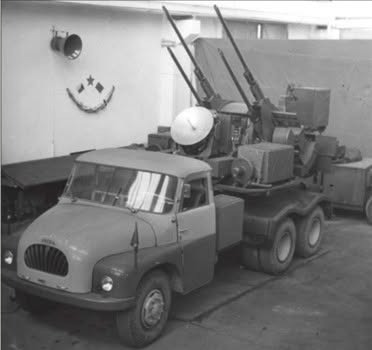

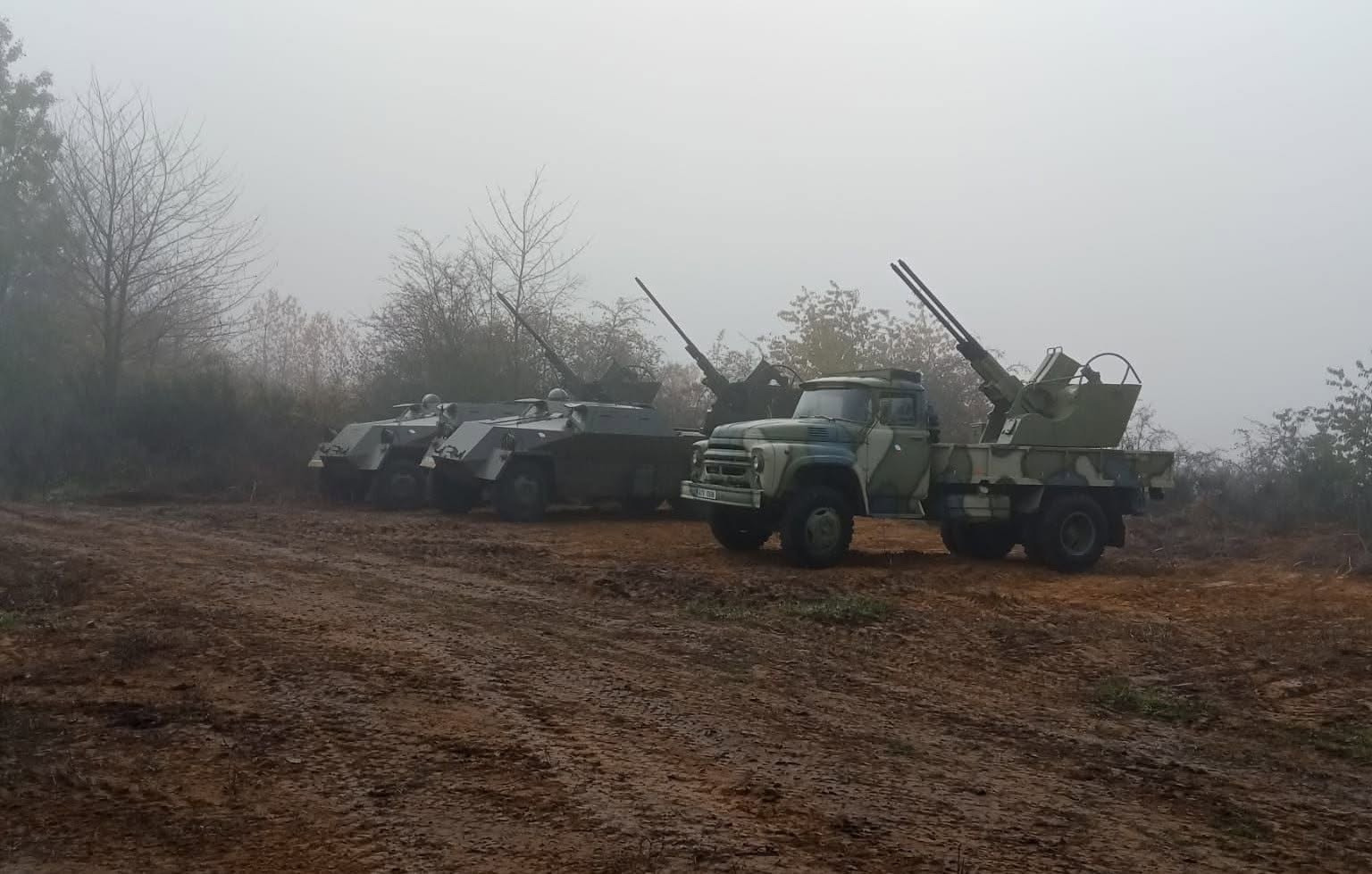

ZiL-130 vz.53/59 (Rank IV, BR 6.0, Researchable)

Armament: 2x 30mm vz.53
Max speed: 94km/h
Armor: none

GAZ-69 vz.59 (Rank IV, BR 6.0, Researchable)

Armament: 82mm vz.59 recoilless cannon
Max speed: 90km/h
Armor: none

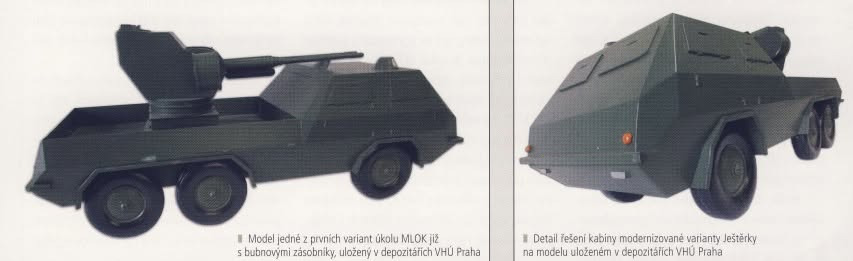

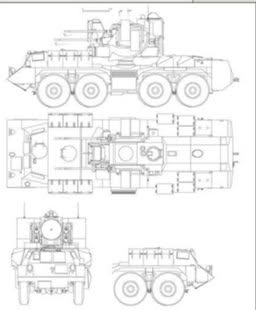

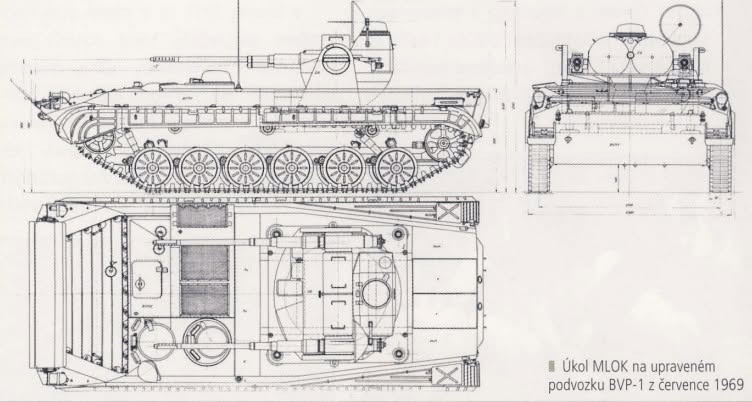

Úkol MLOK (early, version 2) (Rank V, BR 6.7, Researchable)

Armament: 2x30mm PlDVK 53/59
Max speed: 60km/h
Armor: can protect from small arms fire

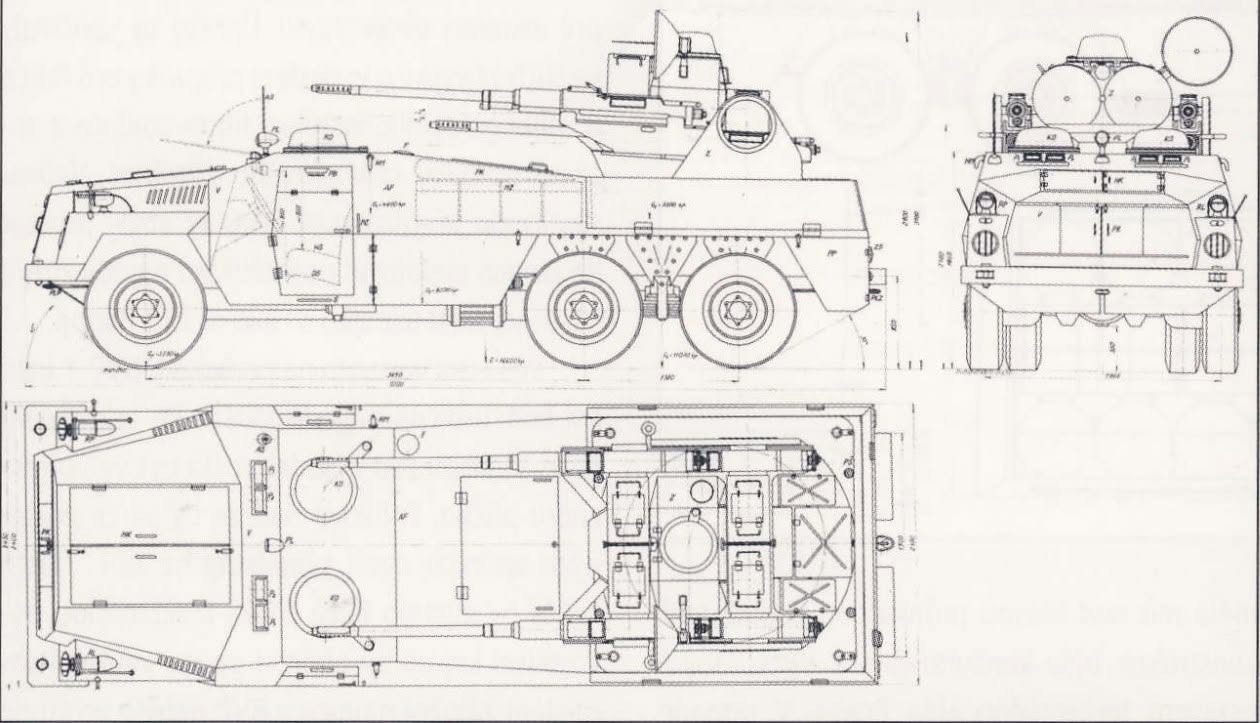

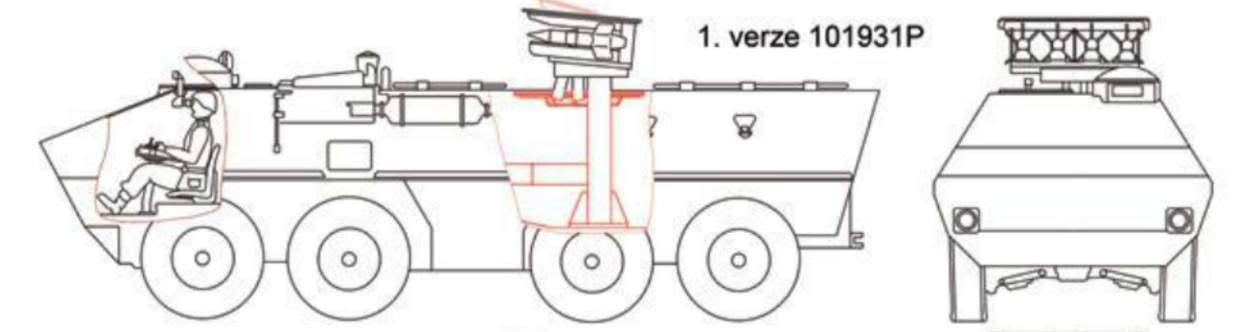

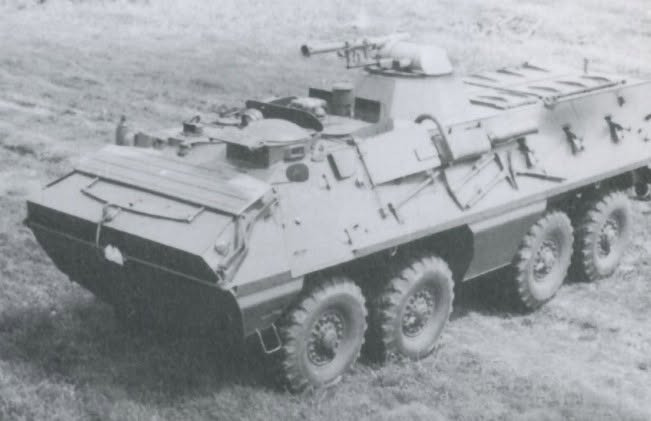

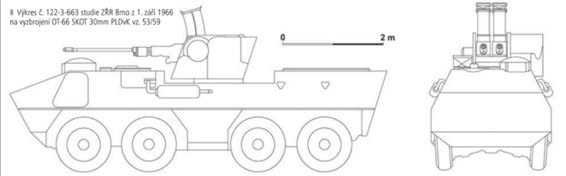

OT-66 vz.53/59 (Rank V, BR 6.7, Researchable

Armament: 2x 30mm vz.53/59
Max speed: about 95km/h
Armor: max 12mm

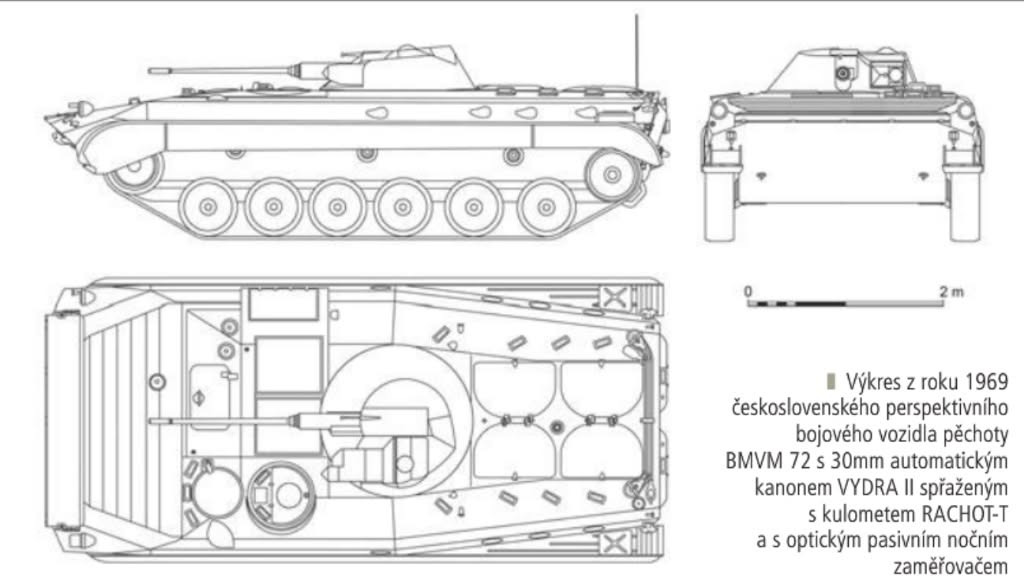

BMW 72 (Rank IV, BR 7.0, Researchable)

Armament: 30mm VK-30 autocannon
Max speed: 65km/h
Armor: can protect from small arms fire

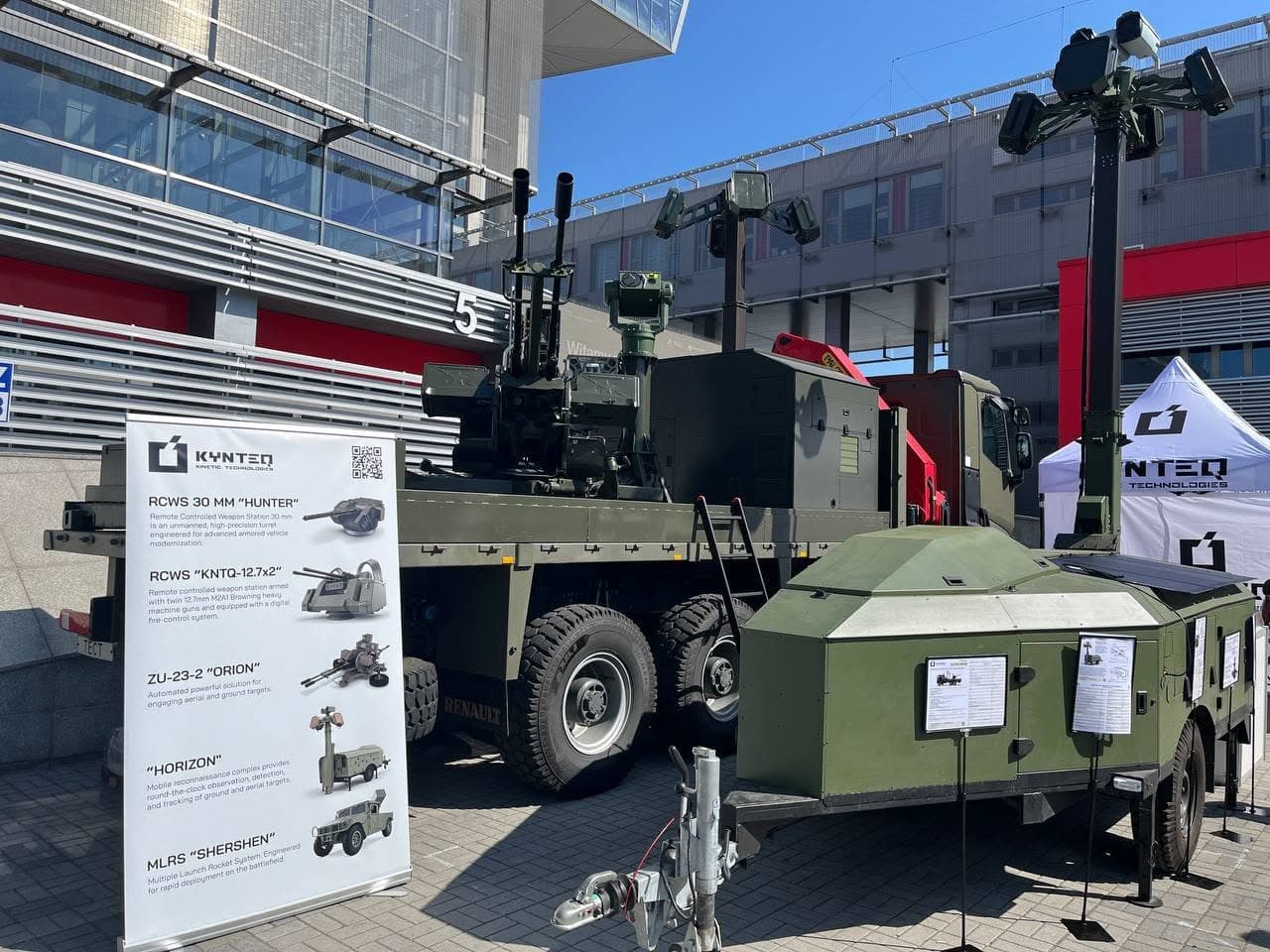

ZU-23-2 ORION (Rank V, BR 7.3, Researchable)

Armament: 23mm ZU-23-2
Max speed: about 110km/h
Armor: none

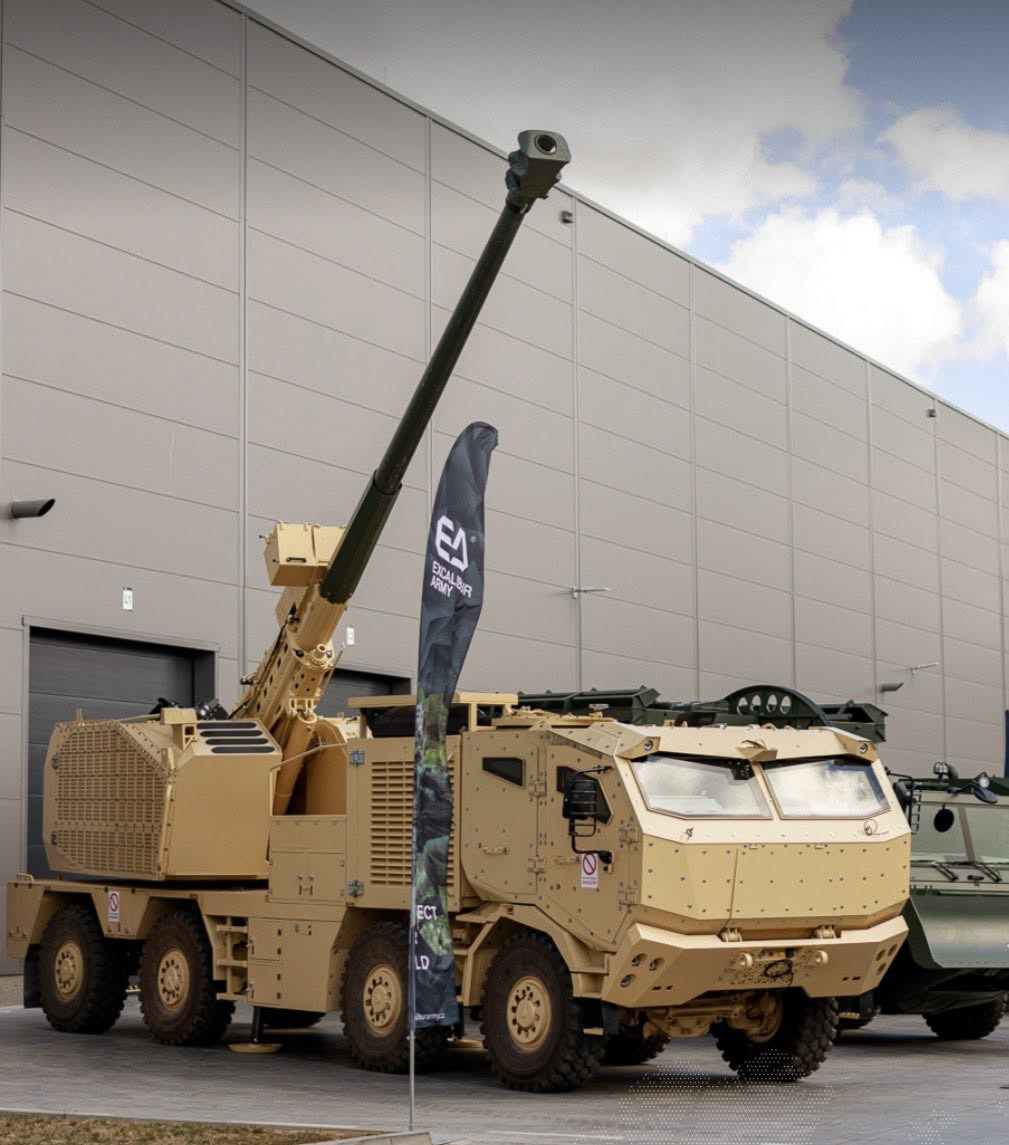

MORANA (prototype 2) (Rank VI, BR 7.3, Researchable)

MORANA (prot. 2)
Armament:
155mm L/52 howitzer
Top speed: 90km/h
Armor: stanag level 2 (protects fro small arms fire)

Comes with MRSI capability, modern digital ballistic computer with automatic targeting, and direct-fire capability against both stationary and moving targets at ranges of up to 5km (3km during night). rate of fire is 6 rounds per minute. Vehicle can also be equipped with 12.7mm RCWS to protect the vehicle at close ranges and against aerial threats

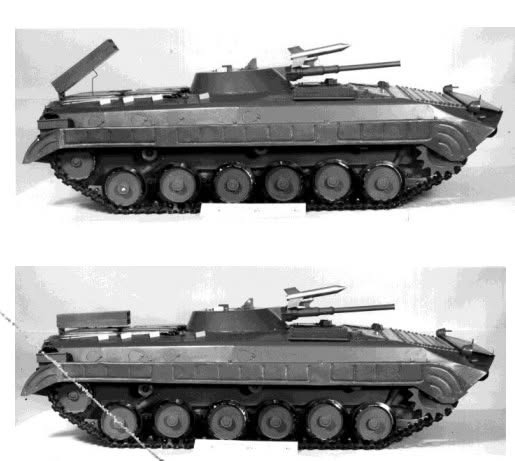

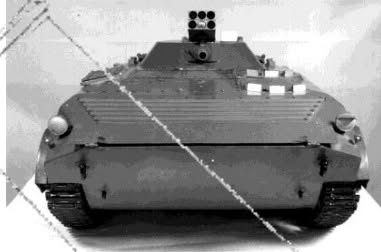

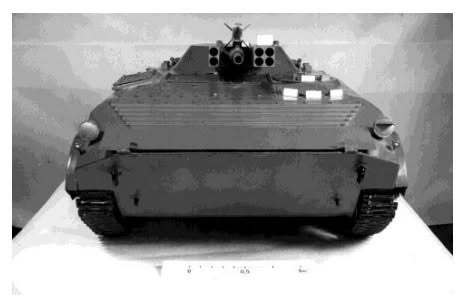

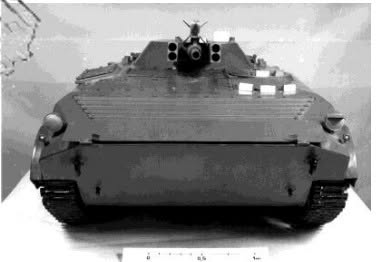

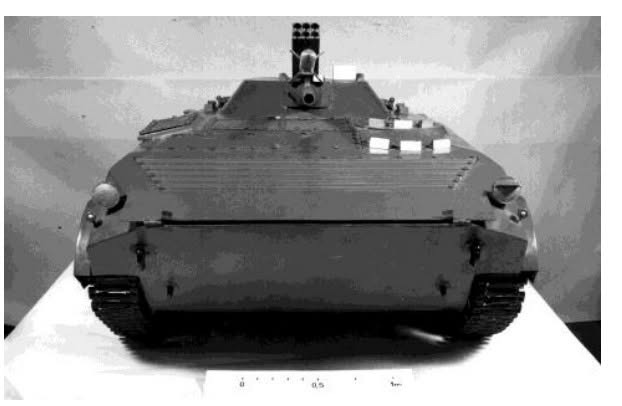

BVP-1 POP (ver. 1) (Rank V, BR 7.3, Researchable)
