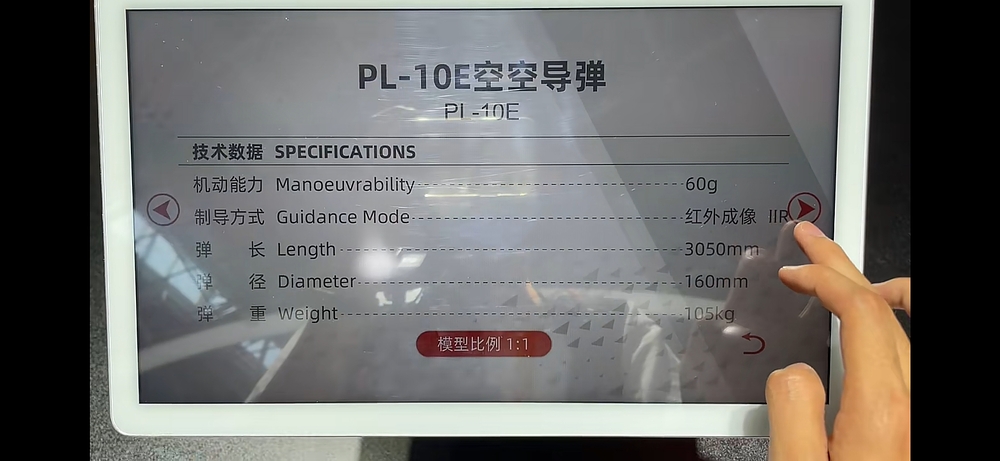

Total missile weight: approximately 89 - 105 kg (slightly varies with modifications like PL-10E, PL-10E being the export version)
Overall length: approximately 3.0 meters
Missile diameter: approximately 160 mm
Warhead: continuous-rod high-explosive warhead with laser proximity fuse
Propulsion system: solid rocket motor with thrust vector control (TVC)
Maximum range: approximately 20 km (some sources state 40 km at high altitude)
Maximum speed: over Mach 4 (accelerates from standstill in about 2.5 seconds)
Maximum g-load: ≥ 50G (some data indicates up to 60G)
Maximum off-boresight angle: approximately ±90°
Guidance method: infrared imaging guidance (IIR), inertial guidance (INS), supports lock-on after launch
中国PL-10空对空导弹_PL-10 air-to-air missile_GlobalMil-环球防务网
海军航空兵歼11BG实射PL10空空导弹 _哔哩哔哩_bilibili
（Twin Composite Mount）
Provider is： All - Activity - 新_手 - War Thunder — official forum

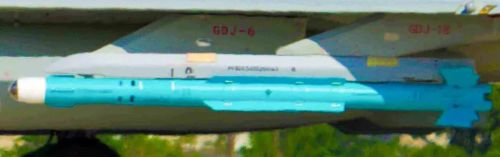

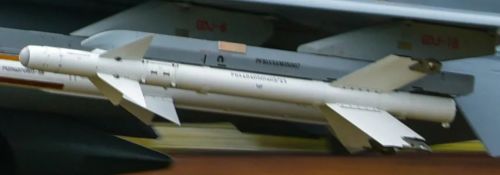

It should be noted that most of the PL-10 mounts are not compatible with the PL-8 mounts.

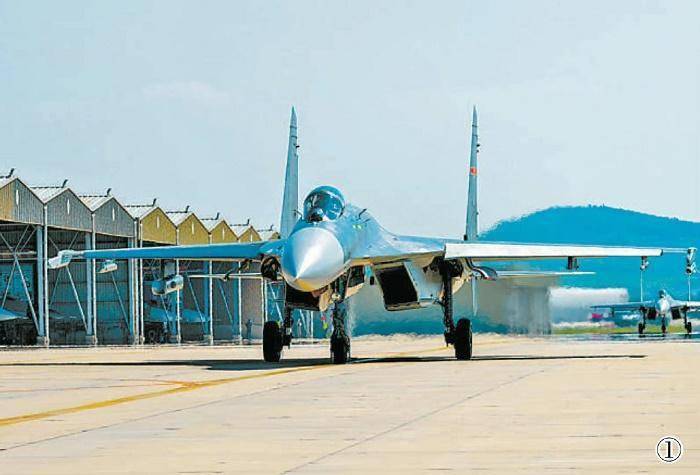

But there are still exceptions. The J-11BG fighter of this type uses an L-type pylon to carry the PL-10. This pylon is made compatible with the PL-10 through improvements and changes in weight distribution, and with slight modifications, it can also carry the PL-8.
PL-15T/DAnd other later models actually use a straight-line mount, but in the game it has now been changed to an L-shaped mount.
