HISTORY

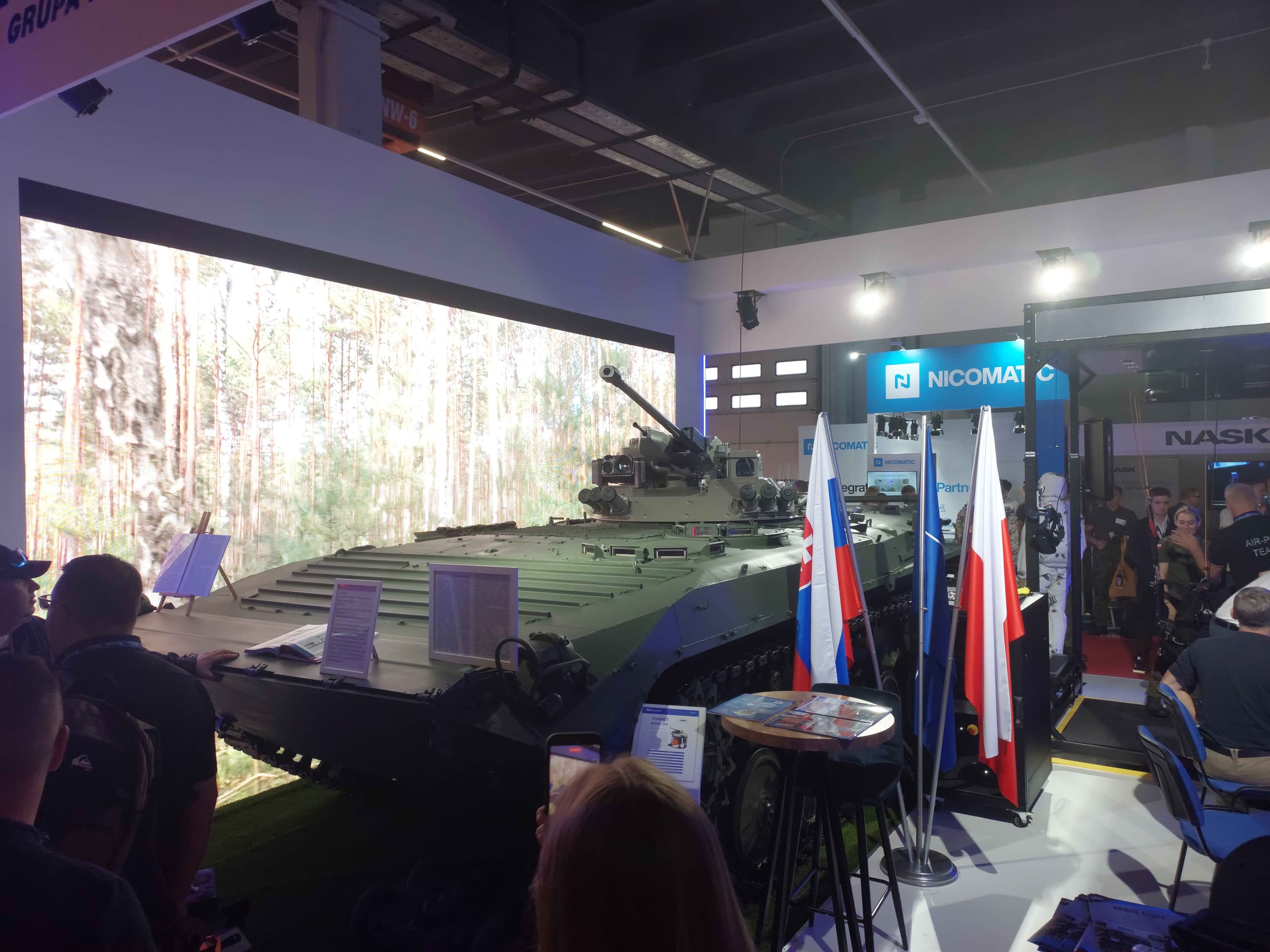

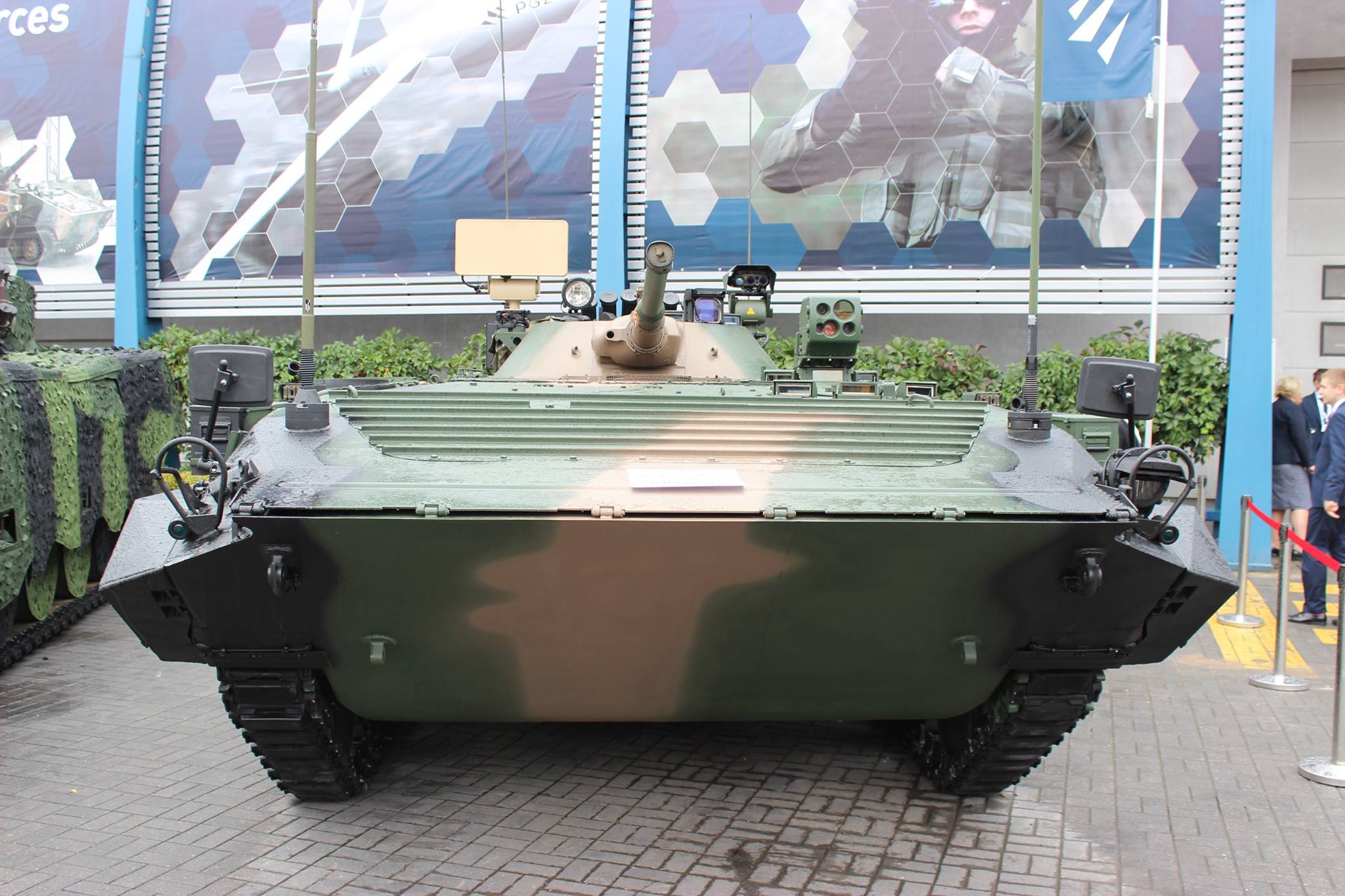

The Polish Armed Forces operates over 1,000 aging BWP-1 infantry fighting vehicles, which increasingly struggle to meet modern battlefield requirements. To address this capability gap while awaiting the widespread adoption of the new BWP Borsuk, Polish defense manufacturer Niewiadów Polska Grupa Militarna in cooperation with Slovak partner ZTS - SPECIAL showcased a targeted modernization concept incorporating the DVK-30 weapon module.

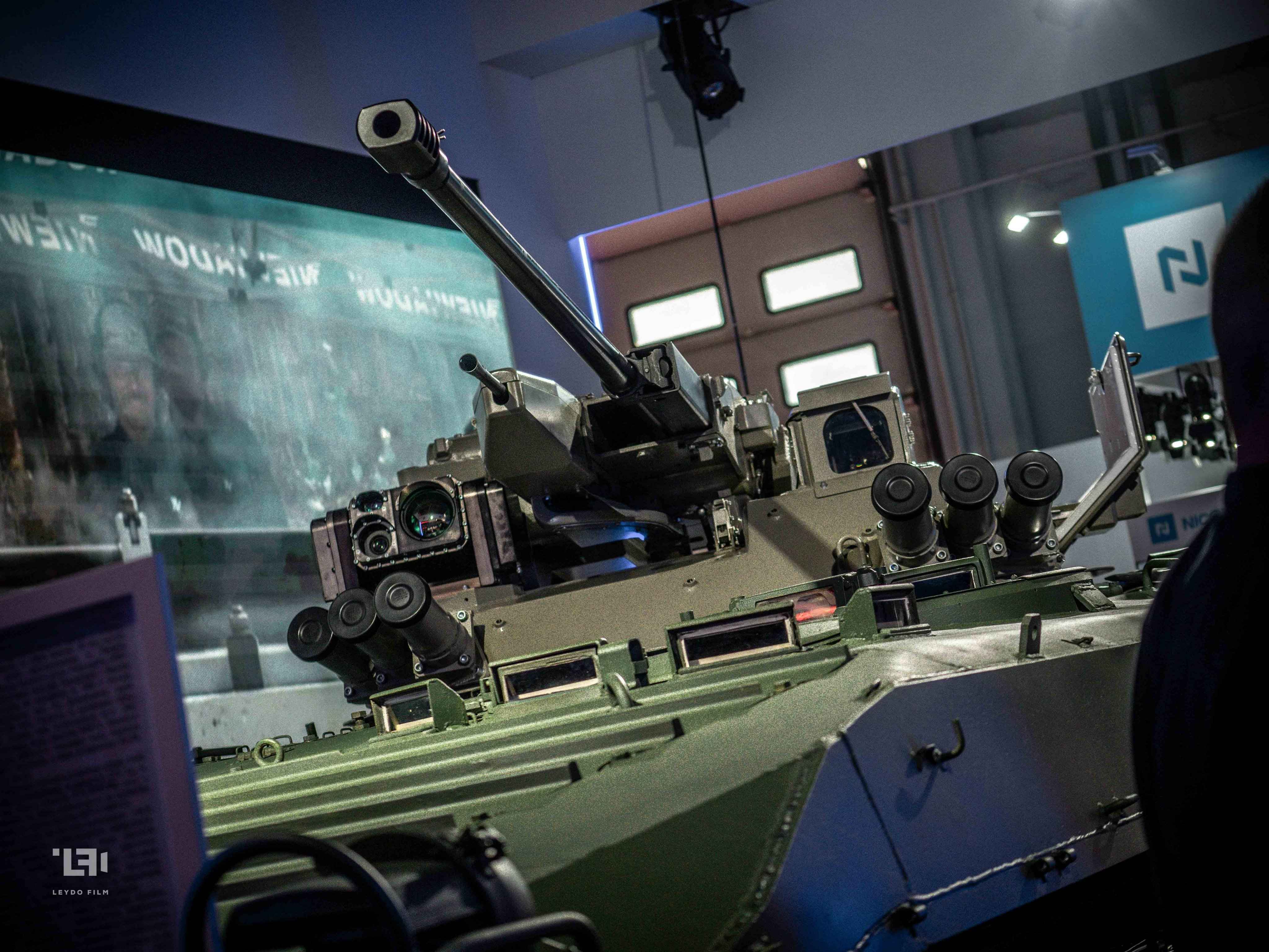

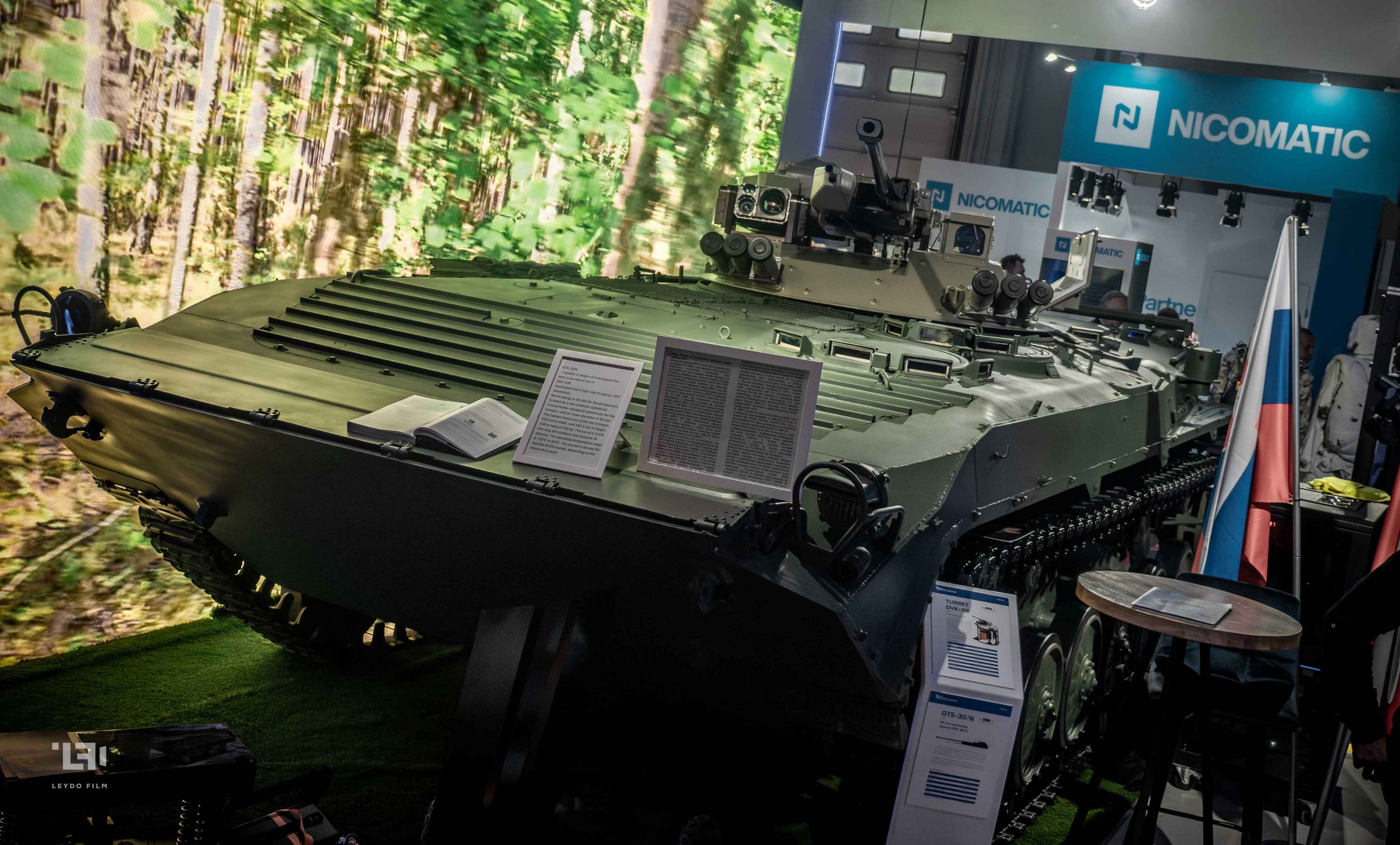

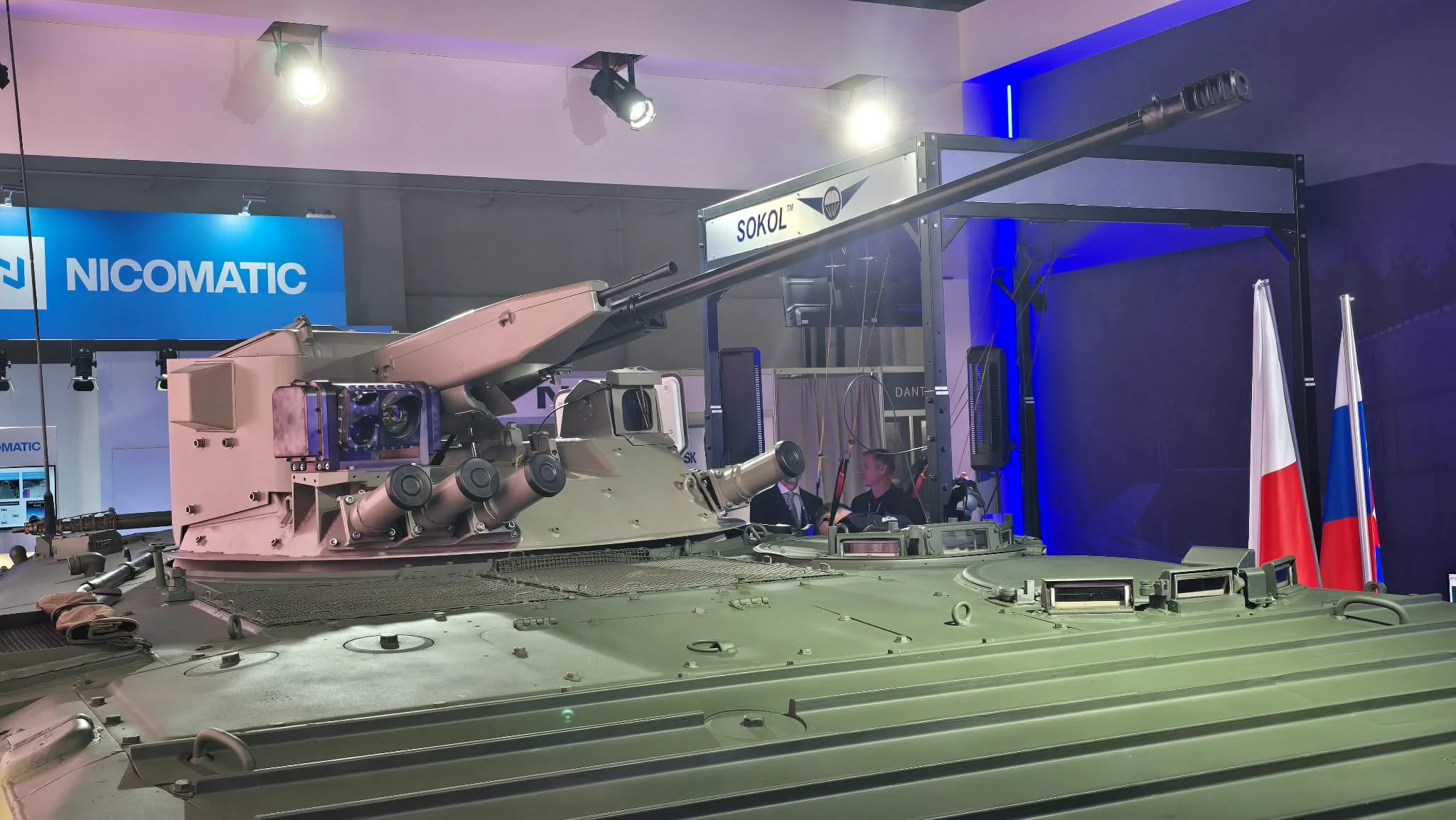

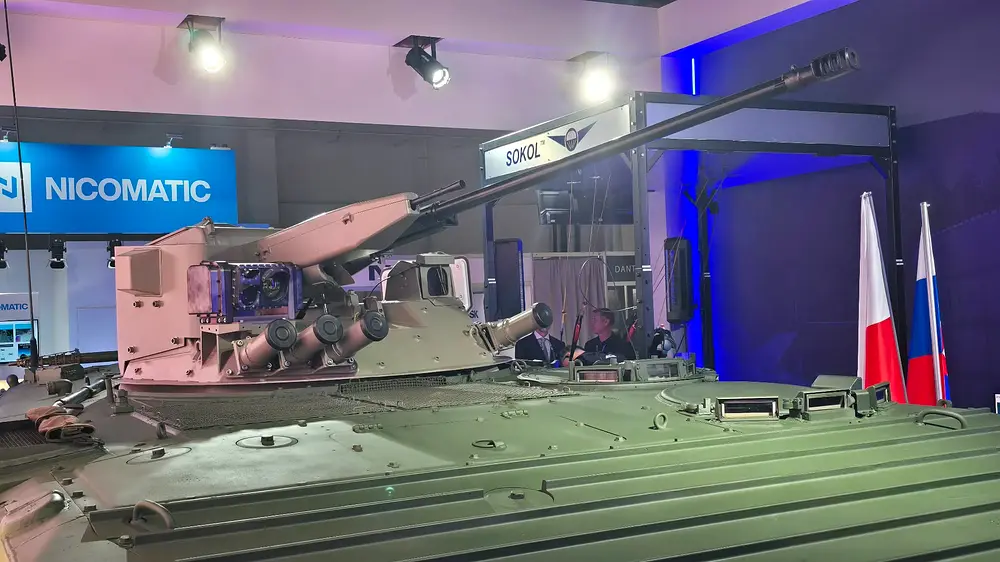

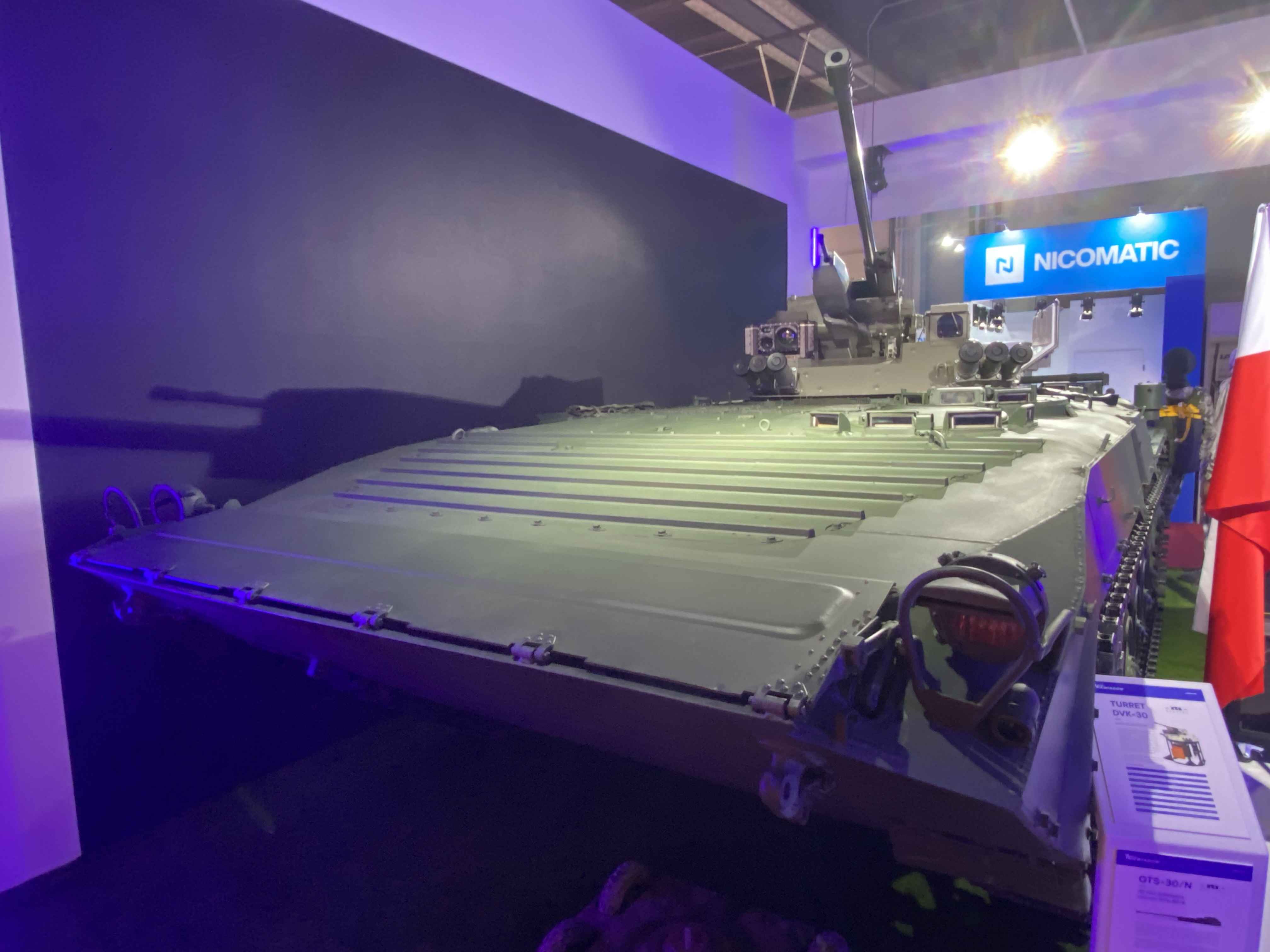

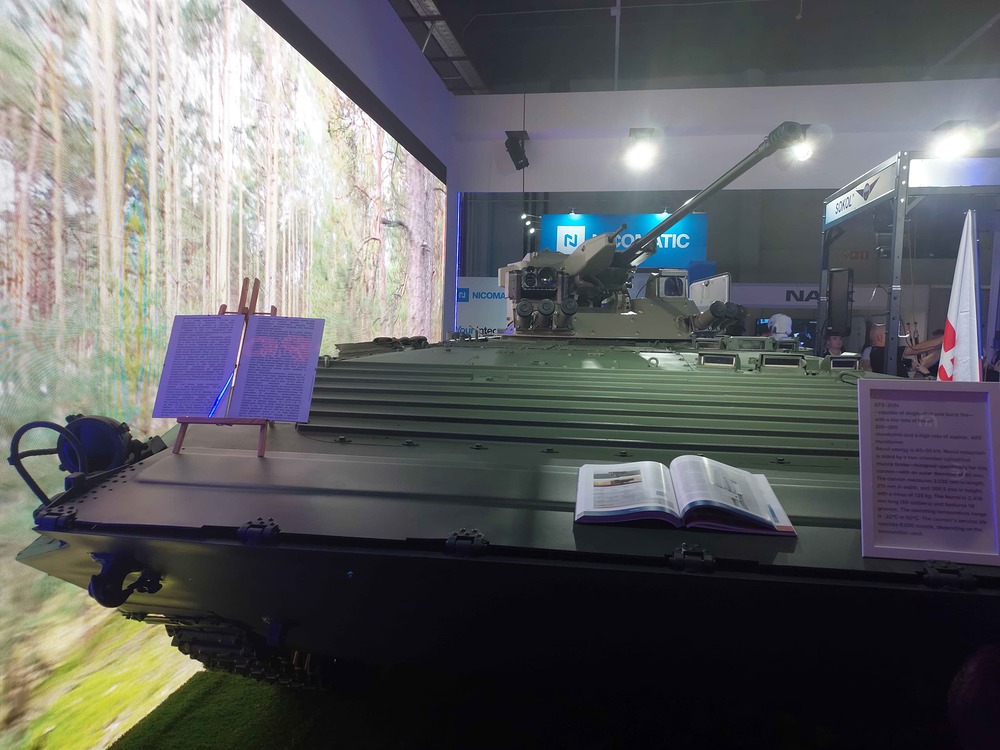

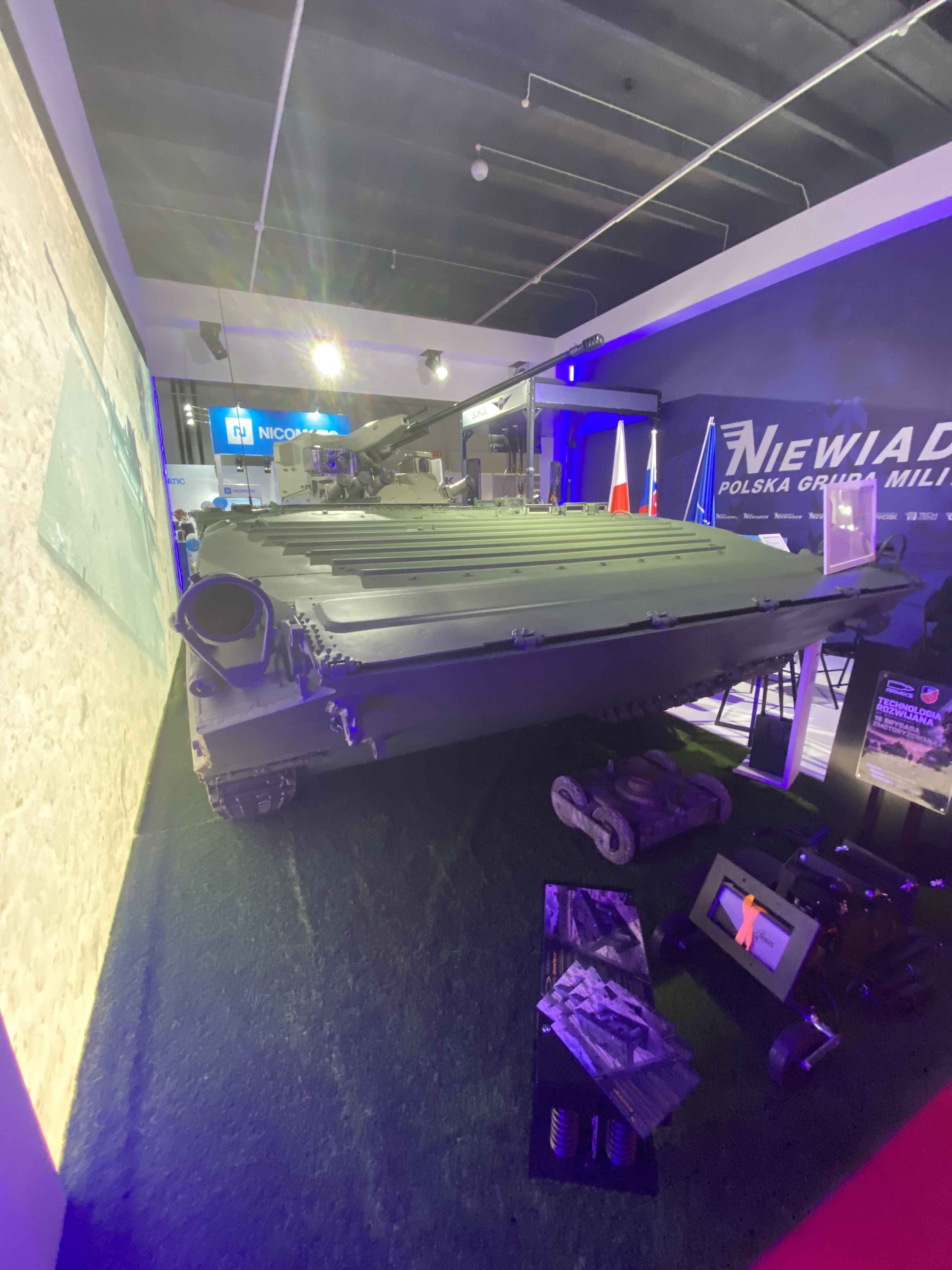

For demonstration purposes, the DVK-30 turret was integrated onto the BWR-1S (Polish designation for the Czechoslovak BPzV Svatava), a specialized battlefield reconnaissance platform derived from the BWP-1.

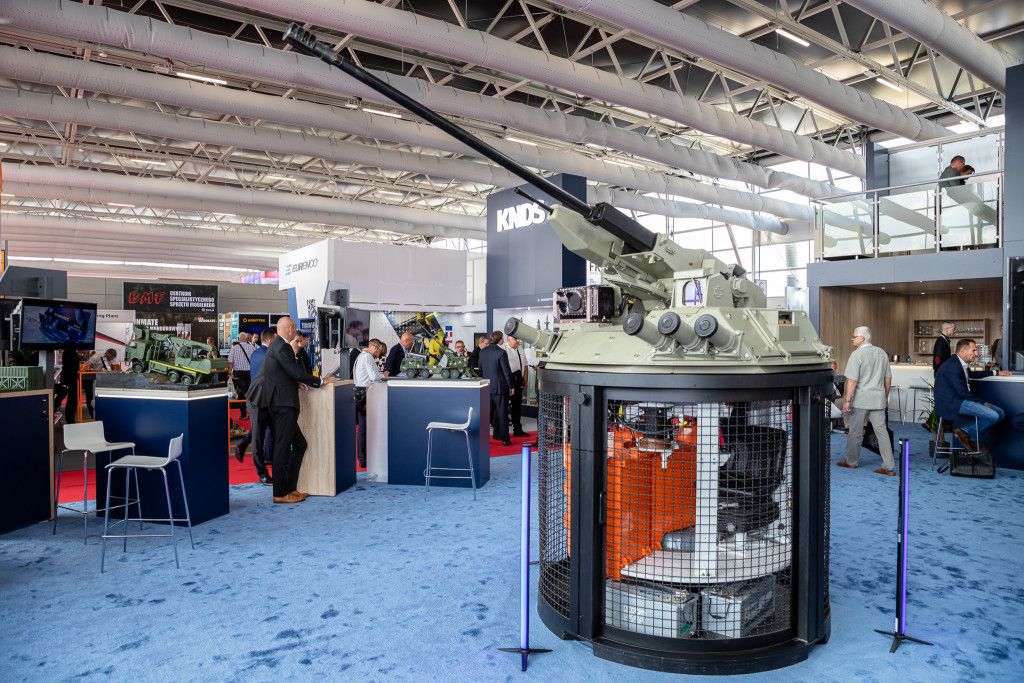

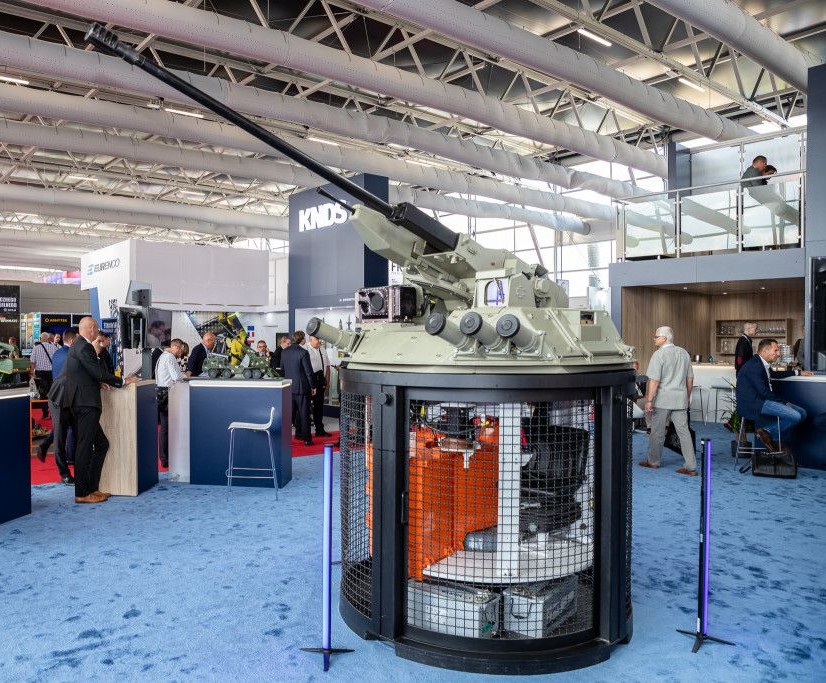

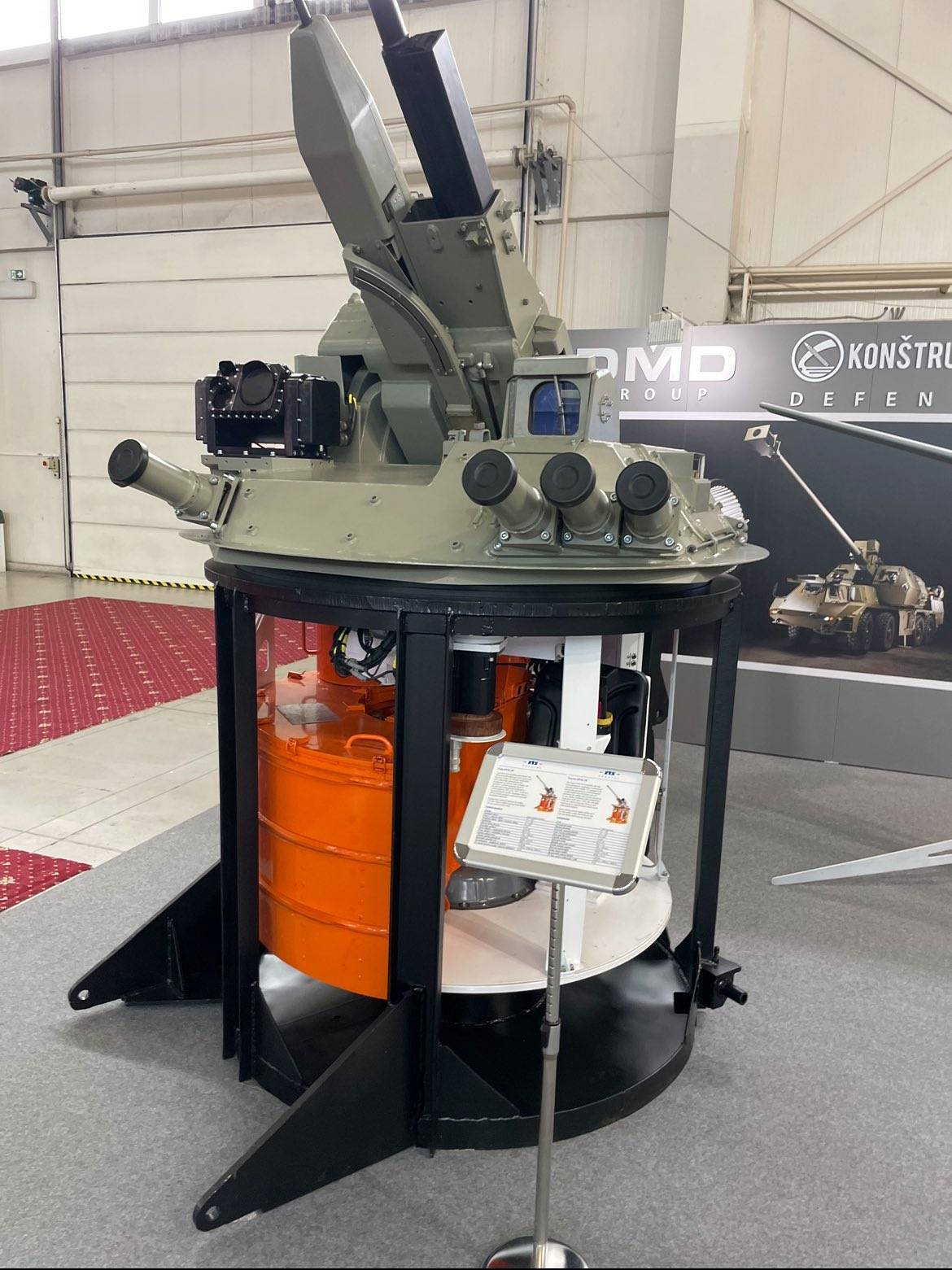

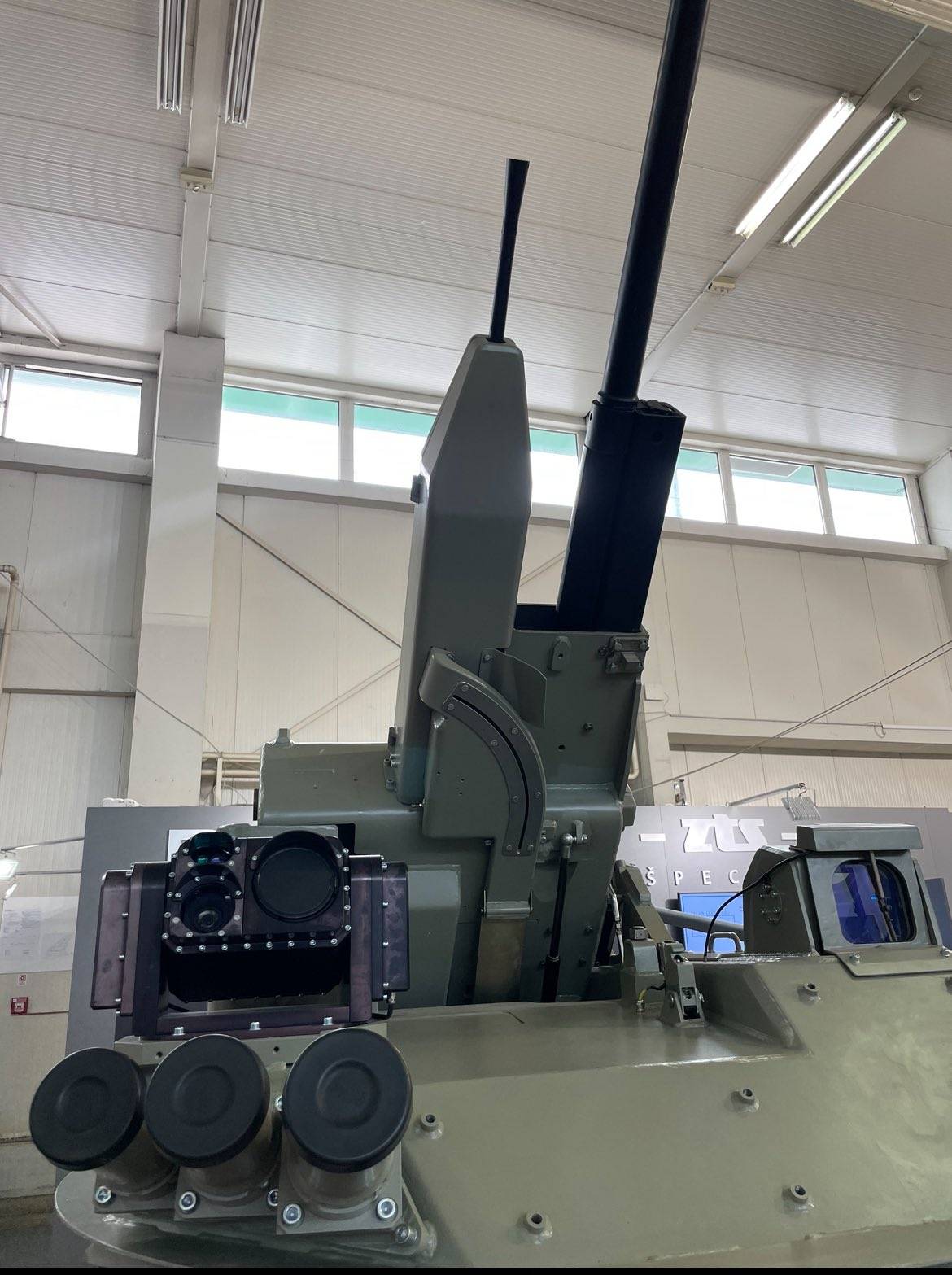

The turret shown year earlier

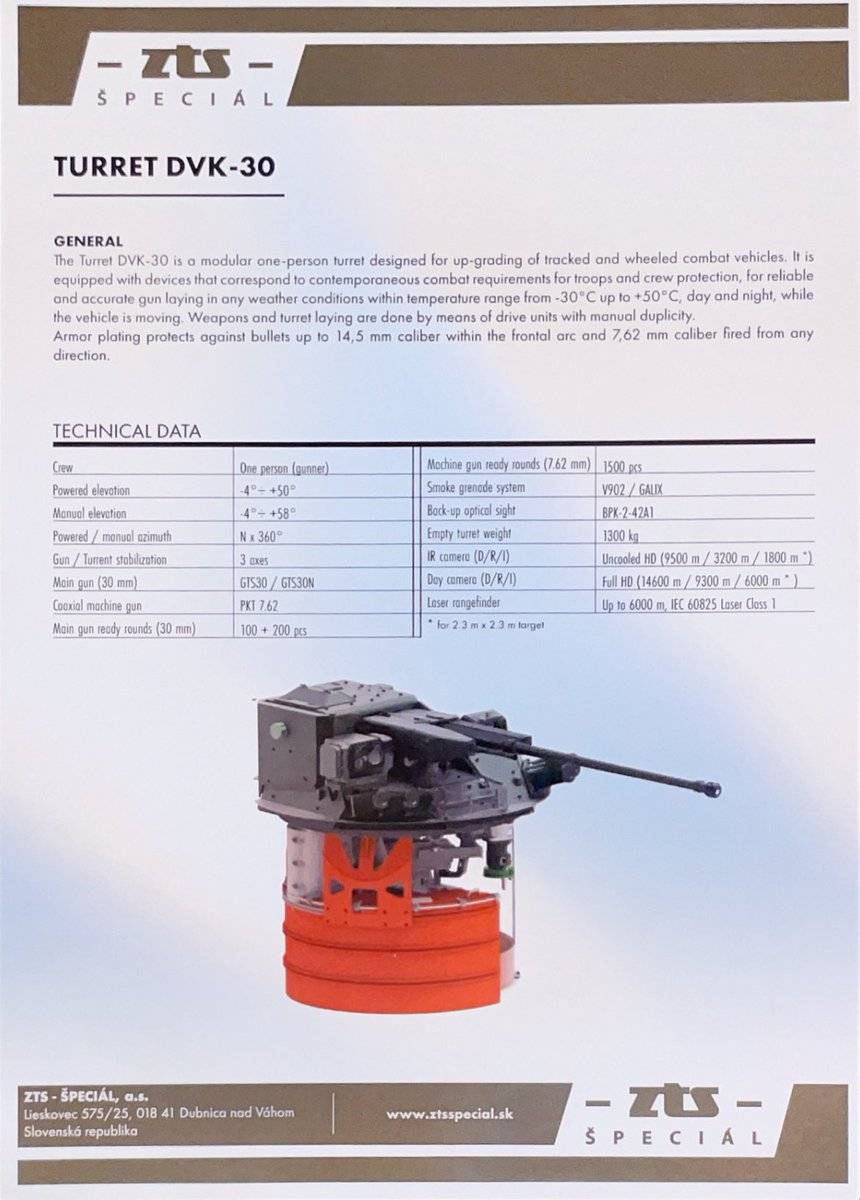

The DVK-30 turret houses a two-plane stabilized 30mm GTS-30/N automatic cannon fed by 300 rounds of ready to use ammunition with a coaxially mounted 7.62mm PKT machine gun supplied with 1,500 ready rounds. The main gun is capable of achieving a rate of fire of 400 rounds per minute with elevation angles ranging from -4° to +50°, the system provides efficient firepower against lightly armored vehicles and infantry.
Beyond raw firepower, the DVK-30 integration equips the platform with an modern electro-optical sighting suite for the gunner. This includes a daylight camera, a 3rd-generation thermal camera, and an integrated laser rangefinder, giving the vehicle full day-and-night targeting capabilities in all weather conditions.
CHARACTERISTICS
ARMAMENT
30mm GTS-30/N
- Elevation: -4°/+50°
- Two-plane stabilizer
- Fire rate: 400 rds/m
- Ammo capacity: 300 rds ready racked
2x3 81mm smoke grenades
- Ammo: Standard 30 mm
- 7,62 mm PKT
- Ammo capacity: 1500 rds ready racked
MOBILITY
- Crew (3): Driver, Commander, Gunner
- Engine: UTD-20
- power: 221 kW / ≈300 PS @ 2300 rpm
- Transmission:
- Gears: 5 forward, 1 reverse
- Max speed: 65 km/h
- Turret weight (empty): 1300 kg
OPTICS, ELECTRONICS
Gunner optic:
- Daylight camera
- Thermal camera
- 3rd generation
- Laser rangefinder
DIMENSIONS
Overall length: 6735 mm
Overall width : 2850 mm
Height with turret: ? mm
Summarized characteristics
- Crew (3)
- Driver, gunner, commander
- 30mm GTS-30/N
- Ammo: standard 30mm
- Elevation: -4°/+50°
- Two-plane stabilizer
- Fire rate: 400 rds/m
- Gunner sight
- 3rd Gen thermals
- Laser Rangefinder
- Turret weight (empty): 1.3 t
- Engine: UTD-20 221 kW / ≈300 PS @ 2600 rpm
- Max speed: 65 km/h
- Length 6,73 m Width: 2,85 m Height: ? m
