HISTORY

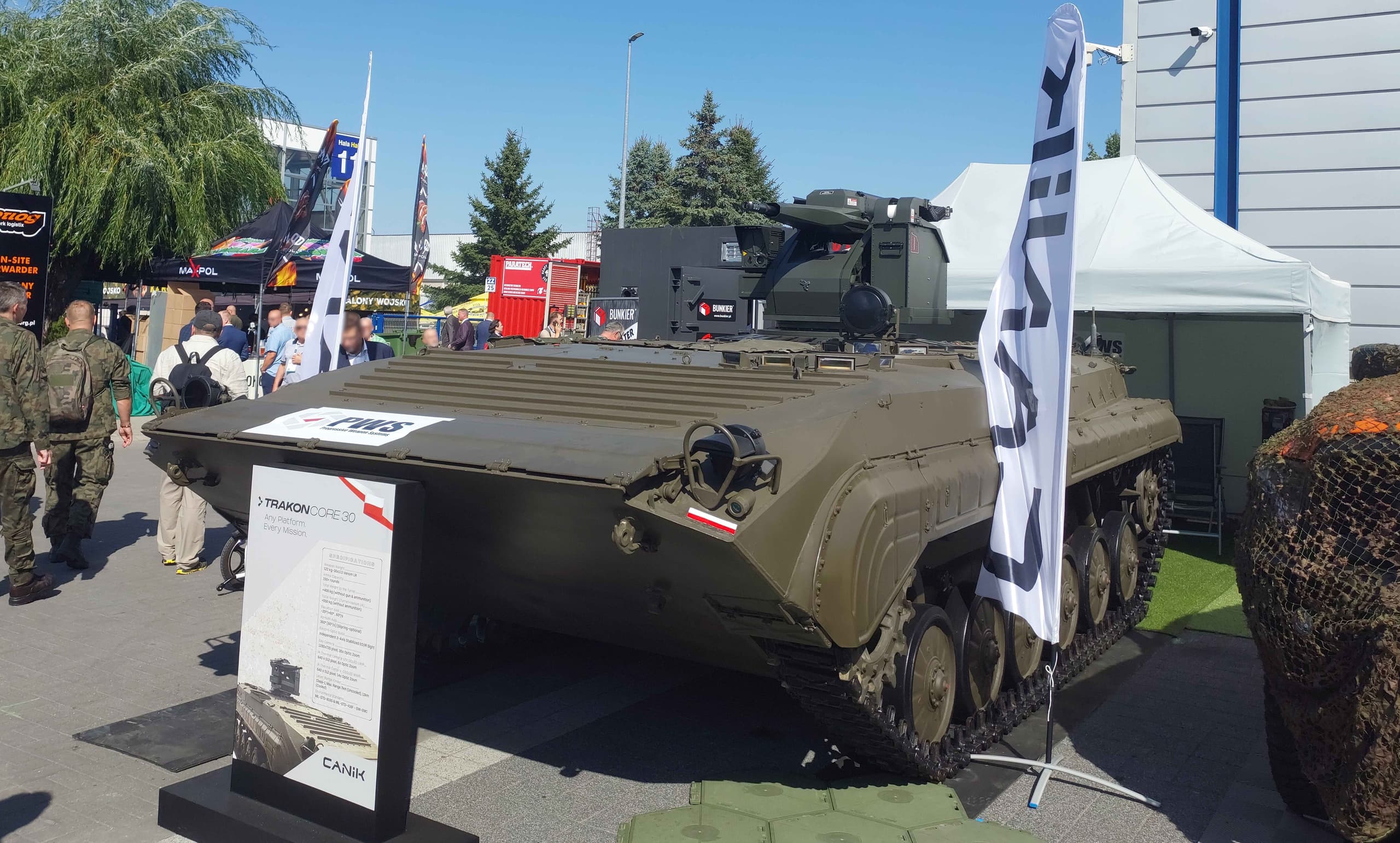

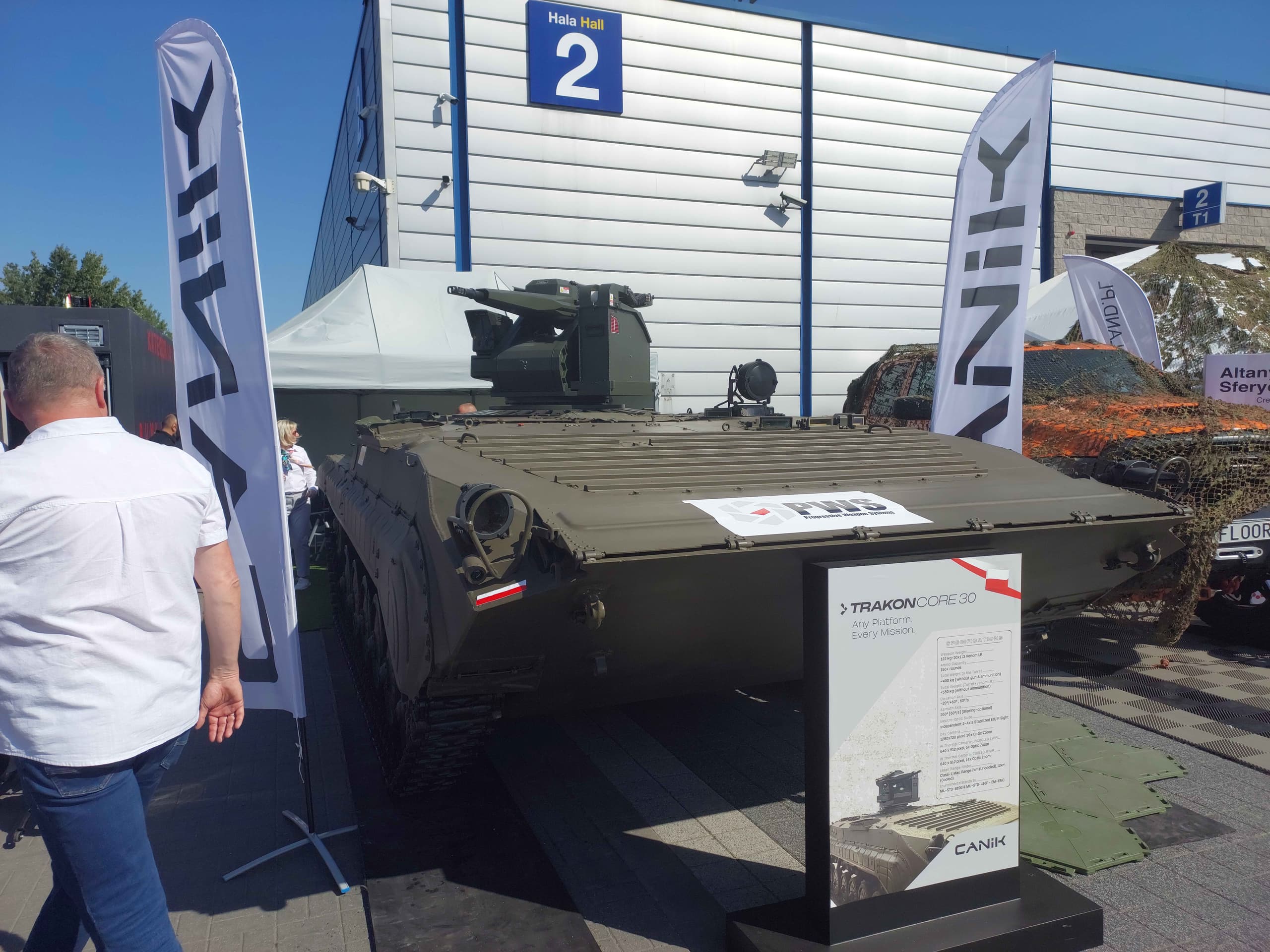

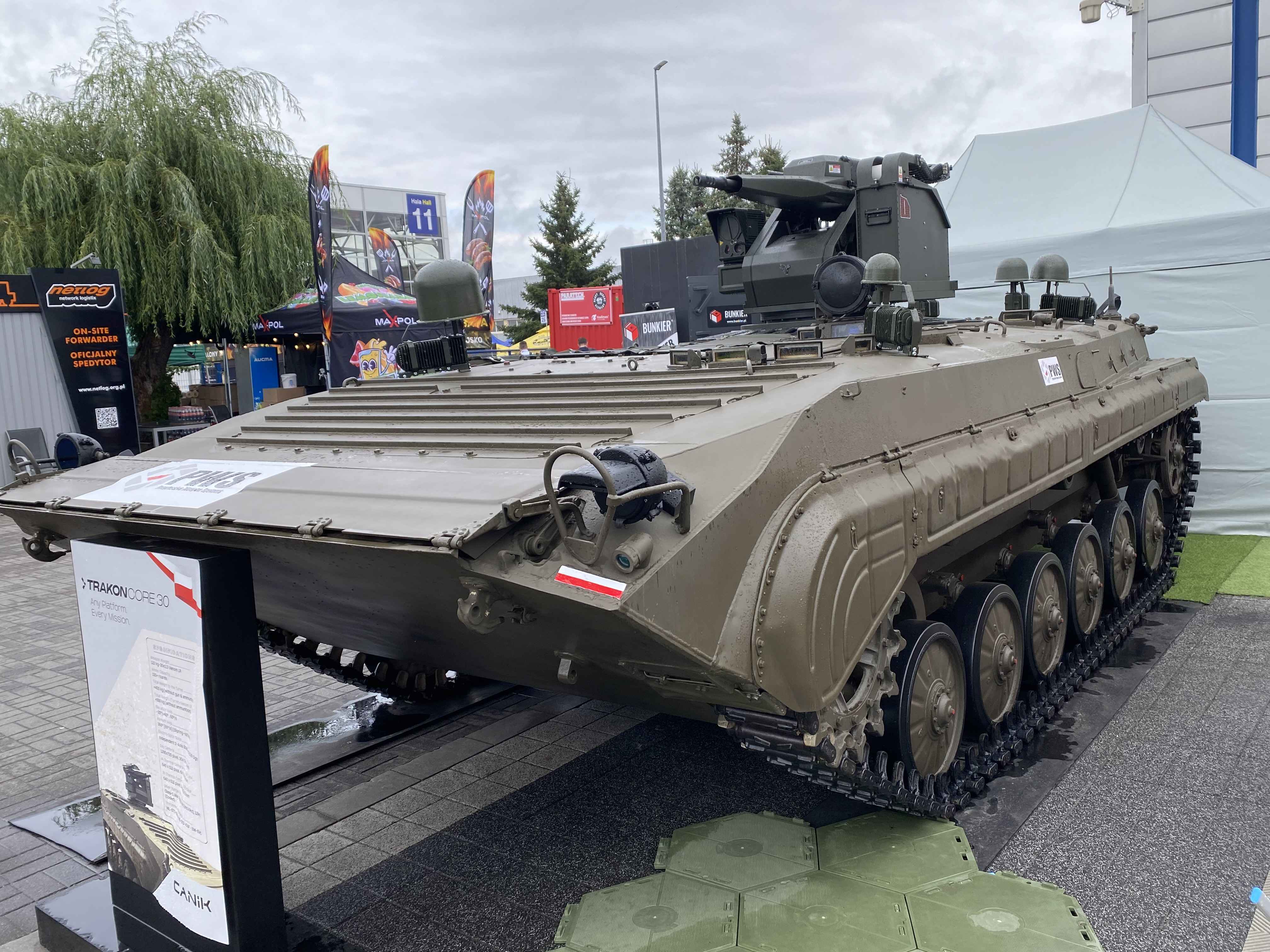

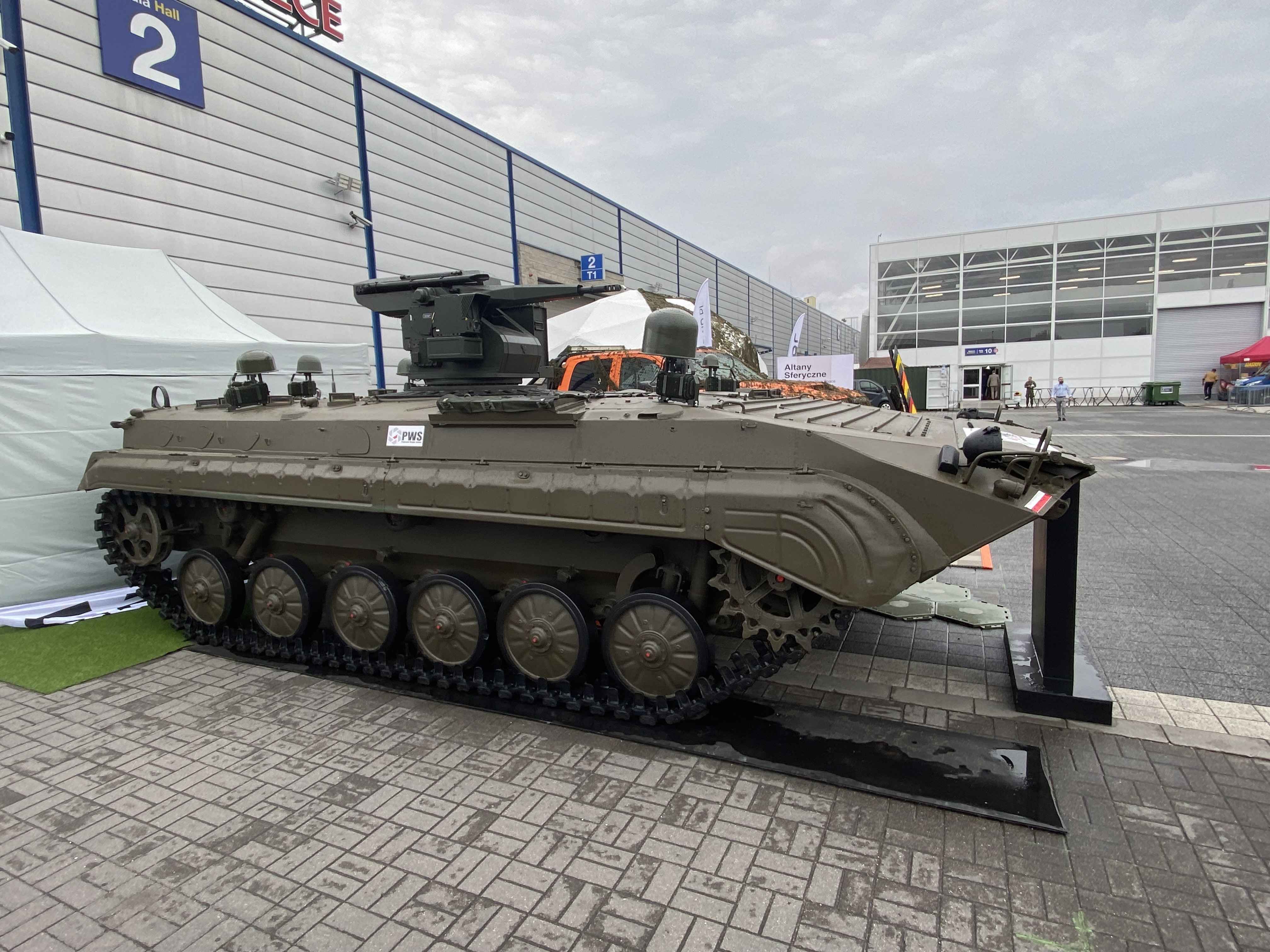

The Polish Armed Forces operates over 1,000 aging BWP-1 infantry fighting vehicles, which increasingly struggle to meet modern battlefield requirements. To bridge this capability gap prior to the full-scale fielding of the new BWP Borsuk, Progressive Weapon Systems presented at MSPO 2026, an upgrade concept featuring the integration of the Trakon 30 remote weapon station.

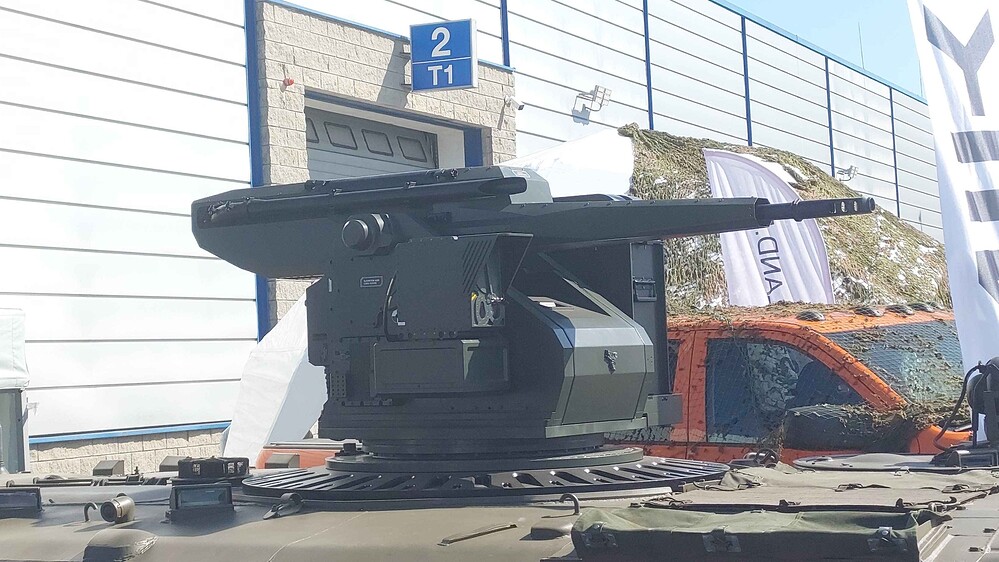

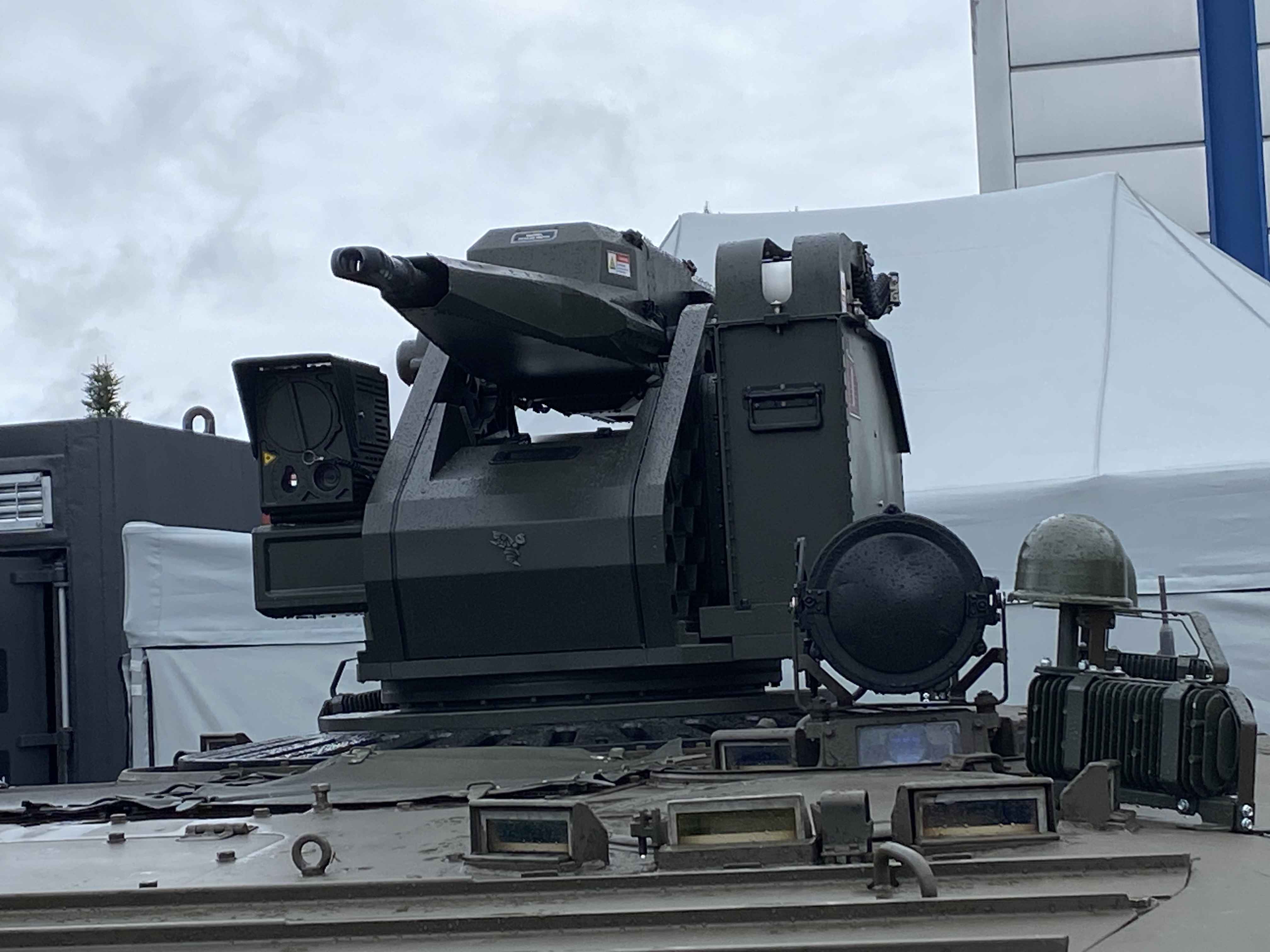

Developed by Resource Industries in cooperation with Unirobotics, the Trakon 30 was designed specifically for light armored vehicles constrained by strict weight limits. Armed with the AEI Systems Venom LR 30x113mm autocannon, the complete RWS module weighs approximately 550 kg (unloaded). This compact design allows the station to mount directly onto the BWP-1’s existing roof plate without structural hull modifications or intrusive turret basket cuts into the troop compartment.
Engagement against concrete brick walls using M789 HEDP

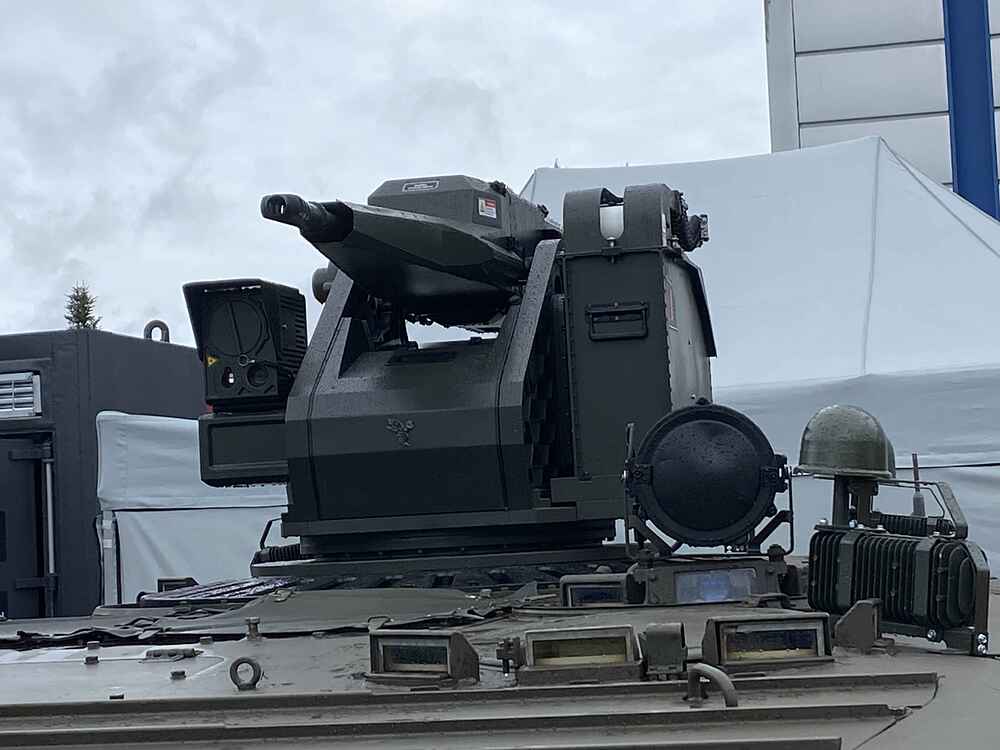

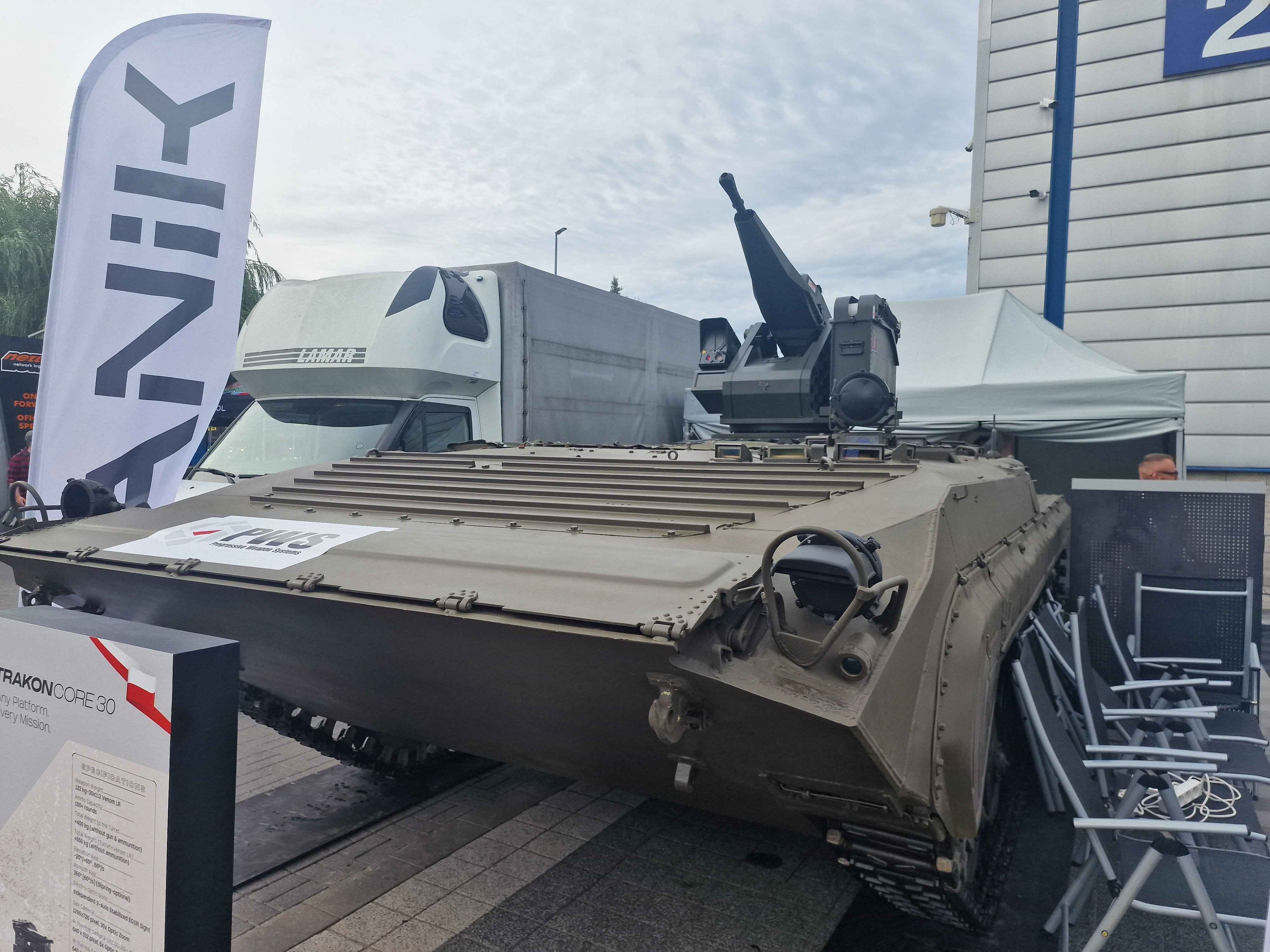

Armed with the AEI Systems Venom LR autocannon, the Trakon achieves high elevation angles ranging from -20° to +60°, offering effective fire support in urban environments and an anti-drone defense option. Firing dual-purpose M789 HEDP rounds, the platform can efficiently engage light armor, unarmored vehicles, and field fortifications. The system upgrades target acquisition by replacing legacy periscopes with an optoelectronic head featuring a 3rd-generation thermal camera, daylight TV channel, laser rangefinder, and video tracker. Coupled with high-speed 60°/s drives and two-plane stabilization, it grants the chassis a full fire-on-the-move capability.
CHARACTERISTICS
ARMAMENT
Turret: TRAKON 30
- Horizontal/Vertical guidance speed: 60 deg/s
30x113mm Venom LR
- Elevation: -20°/+60°
- Two-plane stabilizer
- Fire rate: 230 or 1300 rds/m
- Ammo capacity: 150 rds ready racked
- Ammo: HEI, HEI-T, HEDP, AP, AP-T
MOBILITY
- Crew (3): Driver, Commander, Gunner
- Engine: UTD-20
- power: 221 kW / ≈300 PS @ 2300 rpm
- Transmission:
- Gears: 5 forward, 1 reverse
- Max speed: 65 km/h
- Turret weight (w/o ammo): 550 kg
OPTICS, ELECTRONICS
Gunner optic:
- Two-plane stabilizer
- Daylight camera
- Thermal camera
- 3rd generation
- Laser rangefinder
- Videotracker
DIMENSIONS
Overall length: 6735 mm
Overall width : 2940 mm
Height with turret: ? mm
Summarized characteristics
- Crew (3)
- Driver, gunner, commander
- 30x113mm Venom LR
- Ammo: HEI, HEI-T, HEDP, AP, AP-T
- Elevation: -20°/+60°
- Two-plane stabilizer
- Fire rate: 230 or 1300 rds/m
- Gunner sight
- 3rd Gen thermals
- Laser Rangefinder
- Video tracker
- Turret weight (w/o ammo): 550 kg
- Engine: UTD-20 221 kW / ≈300 PS @ 2600 rpm
- Max speed: 65 km/h
- Length 6,73 m Width: 2,94 m Height: ? m
