BTR-22: The VPK-7829 Bumerang Alternative
The BTR-22, the latest, improved version of the BTR-series that could potentially enter service with Russia.
The vehicle equipped with the BTR-BM ‘Ballista’ combat module.
- Description :
- The BTR-22, also known improved BTR-82, is an 8x8 Armored Personnel Carrier that was developed from the BTR-82A as a private venture by the Military Industrial Company LLC (MIC), or VPK, as an alternative to the long-term “Boomerang” platform. The BTR-22 features a unique design compared to its contemporaries by having a completely new V-shaped armored hull with a rear troop exit, rather than the folding ramps found on the sides of the original BTR-82A. The BTR-22 features a front-mounted engine, with the eight-person troop compartment in the rear, a new direction that follows Western-practice. It uses some components from the BTR-82A, such as the suspension, but has a new 330hp YAMZ 536 turbo-diesel engine and five-speed manual transmission due to the increase in weight from 15.4t to 20t. Even with the increase in weight, the vehicle retains its amphibious capabilities from the BTR-82A.The armor protection is reported to be simplified compared to the Boomerang, with ballistic protection against 12.7mm armor-piercing rounds and 2kg mine blast protection. The prototype shown at Army-2023 forum was equipped with the BPPU combat module from the BTR-82A, featuring a fully stabilized 30mm 2A72 cannon and 7.62mm PKTM machine gun. The Gunner is equipped with a 3rd-generation TKN-4GA-03 thermal imager and the commander a TKN-AI passive-IR periscope. The vehicle can also equip other combat modules like the unmanned BTR-BM “Ballista” combat module with a 30mm 2A42 autocannon, coaxial 7.62mm PKTM machine gun, and Konkurs-M ATGMs, or the B05S01 Berezhok combat module, but this has only been seen in brochures.
- At Army-2024, a modified prototype of the BTR-22 was unveiled that had equipped the LGSh-689 Electronic Warfare/Jammer Receiver and a ‘cope cage’ to protect against FPV ‘suicide’ by jamming the drones first with secondary cage protection.
- Overall, the BTR-22 appears to be a more affordable and simplified alternative to the Boomerang platform, intended to replace the aging BTR-80/82 series of armored personnel carriers. While not as advanced as the Boomerang, it offers improved capabilities and survivability over the legacy BTR-series vehicles, making it a potentially attractive option for Russian and foreign militaries.
- Special thanks to @ZVO_12_INCH for his help in the suggestion.
- Role : Armored Personnel Carrier
- Origin/Manufacturer:
- Russia/Military Industrial Company LLC
- Armament:
- BPPU Combat Module:
- Primary: 2A72 30mm Autocannon (300rds)
- Cartridge: 30x165
- Ammunition:
- 3UBR8 APDS-T (BP)
- 3UBR11 APFSDS-T
- 3UBR6 AP-T (BT)
- 3UOR6 HEF-I (OFZ)
- 3UOF8 F-T (OT)
- Ammunition:
- Feed System:
- Dual-belt Fed
- Depression/Elevation: -5/+70 Degrees
- Traverse/Elevation Speed:
- Max: 6.0
- Min: 0.1
- Traverse/Elevation Speed:
- Stabilizer: Electro-mechanical, Two-plane
- Cartridge: 30x165
- Coaxial: PKTM 7.62mm Machine Gun (2,000rds)
- Primary: 2A72 30mm Autocannon (300rds)
- BTR-BM ‘Ballista’ Combat Module :
- Primary: 2A42 30mm Autocannon (300rds)
- Cartridge: 30x165
- Ammunition:
- 3UBR11 APFSDS-T
- 3UBR8 APDS-T (BP)
- 3UBR6 AP-T (BT)
- 3UOR6 HEF-I (OFZ)
- 3UOF8 F-T (OT)
- Feed System:
- Dual-belt Fed
- Depression/Elevation: -5/+70 Degrees
- Traverse/Elevation Speed:
- Max: 3.6
- Min: 0.05
- Traverse/Elevation Speed:
- Stabilizer: Electro-mechanical, Two-plane
- Ammunition:
- Cartridge: 30x165
- Coaxial: PKTM 7.62mm Machine Gun (2,000rds)
- Tertiary:
- 2x Konkurs-M ATGM Launchers
- Guidance:
- Wire-guided/SALCOS
- Missiles:
- 9M113M Konkurs-M
- Warhead: Tandem HEAT
- Penetration: 750-800mm behind ERA
- Diameter: 135mm
- Weight: 14.5kg (Missile only)
- Propulsion: Single-Stage Solid Propellant Rocket Motor (and Booster)
- Range: 75-4,000m(3,500m Passively)
- Speed:
- Average: 208m/s
- Max: 300m/s
- 9M113M Konkurs-M
- Guidance:
- 2x Konkurs-M ATGM Launchers
- Primary: 2A42 30mm Autocannon (300rds)
- BPPU Combat Module:
- Maneuverability:
- Engine: 330hp - YAMZ 536 Turbo Diesel Engine
- Transmission: Manual (5-Forward, 1-Reverse)
- Chassis: 8x8, 4-axle
- Ground Clearance: 0.475mm
- Suspension: Torsion Bar
- Max Speed: 80km/h (9km/h on water)
- Dimensions:
- Length: 7.560m
- Width: 2.985m
- Height: 3.020m
- Weight: 20t
- Crew (3-10x):
- Commander
- Gunner
- Driver
- Features:
- 6x 81mm 902V ‘Tucha’ Smoke Grenade Launchers
- ESS
- Laser Rangefinder
- OU-3GA2M IR Searchlight
- Amphibious
- Armor:
- Full Coverage: Up to 12.7mm rounds.
- Kevlar-lined for shrapnel protection.
- Bottom: Up to 2kg of Explosives.
- Armor/EW Package:
- Additional armor plating on front arc.
- Bar Armor.
- LGSh-689 Electronic Warfare/Jammer Receiver.
- Optics:
- Driver: TVN-4E (IR Passive NV)
- Commander: TKN-AI (IR Passive NV)
- Gunner’s Sight: TKN-4GA-03 (3rd-generation Thermal Imager)
- In-game :
- The BTR-22 is a revolutionary infantry fighting vehicle that relies on speed and firepower to achieve its objectives of either flanking or capturing points. The vehicle has 3rd-generation thermal imagers for night fighting, and powerful ammunition to make quick work of any vehicle. If it uses the BPPU combat module, it would solely rely on targeting the weak points of vehicles with its 3UBR11 APFSDS-T rounds, if it has the Ballista, it can pair the APFSDS-T rounds with two of its deadly Konkurs-M ATGM’s. It’s worth noting that the ATGM’s are slow which makes it easier for evasion. It’s best to flank and ambush targets, using the mobility to quickly maneuver about.
- Estimated Battle Rating:
- BPPU Combat Module: 9.3
- Ballista Combat Module: 9.7
- Sources:
- Russia unveils new BTR-22 armored vehicle with jammer at Army 2024 arms show - Military & Defense - TASS
- x.com
- "Improved" armored personnel carrier BTR-82A - ВПК.name
- x.com
- World Defence News: Russian redesigned BTR-22 8x8 APC spotted in secret tests
- New Russian 8x8 armoured vehicle breaks cover at Army-2023 event | Shephard
- https://defence-blog.com/topics/btr-22/
- https://defence-blog.com/russia-tests-new-btr-22-armored-vehicle/?amp
- BTR-22 or BTR-82A (improved)
- The new "boomerang-like" BTR-22 can receive a rocket-cannon "Ballista" - ВПК.name
- https://www.military.africa/2023/08/russia-unveils-all-new-btr-22-8x8-armoured-vehicle-at-army-2023/?amp=1
- Russian redesigned BTR-22 8x8 APC spotted in secret tests
- Врагу не скрыться: БТР-82АТ получил тепловизор и крепкую защиту - Российская газета
- New APC with Advanced Combat Module Offered to Russian Military
- Military and Commercial Technology: A new combat module BTR-BM presented
- BTR-BM a New Combat Module – New Defence Order. Strategy
- https://militaryleak.com/2021/04/05/russia-demos-new-dubm-remote-controlled-combat-module-on-btr-82-apc/
- http://www.military-today.com/missiles/konkurs.htm
- Armoured personnel carrier BTR-82A | Catalog Rosoboronexport
- BTR-82 | Weaponsystems.net
- Belarusian motorized rifles received new Russian armored personnel carriers BTR-82A
- https://www.armyrecognition.com/russia_russian_army_wheeled_armoured_vehicle_uk/btr-82a_btr-82am_armoured_infantry_fighting_vehicle_technical_data_sheet_specifications_pictures.html
- Alexistogel - Situs Slot Online Bet 200 Dan RTP Hoki88 Slot Tertinggi
- https://www.army-technology.com/projects/btr-82a-armoured-personnel-carrier/
- ODIN - OE Data Integration Network
Images

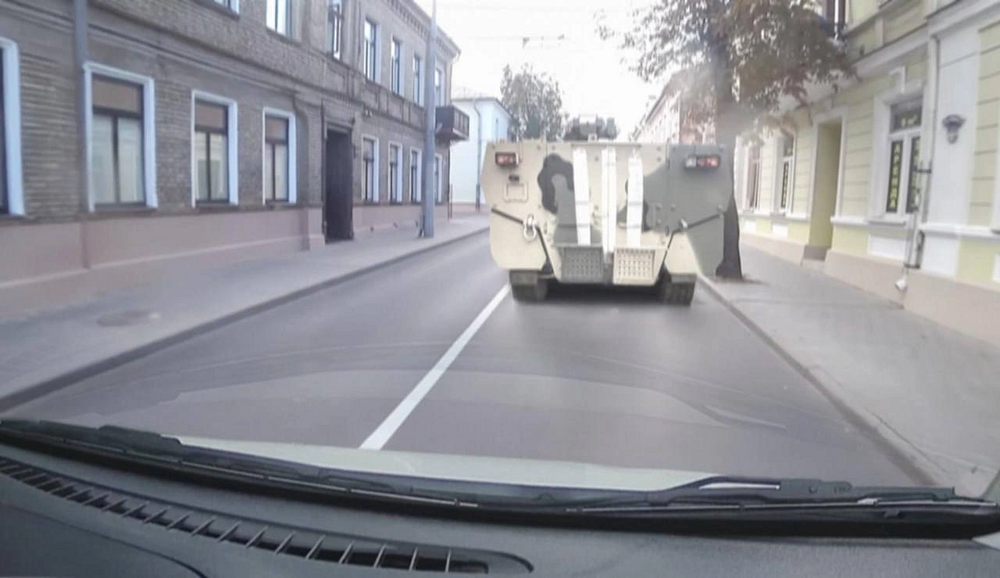

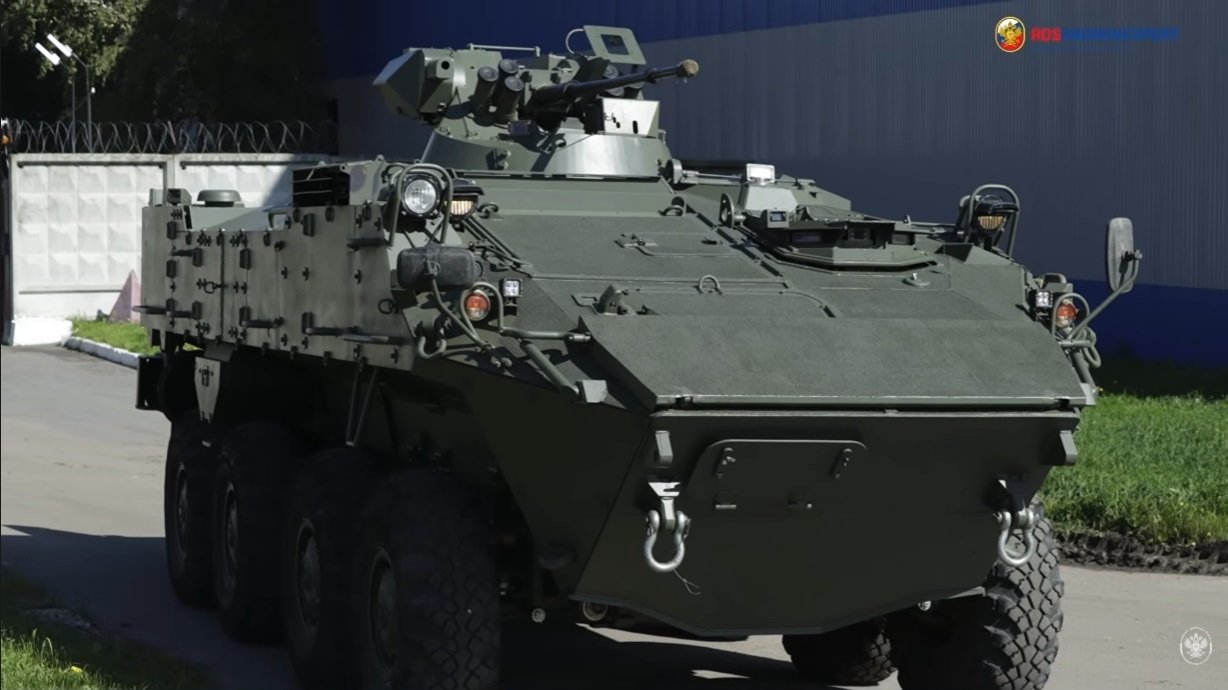

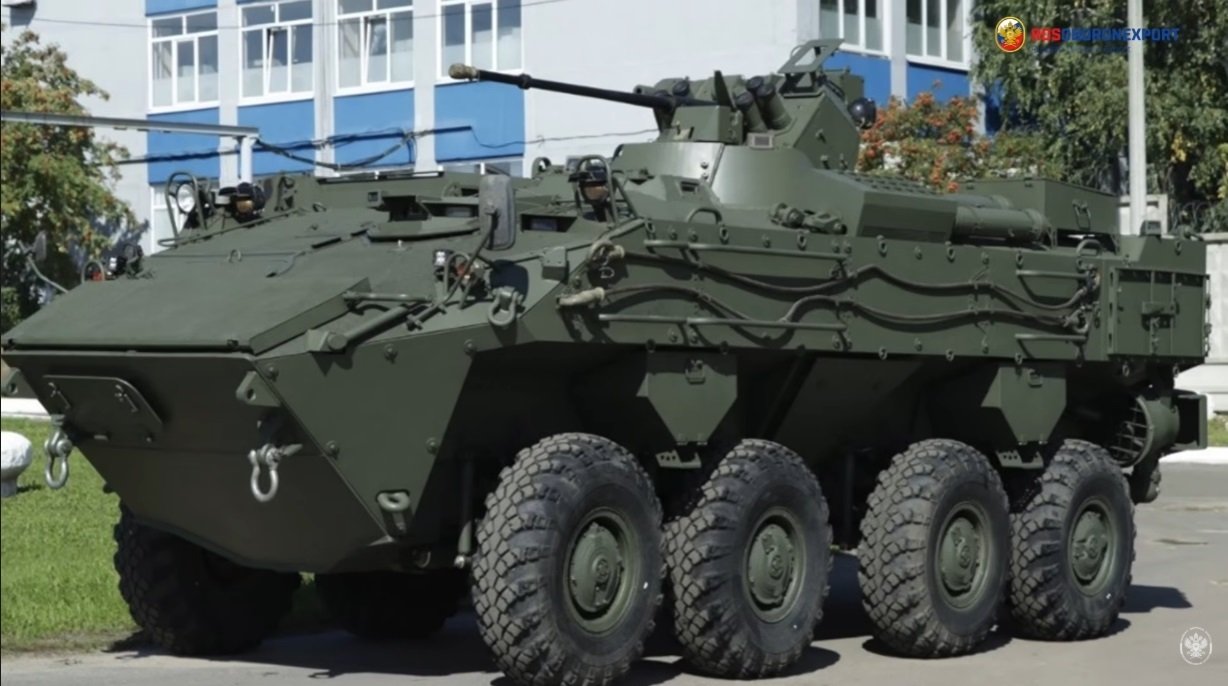

General Images of the BTR-22.
Specifications of the BTR-22.
Image of a BTR-22 equipped with the ‘Ballista’ Combat Module.

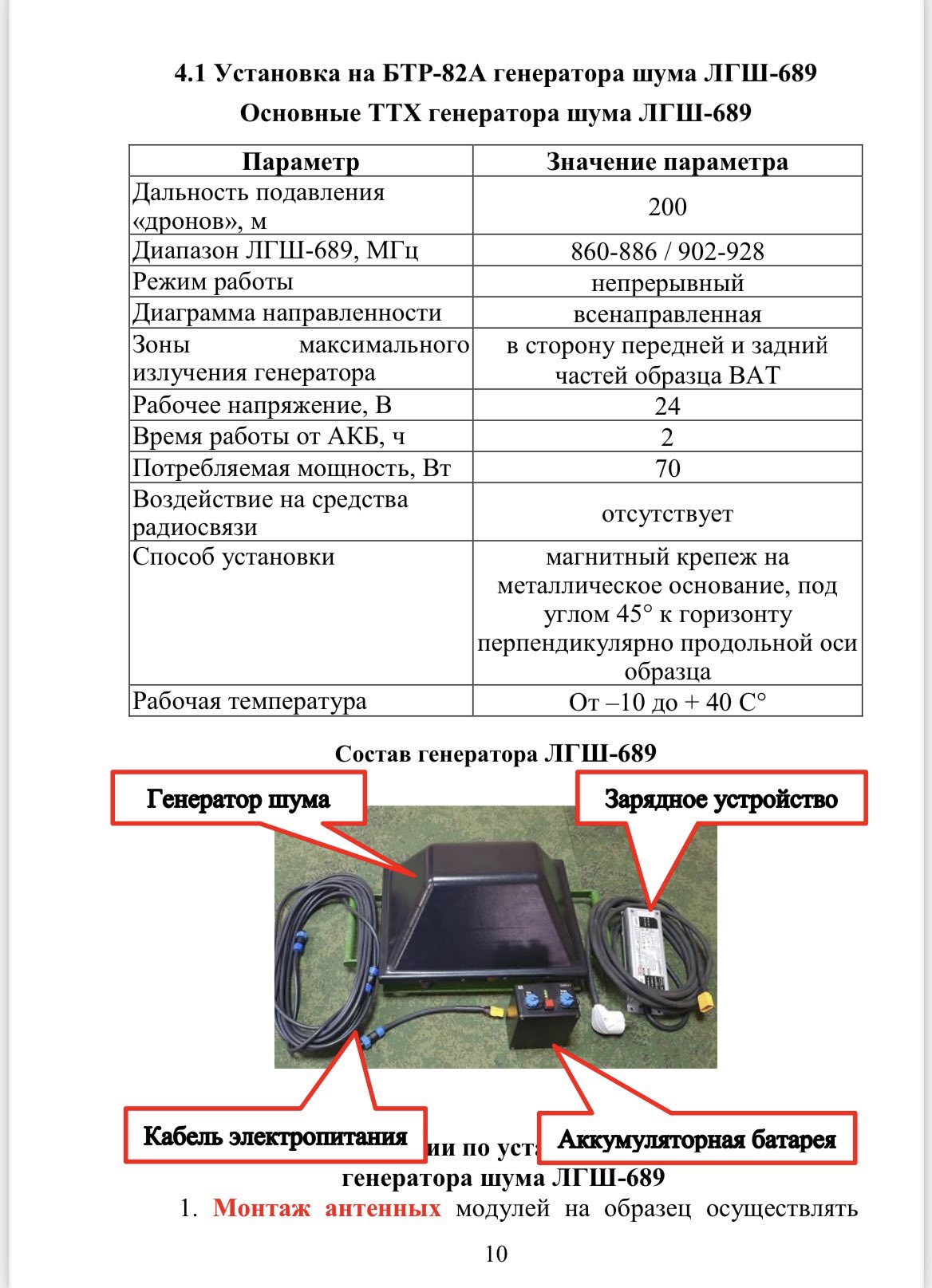

LGSh-689 EW Jamming receiver that can be mounted on the BTR-22 for anti-drone capacity.
Ballista Combat Module mounted on a BTR-82AT for reference.
