Today I’m going to suggest a very cool armoured gunboat of the Netherlands Navy.
This is the Brinio-class, HNLMS Brinio (1912)!

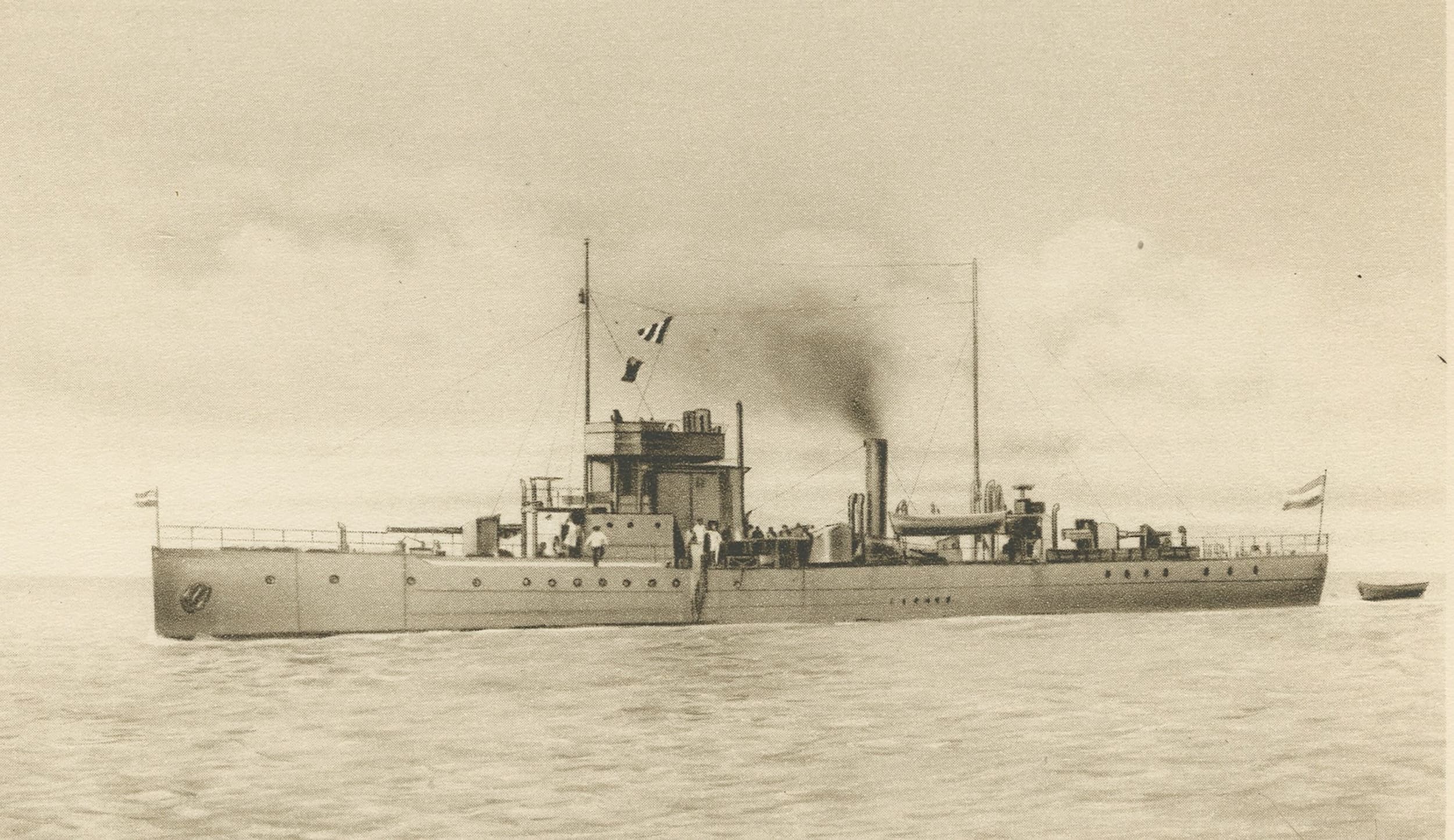

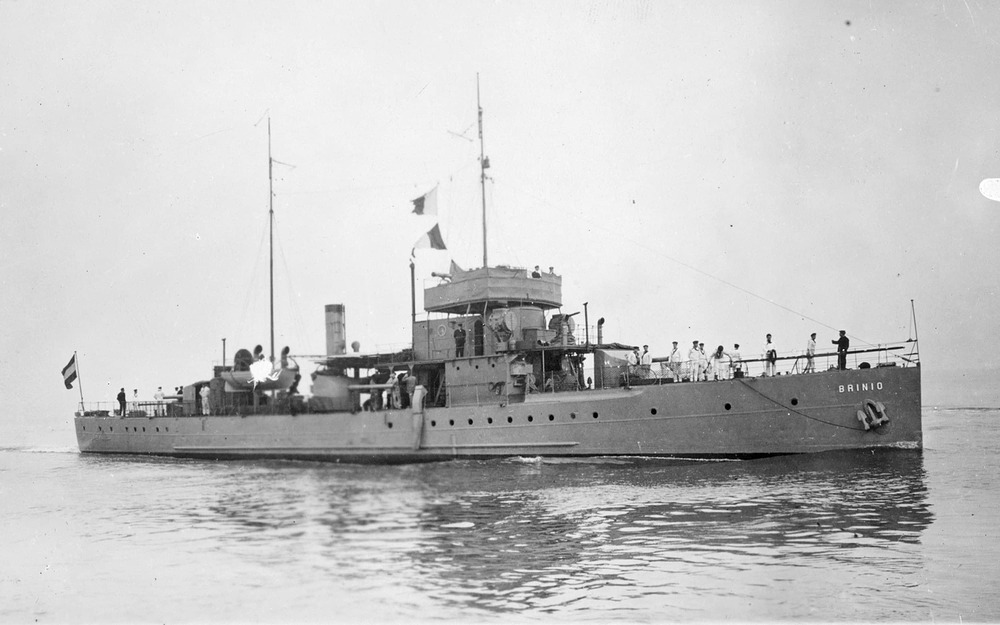

HNLMS Brinio most likely sometime in the 1930’s
Source: Foto's
History
Spoiler

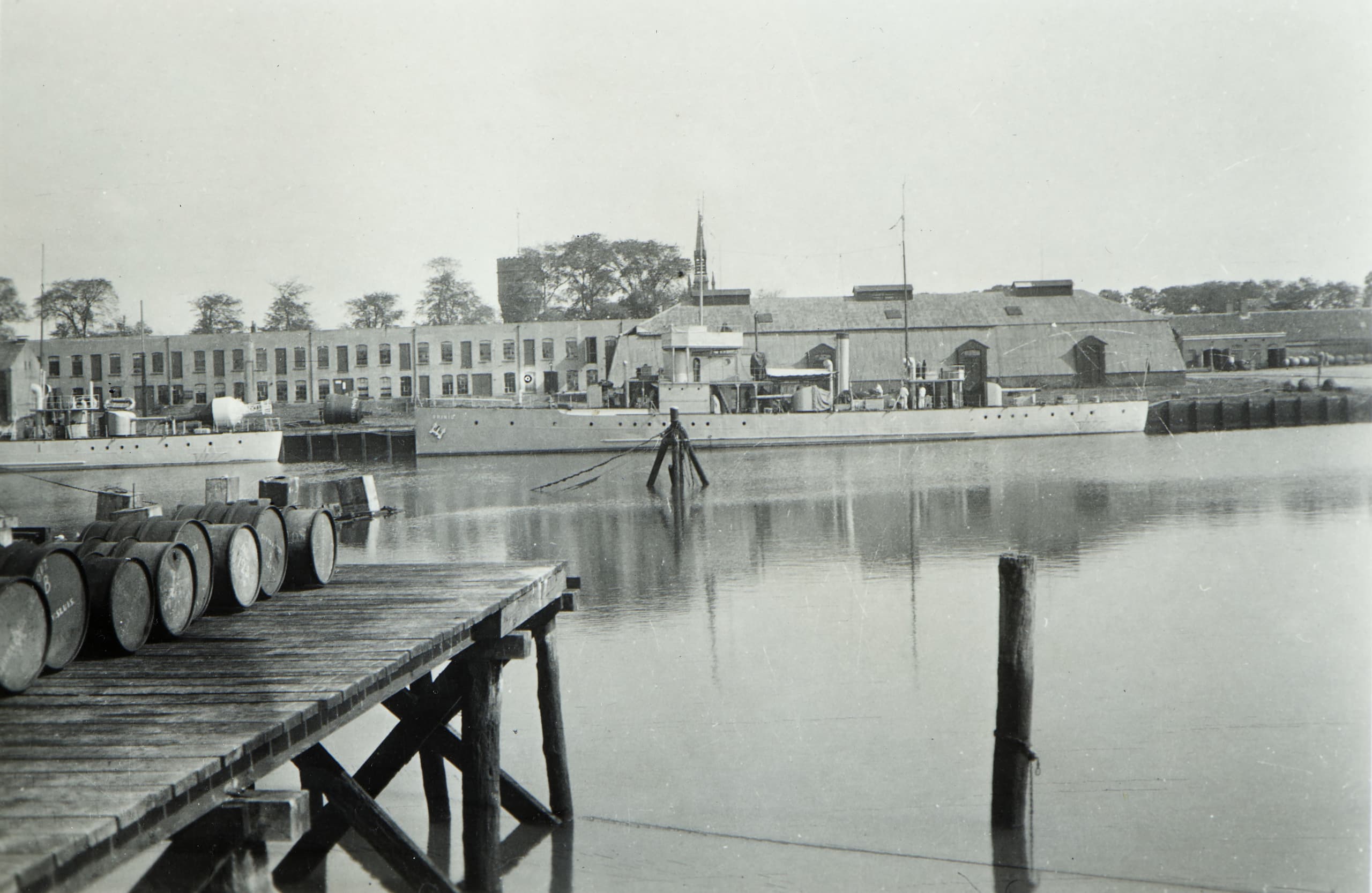

HNLMS Brinio whilst in dock in 1932
Source: Foto'sThe Brinio-class armoured gunboats were designed around 1910, and their role would be that of Harbour/Coastal defence boats. Another role for them was to protect smaller minelayers. For these planned defence roles the ships were not given a lot when it came to speed, but they more then made up for this in firepower and armour.
Also fun fact, the Brinio-class ships were the first full diesel powered boats the Dutch Navy used.
HNLMS Brinio was the first ship made of the class. She was laid down on the 16th of October 1911, and would be commissioned on the 8th of September 1914. HNLMS Brinio and her two sister ships all differed slightly in powerplants, this is ofcourse not visible from the outside. Except for one thing, the smokestacks. All three ships had different smoke stacks later in their carreers, so this became an easy way to identify the ships from the outside. The sketch shown below shows the differences.

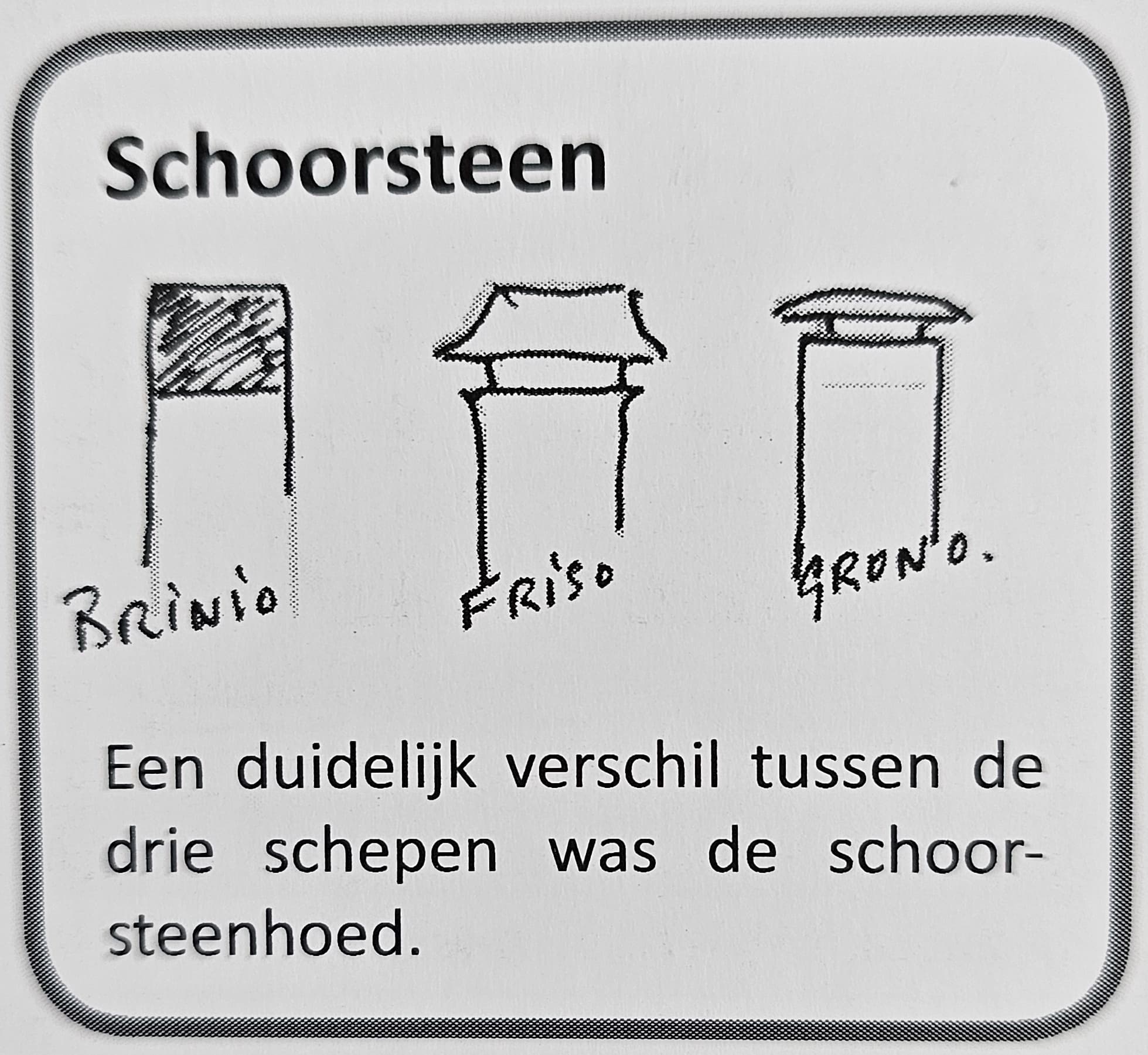

A simple sketch showing the different smoke stacks each ship of the Brinio-class had. It’s a very simple way to tell the three sister ships apart
Source: “Nederlandse marineschepen 1939-1945” book, by Peter KimenaiHNLMS Brinio didn’t have a very exciting carreer during WW1 or the Interwar period. The only thing that did happen was that she was refitted slightly a bunch of times. The bridge, masts and overall upper superstructure was changed around a lot from the 1920’s till 1930’s.
When Germany invaded the Netherlands on the 10th of May 1940, HNLMS Brinio was called into action. She was send to the IJsselmeer (The large freshwater lake in the Netherlands) to reinforce the IJsselmeer Flotilla present there. After her sister ship, HNLMS Friso, had been sunk on the 12th of May, HNLMS Brinio was ordered to take her place.
HNLMS Brinio would end up getting attacked by German aircraft and she sustained light damage from indirect hits. The damages were repaired the next day. On the 14th of May HNLMS Brinio was ordered to return to Den Oever, but before she even arrived there another order had come in for her to turn back.
Later that night, on the 14th of May 1940, HNLMS Brinio would be sunk by her own crew to avoid her capture by the Germans.
The wreck would be recovered on the 12th of October 1942 and would be scrapped soon after.
Design
Spoiler

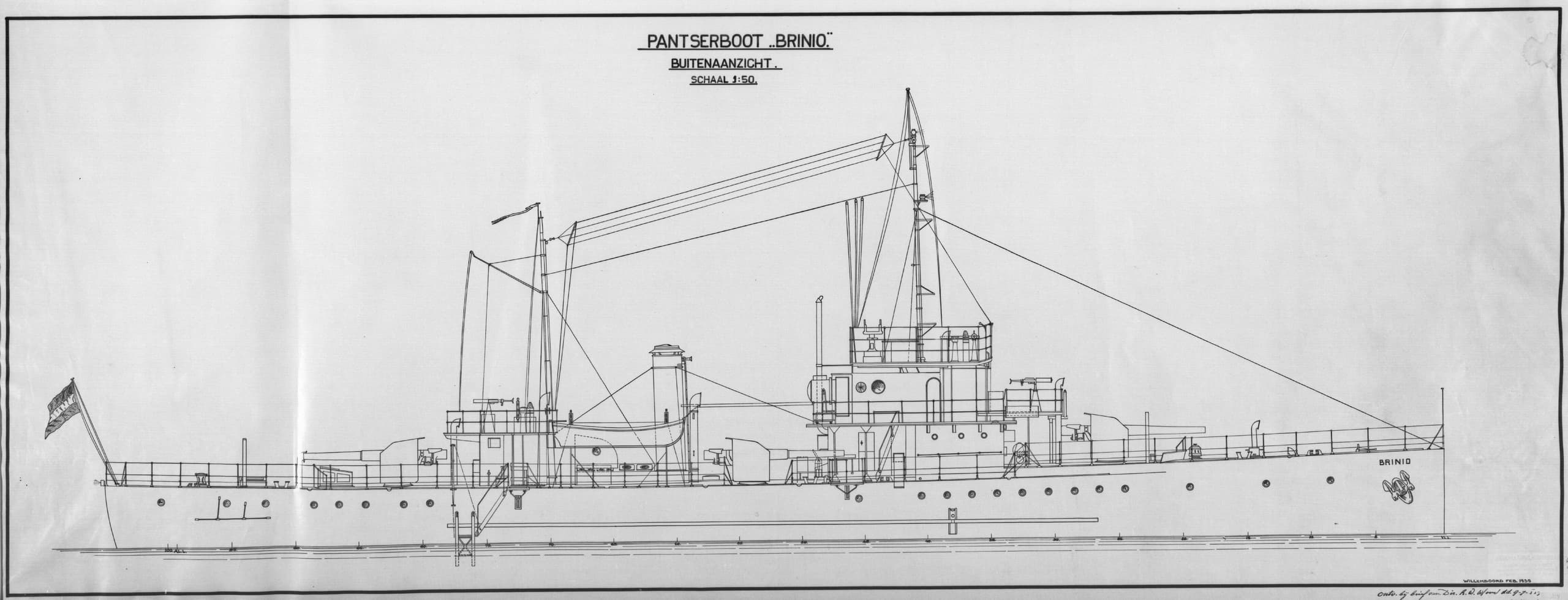

A blueprint of the HNLMS Brinio
Source: | Nationaal ArchiefHNLMS Brinio was 52,66 metres long, had a beam of 8,52 metres and a draft of 2,78 metres, and had a standard displacement of 545 tons, and a full displacament of 634 tons. She had a crew of 52 men (This increased to 66 during the German invasion) and were able to reach a top speed of 15 knots.
HNLMS Brinio was armed with four 10,5cm Semi-Automatisch No. 1 guns. These four guns were mounted in single mounts, with one at the front, one at the rear, and one on each side of the ship. Giving the ship a max broadside of three guns.
These guns had acces to two types of HE rounds. It also had a Canister and a Starshell round.The boats were also armed with two single 6,5mm No. 1 machine guns. These are 6,5mm Schwarzlose M.08 machine guns. One was in front of the bridge, and another on a platform towards the rear, superfiring over the rear 10,5cm gun.
The Brinio-class ships were also armoured. The ship was protected by a 55mm thick belt. Towards the inside of the ship the citadel was also 55mm thick. The belt and citadel were connected by a 17mm thick deck. This 17mm thick deck kind of acted as turtleback armour, and in places where there was no citadel armour present, the 17mm deck armour ran from one side of the ship to the other via a curved shape.
Lastly the conning tower and 10,5cm gunshields were also 50mm thick.

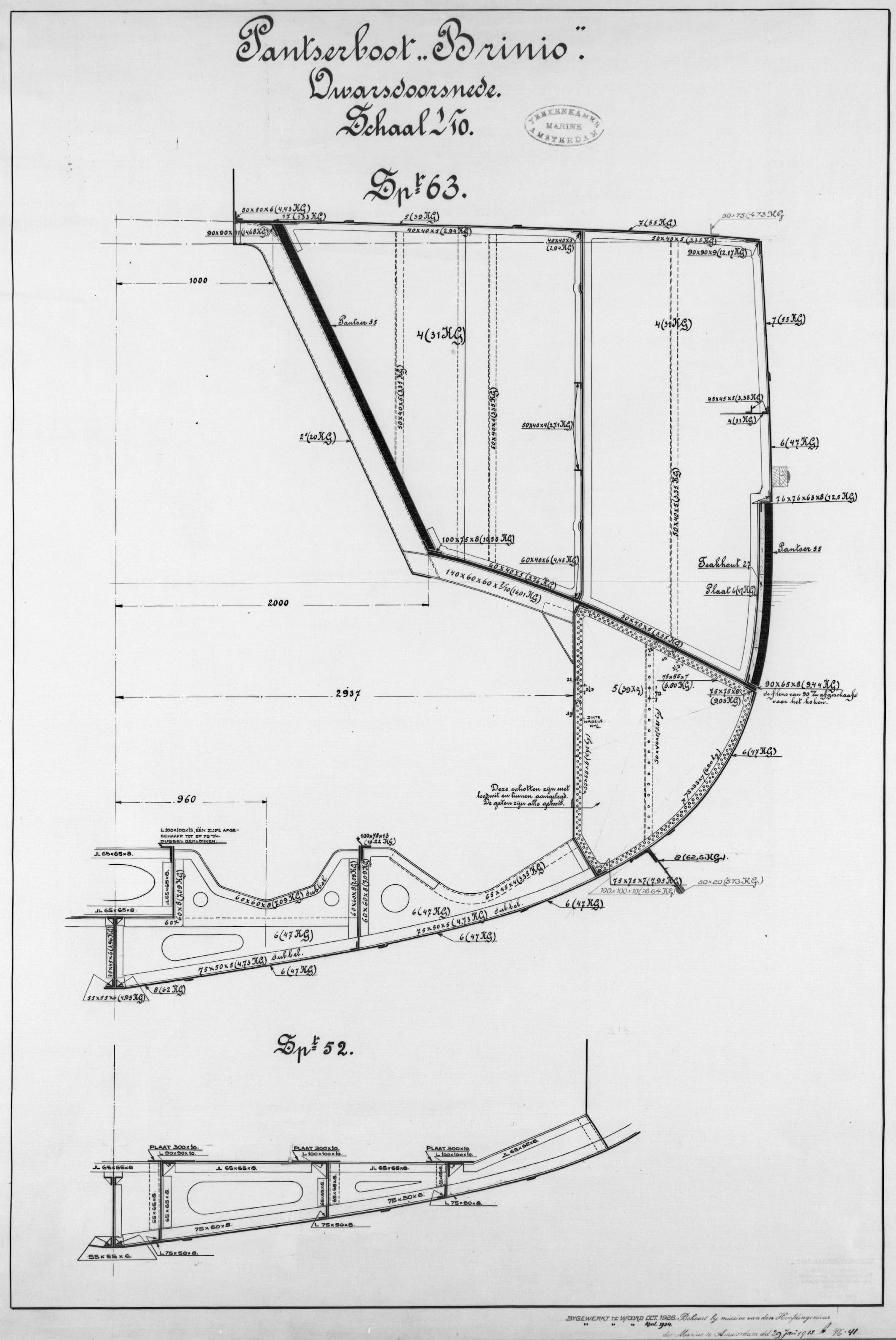

A blueprint of the inside of the HNLMS Brinio. Here we see the armour layout of the middle of the ship
Source: | Nationaal Archief
At some point the old 6,5mm machine guns were replaced for 12,7mm Colt-Browning machine guns. My best guess is that this happend somewhere around the late 1920’s.
Around the mid 1930’s we find a mysterious refit that might have happend. There is a single blueprint that shows a Twin 12,7mm Colt-Browning machine gun turret in place of where the rear most machine gun would be.
The blueprint is undated so I do not know when this Twin machinegun turret might have been added onto the ship. But what we do know is that this Twin turret only came into existence in 1934, so if it was added it must have been done after this date.Just before the German invasion HNLMS Brinio had one more armaments refit. In 1938 the front 12,7mm machine gun was replaced for a 40mm No. 2 autocannon. This is a Vickers pom-pom autocannon.

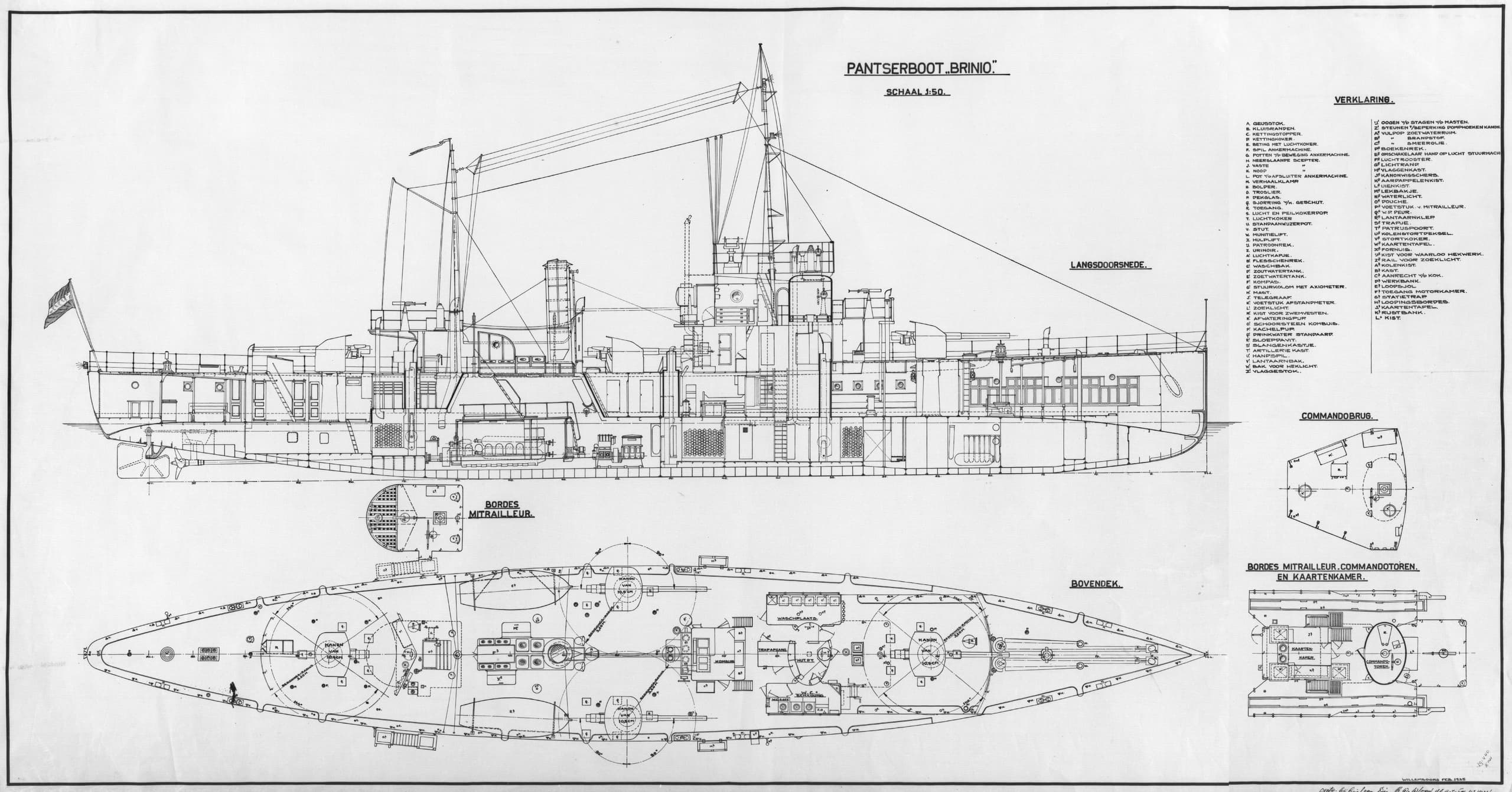

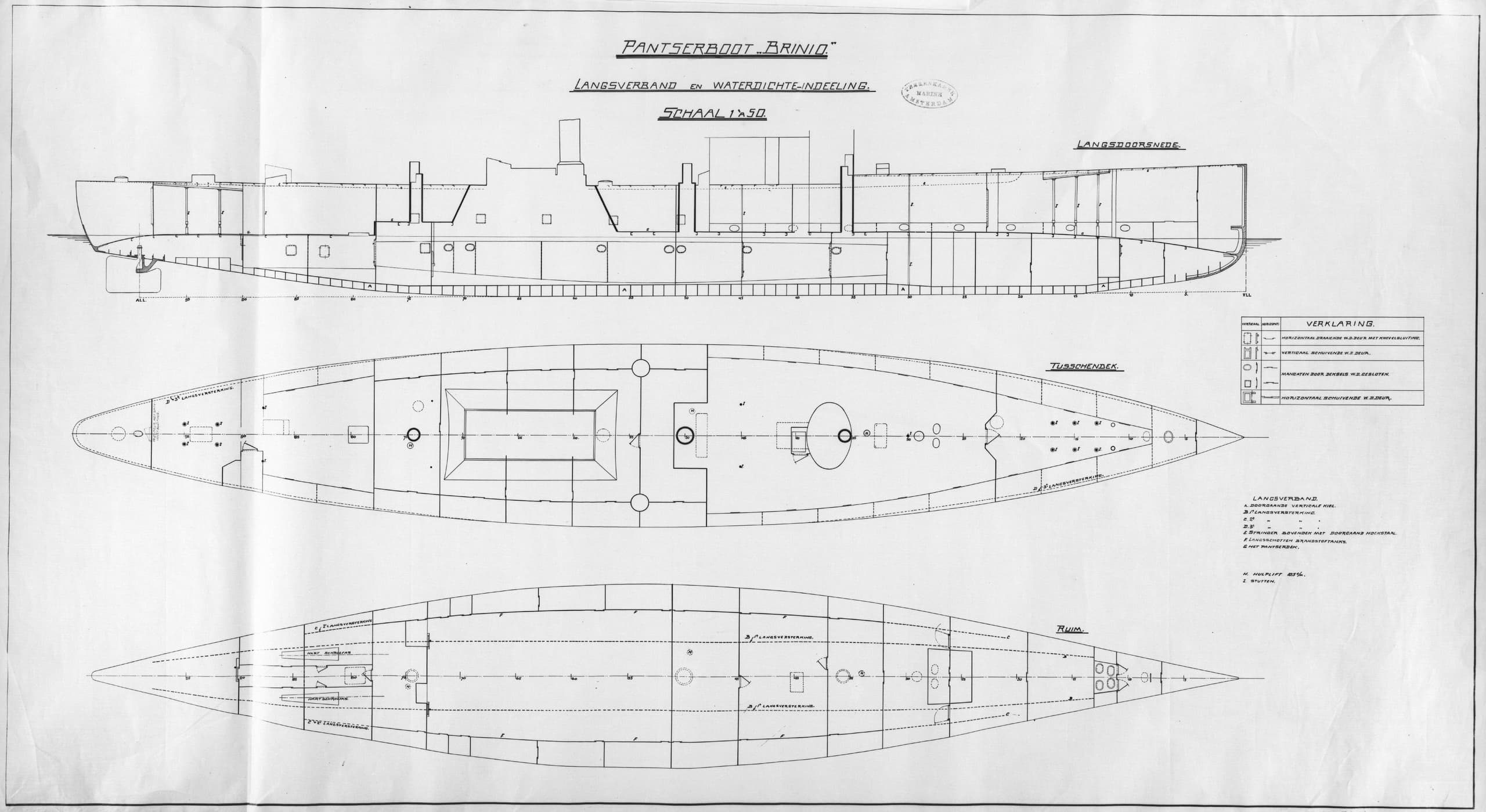

A blueprint of HNLMS Brinio, showing the watertight compartments, and also the internal armour layout that runs throughout the ship
Source: | Nationaal Archief
Ingame
Spoiler
The HNLMS Brinio would be a very nice addition to the game. The ship sits exactly between the small river gunboats and larger destroyers. And yet it has more armour then most destroyers ingame. I think this would be an excellent addition for a coastal techtree, the 105mm guns are perfect to use against pretty much any kind of enemy ship. And whilst the secondairy machine guns are not that great, we can also pick a later refit where the HNLMS Brinio gets 12,7mm machine guns and even a 40mm pom-pom!
Now where should these boats go to? As usualy with my Dutch vehicle suggestions, I ofcourse want to see this ingame in a Dutch or BeNeLux techtree. Ofcourse the BeNeLux has been added to France, so this is now the only option where Dutch vessels will go to. But it must be said that the Netherlands and France have nothing in common, and do not make sense to combine together ingame.
In the French tree the HNLMS Brinio would actually be a nice addition. The French coastal tree already has some large gunboats in it, but none of those are armoured. The HNLMS Brinio would add a nice compact and armoured gunboat into the techtree.
Specifications
Spoiler
A blueprint of the HNLMS Brinio
Source: | Nationaal ArchiefStandard displacement: 545 tons
Max displacement: 634 tons
Length: 52,66 m
Beam: 8,52 m
Draft: 2,78 m
Powerplant:
– 1914 - 1932: 2 x 6-cylinder 2-stroke MAN diesel engines
– 1933 - 1940: 2 x 6-cylinder 2-stroke De Schelde-Sulzer diesel engines
Power output: 750 hp
Maximum speed: 15 knots (27,78 km/h)
Crew: 52 men (66 men during the German invasion, 1940)Armor:
Belt: 55 mm
Deck: 17 mm
Citadel: 55 mm
Conning tower: 50 mm
10,5 cm gun shields: 50 mmArmament: (As laid down)
4 x 1 10,5 cm Semi-Automatisch No. 1 guns
2 x 1 6,5mm No. 1 machine guns (Schwarzlose M.08)Late 1920’s refit:
4 x 1 10,5 cm Semi-Automatisch No. 1 guns
2 x 1 12,7mm Colt-Browning machine gunsMid 1930’s refit?:
4 x 1 10,5 cm Semi-Automatisch No. 1 guns
1 x 2 12,7mm Colt-Browning machine guns [1]
1 x 1 12,7mm Colt-Browning machine guns1938 refit:
4 x 1 10,5 cm Semi-Automatisch No. 1 guns
1 x 1 40 mm No. 2 autocannon (Vickers Pom-Pom) [2]
1 x 2 12,7 mm Colt-Browning machine guns [1][1]: This Twin 12,7mm Colt-Browning machine gun mount might also have been just a single mount. There are no historical photos that show it, the twin mount only shows up on a single blueprint.
[2]: There is no historical photos showing the 40mm onboard HNLMS Brinio, but sources say that is was mounted in 1938.

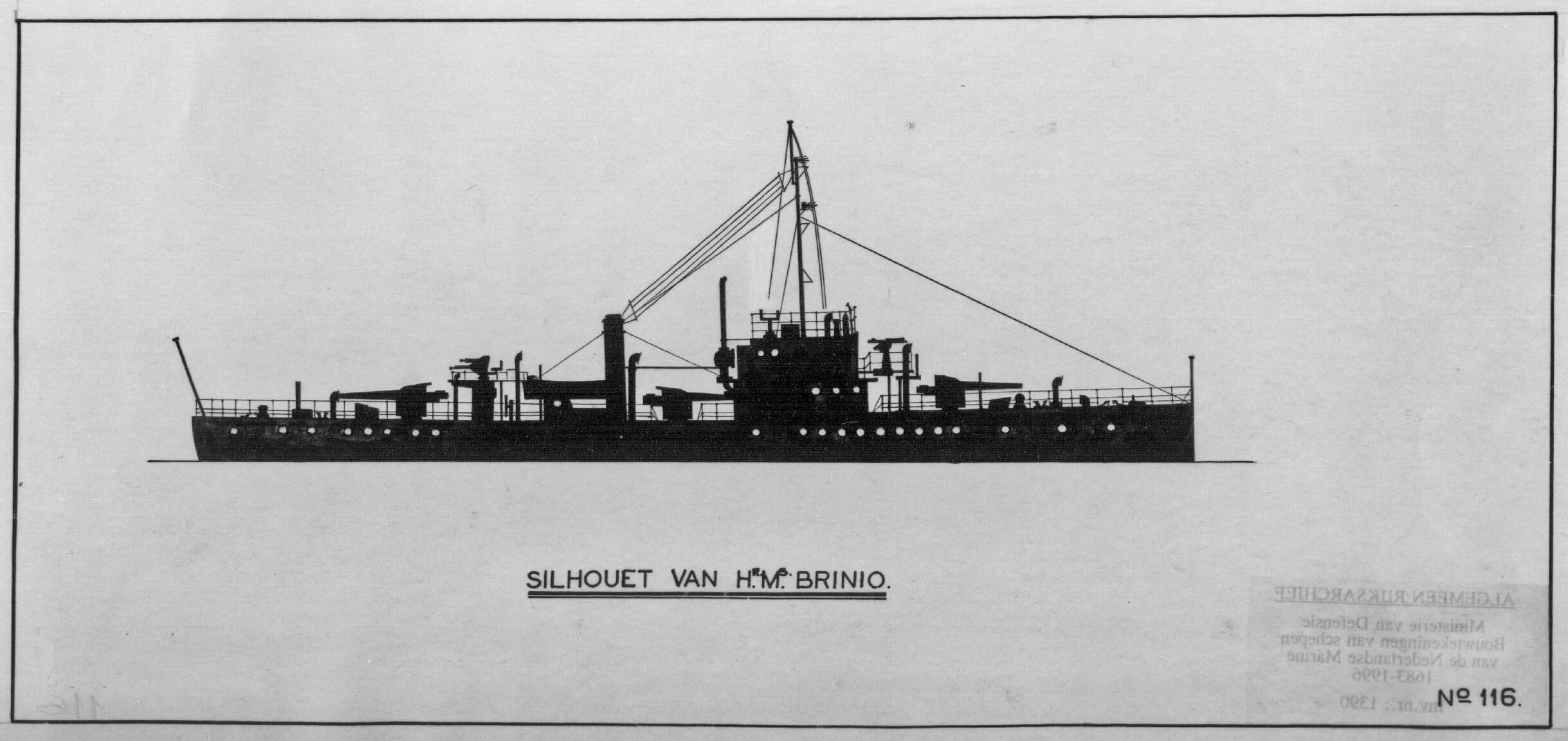

A silhouette drawing of the HNLMS Brinio. Something interesting we see here is the addition of a Twin 12,7mm Colt-Browning machine gun turret to the rear of the ship. This is something I’ve not been able to confirm with historical photos, but it might have been added to the ship
Source: | Nationaal Archief
An painting of HNLMS Brinio in her original as laid down configuration
Source: Foto's
And there you have it! I hope you enjoyed reading about this little boat.
See you on the battlefield!
