Breda Ba.65 Tipo Chile - The special modification for Chile

[Would you like to see this in-game?]
  • Yes
  • No
0 voters

Breda Ba.65 Tipo Chile


History:

On June 6, 1937, Chilean officers flew to Milan, to the “Societa Ernesto Breda” factory, where they signed “letters of intent” for the acquisition of twenty Breda-65 aircraft (numbered from 1 to 20), 17 single-seaters and three two-seaters. This aircraft was already being used in the Spanish Civil War, which is why it sparked interest in the Chilean Air Force. The aircraft was of all-metal construction, and the version chosen by Chile featured a Piaggio P.XI RC 40 engine with fourteen air-cooled cylinders arranged in a double star pattern and a power output of 900 hp which could deliver 1000 hp driving a Piaggio variable-pitch propeller, this engine was also 100 kg lighter than the Fiat A.80 and K.14 engines used by other Breda 65s. The final acquisition was on August 16, 1937. The last Bredas would eventually arrive two years later, in 1939.

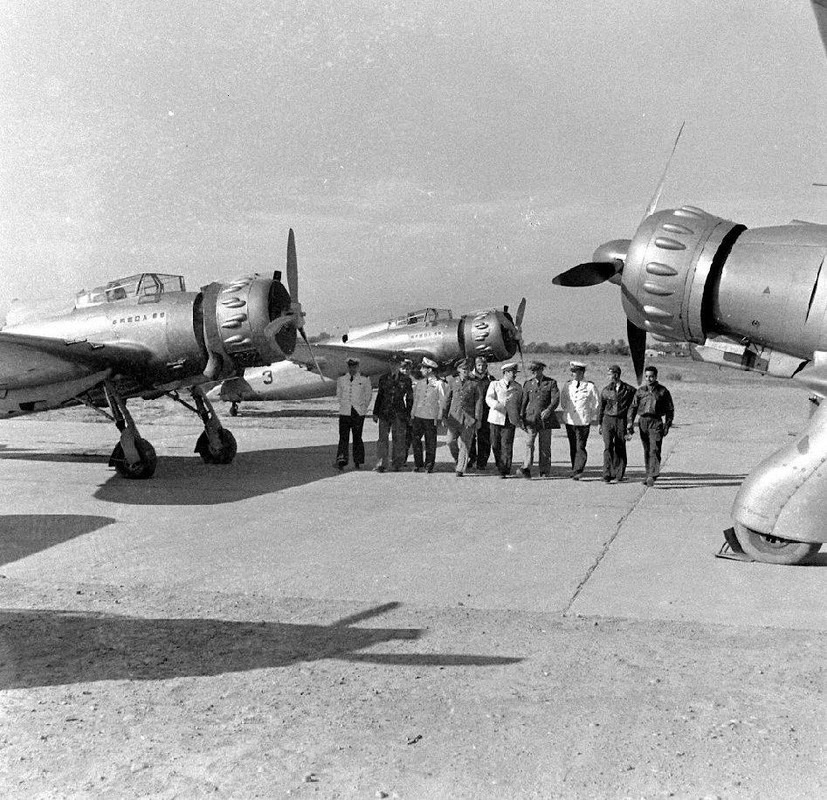

Officers and personnel of the Chilean Air Force in Italy for the reception of the Breda material

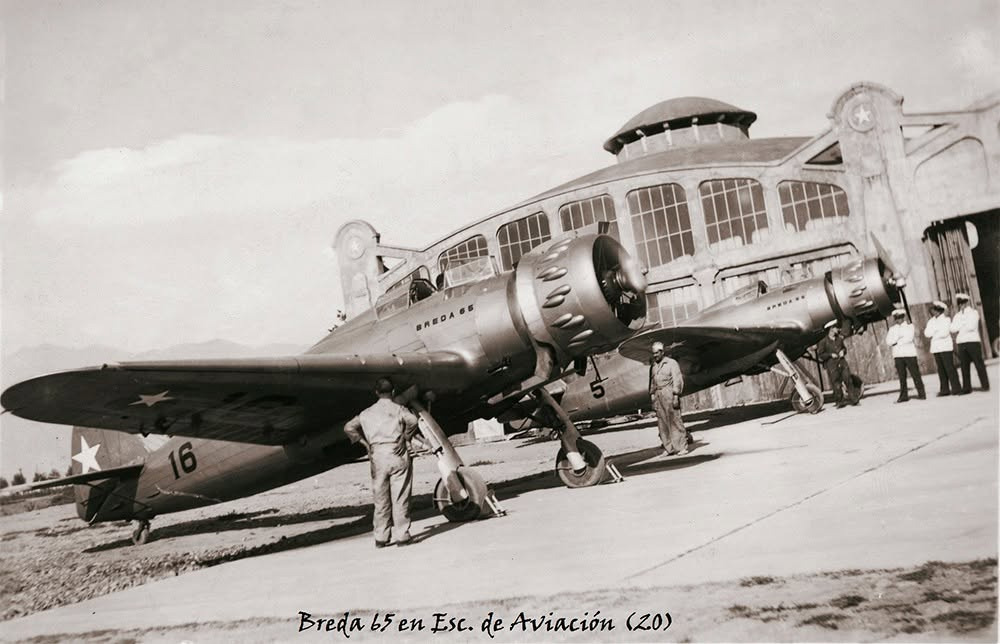

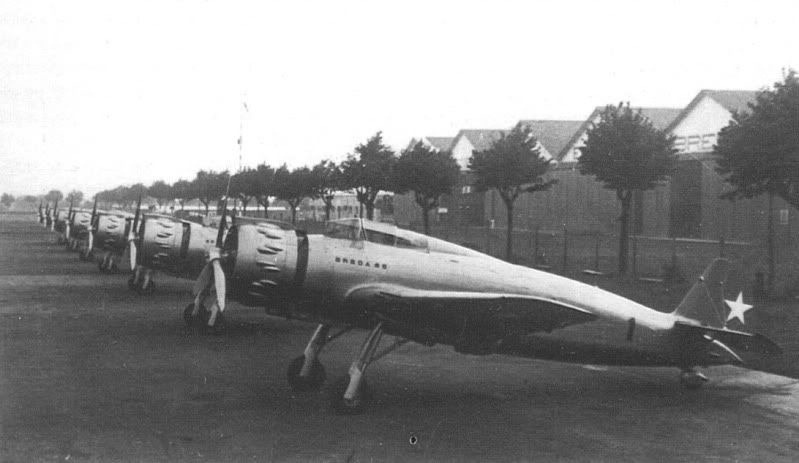

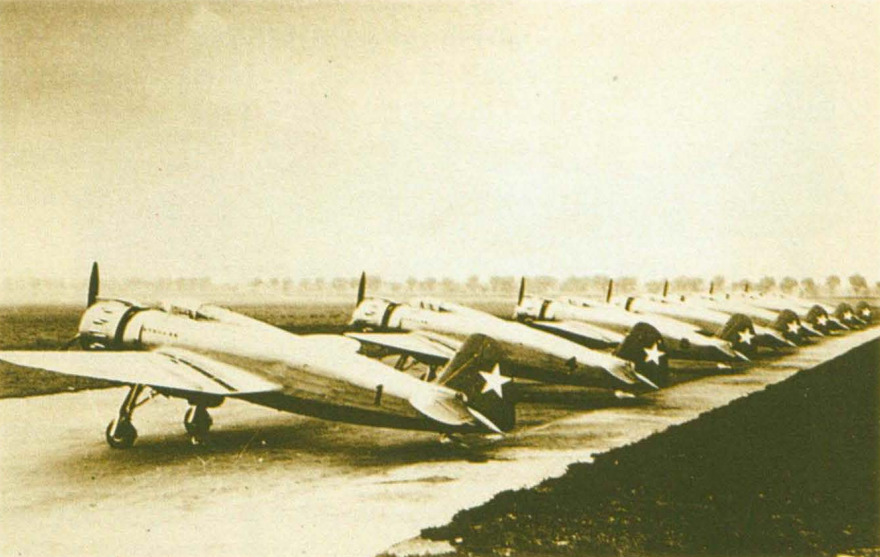

Breda 65 material line at the base of El Bosque in Chile, 1938

As mentioned above, the Chilean Bredas were powered by Piaggio P.XI RC 40 engines, which were not standard model in Italy. Another difference between the Chilean and Italian Bredas was their armament, as the 7.7 mm and 12.7 mm Breda Safat machine guns were replaced by Danish 12.7 mm and 7.62 mm Madsen machine guns, which were standard model for the Chilean Air Force in those years, in addition, Chile’s Ba.65s could either carry 20 x 10kg anti-personnel bombs or 4 x 50 kg general-purpose bombs in the internal bomb bay located behind the pilot’s seat. These changes led to the Chilean Breda 65 being named the Ba.65/65 Bis Tipo Chile (Type Chile) by its manufacturer. The aircraft used as a prototype to be converted to the Chilean variant had the serial number MM.75156 and once completed the modifications were replicated to the other Chilean Breda 65s. The three Breda Ba.65 Bis aircraft were later converted into single-seat aircraft, as the M type turret was heavy and difficult to operate.

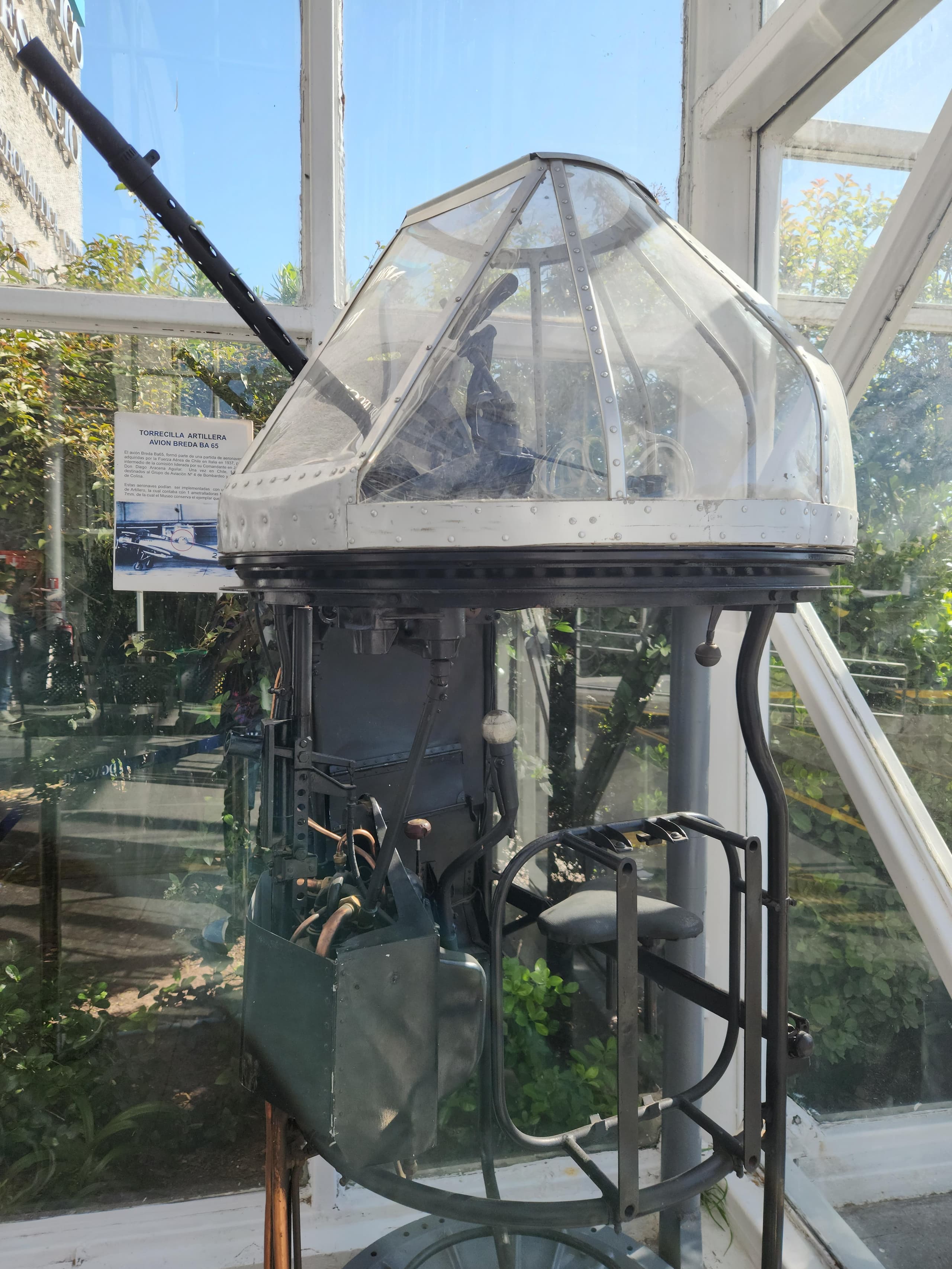

Type M turret in the Chilean Aeronautical Museum, it was used by Breda Ba.65 Bis Tipo Chile, you can see the Danish Madsen machine gun on it

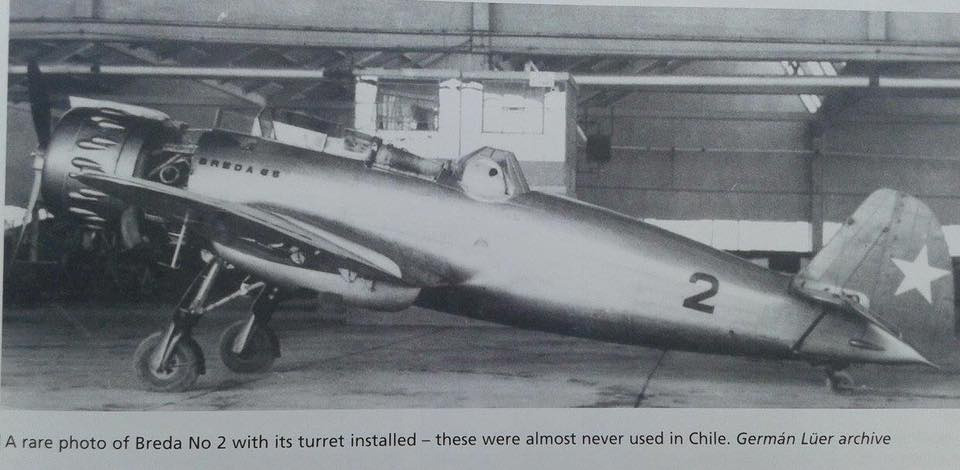

A Breda Ba.65 Bis Tipo Chile using the Type M turret

In Italy, Chilean officers had been offered the Caproni AP.1 ground-attack aircraft, the Breda Ba.65 and the Fiat CR.32 biplane fighter models, but they finally decided on the Breda 65 because they had been advertised as attack aircraft that could also perform fighter duties due to their high maximum speed and firepower. Therefore, to kill two birds with one stone, the Breda was chosen.

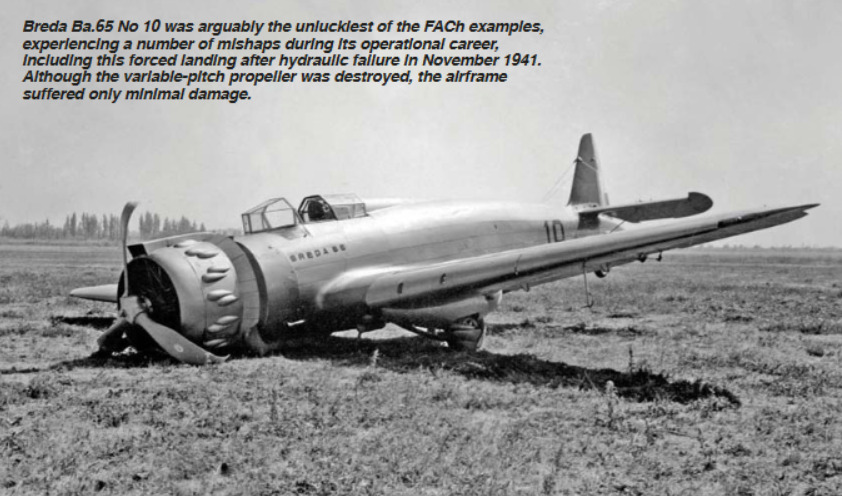

Despite being excellent at dive attacks, unfortunately during flights in Chile these aircraft would prove to be not very maneuverable to be used as fighters, so they suffered many accidents, some of them with fatal results, in total 6 were destroyed in accidents (Numbered 1, 5, 10, 11, 15, 17)


In 1940 the Chilean Air Force attempted to exchange the remaining Breda 65s for CR.32 biplane fighters but this did not happen due to Italy’s entry into World War II. This would be solved in 1942 when the United States offered the Pan-American countries free shipping of North American material to confront the Axis countries, so all the Italian material was decommissioned that same year, thus closing the unfortunate service of these aircraft in Chile.

Specifications:

  • Crew:
    • 1
  • Armament:
    • Primary: 2x Danish Madsen 12.7 mm machine guns, 2x Danish Madsen 7,62mm machine guns
    • Secondary: 20x 10kg bombs , 4x 100 kg bombs, 4x 50 kg bombs
  • Dimensions:
    • Length: 9.3 m
    • Wingspan: 12.1 m
    • Height: 3.2 m
    • Wing Area: 23.5 m²
    • Empty Weight: 2,400 kg (100 kg lighter than the Fiat A.80 and K.14 engines)
    • Maximum Takeoff Weight: 2950 kg
  • Performance:
    • Powerplant: Piaggio P.XI R.C.40 14-cylinder 900 hp, 1000 hp at maximum power
    • Maximum Speed: 490 km/h
    • Range: 550 km
    • Maximum Service Ceiling: 9800 m

Photos:





Sources:

2 Likes

Yes for Italy and then if It Will be ever present for an south american tt +1

1 Like

From what I understand, that Piaggio engine was not used much despite being somewhat better than the other 2. Do you know if it was like that?

In Italian service there were few with this engine. I don’t rember exactly the parameters I have to’ re-ceck

were you able to get any information about the engine? It will also serve some general information about this aircraft model

During my visit to the Chilean Aeronautical Museum I came across the turret that could be installed in the rear of these planes. I share with you some photos I took detailing the turret and the position for the gunner.

1 Like

my collect specification about Chile Ba.65bis
Breda Ba.65Bis
数据如下:
unkonwn hp Piaggio P.XI RC.40 引擎(1,000 hp at 5,000 m)
Max speed 475 km/h
Armament:
2× 7.65 mm Madsen machine guns, 2× 11.35 mm Madsen machine guns, 1x 7.65 mm Madsen flexible machine gun.
20x 10kg bombs 或 4x 50kg bombs
description: 1937年意大利出口了20架Ba.65飞机给智利空军,其中17架单座战斗机,3架双座攻击机。之后智利空军使用P.XI RC.40发动机替换了原来的发动机,并且更换了飞机上的武器。按照意大利布雷达公司的标准,换装P.XI RC.40发动机的Ba.65应该称之为bis型。
Wing span: 12.10 m
Length: 9.30 m
Height: 3.20 m
Wing area: 23.50 m²
Empty weight: 2,400 kg
Total weight: 2,950kg
Ceiling: 6,300 m
Range: 550 km
Crew: two

Very beatyfull! +1

1 Like

11 months ago I said that this plane is beautifull and I gave a +1, I’m not changing my mind! +1

1 Like

+1 for sure

2 Likes

I reworked the suggestion since the original was very old and very basic, so I added new information and photos. Hopefully, this plane will make it into the game :)
