Background
ARMA Tactical Wheeled Armored Vehicle is highly modular, amphibious, wheeled armored fighting vehicle family designed and developed by Otokar. Development of Arma fighting vehicle family started in 2007 as a private venture of Otokar. First ARMA was revealed in 2010 in 6x6 configuration. In 2011, first ARMA with 8x8 configuration was revealed to public. Both 6x6 and 8x8 configurations found success in export market.

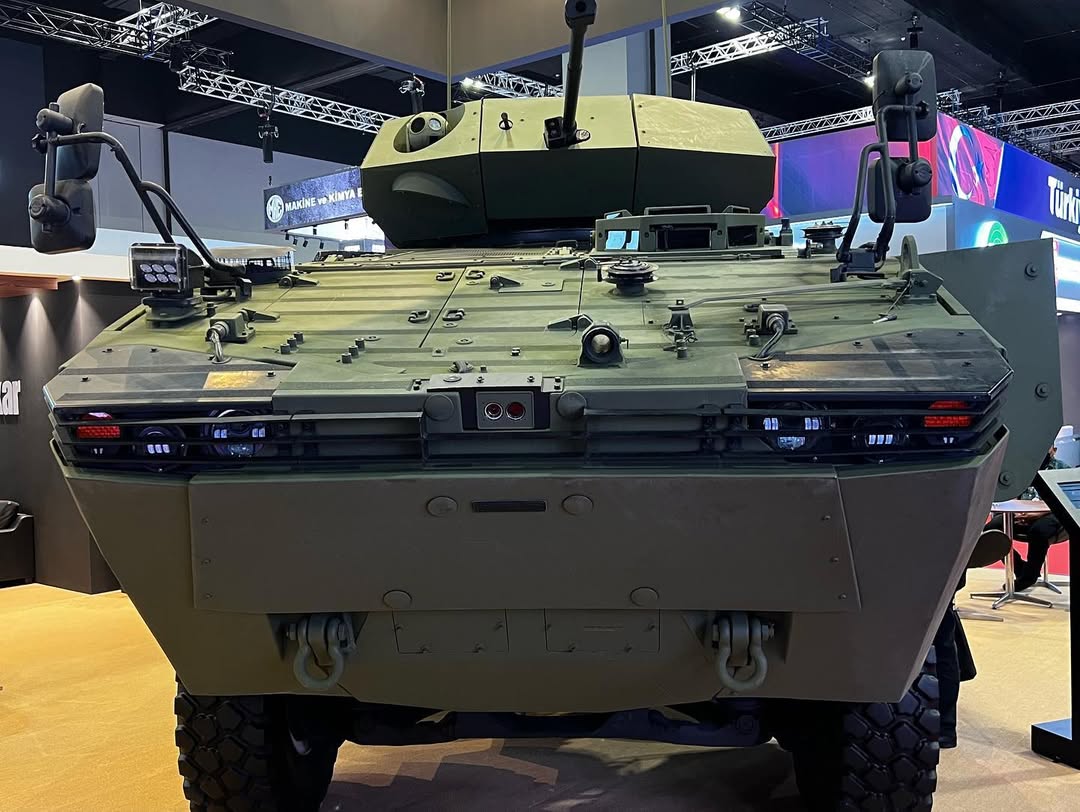

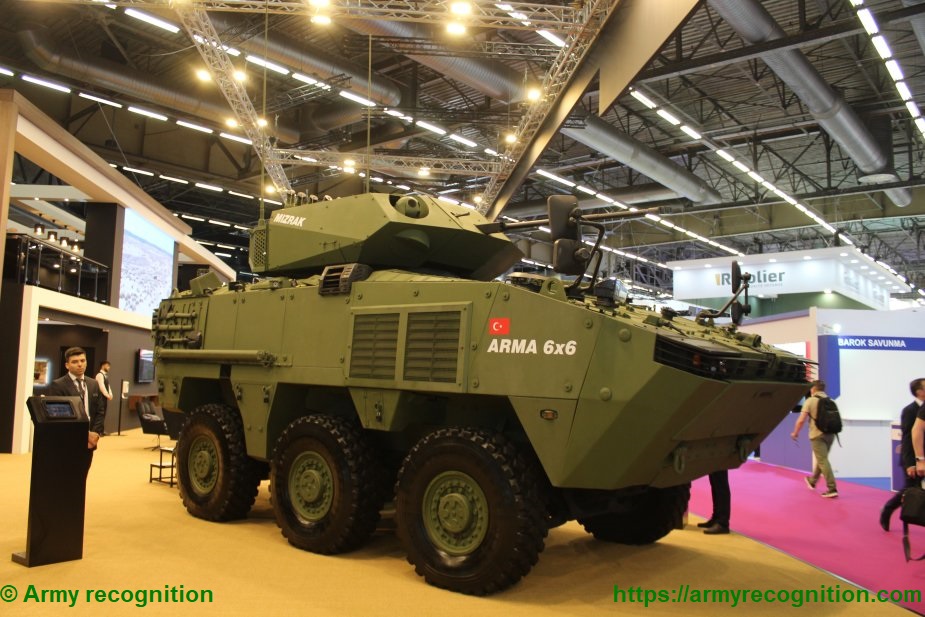

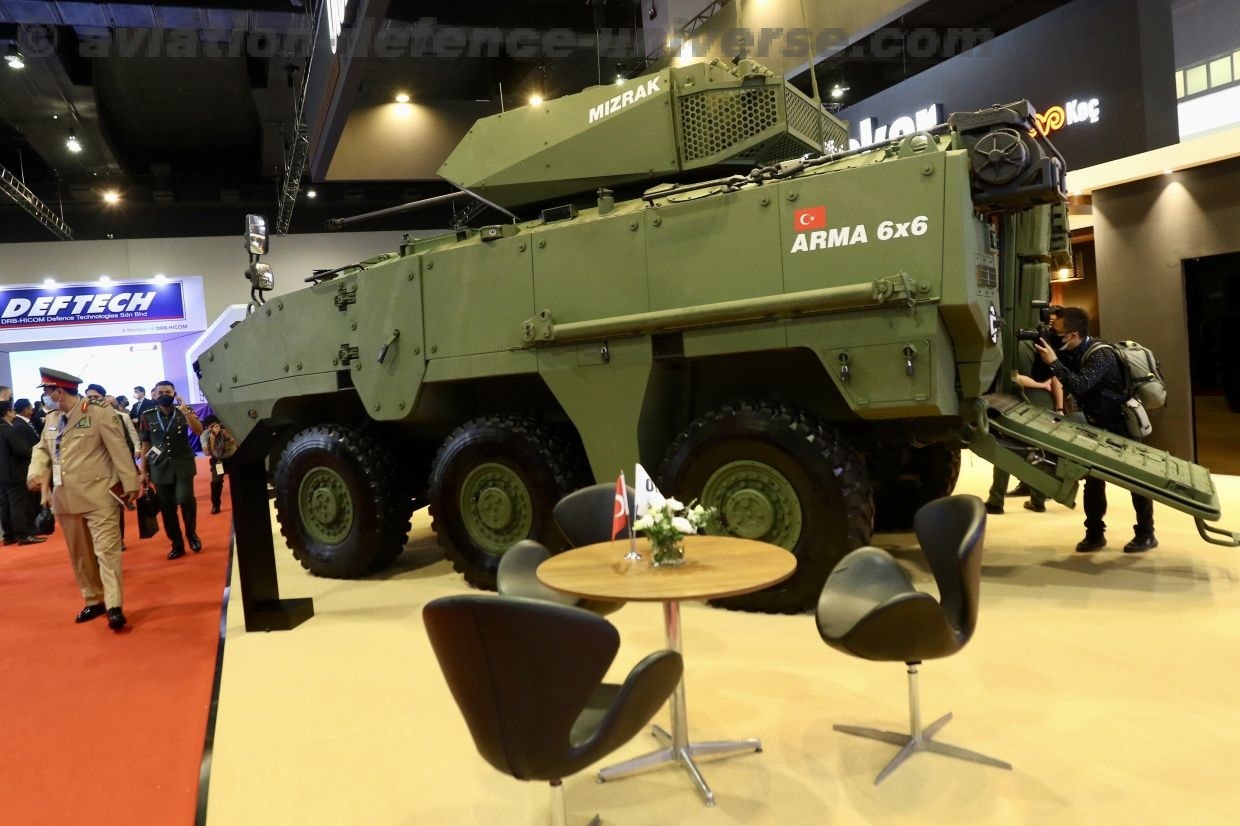

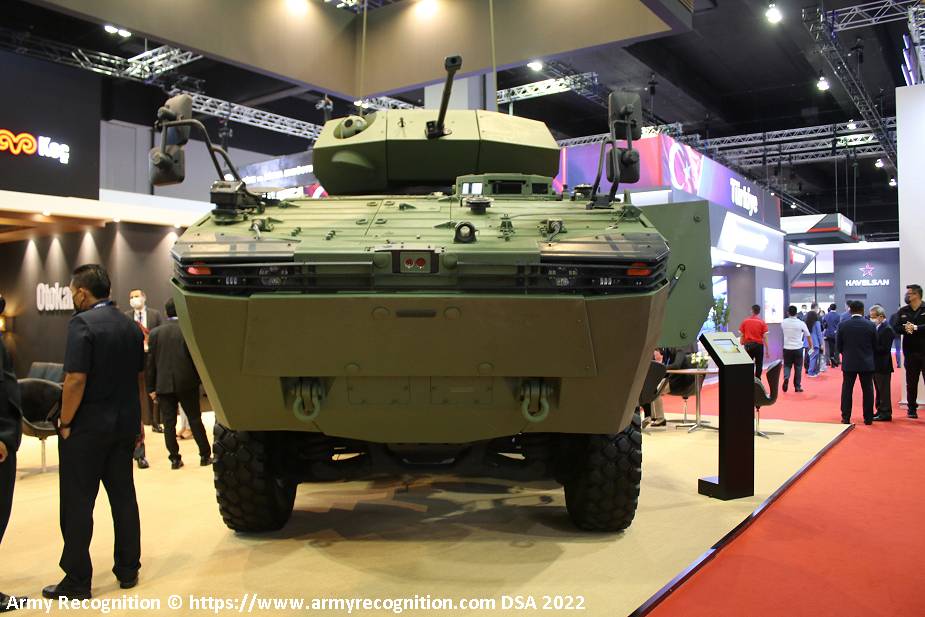

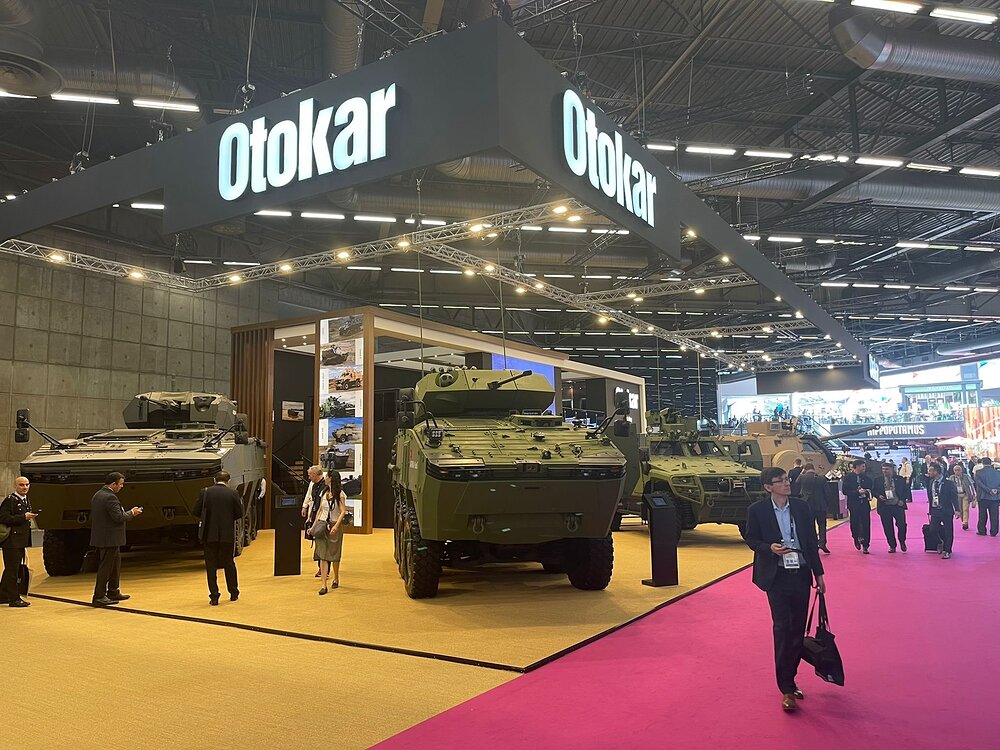

This specific ARMA 6x6 variant was first showcased in DSA 2022 alongside COBRA II Tactical Wheeled Armored Vehicle in Kuala Lumpur, Malaysia. Within same year, same ARMA 6x6 configuration was also seen in Eurosatory 2022 Defense Fair. Since then ARMA 6x6 in this configuration, MIZRAK-30 Unmanned Turret with 2A42 30mm Auto-Cannon, has not been seen in any events.
Although there isn’t a specific target customer for this ARMA 6x6 configuration yet, there is definitely potential demand. Given Otokar’s strong presence in Southeast Asia, Central Asia, and the Middle East, a turret system compatible with Soviet-origin weaponry is likely to attract interest. While this ARMA 6x6 configuration doesn’t currently have a customer, the same MIZRAK-30 turret with a 2A42 Auto-Cannon was successfully used on AKREP II armored vehicle for an undisclosed client upon request; who reportedly satisfied with it a lot. Even without a definite customer, this ARMA 6x6 version serves as a prime example of Otokar’s ability to create highly modular and adaptable vehicles.
ARMA 6x6
ARMA 6x6 was developed by Otokar as an armored personnel carrier as a private venture. Development began in 2007 to meet the Turkish Army’s need for a 6x6 vehicle with amphibious capabilities, and it was officially revealed in 2010. Although the Turkish Army did not select the ARMA 6x6 for its own use, the vehicle found success in the export market.
ARMA 6x6 is a highly modular tactical wheeled vehicle. Thanks to its high modularity, it can be fitted with variety of turret and weapon systems and fulfil different operational roles, such as:
• Fire Support Vehicle
• Driver Training Vehicle
• Command Post Vehicle
• Reconnaissance Vehicle
• Infantry Fighting Vehicle
• Armored Personal Carrier
• CBRN Reconnaissance Vehicle
• Armored Medical Evacuation Vehicle
• Explosive Ordnance Disposal (EOD) Vehicle

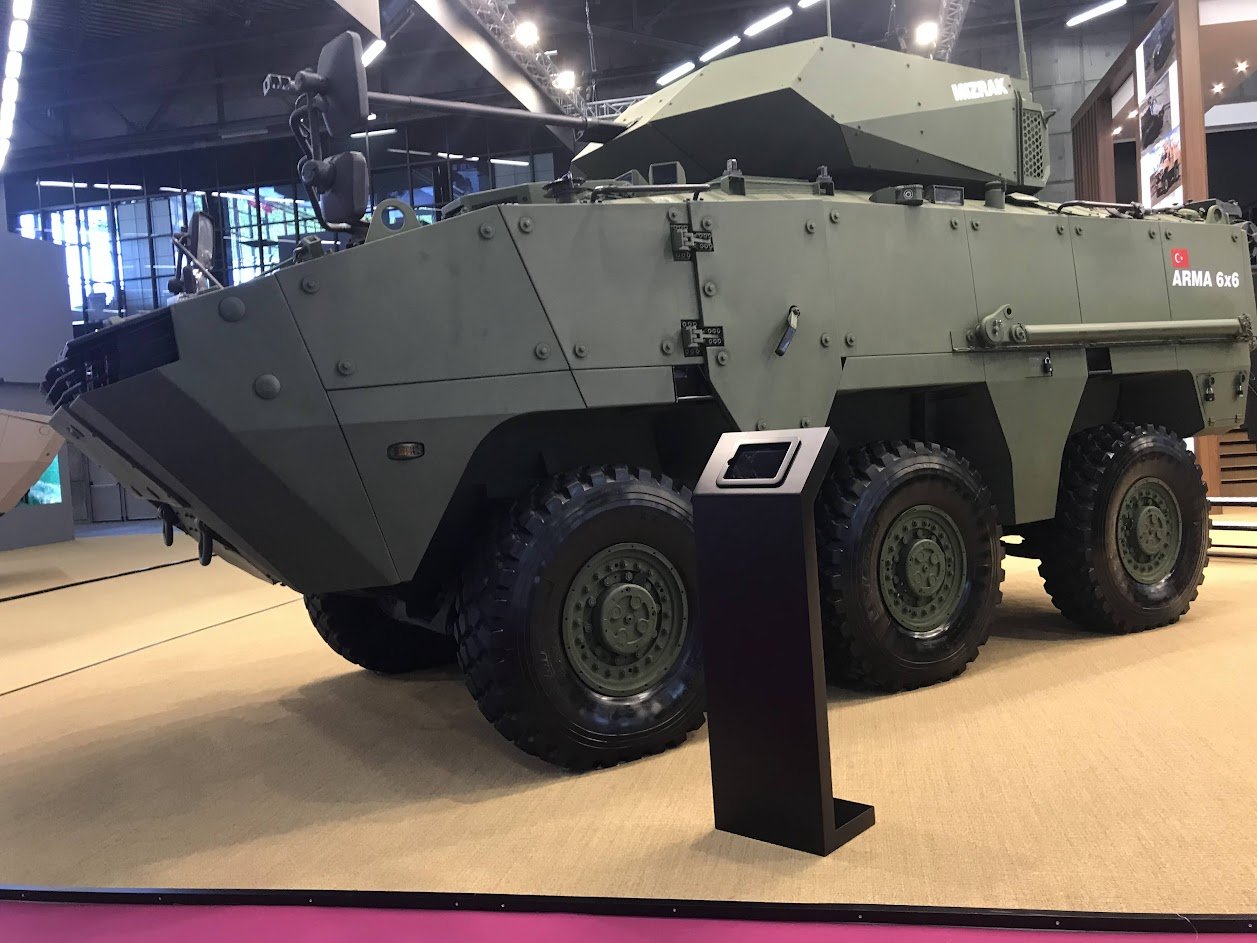

ARMA 6x6 (MIZRAK-30/2A42)
ARMA 6x6 is a highly modular platform, offered by Otokar alongside the heavier ARMA 8x8. It can be fitted with a variety of different weapon systems, ranging from 25mm Auto-Cannons to heavier 30mm Auto-Cannons and ATGM launchers. This particular configuration of ARMA 6x6 is equipped with Otokar’s MIZRAK-30 Unmanned Turret System, armed with 2A42 30mm Auto-Cannon, instead of the typical Western-originated 30mm Auto-Cannons.
General Specifications
Firepower
In this configuration, the ARMA 6x6 is equipped with Otokar’s MIZRAK-30 unmanned turret system, armed with the Shipunov 2A42 30mm auto-cannon. The primary armament is complemented by a Co-Axial 7.62mm machine gun as secondary armament. Firepower of MIZRAK-30 is further boasted with advanced electro-optical systems.

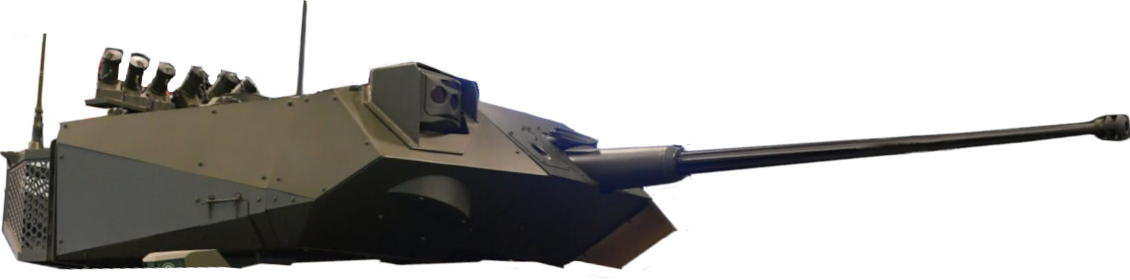

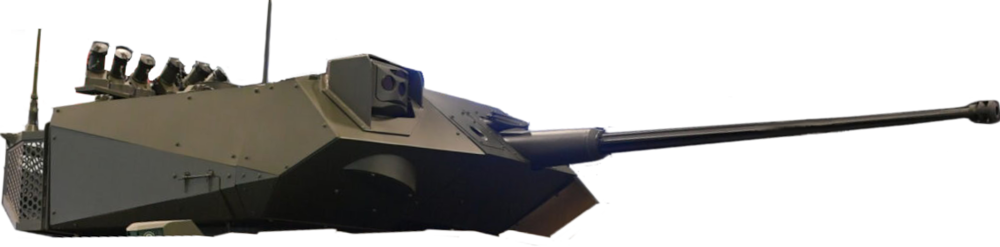

MIZRAK-30
MIZRAK-30 is an unmanned, dual-axis stabilised turret system designed and developed by Otokar. MIZRAK-30 is armed with 2A42 30mm auto-cannon and Co-Axial 7.62mm Machine-Gun. Gunner has access to Thermal and Night Sight as well as CCD Camera to identify and engage threats. Optionally, MIZRAK-30 can be fitted with Commander’s Independent Thermal Viewer (CITV) to further increase situational awareness and first hit capability of platform. MIZRAK-30 can be controlled by both Gunner and Commander through their own stations. Turret system also has Laser Range Finder, Automatic Target Tracking System and Hunter-Killer capability (Commander’s Override)
MIZRAK-30 Specifications
- Crew: Unmanned
- Dimensions and Weight
- Mass: ? kg
- Length: ? mm
- Width: ? mm
- Height: ? mm
- Armament
- Main Armament:
• Shipunov 2A42 30mm Dual-Feed Auto-Cannon - Secondary Armament:
• Co-Axial 7.62mm Machine-Gun - Ammunition Capacity
∙ ? Ready-to-Fire 30mm Auto-Cannon Rounds
∙ ? Total 30mm Auto-Cannon Rounds
∙ ? Total Machine-Gun Rounds
- Main Armament:
- Accessories
- Night Sight
∙ Gunner
∙ Commander - Thermal Sight
∙ Gunner
∙ Commander
• CITV Optional
• Dual Control
• Night Imager
• Thermal Imager
• Laser Range Finder
• Dual-Axis Stabilisation
• Automatic Target Tracking System
• Hunter-Killer Capacity (Commander’s Override)
- Night Sight
Shipunov 2A42
Shipunov 2A42 Specifications
- Dimensions and Weight
- Mass: 115 kg
- Length: 3027 mm
- Width: ? mm
- Height: ? mm
- Operational Details
- Caliber: 30mm
- Shell: 30×165mm
- Feed System:
∙ Belt-Feed
∙ Dual-Feed - Muzzle Velocity:
∙ 960m/s - Rate of Fire
∙200 - 300 rpm Low Setting
∙550 - 800 rpm High Setting
Mobility
ARMA 6x6 is powered by a 450-horsepower, Unspecified Diesel Engine, possibly the Caterpillar C9*. The engine is paired with a single-speed transfer box and an automatic gearbox. This configuration gives the ARMA 6x6 an approximate power-to-weight ratio of around 22 hp/ton, with a top speed of 105 km/h.
Mobility of ARMA 6x6 is further enhanced with a built-in Driver’s Vision System, likely ASELSAN’s GÖREN-100/200 Tank Driver Vision System, allowing for smooth driving both with Night and in Thermal view.
GÖREN-100/200 Tank Driver Vision System
GÖREN-100/200 is a high-performance vision system designed for main battle tanks and other platforms to provide superior vision and maneuvering capability in harsh weather and battlefield conditions.
Main Features
• Thermal Imager
• Day and Night Usage
• Situational Awareness
• Advanced Vision Capability
Brochure with More Information
Protection

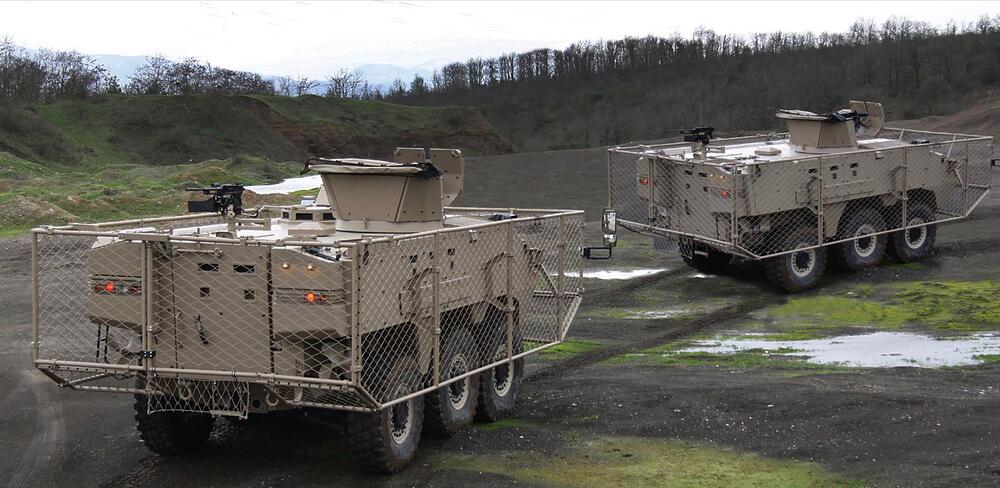

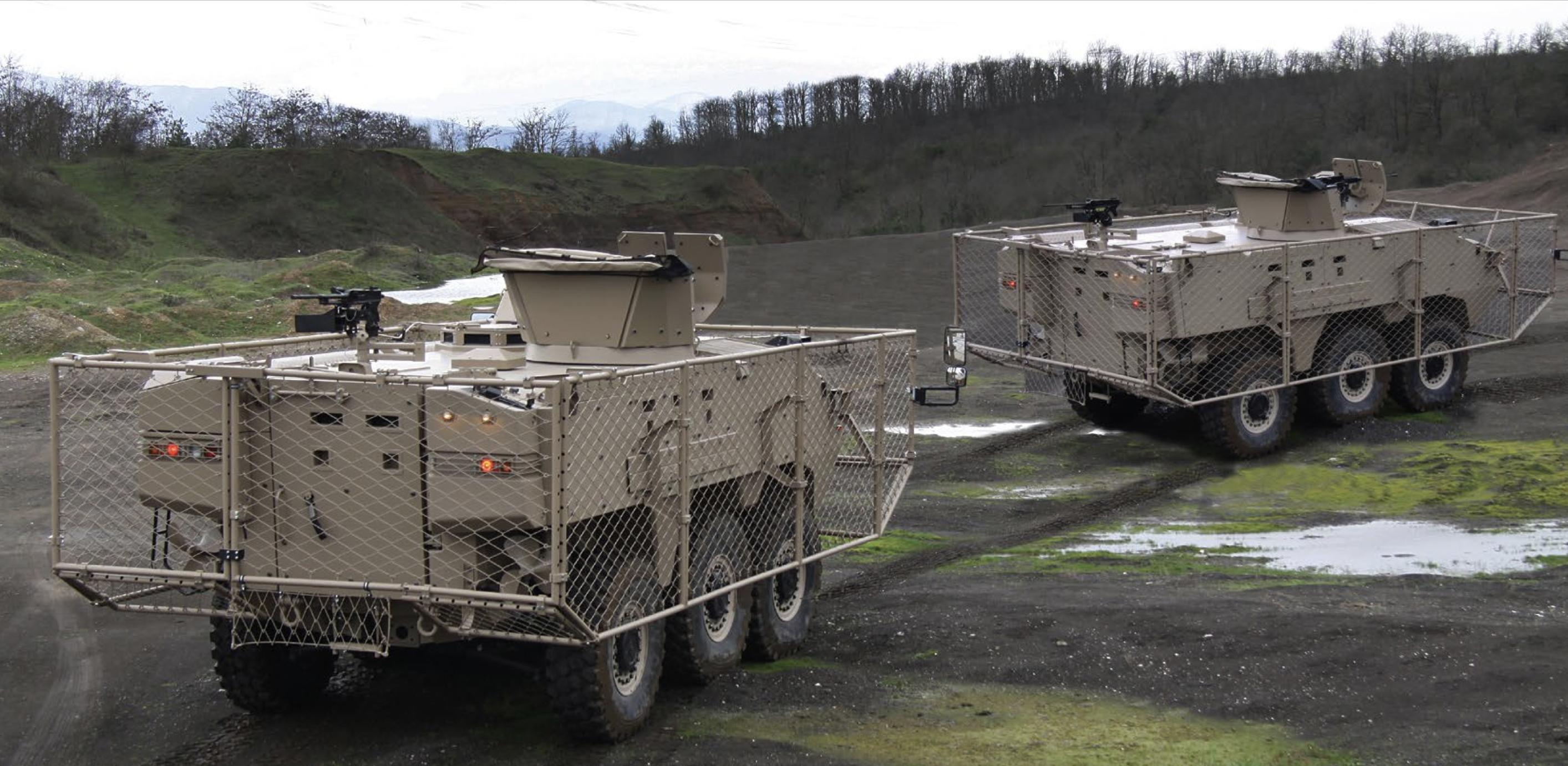

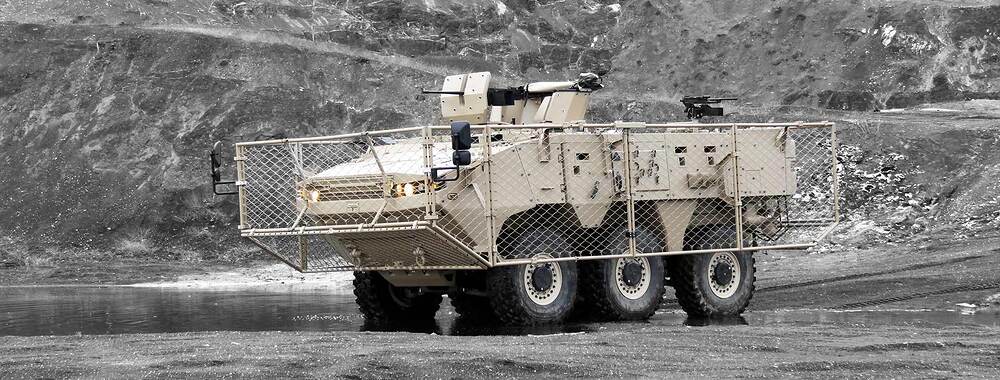

ARMA 6x6 with its monocoque steel hull offers high level of ballistic protection against KE projectiles, mine protection and IED threats. Modular structure of armor allows composite modules to be replaced in need of repair or operational requirements, even in battlefield environment. Although there is no official documentation, baseline and amphibious models are believed to not exceed STANAG 4569 Level II. There is also an optional slat armor package for ARMA 6x6.
Situational Awareness of ARMA 6x6 is enhanced with a 360° Close Range Surveillance System, likely ASELSAN’s YAMGÖZ-100, further increasing the self-preservation of the platform.

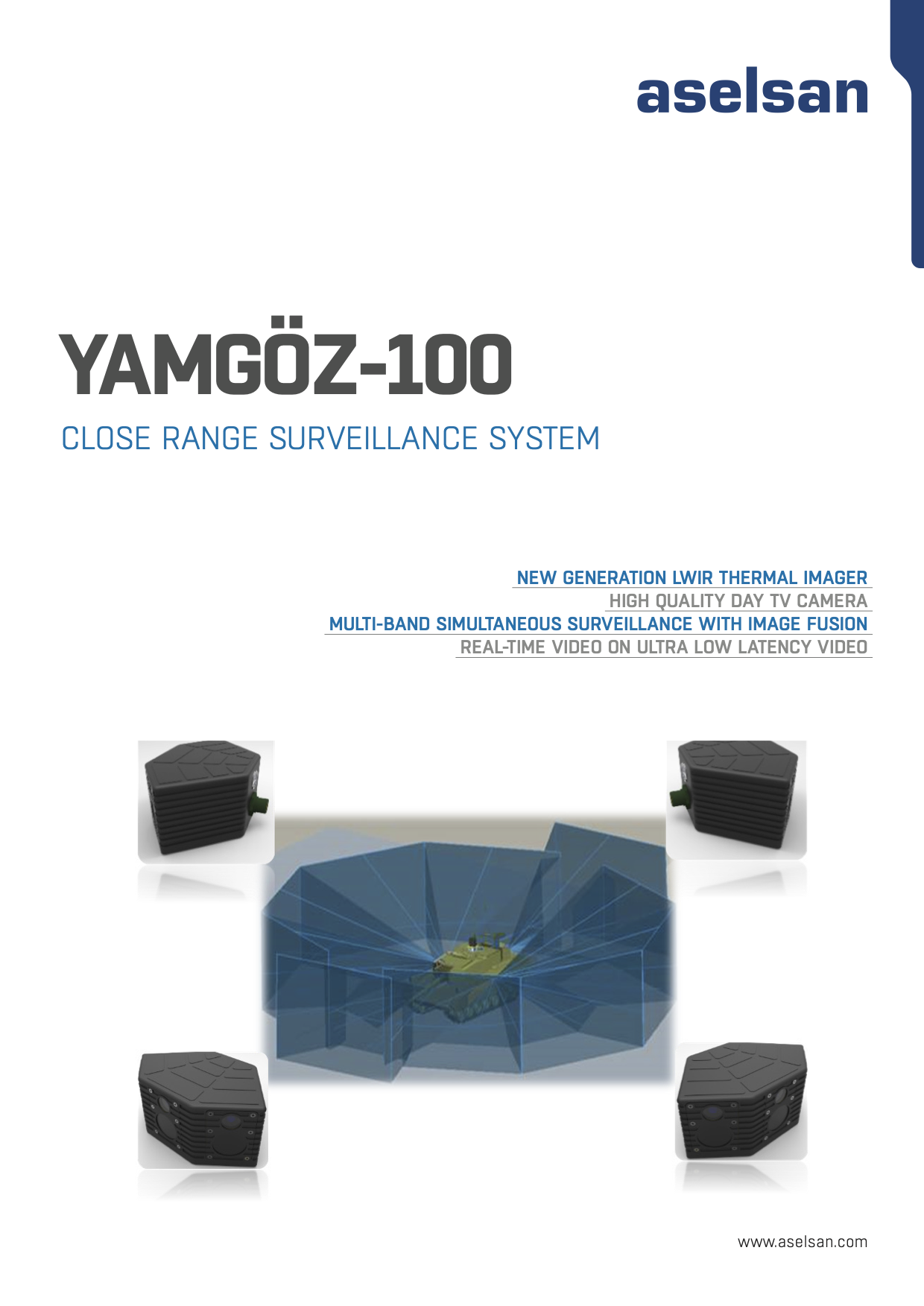

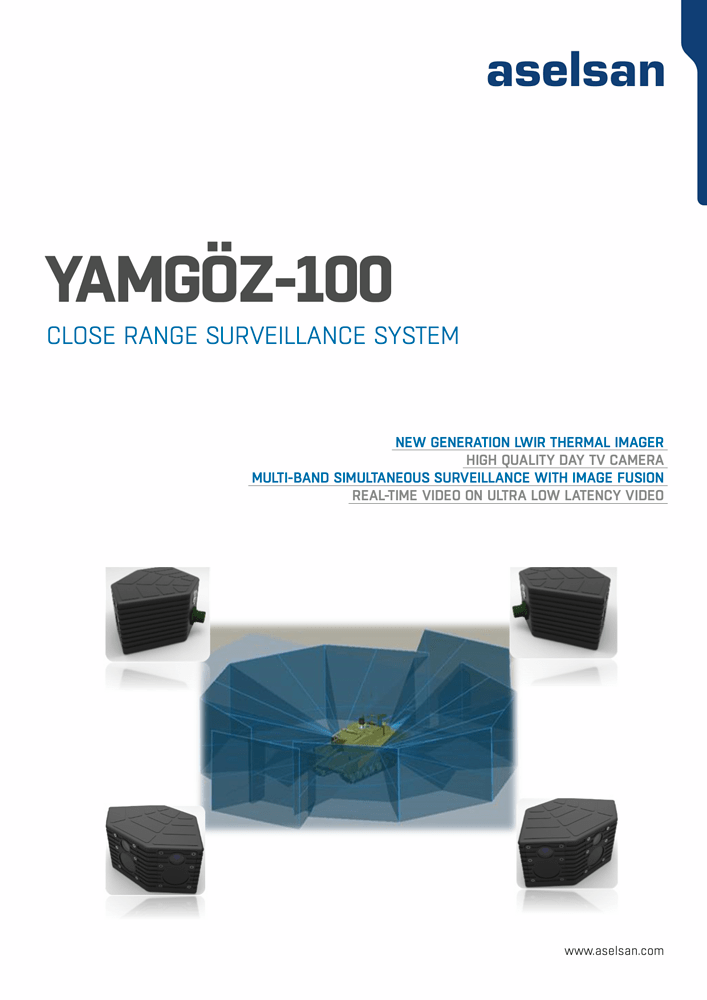

YAMGÖZ-100 360° Close Range Surveillance System
YAMGÖZ-100 Surveillance System is a high-performance Day & Night Vision System designed mainly for Main Battle Tanks, Tracked and Wheeled Platforms. YAMGÖZ-100 provides enhance situational awareness and manoeuvring capability in harsh weather and environment.
Main Features
• Thermal Imager
• Day-Night Camera
• Fusion View Day Camera + Thermal Imager
• Remotely Controlled Weapon System and Fire Control System Compatibility
Brochure with More Information
Otokar’s ARMA 6x6 Brochure
Specifications
- Crew:
• 3 Driver, Commander Gunner
• 9 Personnel - Dimensions and Weight
- Mass: Around 20 Tons ˀ (Up to 23 Tons)
- Length: 6.4 m
- Width: 2.7 m
- Height: 2.2 m
- Armament
- Main Armament:
• Shipunov 2A42 30mm Dual-Feed Auto-Cannon - Secondary Armament:
• Co-Axial 7.62mm Machine-Gun - Ammunition Capacity
∙ ? Ready-to-Fire Auto-Cannon Rounds
∙ ? Total Auto-Cannon Rounds
∙ ? Ready-to-Fire Machine-Gun Rounds
∙ ? Total Machine-Gun Rounds
- Main Armament:
- Mobility
- Engine: Unspecified Diesel Engine, Possibly Caterpillar C9 Turbocharged, 450 Horsepower
- Transmission: Unspecified Single-Speed Transfer Box and Automatic Gearbox
- Suspension:
∙Fully Independent Hydro-Pneumatic Suspension
Or
∙Fully Independent Telescopic Shock Absorber & Helical Spring Suspension - Maximum Speed: 105 km/h
- Power to Weight: Likely 21.6 hp/t (19.6 hp/t at Maximum 23 Tons - 24.3 hp/t at Empty 18.5 Tons)
- Protection
- Hull Armor:
∙ Base: STANAG 4569 Level II
∙ Up to: STANAG 4569 Level IV - Turret Armor:
∙ STANAG 4569 Level ? - Active/Passive Protection System: None
- Smoke Grenades: 6x
- Hull Armor:
- Accessories
- Night Sight
∙ Driver
∙ Gunner
∙ Commander - Thermal Sight
∙ Driver
∙ Gunner
∙ Commander
• CITVOptional
• Dual Control
• Night Imager
• Thermal Imager
• Laser Range Finder
• Driver’s Vision System
• Dual-Axis Stabilisation
• Automatic Target Tracking System
• 360° Close Range Surveillance System
• Hunter-Killer Capacity (Commander’s Override)
- Night Sight
Implementation to War Thunder
ARMA Tactical Wheeled Vehicle family should be reserved for future Turkish Ground Forces Tech Tree. ARMA 6x6 in this configuration would be somewhat similar to talian VBC (PT2). BR-Wise it would fit around somewhere between 8.7 - 9.3 Battle Rating.
