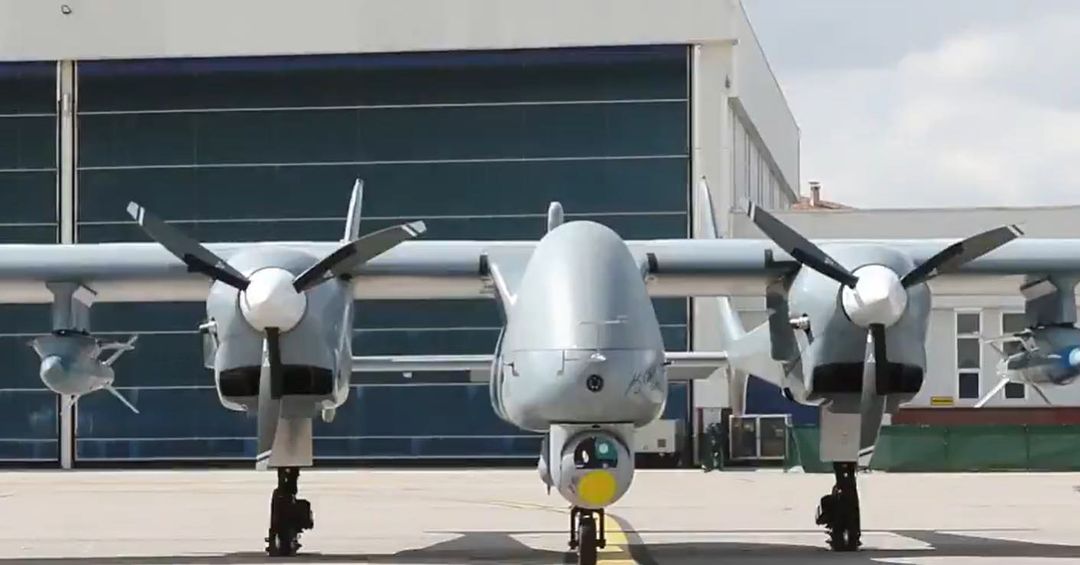

AKSUNGUR

Background

AKSUNGUR, previously known during the project phase as ANKA-2, is a high-payload, long-endurance Medium Altitude Long Endurance (MALE) Unmanned Aerial Vehicle designed and developed by TUSAŞ (Turkish Aerospace Industries) to meet Intelligence, Surveillance, Reconnaissance, and Strike missions requirements of Turkish Armed Forces. AKSUNGUR is designed with twin-engine configuration to ensure high payload capacity, extended endurance, and sustained mission performance in high-altitude operations.

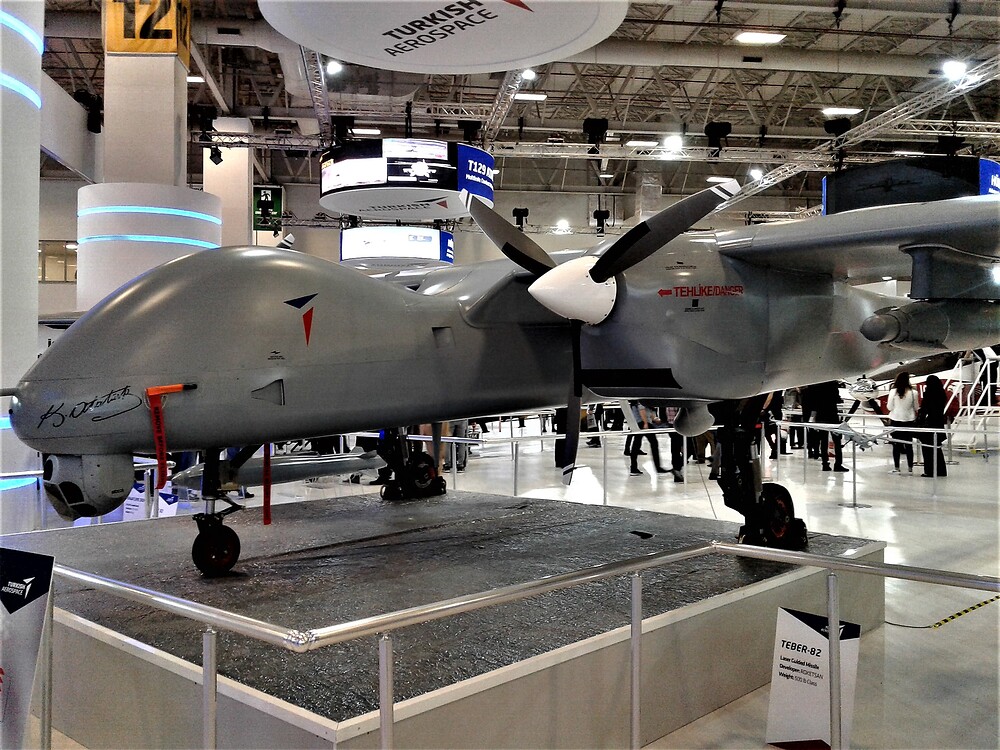

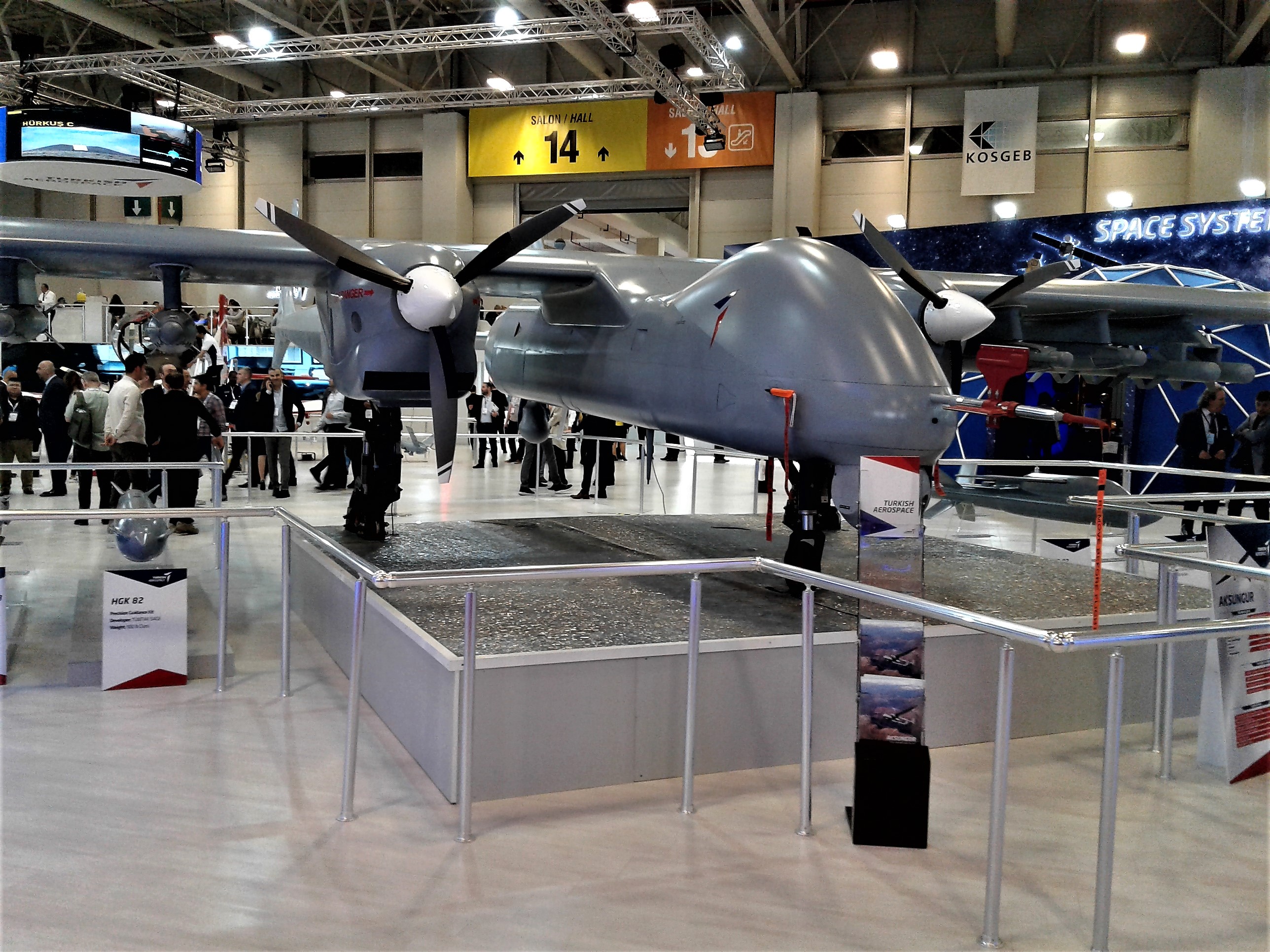

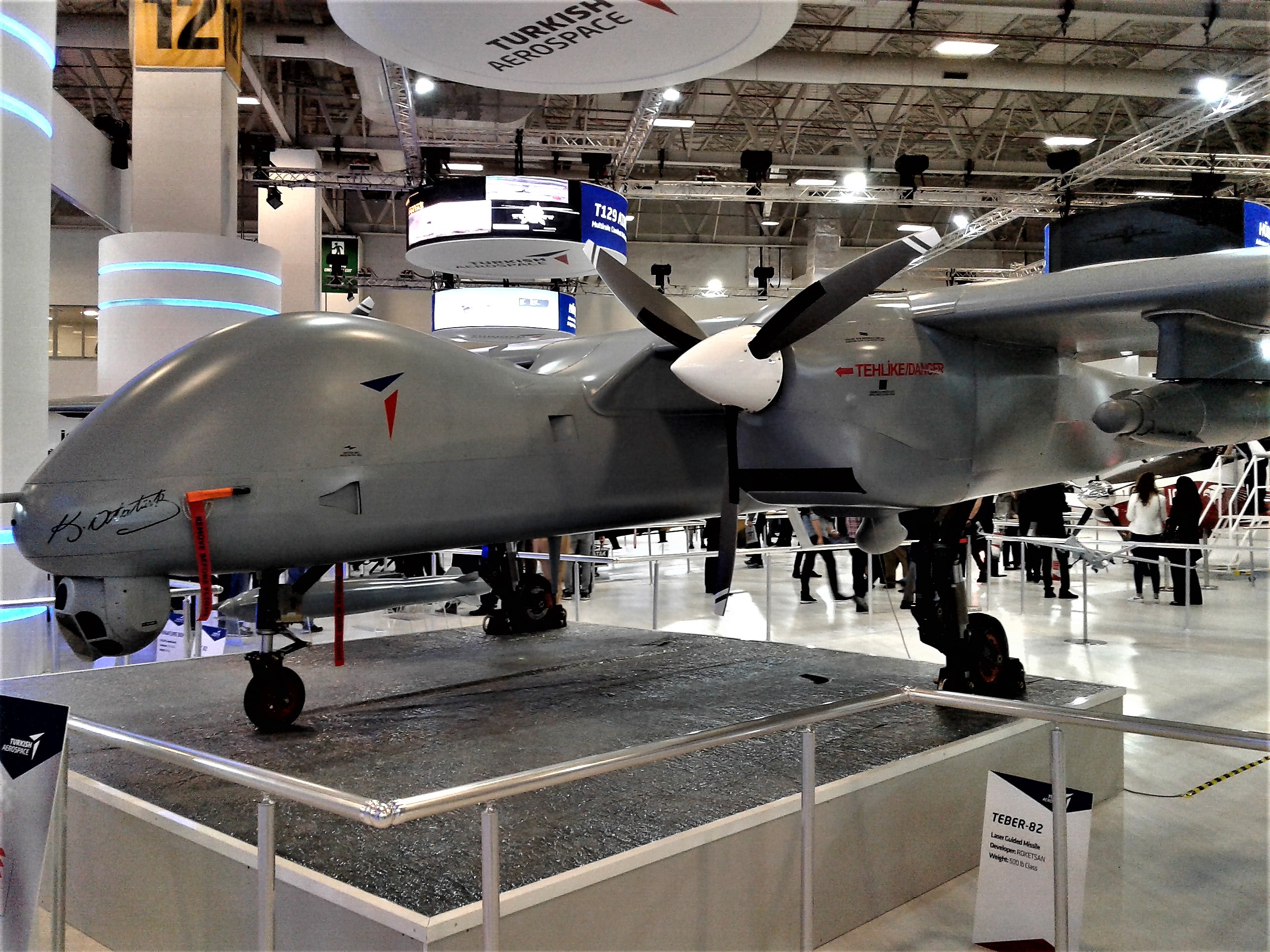

AKSUNGUR was publicly introduced during İDEF 2019 Defence Industry Fair, as a High Capacity, Long Endurance Unmanned Aerial Vehicle, capable of carrying wide range of guided munitions and mission specifics payloads. AKSUNGUR performed its maiden flight on 20 March 2019, performing a 4 hour and 20 minute flight using its automatic take-off and landing capability.

From its earliest development phase, the platform was envisioned not only as a strike UAV, but also as a multi‑role system capable of maritime patrol, electronic support, and extended endurance operations.

Flight, Endurance and Performance Tests

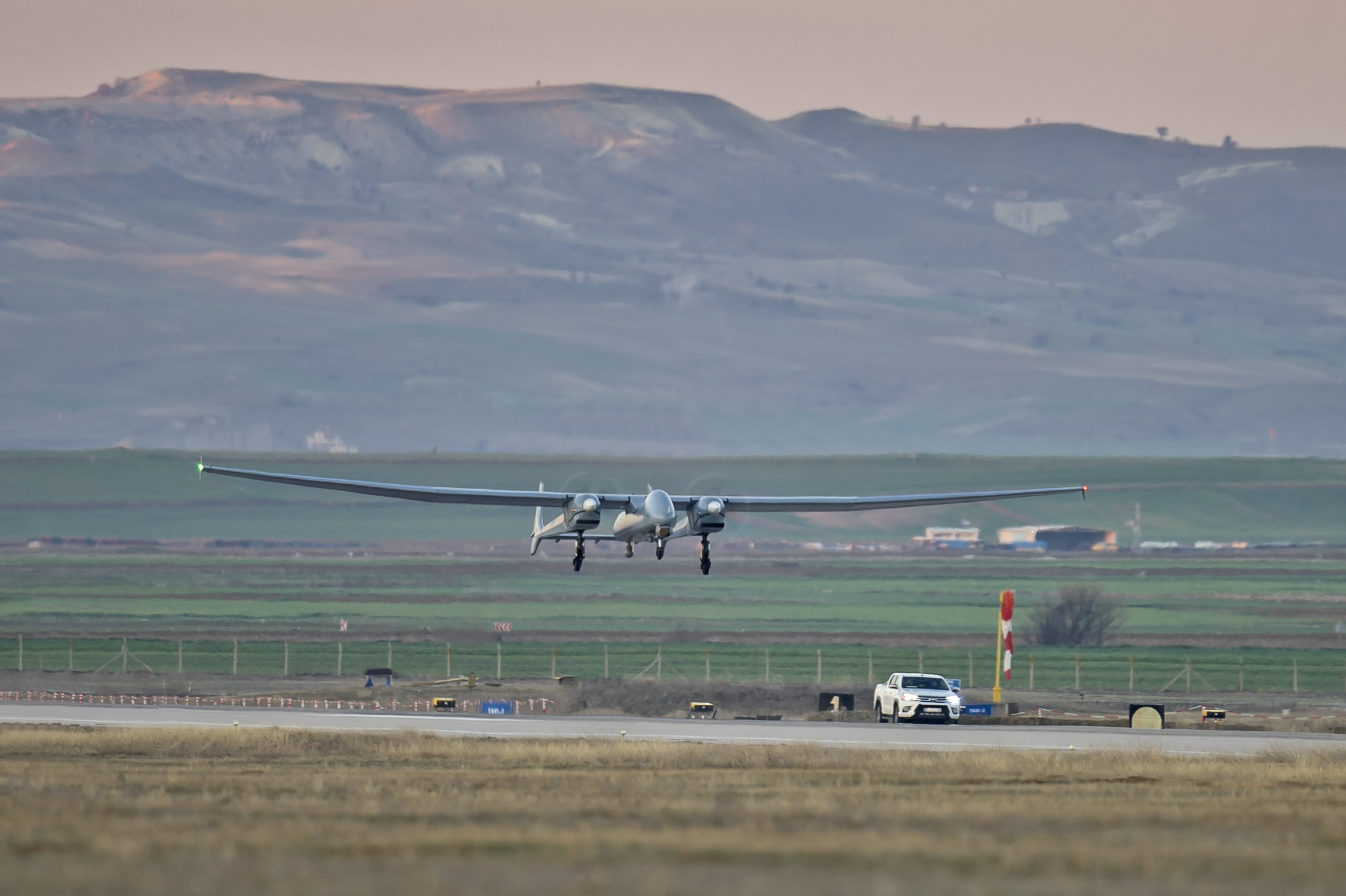

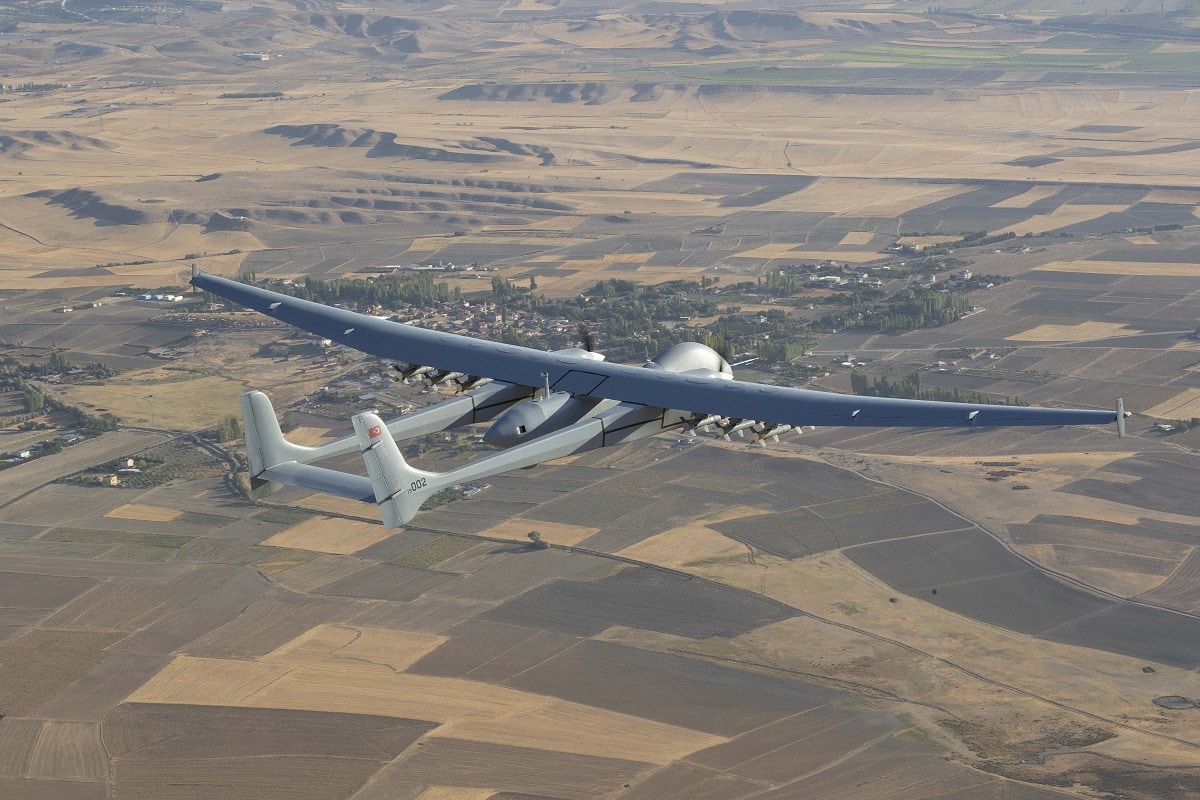

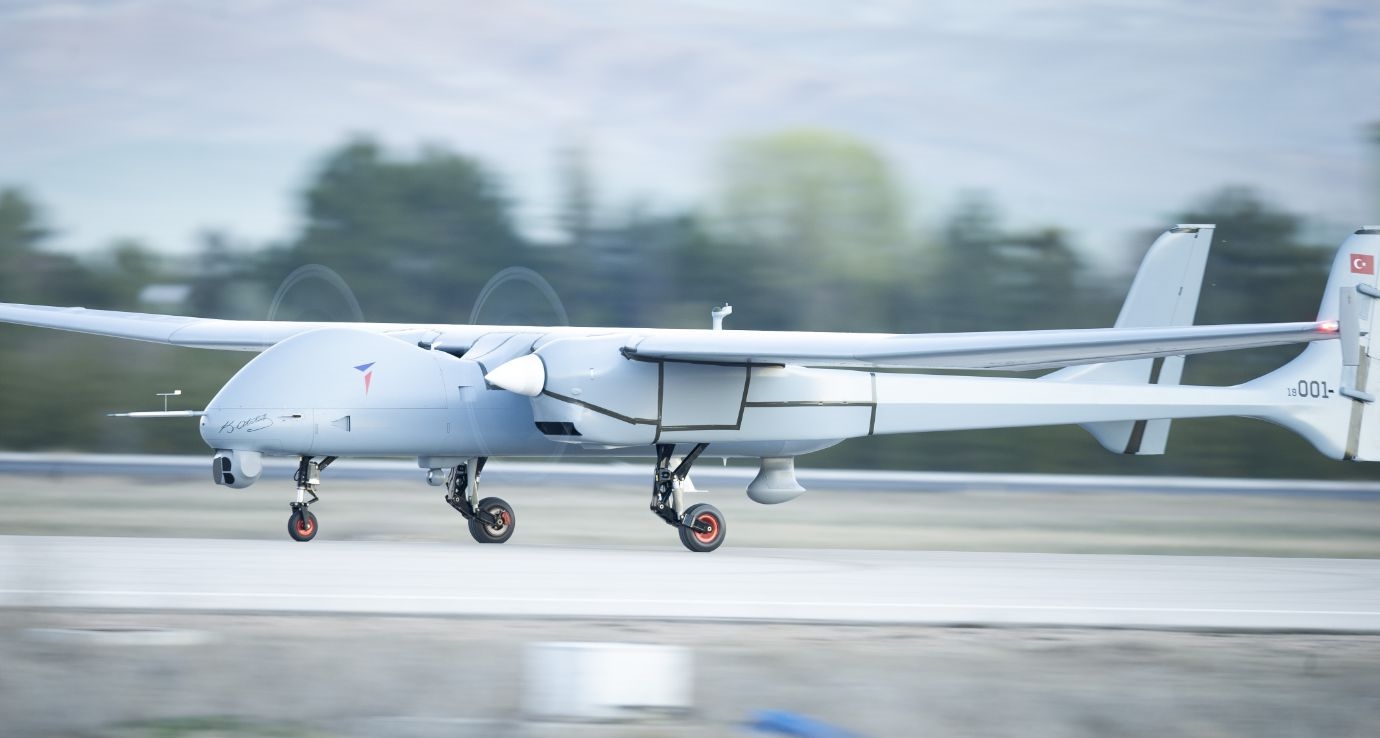

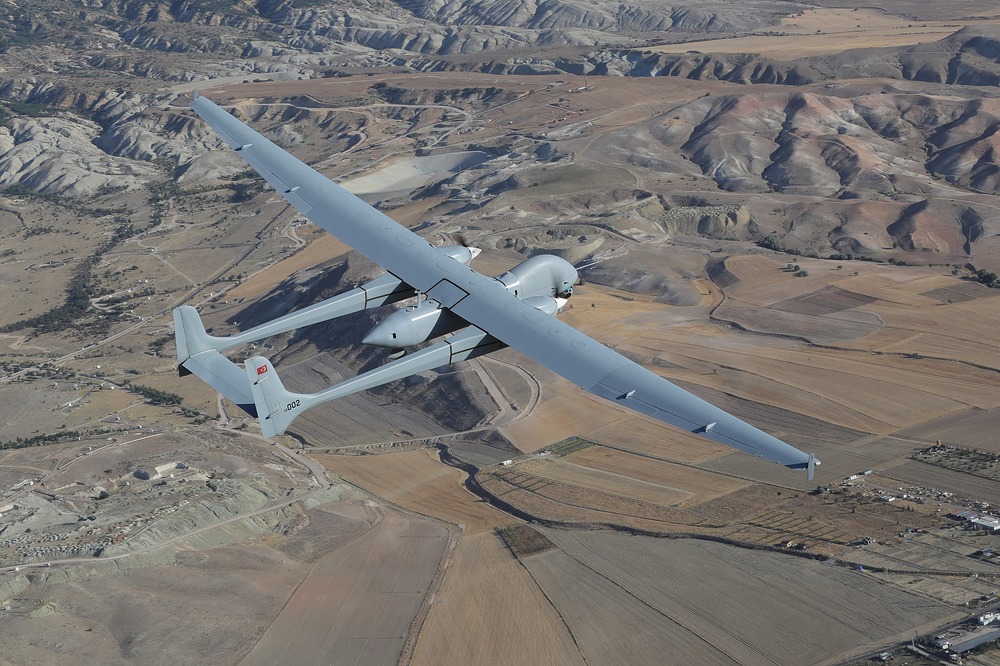

Following its maiden flight in March 2019, AKSUNGUR entered a comprehensive flight test program aimed at validating its Endurance, Performance and Payload-Carrying capabilities. Throughout 2019 and 2020, AKSUNGUR conducted several sorties to validate its long-endurance performance at high altitude under high-payload conditions.

AKSUNGUR achieved its first major milestone on 2 September 2020 by completing a 49 hour flight, surpassing the TB2’s previous endurance record of 27 hours and 3 minutes. Shortly afterward, on 17 September 2020, AKSUNGUR further demonstrated its high-endurance and high-payload capacity by flying for 28 hours while carrying 12 MAM-L Smart Micro Munitions. By 7 August 2021, AKSUNGUR had accumulated more than 1,000 flight hours, reflecting steady progress in its test and evaluation activities. These achievements confirmed its suitability for extended operations at high altitudes.

Weapon Integration and Firing Tests
Parallel to flight performance trials, AKSUNGUR underwent extensive series of weapon integration and live‑fire tests.

2020
In 10 September 2020, AKSUNGUR conducted its first firing tests with TEBER-82 Laser Guided Bomb, marking a significant step on integration of Mark 80 Class Bombs. This critical achievement quickly followed by high endurance test with MAM-L Smart Micro Munition.

2021
Another achievement received in 25 April 2021, AKSUNGUR successfully hit the targets with remarkable precision 30 kilometres at altitude of 20000 feet using TÜBİTAK-SAGE’s KGK-SİHA-82 Wing-Assisted-Guided Bomb. This achievement showcased AKSUNGUR’s capability to deliver stand-off precision strikes with heavy guided munitions.

2022
As part of the Mavi Vatan 2022 Exercise, AKSUNGUR achieved another important milestone by conducting live firing of MAM‑L Smart Micro Munition, demonstrating AKSUNGUR’s effectiveness in maritime strike missions as well as its capability as multi-role platform.

2023
According to the 2023 Activity Report published by the Presidency of Defense Industries, KUZGUN Missile, KUZGUN-SS, was successfully test fired from AKSUNGUR on an undisclosed date. This test further certified AKSUNGUR’s stand-off precision-strike capabilities.

2024
In February 2024, AKSUNGUR was spotted carrying TUSAŞ’ own SÜPER ŞİMŞEK Tactical Unmanned Aerial Vehicle. Although details on tests remain limited, this development further demonstrates AKSUNGUR’s capability for stand-off precision-strikes as well as its effectiveness in SEAD/DEAD missions.

2025
In April 2025, AKSUNGUR successfully conducts firing test with ASELSAN’s LGK-81 and LGK-82 Laser Guided Bombs, achieving direct hits with surgical precision. This test further proved AKSUNGUR’s growing armament portfolio and its ability to conduct high precision strike missions.

Indigenous Engine Integration and Altitude Records
Significant advancement in the localization of AKSUNGUR was achieved with integration of PD170 Turbodiesel Aviation Engine, developed domestically by TEI (TUSAŞ Engine Industries). Initially flown with foreign Continental CD-155 engine, AKSUNGUR has now transitioned to fully domestic powerplant. PD170 not only removes foreign dependency but also delivers superior high-altitude performance and longer endurance, further strengthening AKSUNGUR’s operational capabilities.

On 15 November 2023, AKSUNGUR successfully flew at an altitude of 30000 feet using TEI PD170 Turbodiesel Engine, demonstrating its superb high altitude performance. Subsequently, AKSUNGUR achieved new altitude record of 40000 feet with PD170 Turbodiesel Engine on 16 April 2025. These achievements validated both PD170’s high altitude reliability and AKSUNGUR’s high-altitude performance.

AKSUNGUR In Service
As testing and integration activities continued, AKSUNGUR gradually entered active service with Turkish Armed Forces. Deliveries began in late 2021, with first unit delivered to Turkish Naval Forces on 20 October 2021. In service in Turkish Navy, AKSUNGUR has been employed in Maritime Surveillance, Strike, and Patrol Roles.

By late 2023, last unit of AKSUNGUR was delivered to Turkish Naval Forces within the scope of Operatif İHA Projesi (Operative UCAV Project). By late 2023, last AKSUNGUR unit was delivered to Turkish Naval Forces within the scope of Operatif İHA Projesi (Operative UAV Project). By early 2022, deliveries of AKSUNGUR to Turkish Air Force also begun, although exact number of units delivered remains undisclosed. Since then, there have been no public reports regarding further deliveries to Air Force.

AKSUNGUR (CD-155)

AKSUNGUR is a high-payload, long-endurance Medium Altitude Long Endurance (MALE) Unmanned Aerial Vehicle designed and developed by TUSAŞ (Turkish Aerospace Industries)to meet Turkish Armed Forces’ requirements for continuous Day/Night Intelligence, Surveillance, Reconnaissance and Attack mission. AKSUNGUR can be equipped with a wide range of sensors and weapons, making it a highly flexible platform capable of carrying out multiple mission types. Thanks to its high payload capacity and long endurance, AKSUNGUR offers significant operational advantages in military missions such as IMINT/SIGINT, Electronic Warfare, Maritime Patrol, and Strike operations, as well as in civilian roles including Search and Rescue, Disaster Response, and Base Station support.

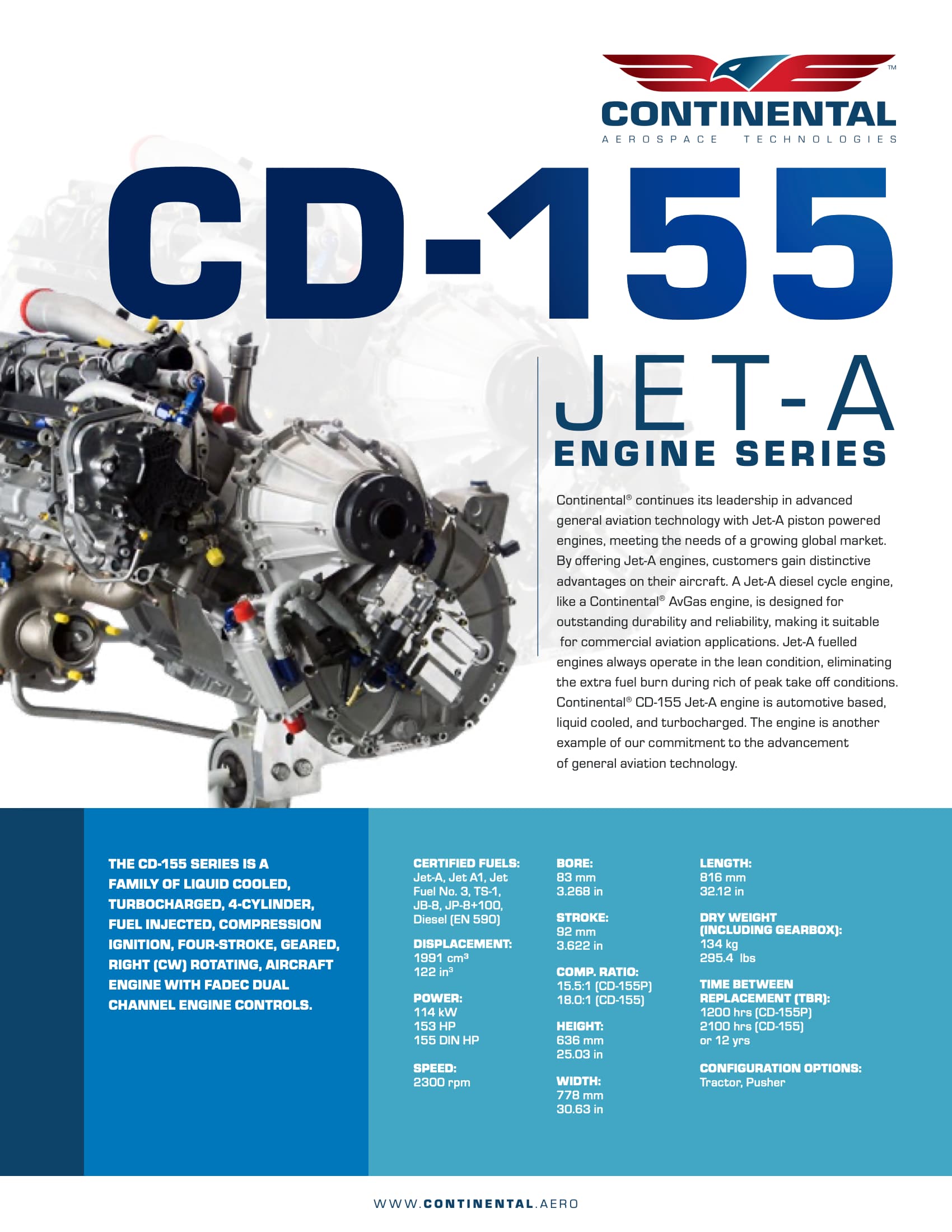

AKSUNGUR, operated with foreign-origin CD-155 and indigenous PD170 engine configurations, is currently in service with the Turkish Armed Forces in unknown quantities.

General Specifications
Armament

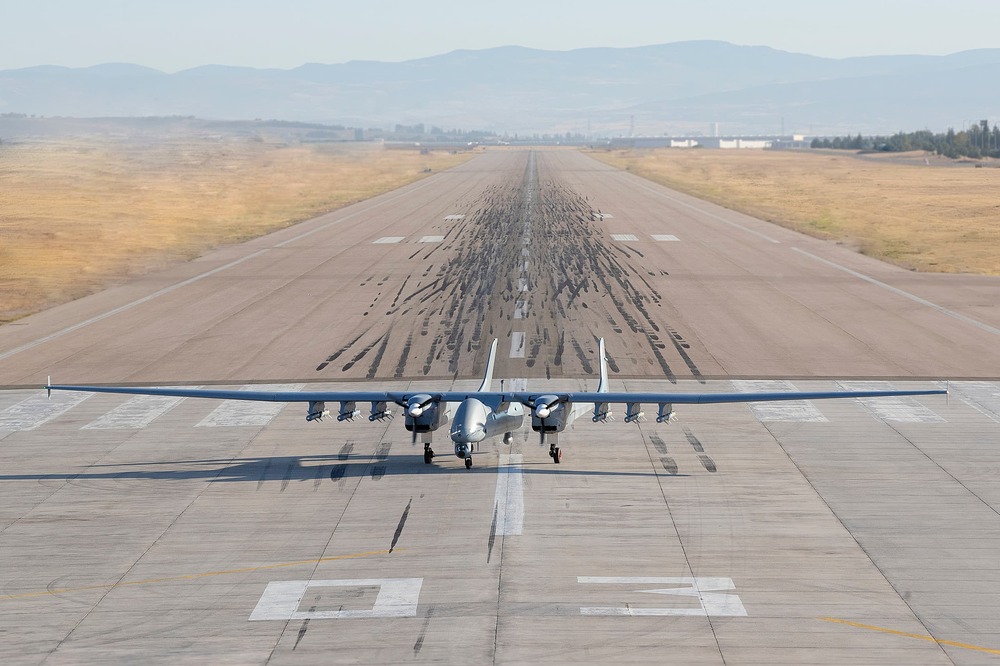

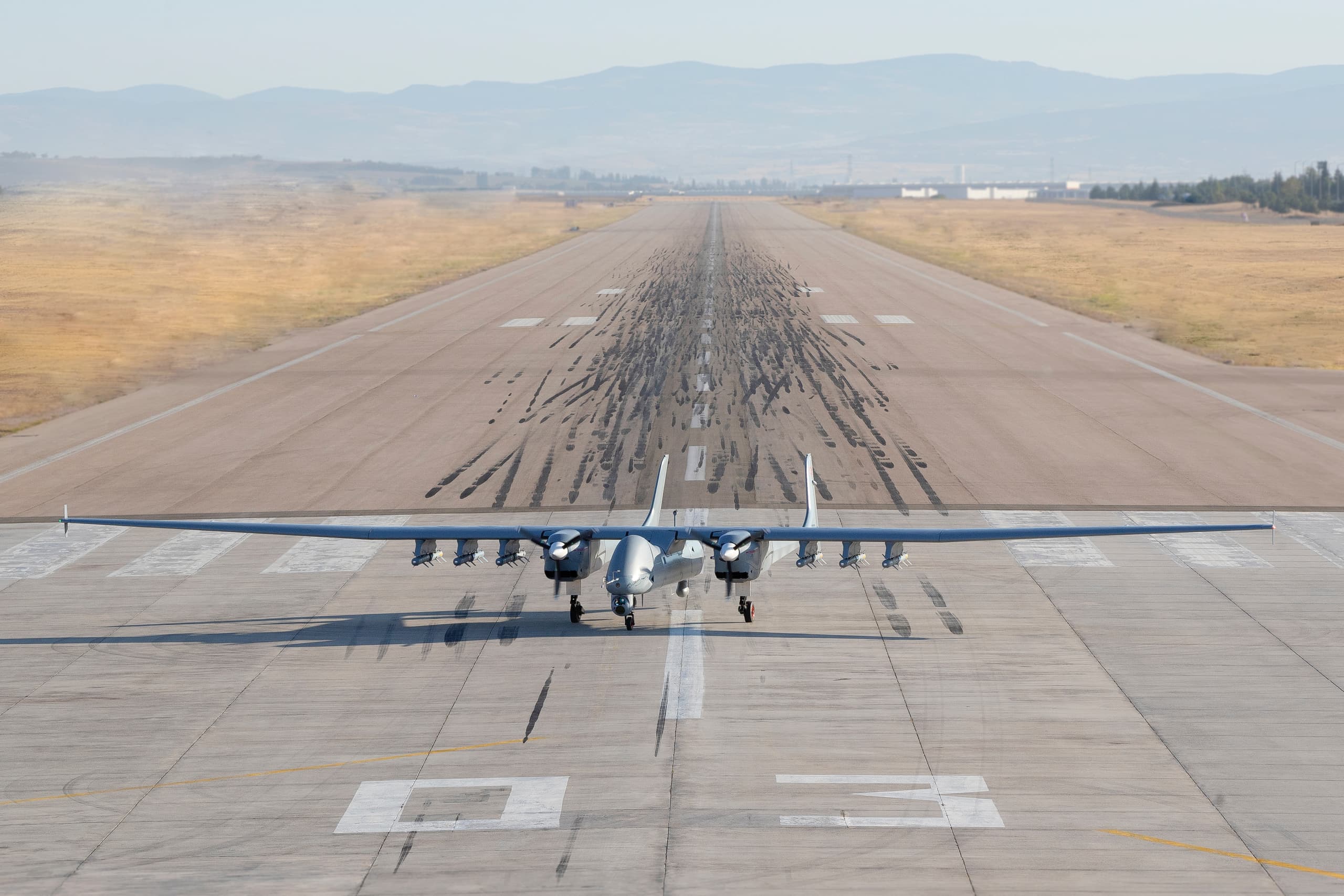

AKSUNGUR features three hard-points under each wing, allowing it to carry a wide range of external payloads. These include munitions, sonobuoys, Electronic-Warfare and Electronic Support systems, ELINT/SIGINT/COMINT payloads, and SAR/GMTI sensors. In addition to military roles, AKSUNGUR can also be equipped with civil support payloads such as a Base Tower, enabling it to support disaster response and communication missions.

AKSUNGUR’s hardpoints are rated for 150 kg, 300 kg, and 500 kg load classes, allowing AKSUNGUR to carry a combined external payload around 1 Ton. TUSAŞ’s official website cites AKSUNGUR’s maximum payload as 1 ton, while also listing +750 kg in the specifications section, indicating a high and flexible payload capacity as well as the evolving nature of the platform as its capabilities continue to mature.

I have prepared a load-out chart for AKSUNGUR based on publicly available information. It should be noted that this chart represents my own interpretation and is not an official document.

Weaponry
Air-to-Air Missiles
None^Yet

Air-to-Air Ground
CİRİT Laser-Guided Missile

CİRİT Specifications

Dimensions and Weight
- Length: 1900 mm
- Diameter: 70 mm
- Weight: 17 kg
Operational Details
- Missile Caliber: 70mm
- Maximum Range: 8000 m
- Guidance System
  ∙Semi-Active Laser Seeker
- Firing Mode:
  ∙Fire & Forget
  ∙Fire & Update
- Attack Modes:
  ∙Direct Attack
Warhead
- Type:
  ∙Thermobaric
  ∙Multipurpose
  ∙High Explosive
- Penetration: 290mm (As Represented In-Game)

SOM-J Stand-Off Missile
SOM-J Render - 2

SOM-J Specifications

Dimensions and Weight
- Length: 3900 mm
- Diameter: ? mm
- Weight: 500-540 kg
Operational Details
- Missile Caliber: ?
- Maximum Range: 275 km
- Missile Speed: High Subsonic (Mach 0.75–0.85)
- Seeker System
  ∙Imaging Infra-Red (IIR)
- Guidance System
  ∙Image-Based Navigation (IBN)
  ∙Global Positioning System (GPS)
  ∙Inertial Navigation System (INS)
  ∙Terrain Relative Navigation (TRN)
  ∙Automatic Target Acquisition (ATA)
Warhead
- Type:
  ∙Semi-Armor Piercing
  ∙High-Explosive Fragmentation
- Weight: 140 kg
- Penetration: ?

ÇAKIR Cruise Missile

ÇAKIR Specifications

Dimensions and Weight
- Length: 3300 mm
- Diameter: 275 mm
- Weight: 275 kg
Operational Details
- Missile Caliber: 275mm
- Maximum Range: +150 km
- Missile Speed: High Subsonic (Mach 0.75–0.85)
- Seeker: Hybrid IIR & RF Seeker
- Mid-Phase Guidance
  ∙Radar Altimeter System
  ∙Barometric Altimeter System
  ∙Inertial Navigation System (INS)
  ∙Terrain Referenced Navigation System
  ∙Anti-Jam Global Navigation Satellite System (GNSS)
- Terminal Phase Guidance
  ∙Imaging Infrared & RF Hybrid
Warhead
- Type:
  ∙Thermobaric
  ∙Blast Fragmentation
  ∙High-Explosive Semi-Piercing
- Penetration: ?

UMTAS

UMTAS Specifications

Dimensions and Weight
- Length: 1800 mm
- Diameter: 160 mm
- Weight: 37.5 kg
Operational Details
- Missile Caliber: 160mm
- Maximum Range: 8000 m
- Guidance System
  ∙RF Data Link
  ∙Imaging Infrared
- Firing Mode:
  ∙Fire & Forget
  ∙Fire & Update
- Attack Modes:
  ∙Top Attack
  ∙Direct Attack
Warhead
- Type:
  ∙Thermobaric
  ∙Blast Fragmentation
  ∙Tandem High Explosive Anti-Tank
- Penetration: Likely Not Less Than 1000mm RHA Behind ERA

L-UMTAS

L-UMTAS Specifications

Dimensions and Weight
- Length: 1800 mm
- Diameter: 160 mm
- Weight: 37.5 kg
Operational Details
- Missile Caliber: 160mm
- Maximum Range: 8000 m
- Guidance System
  ∙Semi-Active Laser Seeker
- Firing Mode:
  ∙Fire & Forget
  ∙Fire & Update
- Attack Modes:
  ∙Top Attack
  ∙Direct Attack
Warhead
- Type:
  ∙Thermobaric
  ∙Blast Fragmentation
  ∙Tandem High Explosive Anti-Tank
- Penetration: 1100mm RHA Behind ERA (As Represented In-Game)

ŞİMŞEK High Speed Drone

ŞİMŞEK Specifications

Dimensions and Weight
- Length: 2300 mm
- Diameter: ? mm
- Height: 700 mm
- Weight: 70-90 kg
- Wingspan: 1600 mm
Operational Details
- Caliber: ? mm
- Speed: 0.64 Mach
- Endurance: 50 min
- Data Link Range: 150 km (Line-of-Sight)
- Service Ceiling: 25.000 ft
- Operational Range: 700 km
- Guidance System
  ∙Fully Autonomous Flight
Payload Details
- Payload Weight:
- Payloads:
  ∙IR Signature Augmenter
  ∙Countermeasure Delivery System (Chaff & Flare)
  ∙Active/Passive Radar Cross Section Augmenter

ŞİMŞEK-K High Speed Drone
ŞİMŞEK-K Render - 2

ŞİMŞEK-K Specifications

Dimensions and Weight
- Length: 2400 mm
- Diameter: ? mm
- Weight: 83 kg
- Wingspan: 1500 mm
Operational Details
- Caliber: ? mm
- Speed: 0.63 Mach
- Endurance: +45 min
- Data Link Range: 150 km
- Service Ceiling: 25.000 ft
- Operational Range: +500 km
- Guidance System
  ∙Fully Autonomous Flight
  ∙Anti-Jam Global Navigation Satellite System (GNSS)
Payload Details
- Payload Weight: 18 kg
- Payloads:
  ∙IR Signature Augmenter
  ∙Destruction System with GNSS Guidance
  ∙Countermeasure Delivery System (Chaff & Flare)
  ∙Active/Passive Radar Cross Section Augmenter

ALPAGUT Loitering Munition

ALPAGUT Specifications

Dimensions and Weight
- Length: 2600 mm
- Diameter: ? mm
- Weight: 58 kg
- Wingspan: 3000 mm
Operational Details
- Caliber: ? mm
- Speed: ?
- Endurance: 60 min
- Service Ceiling: ?
- Operational Range: 60 km
- Guidance System
- Seeker System
  ∙Imaging Infra-Red (IIR)
- Guidance System
  ∙Global Positioning System (GPS)
  ∙Inertial Navigation System (INS)
  ∙Imaging Infra-Red & Day Vision System
Warhead
- Warhead Weight: 11 kg
- Type:
  ∙Thermobaric
  ∙Multi Purpose
  ∙Armour Piercing
  ∙High Explosive Blast Fragmentation

İHA-122 Air-to-Surface Ballistic Supersonic Missile

İHA-122 Specifications

Dimensions and Weight
- Length: 3300 mm
- Diameter: 122mm
- Weight: 81 kg
Operational Details
- Missile Caliber: 122mm
- Maximum Range: 65 km
- Guidance System
  ∙Go-Onto-Location-In-Space (GOLIS)
  ∙Terminal Guidance with Laser Designation
Warhead
- Type:
  ∙Preshaped Fragmentation ^{High Explosive + Steel Ball ?}
- Weight: 13.5 kg ^?

İHA-230 Air-to-Surface Ballistic Supersonic Missile

İHA-230 Specifications

Dimensions and Weight
- Length: 3400 mm
- Diameter: 230mm
- Weight: 230 kg
Operational Details
- Missile Caliber: 230mm
- Maximum Range: 150 km
- Guidance System
  ∙Go-Onto-Location-In-Space (GOLIS)
  ∙Terminal Guidance with Laser Designation
Warhead
- Type:
  ∙Thermobaric
  ∙Armour Piercing
  ∙Frangible Impact
- Weight: 42 kg

KUZGUN-KY Guided Munition
KUZGUN-KY Render - 2

KUZGUN-KY Specifications

Dimensions and Weight
- Length: ? mm
- Weight: 80 kg
Operational Details
- Maximum Range: 15-30 km
- Seeker:
  ∙Laser
  ∙Day Camera
- Guidance System
  ∙Inertial Navigation System (INS)
  ∙Global Positioning System (GPS) with CRPA
Warhead
- Type:
  ∙Fragmentation
  ∙Armour Piercing
- Weight: 15 kg

KUZGUN-TJ Guided Munition
KUZGUN-TJ Render - 2

KUZGUN-TJ Specifications

Dimensions and Weight
- Length: ? mm
- Weight: 85 kg
Operational Details
- Maximum Range: +150 km
- Seeker:
  ∙Imaging Infrared (IIR)
  ∙Semi-Active Laser (SAL)
- Guidance System
  ∙Inertial Navigation System (INS)
  ∙Global Positioning System (GPS) with CRPA
Warhead
- Type:
  ∙Fragmentation
- Weight: 18 kg

SÜPER ŞİMŞEK Tactical Unmanned Aerial Vehicle

SÜPER ŞİMŞEK Specifications

Dimensions and Weight
- Length: 4000 mm
- Height: 750 mm
- Weight: 200 kg
- Wingspan: 1750 mm
Operational Details
- Speed: 0.85 Mach
- Endurance: 60 min
- Data Link Range: 150 km
- Service Ceiling: 35.000 ft
- Operational Range: 900 km
- Guidance System
  ∙Fully Autonomous Flight
Payload Details
- Payload Weight: 50 kg
- Payloads:
  ∙IR Signature Augmenter
  ∙Electronic Warfare Systems/Jammer
  ∙Countermeasure Delivery System (Chaff & Flare)
  ∙Active/Passive Radar Cross Section Augmenter
  ∙Destruction System with Changeable Seeker Heads

General Purpose Bombs
WIP

Guided Bombs
MAM-C Smart Micro Munition

MAM-C Specifications

Dimensions and Weight
- Length: 900 mm
- Weight: 6.5 kg
- Diameter: 70mm
Operational Details
- Range: 8 km
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Semi-Active Laser Seeker System
  ∙Inertial Measurement Unit System
Warhead
- Warhead Weight: 3.5 kg^?
- Type:
  ∙Incendiary
  ∙Multi-purpose
  ∙Armour Piercing
  ∙Blast Fragmentation
  ∙High Explosive Blast Fragmentation

MAM-L Smart Micro Munition

MAM-L Specifications

Dimensions and Weight
- Length: 950 mm
- Weight: 22 kg
- Diameter: 160mm
Operational Details
- Range: 15 km
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Semi-Active Laser Seeker System
  ∙Inertial Measurement Unit System
Warhead
- Warhead Weight: 10 kg^?
- Type:
  ∙Thermobaric
  ∙Armour Piercing
  ∙High Explosive Blast Fragmentation
- Fuse Type:
  ∙Impact
  ∙Proximity

MAM-L IIR Smart Micro Munition

MAM-L IIR Specifications

Dimensions and Weight
- Length: 950 mm
- Weight: 23 kg
- Diameter: 160mm
Operational Details
- Range: 40 km
- Seeker
  ∙Imaging Infrared
- Guidance System
  ∙Imaging Infrared Seeker System
Warhead
- Warhead Weight: 10 kg^?
- Type:
  ∙Multi-Purpose
  ∙Armour Piercing
  ∙High Explosive Blast Fragmentation

MAM-T Smart Micro Munition

MAM-T Specifications

Dimensions and Weight
- Length: 1400 mm
- Weight: 95 kg
- Diameter: 230mm
Operational Details
- Range:
  ∙30 km with Laser Guidance
  ∙65 km with INS/GPS/Laser Guidance
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙INS/GPS/Laser
  ∙Semi-Active Laser Seeker System
Warhead
- Warhead Weight: 70 kg^?
- Type:
  ∙Thermobaric
  ∙High Explosive Blast Fragmentation

MAM-T IIR Smart Micro Munition

MAM-T IIR Specifications

Dimensions and Weight
- Length: 1400 mm
- Weight: 96 kg
- Diameter: 230mm
Operational Details
- Range: 65 km
- Seeker
  ∙Imaging Infrared
- Guidance System
  ∙Imaging Infrared Seeker System
Warhead
- Warhead Weight: 70 kg^?
- Type:
  ∙Thermobaric
  ∙High Explosive Blast Fragmentation

BOZOK Laser Guided Miniature Munition
BOZOK Render - 2

BOZOK Specifications

Dimensions and Weight
- Length: 800 mm
- Weight: 16 kg
- Diameter: 120mm
Operational Details
- Range: +17 km
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Semi-Active Laser Seeker
  ∙Inertial Navigation System (INS)
  ∙Global Positioning System (GPS)
Warhead
- Warhead Weight: ? kg
- Type:
  ∙Anti-Personnel
  ∙Hybrid Armor Piercing and Fragmentation

KAYI-30 Laser Guided Miniature Munition
KAYI-30 Render - 2

KAYI-30 Specifications

Dimensions and Weight
- Length: 1000 mm
- Weight: 24 kg
- Diameter: 140mm
Operational Details
- Range:
  ∙15 km with INS/GPS Guidance
  ∙25 km with NS/GPS, INS/GPS/SAL Guidance
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Semi-Active Laser Seeker
  ∙Inertial Navigation System (INS)
  ∙Global Positioning System (GPS)
Warhead
- Warhead Weight: ? kg
- Type:
  ∙Thermobaric
  ∙Anti-Personnel
  ∙Shape Charged Armor-Piercing/Penetrating

KAYI-50 Long Range Guided Miniature Munition
KAYI-50 Render - 2

KAYI-50 (IIR) Specifications

Dimensions and Weight
- Length: 950 mm
- Weight: 45 kg
- Diameter: 180mm
Operational Details
- Range: +30 km
- Seeker
  ∙Infrared Imagining
- Guidance System
  ∙Inertial Navigation System & Global Positioning System + Infrared Imagining Man-in-the-Loop
Warhead
- Warhead Weight: ? kg
- Type:
  ∙Thermobaric
  ∙Anti-Personnel
  ∙Shape Charged Armor-Piercing/Penetrating

KAYI-50 (SAL) Specifications

Dimensions and Weight
- Length: 950 mm
- Weight: 45 kg
- Diameter: 180mm
Operational Details
- Range: +30 km
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Inertial Navigation System & Global Positioning System + Semi-Active Laser
Warhead
- Warhead Weight: ? kg
- Type:
  ∙Thermobaric
  ∙Anti-Personnel
  ∙Shape Charged Armor-Piercing/Penetrating

LGK Laser Guidance Kit

LGK-81 Specifications

Dimensions and Weight
- Length: 2300 mm^?
- Weight: ~150 kg^?
Operational Details
- Range: 12 km
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Semi-Active Laser Guidance
Warhead
- Type: Mk-81 General Purpose
- Filler Weight: 40-44 kg

LGK-82 Specifications

Dimensions and Weight
- Length: 2700 mm^?
- Weight: ~260 kg^?
Operational Details
- Range: 12 km
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Semi-Active Laser Guidance
Warhead
- Type:
  ∙SERT-82 Penetrator
  ∙Mk-82 MOD1 High Explosive
  ∙Mk-82 MOD1 Pre-Fragmented
  ∙Mk-82T TENDÜREK Thermobaric
- Filler Weight:
  ∙20 kg - SERT-82
  ∙87 kg - Mk-82 MOD1 HE
  ∙46 kg - Mk-82 MOD1 Pre-Fragmented
  ∙87 kg - Mk-82T TENDÜREK Thermobaric

HGK-82 Precision Guidance
HGK-82 Render - 2

HGK-82 Specifications

Dimensions and Weight
- Length: 2587 mm
- Weight: ~262 kg
Operational Details
- Range: 28 km
- Guidance System
  ∙Global Positioning System
  ∙Inertial Navigation System
Warhead
- Type:
  ∙SERT-82 Penetrator
  ∙Mk-82 MOD1 High Explosive
  ∙Mk-82 MOD1 Pre-Fragmented
  ∙Mk-82T TENDÜREK Thermobaric
- Filler Weight:
  ∙20 kg - SERT-82
  ∙87 kg - Mk-82 MOD1 HE
  ∙46 kg - Mk-82 MOD1 Pre-Fragmented
  ∙87 kg - Mk-82T TENDÜREK Thermobaric

TEBER Guidance Kit

TEBER-81 Specifications

Dimensions and Weight
- Length: 2300 mm
- Weight: 150 kg
Operational Details
- Range:
  ∙8 km from UAVs
  ∙23 km from Jets
- Guidance System
  ∙Semi-Active Laser
  ∙Global Positioning System
  ∙Inertial Navigation System
Warhead
- Type: Mk-81 General Purpose
- Filler Weight: 40-44 kg

TEBER-82 Specifications

Dimensions and Weight
- Length: 2700 mm
- Weight: 260 kg
Operational Details
- Range:
  ∙13 km from UAVs
  ∙28 km from Jets
- Guidance System
  ∙Semi-Active Laser
  ∙Global Positioning System
  ∙Inertial Navigation System
Warhead
- Type:
  ∙SERT-82 Penetrator
  ∙Mk-82 MOD1 High Explosive
  ∙Mk-82 MOD1 Pre-Fragmented
  ∙Mk-82T TENDÜREK Thermobaric
- Filler Weight:
  ∙20 kg - SERT-82
  ∙87 kg - Mk-82 MOD1 HE
  ∙46 kg - Mk-82 MOD1 Pre-Fragmented
  ∙87 kg - Mk-82T TENDÜREK Thermobaric

ELÇİN Laser Guidance Kit

ELÇİN-81 Specifications

Dimensions and Weight
- Length: 2300 mm
- Weight: ~150 kg
Operational Details
- Range:
  ∙13 km from UAVs
  ∙28 km from Jets
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Semi-Active Laser
  ∙Inertial Navigation System
Warhead
- Type: Mk-81 General Purpose
- Filler Weight: 40-44 kg

ELÇİN-82 Specifications

Dimensions and Weight
- Length: 2700 mm^?
- Weight: ~260 kg^?
Operational Details
- Range:
  ∙13-25 km from UAVs
  ∙28 km from Jets
- Seeker
  ∙Semi-Active Laser
- Guidance System
  ∙Semi-Active Laser
  ∙Inertial Navigation System
Warhead
- Type:
  ∙SERT-82 Penetrator
  ∙Mk-82 MOD1 High Explosive
  ∙Mk-82 MOD1 Pre-Fragmented
  ∙Mk-82T TENDÜREK Thermobaric
- Filler Weight:
  ∙20 kg - SERT-82
  ∙87 kg - Mk-82 MOD1 HE
  ∙46 kg - Mk-82 MOD1 Pre-Fragmented
  ∙87 kg - Mk-82T TENDÜREK Thermobaric

LAÇİN-82 Guidance KİT

LAÇİN-82 Specifications

Dimensions and Weight
- Length: 2800 mm
- Weight: ~285 kg
Operational Details
- Range:
  ∙50 km from UAVs
  ∙90 km from Jets
- Guidance System
  ∙Infrared Imagining
  ∙Global Positioning System
  ∙Inertial Navigation System
Warhead
- Type:
  ∙SERT-82 Penetrator
  ∙Mk-82 MOD1 High Explosive
  ∙Mk-82 MOD1 Pre-Fragmented
  ∙Mk-82T TENDÜREK Thermobaric
- Filler Weight:
  ∙20 kg - SERT-82
  ∙87 kg - Mk-82 MOD1 HE
  ∙46 kg - Mk-82 MOD1 Pre-Fragmented
  ∙87 kg - Mk-82T TENDÜREK Thermobaric

GÖZDE-82 Laser Precision Guidance KİT

GÖZDE-82 Specifications

Dimensions and Weight
- Length: 2615 mm
- Weight: ~274 kg
Operational Details
- Range:
  ∙15 km from UAVs
  ∙34 km from Jets
- Guidance System
  ∙Semi-Active Laser
  ∙Global Positioning System
  ∙Inertial Navigation System
Warhead
- Type:
  ∙SERT-82 Penetrator
  ∙Mk-82 MOD1 High Explosive
  ∙Mk-82 MOD1 Pre-Fragmented
  ∙Mk-82T TENDÜREK Thermobaric
- Filler Weight:
  ∙20 kg - SERT-82
  ∙87 kg - Mk-82 MOD1 HE
  ∙46 kg - Mk-82 MOD1 Pre-Fragmented
  ∙87 kg - Mk-82T TENDÜREK Thermobaric

KGK-82-SİHA Precision Guidance
KGK-82-SİHA Render - 2

KGK-82-SİHA Specifications

Dimensions and Weight
- Length: 2580 mm
- Weight: ~336 kg
Operational Details
- Range: +30 km
- Guidance System
  ∙Global Positioning System
  ∙Inertial Navigation System
Warhead
- Type:
  ∙SERT-82 Penetrator
  ∙Mk-82 MOD1 High Explosive
  ∙Mk-82 MOD1 Pre-Fragmented
  ∙Mk-82T TENDÜREK Thermobaric
- Filler Weight:
  ∙20 kg - SERT-82
  ∙87 kg - Mk-82 MOD1 HE
  ∙46 kg - Mk-82 MOD1 Pre-Fragmented
  ∙87 kg - Mk-82T TENDÜREK Thermobaric

TOLUN Guided Bomb

TOLUN Specifications

Dimensions and Weight
- Length: 1800 mm
- Weight: 136 kg
Operational Details
- Range:
  ∙57 km from UAVs
  ∙102 km from Jets
- Guidance System
  ∙Global Positioning System
  ∙Inertial Navigation System
Warhead
- Type: Penetrator
- Warhead Weight: 105 kg

TOLUN F Guided Bomb

TOLUN F Specifications

Dimensions and Weight
- Length: 1770 mm
- Weight: 119 kg
Operational Details
- Range:
  ∙52 km from UAVs
  ∙87 km from Jets
- Guidance System
  ∙Global Positioning System
  ∙Inertial Navigation System
  ∙Anti-Jam Global Navigation Satellite System
Warhead
- Type: Fragmentation
- Warhead Weight: 70 kg

TOLUN-IIR Guided Bomb

TOLUN-IIR Specifications

Dimensions and Weight
- Length: 1789 mm
- Weight: 121 kg
Operational Details
- Range:
  ∙50 km from UAVs
  ∙80 km from Jets
- Guidance System
  ∙Imaging Infra-Red
  ∙Global Positioning System
  ∙Inertial Navigation System
Warhead
- Type: Fragmentation
- Warhead Weight: 70 kg

KUZGUN-SS Guided Munition
KUZGUN-SS Render - 2

KUZGUN-SS Specifications

Dimensions and Weight
- Length: ? mm
- Weight: 85 kg
Operational Details
- Maximum Range: +40 km
- Seeker:
  ∙Semi-Active Laser
  ∙Imagining Infrared
- Guidance System
  ∙Inertial Navigation System (INS)
  ∙Global Positioning System (GPS) with CRPA
Warhead
- Type:
  ∙Thermobaric
  ∙Fragmentation
- Weight: 28 kg

Torpedo
ORKA Lightweight Torpedo

ORKA Specifications

Dimensions and Weight
- Length: 2850 mm
- Weight: 220 kg
- Diameter: 275 mm
Operational Details
- Maximum Range: 15 km
- Speed: +45 Knot
- Seeker:
  ∙Active/Passive Sonar Head
- Guidance System
  ∙Self Guidance
  ∙Active/Passive Sonar Head with Acoustic Counter- Countemeasure Capabilities
Warhead
- Type:
  ∙Shaped Charged High-Explosive Insensitive Warhead
- Weight: ? kg

Depth Charge
None

ASW Missile/Rocket
DSH Anti-Submarine Rocket

DSH Rocket Specifications

Dimensions and Weight
- Length: 1300 mm
- Weight: 35.5 kg
- Diameter: 196 mm
Operational Details
- Depth of Detonation: 15-300 m
Warhead
- Type:
  ∙High-Explosive
- Weight: 12 kg

Pods - ASW
Sonobuoy Pod
Sonobuoy Pod Render - 2

Under Development, planned to host 18 Sonobuoys.

aselBUOY 100P Passive Directional Sonobuoy

Pods - Fuel
None

Pods - Recce
W.I.P

Pods - Electronic Warfare
ANTIDOT 2-U Electronic Warfare Pod

ANTIDOT 2-U/S Electronic Support Pod

Sensors & Targeting Systems
ASELFLIR-500 Electro-Optical Reconnaissance, Surveillance, and Targeting System

ASELFLIR-500 Electro-Optical Reconnaissance, Surveillance, and Targeting System is a high-performance, long-range electro-optical reconnaissance, surveillance and targeting system designed and developed for Fixed & Rotary Wing Aerial Platforms, Land and Naval Platforms.
ASELFLIR-500 offers enhanced Targeting Capabilities with high quality Thermal and Day Imagers, Laser Units as well as advanced Reconnaissance & Surveillance features in variety of platforms.

Main Features
• IR Imager
• SWIR Imager
• Day-Night Imager
• Multi-Target Tracking
• Target Course Tracking
• Target Speed Calculation
• Advanced Image Processing
• Laser Range Finder & Pointer
• Target Geo-Location Measurement

Brochure

Flight Performance

AKSUNGUR is powered by two Continental Aerospace Technologies CD-155 Turbocharged Diesel Engines Each engine produces approximately 155 horsepower. Twin-engine configuration significantly enhances operational range and flight endurance, making the platform particularly well suited for long-range and maritime missions where high endurance and extended flight time are especially valuable.

CD-155 Turbocharged Diesel

CD-155 (Centurion 2.0S) is Turbocharged Diesel Aviation Engine, designed and developed by former Thielert Aircraft Engines, now marketed under Continental Aerospace Technologies

CD-155 (Centurion 2.0S) delivers a peak power output of 155 horsepower, maintaining full power up to 8,000 ft and effective performance up to 18,000 ft. CD-155 has dry weight of around 134 kg, and is compatible with Jet-A, Jet-A1, TS-1 and JP-8 fuels.

CD-155 Specifications

Dimensions and Weight
- Length: 816 mm
- Width: 778 mm
- Height: 636 mm
- Dry Weight: 132 kg
Performance
- Maximum Power : 155 Horsepower
- Maximum Continuous Power : 155 Horsepower
Operational Details
- Altitude Power (at 6,000 ft): 155 Horsepower
- Altitude Power (at 15,000 ft): 90 Horsepower
- Maximum Altitude: ?

Brochure

TUSAŞ AKSUNGUR Brochure

Spoiler

Specifications

Crew:
- 0
Dimensions and
- Empty Weight: 1800 kg
- Max Takeoff Weight: 3300 kg
- Payload Capacity: 1000 kg ^{Stated on TUSAŞ Website}
- Length: 12.5 m
- Height: 3.1 m
- Wingspan: 24.2 m
Armament
- Hard-Points: 6
  • 3 on Each Wing. Hard-Points Rated for Loads up 150, 300 and 500 kg.
  • See Armament Section.
- Secondary Armament:
  • None
Flight Performance
- Powerplant: 2x Continental Aerospace Technologies CD-155 Turbodiesel Aviation Engine, 155 Horsepower Each
- Propellers: 3-Bladed Constant-Speed Pusher
- Propeller Control: ECU Controlled Hydromechanical
- Cruise Speed: 180 - 250 km/h^?
- Range:
  ∙ Data Link Range: + 250 km
  ∙ SATCOM Range: + 5000 km
- Service Ceiling: 45.000 ft
- Endurance: Up to 50 Hours
Accessories
- Integrated FLIR
  ∙ Day Imaging
  ∙ Night Imaging
  ∙ SWIR Imaging
  ∙ Thermal Imaging
  ∙Multi-Target Tracking
  ∙Target Course Tracking
  ∙Target Speed Calculation
  ∙Advanced Image Processing
- Integrated SAR/MTI Radar
  ∙Ground Mapping
  ∙360° Surveillance
  ∙Target Classification
  ∙Multi-Target Tracking
  ∙Target Detection and Tracking
- Integrated V/UHF Electronic Attack System

Implementation to War Thunder

AKSUNGUR Unmanned Aerial Vehicles should be reserved for future Turkish Tech Trees, depending on how Gaijin chooses to further develop UAV gameplay. If a standalone UAV Tech Tree is introduced, similar to the current Helicopter Tech Tree, both AKSUNGUR (CD-155) and AKSUNGUR (PD170) would be excellent additions. f the current implementation approach continues, AKSUNGUR would also fit well in Ground Battles similar to MQ-1 and Orion. Due to lack of direct in game equivalents, it is hard to suggest an exact Rank or Battle Rating, but AKSUNGUR would be most fitting at higher Ranks, potentially even Top Tier, depending on available armament options.

Depending on Gaijin’s implementation, both the CD-155 and PD170 powered variants could be introduced either as Researchable vehicles or Premium Vehicle options.

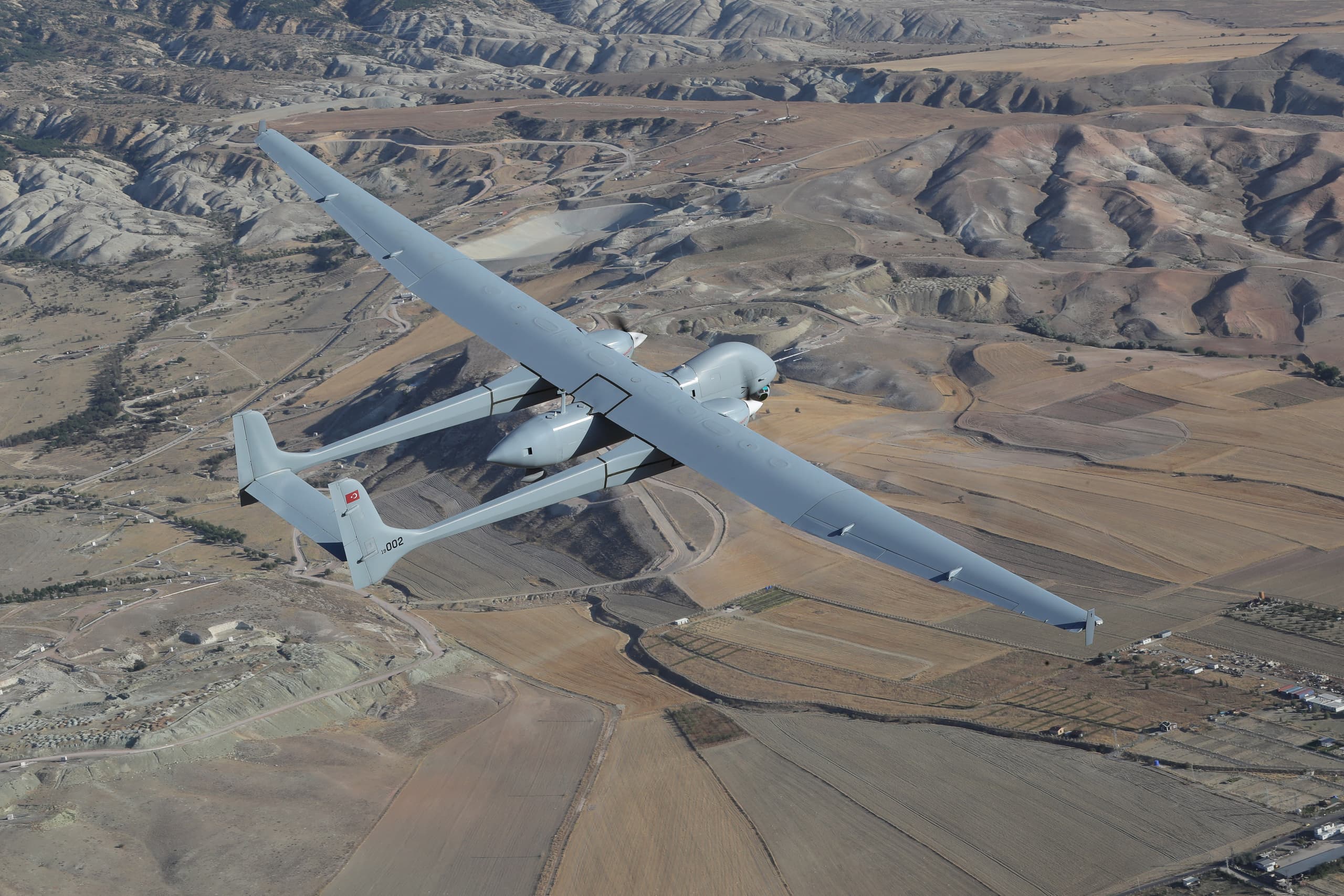

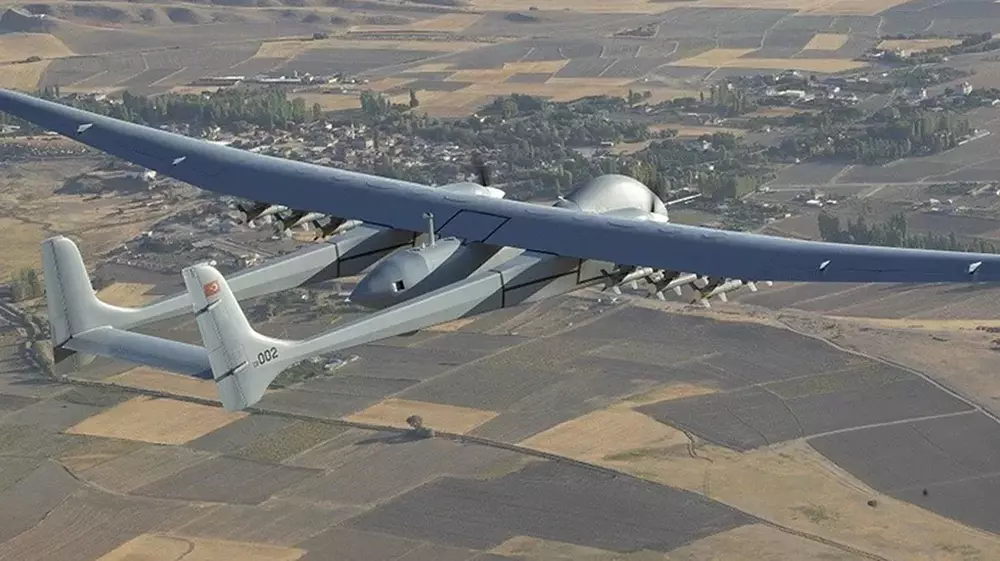

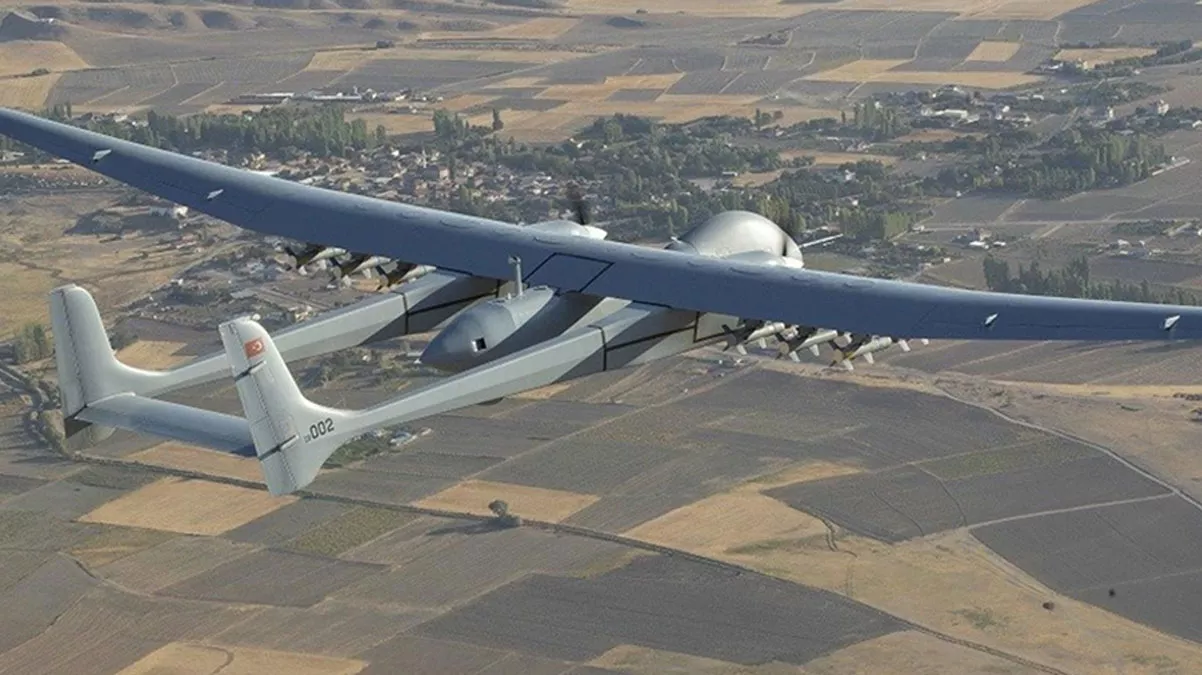

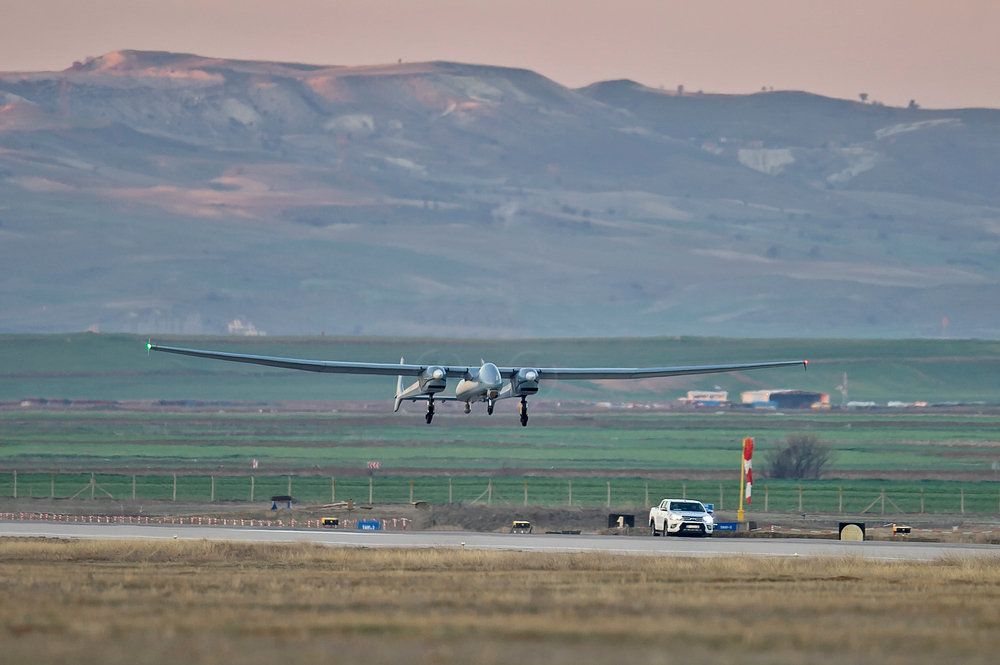

Additional Photos

Spoiler
