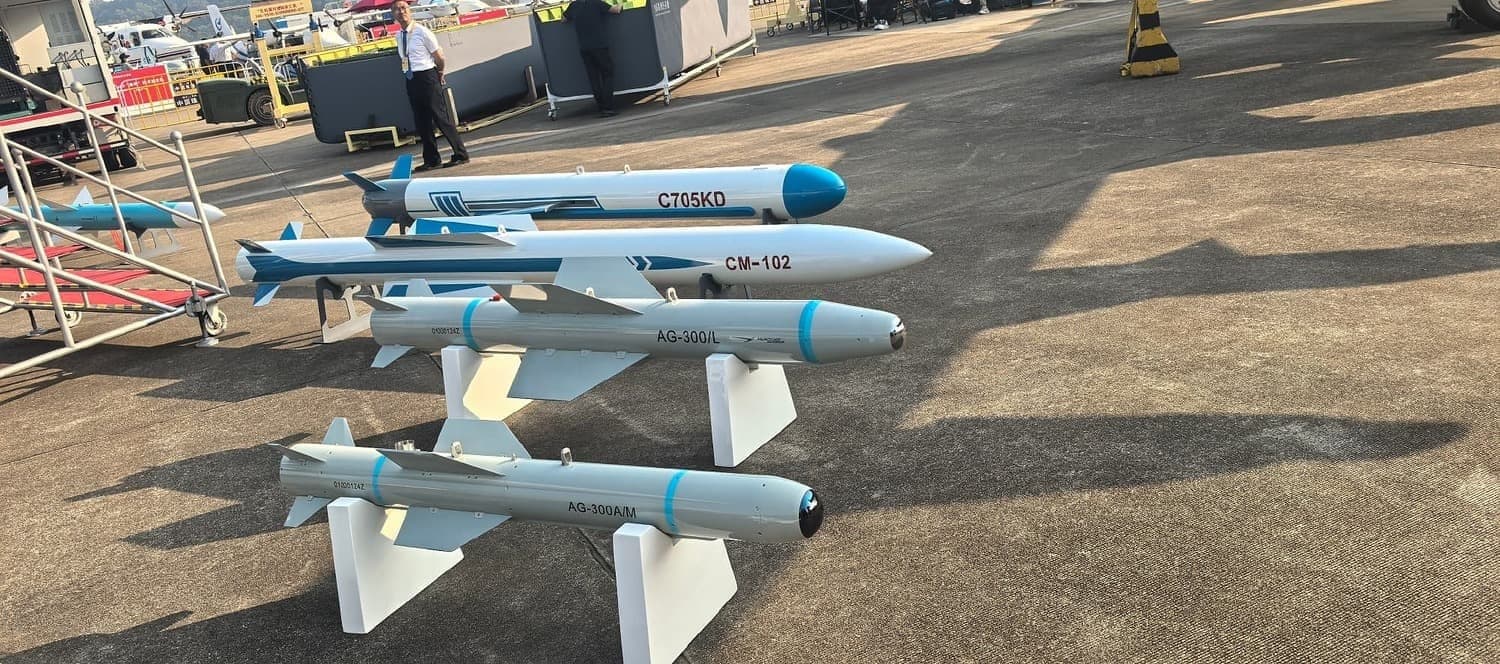

AG-300/M Multi-Purpose Air-to-Ground Missile
Introduction
First shown in 2016 Zhuhai Air Show. AG-300 Series Modular Air-to-Ground Missile is designed and manufactured for integrated reconnaissance and striking operation purpose. It can be loaded on multi-platforms(UAVs, helicopters, fighter aircrafts and other carriers). The missile is equipped with the semi-active laser seeker, infrared imaging seeker and the millimeter- Wave radar seeker, and various kinds of warheads to strike buildings and moving vehicles in a high speed. It features a high maneuverable capability in a wide range of launching airspace to strike various targets with high accuracy in an extensive attack envelope, its great maneuverability capable to attack high speed (120km/h) moving target.
Usage in Battle
As a main export product of CASIC, it is widely exported and used with Chinese drones, including Pakistan, Nigeria, and many other countries. AG-300/M missile acquired great success in fighting terrorists with its huge charge and long range in recent years.
AG-300/M being mounted to Nigeria Wing Loong 2
Pakistan Wing Loong 2 with 12 AG-300/M
Specification
(AG-300/M SAL with BFW warhead)
Weight: 50kg
Length: 1600mm
Diameter: 152mm
Launch altitude: 0km-7km
Target altitude: -1km-4.5km
Wing span: 370mm
Engine type: Solid Propulsor
Minimum range: 1km
Maximum range: 18km (from drone in 7km height)
Maximum range from heli (estimated): ~8-10km (in low altitude)
Guidance mode: INS/GPS+Semi-active laser seeker (able to switch to IIR and MMV)
Off-boresight: ±20°
Accuracy: CEP≤0.8m
BFW Warhead weight: 25kg (capable of SAP, HEAT warhead)
HEAT Warhead weight (estimated): ~10kg
HEAT Warhead penetration (estimated): ~1200mm (tandem warhead)
Performance & Ability
AG-300M was exhibited together with Z-10ME/Wing Loong 2 and mounted on Z-11WB, and the display board information clearly stated that it can be used as helicopter ammunition, so it’s no problem for Z-10ME and other Chinese helis to use it.
Influence in Game
The IIR version AG-300A/M provides new FNF choices. AG-300/M series’ combination plans of IIR/SAL seeker and HEAT/HE warhead can also provide Top Chinese Heli with more diversified play style.
