it’s armor should very like type-10 and Lec, main armor pack only cover limited area, lower hull not included. but it do has better side protection, since it can fend back DTC-10 apds(a little more than 100mm pen) with base armor. and the “black magic” should be the hybrid energy power pack, which is much smaller than traditional engine and transmission, save up lots of weight.
35 tons with that level of protection is no joke, its significantly more armored than the 39 ton m10. whilst also mounting an aps
Well I’m always kinda sus on actual advantages of hybrid powerpacks with todays battery technologies. Batteries are big and heavy and super dangerous if they combust, much more dangerous than fuel tanks.
1 Like
Personally I think its more likely 35t is for armor config 1, config 2 perhaps scratches the 40t range.
how heavy is GL-6?
No idea. But perhaps included for config 1 as well.
that would mean its surprisingly light for an aps right? didnt the sepv2 need counterweights to mount Trophy?
well, this is not a very good example.
also, smaller turret with very limited protection also saves a lot of weight. for tank’s weight, it’s just about managing what need to add and what need to cut off.
but yes, 35t is still a surprise for everyone, most guess is 40.
in this situation, battery isn’t the main power source, won’t be so heavy, most time the engine drives the generator to power the motor. and for lithium iron phosphate battery, it’s not so dangerous, when it’s hit, it just smoke and heating, about 300℃, diesel also burns so it’s acceptable
I don’t think so. the combat weight(战斗全重) means fully loaded with everything in Chinese standard.
Between the rotating interceptor craddle and the charge autoloader Trophy gets rather heavy. GL-6 is just the mount + rocket based interceptors. Iron Fist (same overall phylosophy) is also credited to being significantly lighter than Trophy, only not adopted then because it was less mature.
This might be an interesting video about this new tonk.
As a side note; as no one has made any attempt to make a suggestion for either (ZTZ-100 / ZBD-100), I’ve made a suggestion for both vehicles of the Type 100 chassis recently, may take a little for approval though.
Besides armour values (I am aware of mentioned ones), I am surprised how much there could be find online.
5 Likes
The purpose of this thread is to facilitate the gathering of info on the Type 100 tank to make it easier for anyone willing to suggest the tank or make bug reports after its introduced. TBH there is not enough info out there to model the tank ingame for the moment.
Not entirely true, the 2s38 was added with nearly nothing known about it before it was even accepted into service and has just been updated a bunch.
It doesn´t depend on wether the system is in service or not just the amount of info available about it. For 2S38 we had a basic hull that was in service for about 3 decades and was widely known and a weapon station with a lot of promotional material giving out every metric needed to represent it ingame. Thats not the case yet for Type 100 though I suspect that during this year a lot more will be unveiled. Already having key data such as armor values do help a lot. But we are missing a lot others, for example how many shots it can carry and what its autoloader is actually like, for example.
That has never stopped Gaijin though. Much of Chinese equipment we know nothing about, Gaijin hasn’t bothered.
2 Likes

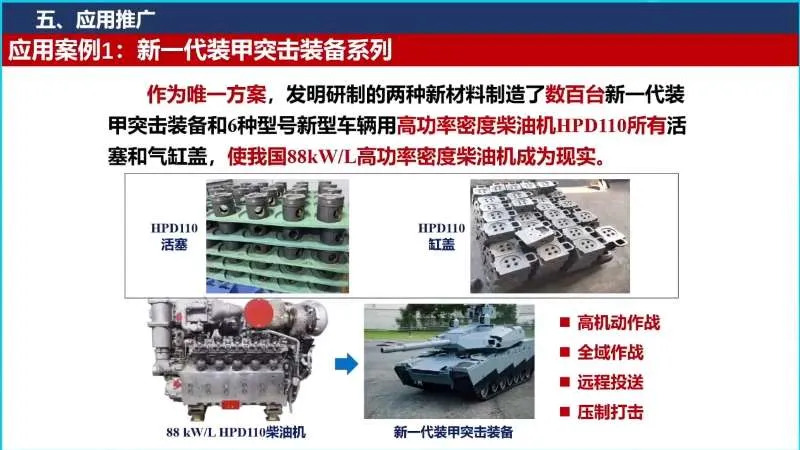

Update: Its been confirmed that the engine designation is HPD110. The engine is lighter and more compact than previous generation while providing the same power. Also its electricity generation capability is 88 kW/L. Its meant to power vehicles weighting even 40 tons.
1 Like

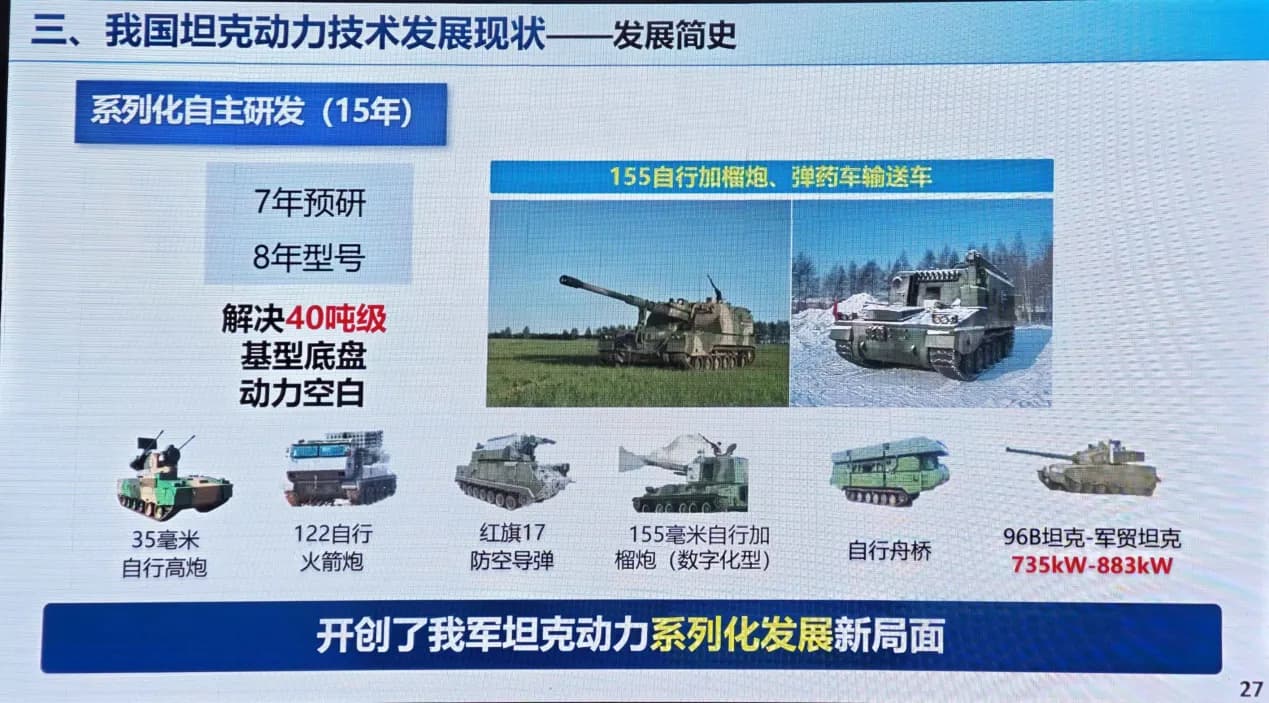

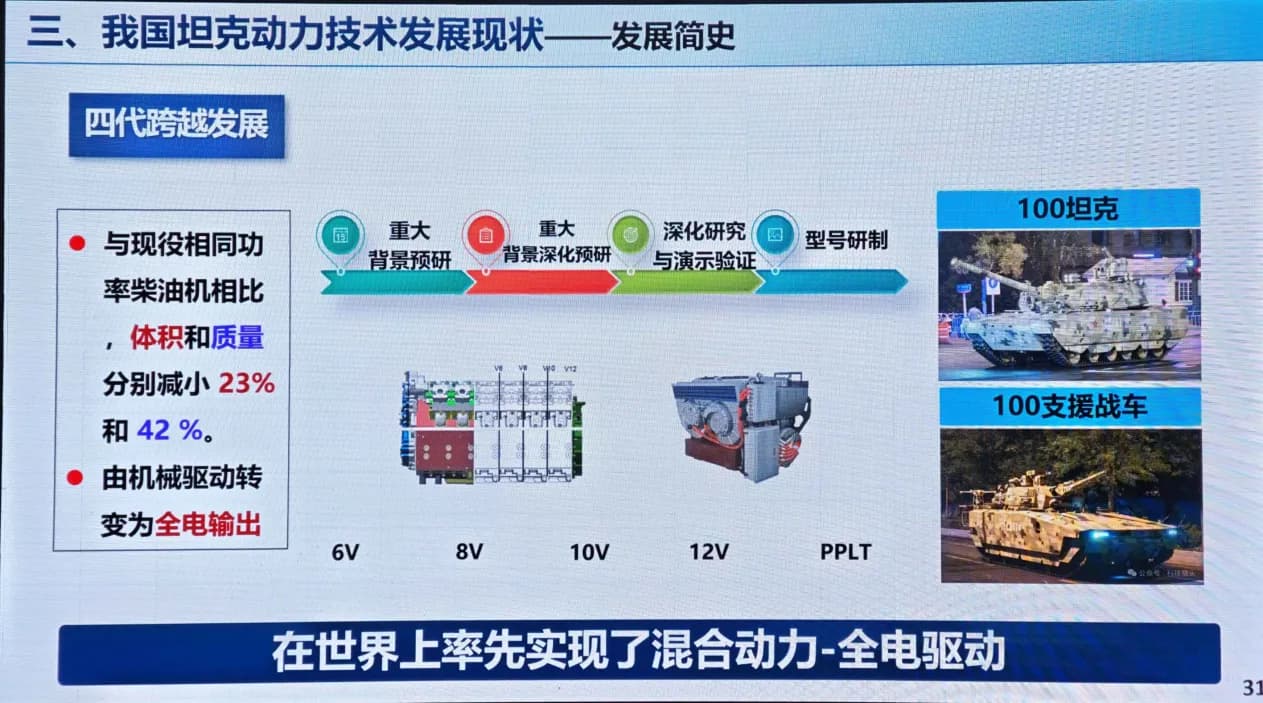

Where do these pages come from?
From a presentation. Just surfaced publicly hours ago. Details are understandably scarce for the moment.
Slight correction, 88kW/L refers to the total power generation ability of the ICE, i.e. 118hp per liter, not the hybrid component, also, this is a series hybrid system
