I made this rough weapon loadout schematic using photos I found online.
To be honest, Gaijin isn’t shy about giving an aircraft weapons it could potentially carry even if that specific country never used them. However, since there are currently 3 versions of the T/FA-50 that could be added to the Japan tech tree (T-50i, T-50TH, FA-50M), I tried sticking to historical loadouts as much as possible to make each one feel unique.
Otherwise, if Gaijin just gives them all their “potential” loadouts, they’ll end up being virtually identical and Gaijin would only need to add one plane.
"Potential" loadouts if Gaijin only add 1 plane.

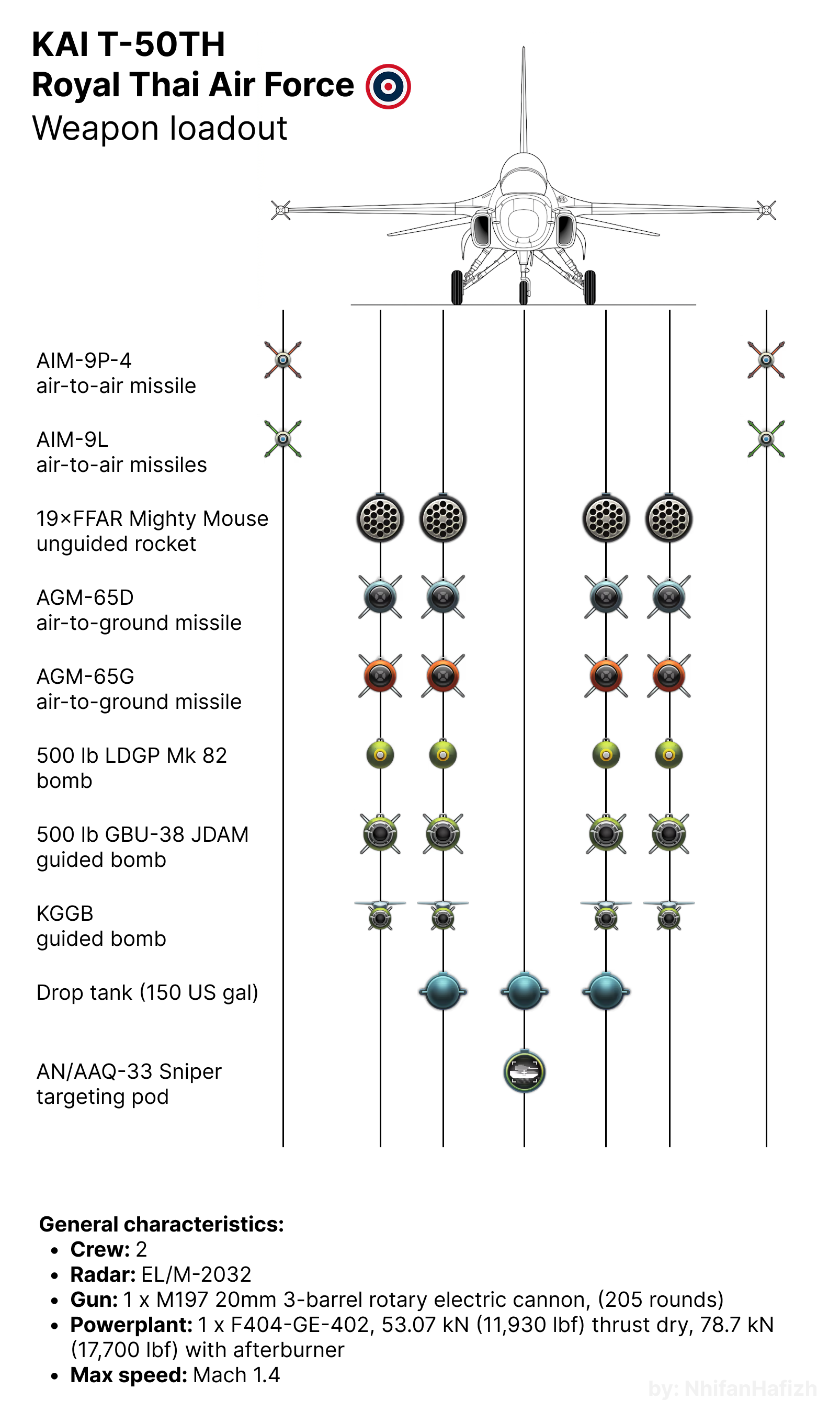

If all 3 versions are added: T-50TH version
Photos:

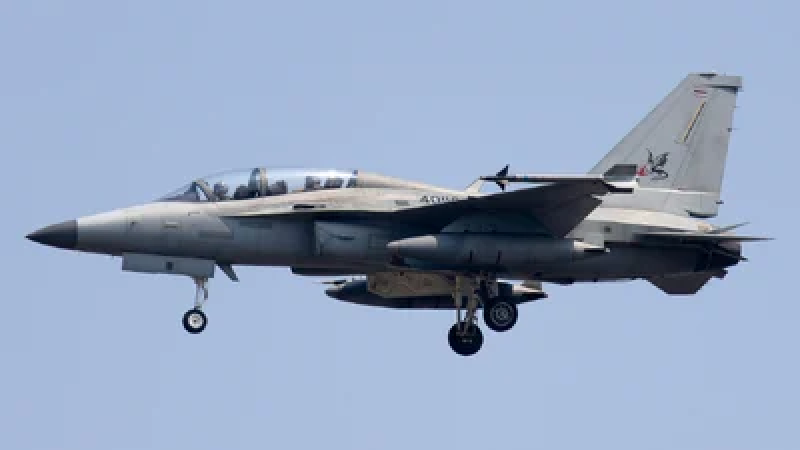

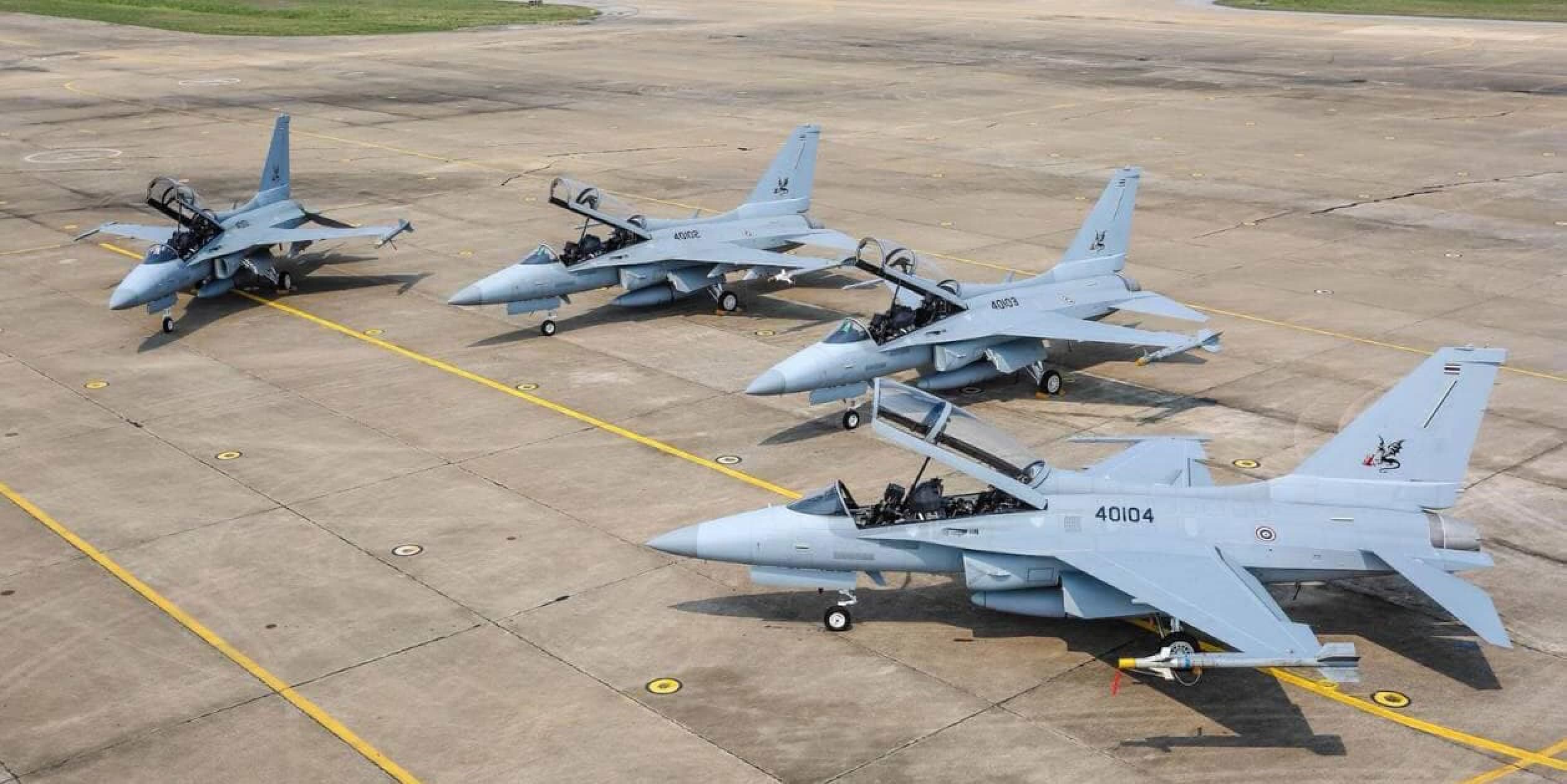

AIM-9L or M(?)

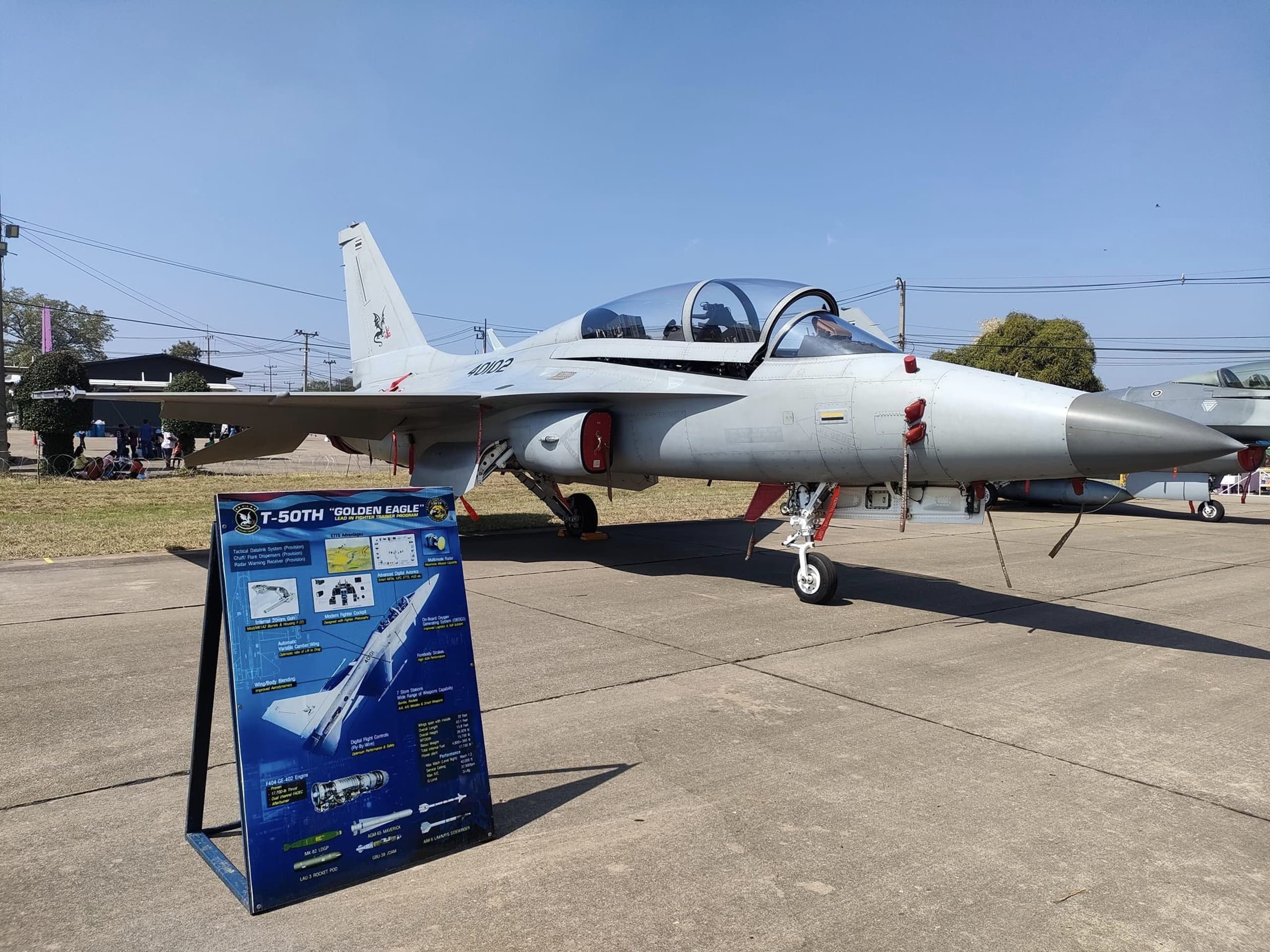

Official T-50TH info banner
Based on this, T-50TH can be equipped with AGM-65, JDAM, Mk-82, LAU-3 FFAR, AIM-9
Strangely it says T-50TH uses F404-GE-402 instead of 102
Tbh, I’ve yet to find any pic of T-50TH using any Triple rack ejection or LAU-3 for FFAR.
There’s news of Sniper targeting pod integration, but I can’t find the pic for what it’ll look like. So I put it on the center pylon.
KGGB is rumored too, but I add it anyway to make it more unique.
Correct me if I’m wrong, or there is more photo of T-50TH :)
