☭History, Design & Performance of All Russian Air-to-Air Missiles (IR, SARH, ARH)☭

[Pvt_Wade]

@02ded

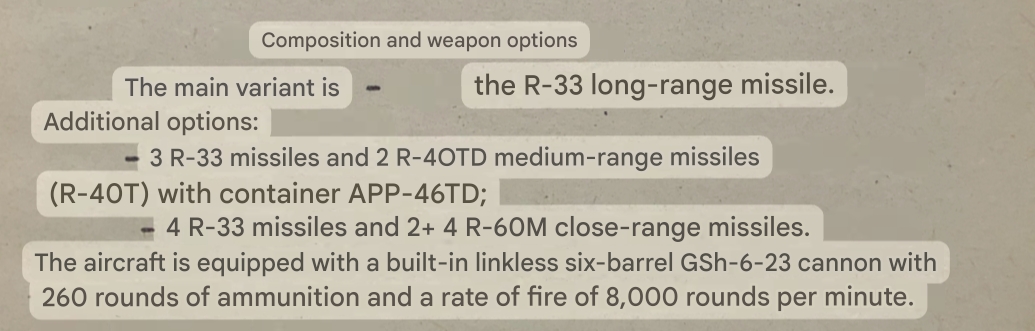

. It was also possible to equip the MiG-31 with two R-40Rs alongside three R-33s.

not even the MiG-25PD can carry R-40R, let alone MiG-31.
i think you meant R-40T/R-40TD

[KhakiGoat139042-live]

@02ded

Performance R-40RD

• Length: 6.376 m (251 in)
• Wingspan: 1.45 m (57.01 in)
• Body Diameter: 300 mm (11.81 in)
• Weight: 471 kg (1038 lb)
• Speed: Mach 4.5, +540 m/s to 740 m/s to the launch velocity depending on conditions
• Burn time: 4 - 6.7 seconds
• Flight time: 40 seconds
• Propulsion: P1D-134 single stage solid propellant rocket motor (thrust: ?)
• Warhead: 55 kg (121.25 lb) HE
• Guidance: CW Semi-Active Radar-Homing
• Range: 60 km max (37.28 mi)
• G overload (launch limit): 3G
• G overload (target): 4G (max)
• G overload (Air): 15G

@02ded

Performance R-40TD

• Length: 6.376 m (251 in)
• Wingspan: 1.45 m (57.01 in)
• Body Diameter: 300 mm (11.81 in)
• Weight: 471 kg (1038 lb)
• Speed: Mach 4.5, +540 m/s to 740 m/s to the launch velocity depending on conditions
• Burn time: 4 - 6.7 seconds
• Flight time: 40 seconds
• Propulsion: P1D-134 single stage solid propellant rocket motor (thrust: ?)
• Warhead: 55 kg (121.25 lb) HE
• Guidance: Infrared-Homing
• Seeker:
  • FOV: 0.94°
  • Gimbal limit: 60°
  • Tracking rate: 18-20°/s
  • Cooling: nitrogen-cooled
• Range: 50 km max (31 mi)
• G overload (launch limit): 3G
• G overload (target): 4G (max)
• G overload (Air): 15G

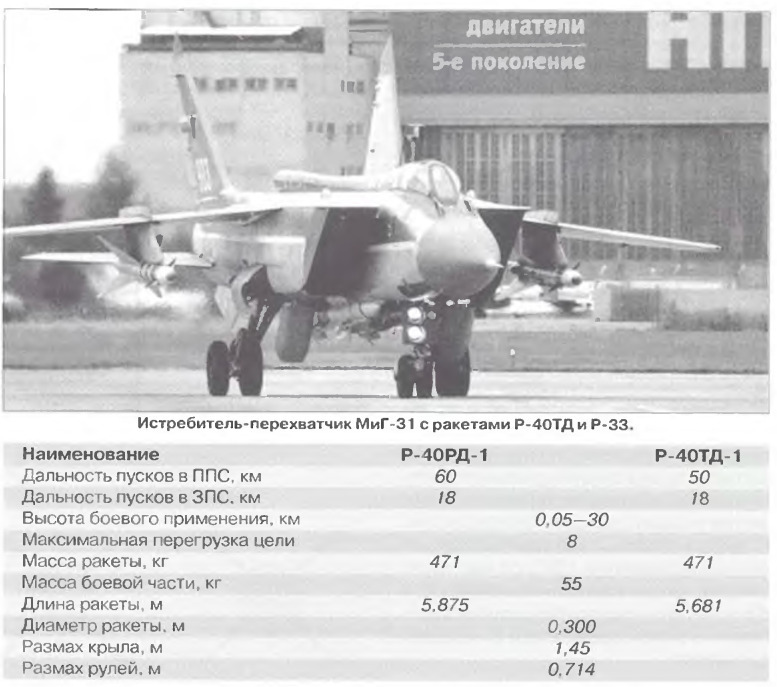

should be closer to 20-24 G overload for air, and 8 on target overload. ik these are the -1 variants but they should be pretty much the same as the non -1 R-40,s
