really?
Aren’t those just mockups/training missiles?
They have the gray nose cover. (I’m not at all knowledgeable in the subject, i just saw the color of the nose of the missiles i vaguely remembered something about those with gray fronts being non-functional)
mock-ups are the ones with black stripes
1 Like
Thanks :)
1 Like
R-55 is long overdue, I am so sick of R-60s I am gonna puke, I need something to bridge the gap between R-3S and R-60/R-13M
2 Likes

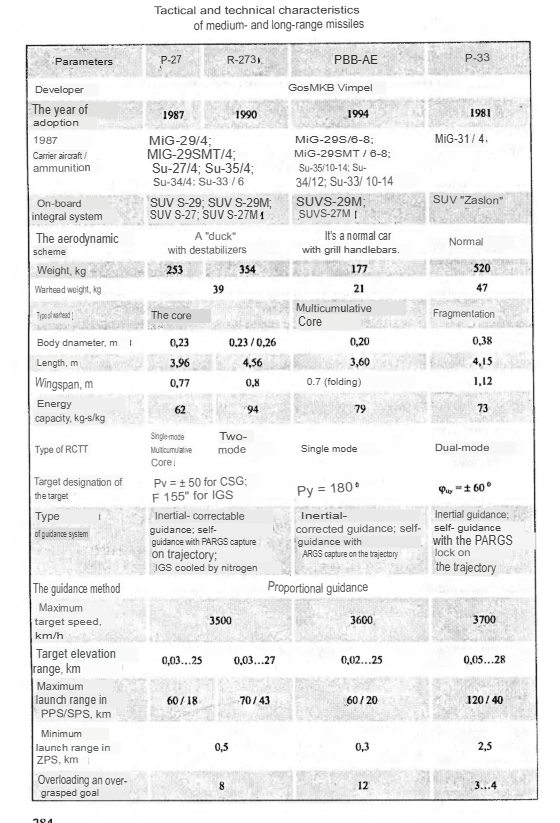

Damn its worse, can i get the doc btw?
1 Like
The “aerodynamic scheme” is goofy
1 Like
it’s actually the source that I used for my first attempt of bug reporting the r-77 no launch limits, but it got rejected as it’s jsut one secondary source.
(second attempt went through cause I just used a mig-29smt brochure)

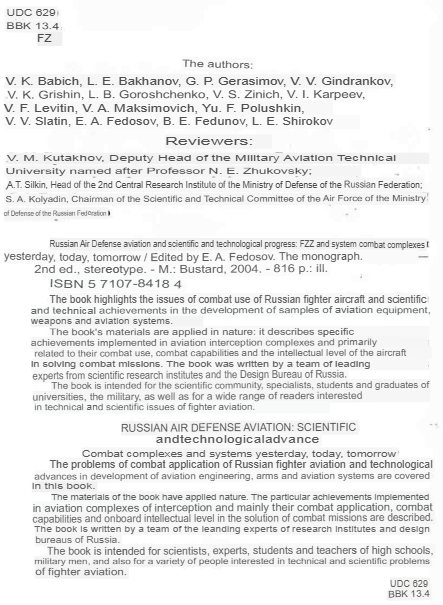

It’s a book on all previous russian planes/missile and the like made by a bunch of ex engineers at vympel, sukhoi/etc.
I highly recommend, great read on the history of russian aviation in general. Has lots of technical information on stuff as well.
though you need to use a translator
1 Like
If this will actually go trough, might be a substantial buff for SMT and 29M
for any platform with the r77
I would disagree. N001 and N019 maximum radar gimbal is pretty much in the current launch zone for R-77. Only real difference would be ability to send it in mem/trk but it ain’t MICA, so missile most likely won’t turn fast enough to lock the target without a DL info from a carrier
just wait for a 27M with the mech bars
Would love to get it, but i really doubt that gaijin will bring it. Most likely they will just make PESA bars with static dish for Su-27M because it will save them development time
nah that would take more time than copy pasting the zhuk and adjusting the range values a bit
they already have early bars on MKM, just adjust scan zone

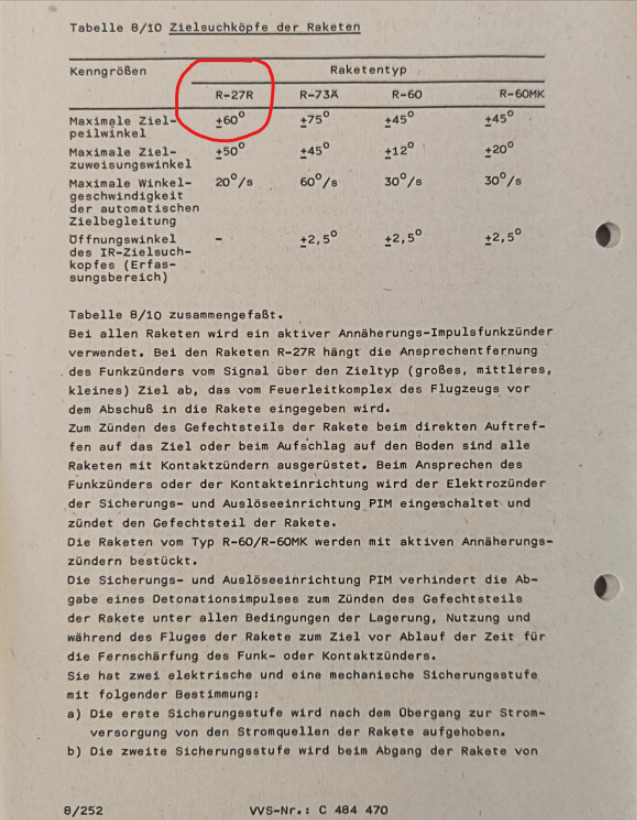

Gimbal limit is 50 degrees b4 launch 60 degrees after launch for r-27r/er
45 degrees b4 launch 75 degrees after launch for r73
20 degrees b4 launch 45 degrees after launch for r60m.
Also tracking rate is 30 degrees per second
12 degrees before launch for r60 and 30 degrees per second for tracking

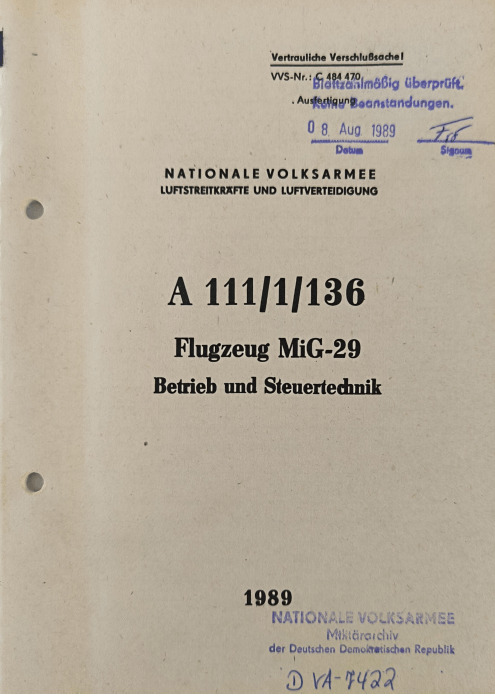

Source:
Spoiler
1 Like
For r-27t and et, they use ols-36t seekerhead.
Fov is 2 degrees, gimbal limit of 45 degrees before launch, 60 degrees after launch. Tracking rate of 15 degrees per second
2 Likes

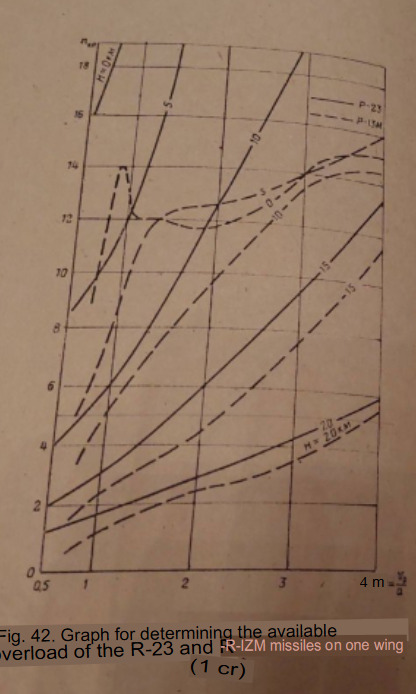

R-23, R-24, R-13M, R-13M1 Incorrect Available G Load
https://community.gaijin.net/issues/p/warthunder/i/zxXMpf7lJfw9
