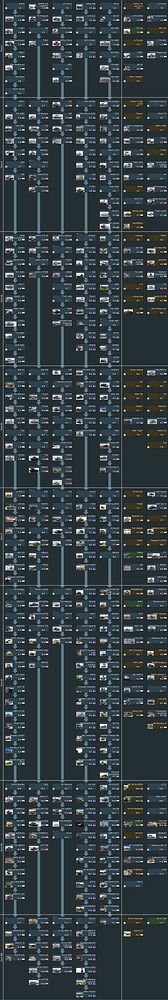

USA Ground Extended Tech Tree

Background:
Extended Ground tech tree of the U.S including vehicles from the interwar period of United states to modern day technology. All vehicles presented were either fully functional or had a functional part assembled such as a hull or turret. There are some vehicles in this tech tree that are made by companies such as the LAV 300 and LAV 150, I’ve included these vehicles as they originated in the U.S for the export market. Around 200+ vehicles have been added , i didn’t include everything i found because some are too similar to another or provide no value.

Why extend the tech tree?
The U.S is currently lacking in areas where there are plenty of vehicles, my hope is that it will draw more attention to these battle ratings and in the future these issues will be addressed.

Why no subtrees?
Even though South Korea was leaked to be a U.S tech tree I don’t think the U.S needs it especially as it only fortifies most battle ratings instead of fixing them. I also didn’t add Canadian vehicles as I’m not quite sure whether or not it will be shared tech tree between the U.S and U.K or only goes to U.K or U.S.

These battle ratings aren’t final but should serve as a reference to where they will end up.
Vehicles:
Line 1(Light Tanks)

Open

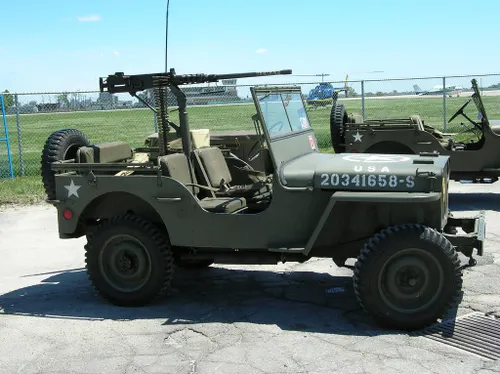

Willys MB(37mm)

In 1941 the U.S was looking into mobile anti tank options for its military. It was decided to test the Willys MB with a 37mm and a M1917 machine gun(designated T2 GMC), 11 units were tested but they weren’t happy with the results. The U.S would later turn their attention to the M2 Half track for the anti tank needs early in the war.

Armament:
Main: 37mm M3
Ammo: AP(M74 shot), APCBC(M51B1 shot)
Mobility:
Willys L134 “Go Devil” 60hp engine

T13E1

Developed in 1942 the T13 was one of the first anti tank armored cars produced for the U.S but the project was quickly abandoned for better anti tank options.

Armament
Main: 37mm M3
Ammo: AP(M74 shot), APCBC(M51B1 shot)
Secondary: .30 cal in hull and turret
Mobility
Guiberson T-1020 250hp engine

M8E1

in 1943 the U.S tested 2 M8 greyhounds with modified suspension(M8E1), these Greyhounds were also equipped with a turret ring for the .50 cal for a 360 degree of coverage.

Armament
Main: 37mm M6
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Secondary: .50 cal
Mobility
Hercules JXD 6 cylinder 4-cycle inline 110hp engine

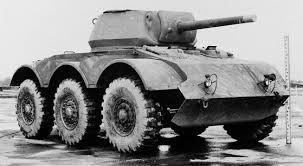

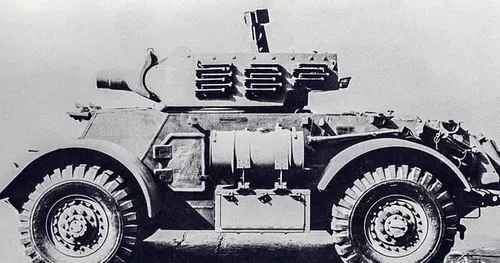

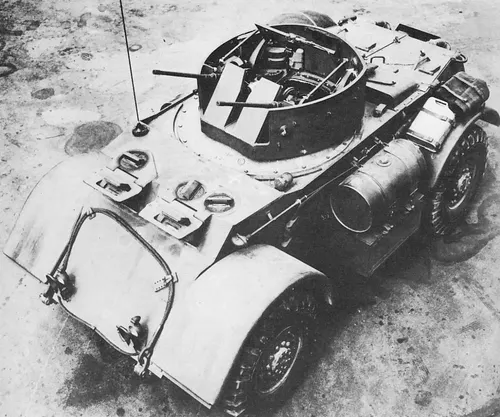

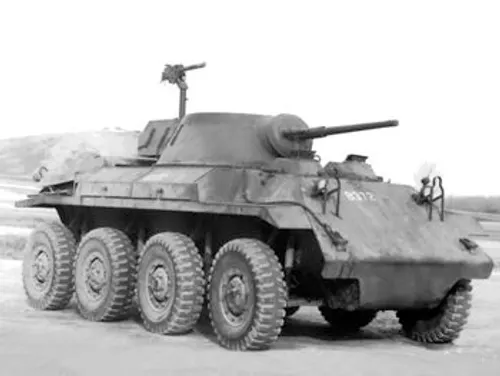

T17 Deerhound

Developed in 1941 by Ford for the U.S and British needs of a armored car, 250 would be produced until the M8 Greyhound would start production.

Armament:
Main: 37mm M6
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Secondary:2x .30 cal
Mobility:
2 x Hercules JXD 6-cylinder petrol engines 90hp engines(180hp)

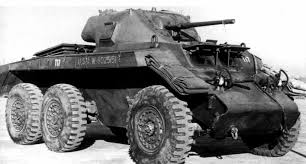

M38 Wolfhound

Developed by Chevrolet at the end of the war in 1944 the Wolfhound was set to replace the M8 Greyhound but was cancelled when the war ended.

Armament:
Main: 37mm M6
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Secondary: .50 cal and .30 cal
Mobility:
Cadillac 42, V-8 110hp engine

T56 GMC

Development started in 1942 the T56 was a modified Stuart light tank able to carry a 76mm gun, due to poor weight distribution the project was cancelled.

Armament:
Main: 76mm 3IN M7
Ammo: AP(M79 shot), HE(M42A1 shell), APCBC(M62)
Mobility:
Continental W670 12 288hp engine

T49 GMC

Developed by General Motors in 1942 it sought to upgrade the T42 GMC to a 57mm gun instead of the 37mm. The project was abandoned and the U.S put it’s resources into the T67 program instead.

Armament
Main: 57mm M1
Ammo: AP(M70), APCBC(M86)
Mobility
2x Buick Series 8 165hp engines(330hp total)

M3 M5/T39

M3 Stuart modified with M5/T39 Whizbang launcher on the top of it’s turret.

Armament
Main: 37mm M6
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Secondary: .30 cal
Mobility
W-670-9A 262hp engine
Misc
Gyro Stabilizer

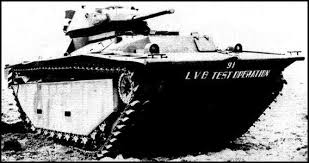

LVB

U.S ordered a experimental installation of the M24 Chaffee turret on the LVT, this required a modified hull for the LVT these changes were to the transmission, the turret ring and ammo stowage.

Armament
Main: 75mm M6
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M64)
Mobility
Continental W-670 9A 250 hp engine
Misc
Gyro-stabilizer

T66 GMC

The first trials of the T66 began in 1942, the project was deemed a success but the U.S wasn’t happy about the firepower so they began to develop the M18 Hellcat.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Mobility
2x 8-Cylinder Gasoline 260hp engine
Misc
Gyro-stabilizer

T88E1 HMC

Development began in 1944 after recommendation for a 105mm SPH. two prototypes were made, the T88 and T88E1. the T88E1 is a modified M18 Hellcat with a 105mm howitzer but gets a gyro stabilizer while the T88 doesn’t.

Armament:
Main: 105mm Howitzer T51
Ammo: HE(M1), HEAT(M67), APBC-HE(T24E1), APDS-HE(T28)
Mobility
Continental R-975-C4 460hp engine
Misc
Gyro-stabilizer

M38 Wolfhound(M24)

The U.S was in need of a armored car with decent firepower late in the war so they bolted a M24 Chaffee turret onto a M38 Wolfhound to test if the chassis could withstand the extra weight. unfortunately the turret wasn’t functional as it was bolted on and could only be turned by a crane, it could get the same treatment as the Radkampfwagen 90 so it could be added in game.

Armament:
Main: 75mm M6
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M64)
Mobility:
Cadillac 42, V-8 110hp engine
Misc
Gyro-stabilizer

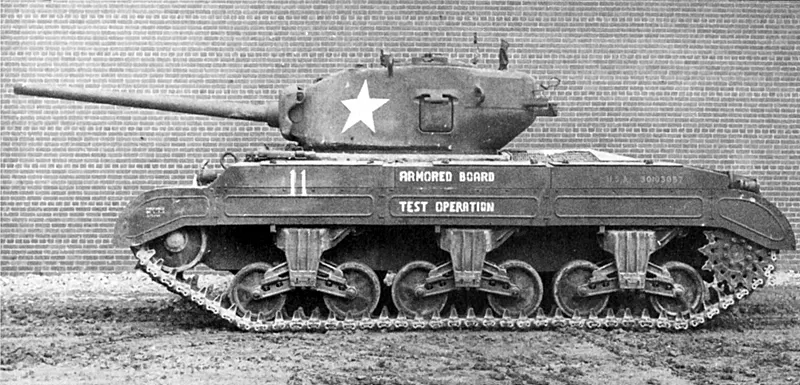

T24E1

Testing began in 1943 with a final product being produced in 1945, though it was deemed unsatisfactory for the U.S army needs at the time. This Chaffee gets a major speed boost with a 460hp engine from the M18 Hellcat, due to the size of the engine the engine compartment had to be extended

Armament
Main: 75mm M6
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M64)
Mobility
Continental R-975-C4 460hp engine
Misc
Gyro-stabilizer

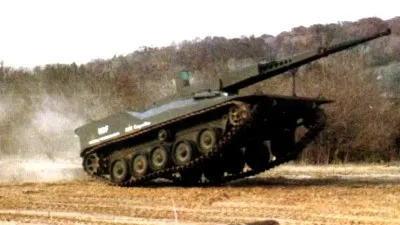

XM104 SPH

The U.S army was looking into options for airborne dropped tanks in the 1950’s. one of these options was the XM104, a 105mm SPH capable of firing Heat-fs and HESH with a total ammo count of 10 rounds.

Armament
Main: 105mm XM103
Ammo: HESH(M327), HEAT-FS(M662)
Mobility
Ford M151 inline-4 gasoline 66HP engine

T67 GMC

In 1942 it was decided that 37mm and 57mm were not enough for the tank destroyer forces. a new tank destroyer was created the T67, a vehicle with a 75mm gun, 330hp engine, armor ranging from 22mm to 25mm and Christie Suspension. The project would later become the T70 GMC up gunning the T67 with a 76mm, it would be designated as M18 Hellcat after a few changes.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Mobility
2x Buick petrol engines 165hp (330hp)
Misc
Gyro-stabilizer

M5/T1

Low profile tractor with a 76mm gun produced in 1942. it gets 8 degrees and depression and 15 degrees of elevation.

Armament
Main: 76mm M6
Ammo: AP(M79 shot), HE(M42A1 shell), APCBC(M62)
Mobility
160hp Hercules diesel engine

XM551 105

One of the Pilot vehicles of the XM551, it was armed with the XM103 the same gun found on the XM104. It gets access to a 105mm gun capable of firing Heat-fs and HESH, supposedly also has 50 rounds of ammo. it most likely doesn’t get a stabilizer, unlike its later variants and its co tester the 76mm M551.

Armament
Main:105mm XM103
Secondary: .50 cal
Mobility
GM 6V53T 275hp engine

T70 GMC

Development from the T67, it gets a 76mm gun, a .50cal and a 400hp engine. Effectively a M18 with a worse engine and minor changes.

Armament
Main:76mm M1
Ammo: AP(M79 shot), HE(M42A1 shell), APCBC(M62), APCR(M93), SMOKE(M88)
Secondary: .50 cal
Mobility
Continental R975-C4 400hp engine

T37E1

Plans of the T37 first began in 1945 and would eventually be built in 1949. There were 2 phases built the T37E1 and T37E2(pretty much a T41), a third one was planned with a autoloader and stabilizer but wasn’t built. the first T37 had a 76mm T94(similar to 76mm M1 but without APHE) while the second one had a 76mm T91(same as bulldog).

Armament
Main:76mm T94
Ammo: APBC(M339), HE(M352), APCR(M319)
Secondary: .50 cal and 2x .30 cal
Mobility
Continental AOS-895-1 450hp
Misc
stereoscopic rangefinder

XM551

XM551 has access to a 152mm XM81, Pilots 1-3 didn’t get a stabilizer and were unable to launch missiles.

Armament
Main: 152mm XM81
Ammo: HEAT(M409A1), HE(M657A2)
Secondary: .50 cal
Mobility
GM 6V53T 275 hp engine

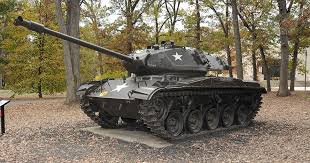

M41A3

Upgraded M41A2 with a better engine, M41A2 included power traverse, better ammo and a more fuel efficient engine developed in 1956.

Armament
Main: 76mm M32
Ammo: APBC(M339), HE(M352), APCR(M319), APDS(M331A2), SMOKE(M361), HEAT-FS(M496)
Secondary: .50 cal
Mobility
Continental 6-Cylinder supercharged 500 hp engine

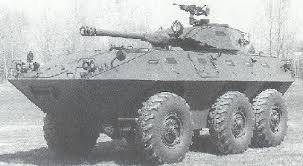

V-150 (90mm)

V-150 made by Cadillac Gage for export use, it is armed with a 90mm Cockerill MK3 which fires Heat-fs.

Armament
Main: 90mm Cockerill MK3 low pressure
Ammo: HEAT-FS(M620A1), SMOKE(M618A1), HESH(M625A1)
Secondary: .30 cal
Mobility
361 eight-cylinder petrol 305hp engine

M551"Two Box"

M551 modified for the removal of the missile system for more secondary ammo.

Armament
Main:152mm M81E1
Ammo: HEAT(M409A1), HE(M657A2)
Secondary: .50 cal and .30 cal
Mobility
Detroit Diesel 6V53T 300hp engine
Misc
Fully stabilized

T49

T49 is the development from the T41. trials began in 1954 but didn’t progress further, T49 is a M41 with a redesigned turret capable of carrying the T132E3 90mm gun capable of firing HEAT-FS and HESH.

Armament
Main: 90mm T132E3
Ammo: HEAT-FS(T108E40), HESH(T142E3), HE(T91), SMOKE(T92)
Secondary: .50 cal
Mobility
Continental AOS-895-3 500 hp
Misc
coincidence rangefinder

Lav 300

Lav 300 was developed by Textron Marine & Land Systems for export outside the U.S, the first order was completed in 1979. This is the 90mm Cockerill MK3 variant used in countries such as the Philippines.

Armament
Main: 90mm Cockerill MK.3
Ammo: HEAT-FS(M620A1), SMOKE(M618A1), HESH(M625A1)
Mobility
Cummins VT-504 270hp engine

T41E2

T41E2 was the development of the T41, it improved the design by adding a stabilizer, rangefinder and 4 MG’s. it was meant to have a autoloader but the project never reached that far before its cancellation.

Armament
Main: 76 mm T91
Ammo: APBC(M339), HE(M352), APCR(M319), APDS(M331A2), SMOKE(M361), HEAT-FS(M496)
Secondary: 2x .50 cal, 2x .30 cal
Mobility
Continental AOS-895-1 500hp engine
Misc
Full stabilizer
Coincidence rangefinder

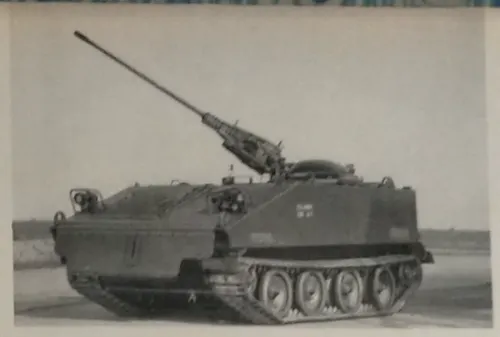

M114 TRW-6425

M114 modified with a unstabilized TRW-6425 25mm(KBA 25mm before the Swiss bought it), this gun differs from the bushmaster since it doubles its firerate with 550 RPM compared to the Bushmaster 200 RPM. It was first put on the M114 to test its reliability in 1967 but the U.S was more interested in the M242 resulting in the company selling the license to Switzerland.

Armament
Main:TRW-6425 25mm
Ammo: APDS, APHEI, HEI
Mobility
v8 gasoline 160 hp engine

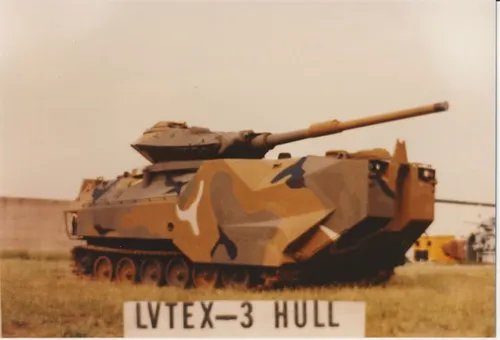

LVTEX-3

USMC prototype of the LVTP-7 in the 1960’s with a Sheridan M68 105mm mount but was cancelled after it was deemed too expensive and not much worth for the USMC.

Armament
Main: 105mm M68
Ammo: APDS (M392A2), HESH(M393A2), HEAT-FS(M456), SMOKE(M416)
Secondary: .30 cal
Mobility
Detroit Diesel 8V-53T 400hp engine
Misc
Possible stabilizer

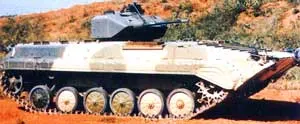

NFV-1

cooperative project between Chinese NORINCO and US FMC companies in the 1980s for the international arms market, it mounted a Lav 25 turret onto a Type 86(Chinese BMP-1) hull.

Armament
Main: M242 25mm Busmaster
Ammo: APDS(M791) HEI(M792)
Secondary: .30 cal
Mobility
Norinco 6V150 293hp engine
Misc
Full stabilizer
NVD

V-150S

V-150 developed by Cadillac Gage for the international market, this variant is armed with a 25mm Bushmaster

Armament
Main: 25mm M242 Bushmaster
Ammo: APDS(M791) HEI(M792)
Secondary: .30 cal
Mobility
361 eight-cylinder petrol 210hp
Misc
Full stabilizer
NVD

LAV 25

General Motors submission for the light armored vehicle program, it was accepted in 1981 but was cancelled by Congress. When the USMC saw the cancellation they quickly bought 758 of the LAVS and its variants.

Armament
Main: 25mm M242 Bushmaster
Ammo: APDS(M791) HEI(M792)
Secondary: .30 cal
Mobility
Detroit Diesel 6V53T 300 hp
Misc
Full stabilizer
Thermals

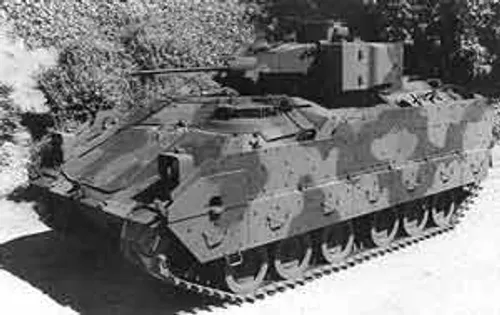

XM-723 TOW

After the MICV-65 program was cancelled the U.S turned to the MICV-70 program for its new IFV, once again the army turned to FMC for its program as it already produced variants for the MICV-65. One of the new variants for the MICV-70 was the XM-723 with a Tow missile. The army was happy with the new MICV-70(XM-723) program and turned it into the M2 Bradley, though they would up arm it with the 25mm Bushmaster and Tow missile.

Armament
Main: 20mm M139, BGM-71 TOW 1
Ammo: AP, HEI, TOW
Secondary: .30 cal
Mobility
Detroit Diesel 8V-53T 400hp

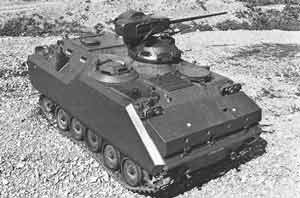

M113 TRW-6425

Similar to the M114 but this variant uses the M113 and a stabilized turret.

Armament
Main: TRW-6425
Ammo: Ammo: APDS, APHEI, HEI
Mobility
Detroit Diesel 6V53T 275 hp
Misc
Full stabilizer

Dragoon 300 KBA

Dragoon 300 with KBA 25 turret

Armament
Main: 25mm KBA
Ammo: HEI-T(M792), APDS(M791)
Mobility
6V-53T 300hp engine
Misc
Full stabilizer

XM800W

Part of the XM800 program as Lockheed’s submission, it is a wheeled version of the XM800T so it gets everything that the XM800T gets.

Armament
Main: 20mm M139
Ammo: HE, AP, DM63
Secondary: .30 cal
Mobility
General Motors 6V53T 300 HP engine.
Misc
LRF
Full stabilizer

M551A1 TTS

M551 upgraded with a laser range finder in 1972, this variant would later be upgraded to TTS in 1980 to improve the dated FCS.

Armament
Main:152mm M81E1
Ammo: HEAT(M409A1), HE(M657A2), MGM-51B Shillelagh
Secondary: .30 cal
Mobility
6V53T 300hp engine
Misc
LRF
Full stabilizer
Thermals

M2A1 Bradley

Improved M2 Bradley with improvements to crew comfort and the TOW system, production began in 1985 and would end in 1992 with the introduction of the M2A2 Bradley.

Armament
Main: 25mm M242 Bushmaster, BGM-71 TOW
Ammo: Ammo: APDS(M791) HEI(M792), TOW-2
Secondary:.30 cal
Mobility
VT903 500hp engine
Misc
Full stabilizer
Thermals

M117(90mm)

M117 designed for Afghan army in 2014, it was meant for the M117 to be a direct support vehicle but Afghanistan couldn’t purchase the vehicle because the gun was made by Belgium and the U.S couldn’t get a agreement between them.

Armament
Main: 90mm Cockerill MK IIIM-A1
Ammo: APFSDS(M652A1), HEAT-FS(M620A1), HESH(M625A1), HE(M616A1)
Secondary: .30 cal
Mobility
6CTA8.3 260 hp engine
Misc
LRF
Full stabilizer
NVD

M7 BFIST

The BFIST takes components from the ODS upgrade package and a Battlefield Combat Identification System in place of the Tow missile. this allows for the U.S army to differentiate between friend and foe in high risk situations. Though would be quite useless in game other than sim, but it would give the U.S a 9.0 Bradley.

Armament
Main: 25mm M242 Bushmaster
Ammo: APDS(M791), APFSDS(M919)
Secondary: .30 cal
Mobility
Cummins VTA-903T 600 hp engine
Misc
LRF
Thermals
Full stabilizer
BCIS
Armor Package

LAV 25A2

Development of the LAV25 by the USMC, The LAV25A2 gets the same treatment as the ODS package for the Bradley including better ammo, protection, thermals and a LRF.

Armament
Main: 25mm M242 Bushmaster
Ammo: APDS(M791), APFSDS(M919)
Secondary: .30 cal
Mobility
Detroit Diesel 6V53T 275hp engine
Misc
Full stabilizer
LRF
Armor Package
Thermals

M3A2 ODS

M3A2 upgraded with the ODS package, able to fire TOW-2A/B and APFSDS. This upgrade was made to counter threats in Iraq, mainly from insurgents with RPG’s. Raphael and GDLS would upgrade the M3A2 with better Thermals and a armor package containing 104 bricks of ERA

Armament
Main: 25mm M242 Bushmaster, BGM-71 TOW launcher
Ammo: APDS(M791), APFSDS(M919), TOW-2, TOW-2A, TOW-2B
Secondary: .30 cal
Mobility
Cummins VTA-903 600HP engine
Misc
LRF
Thermals
Full stabilizer
Armor package
APS

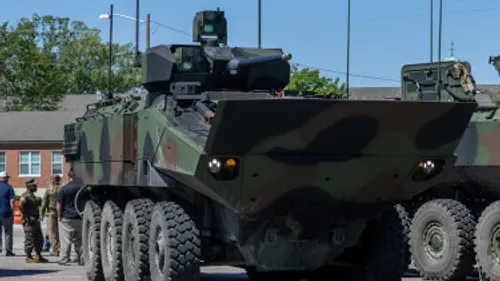

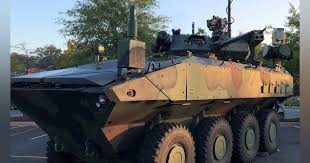

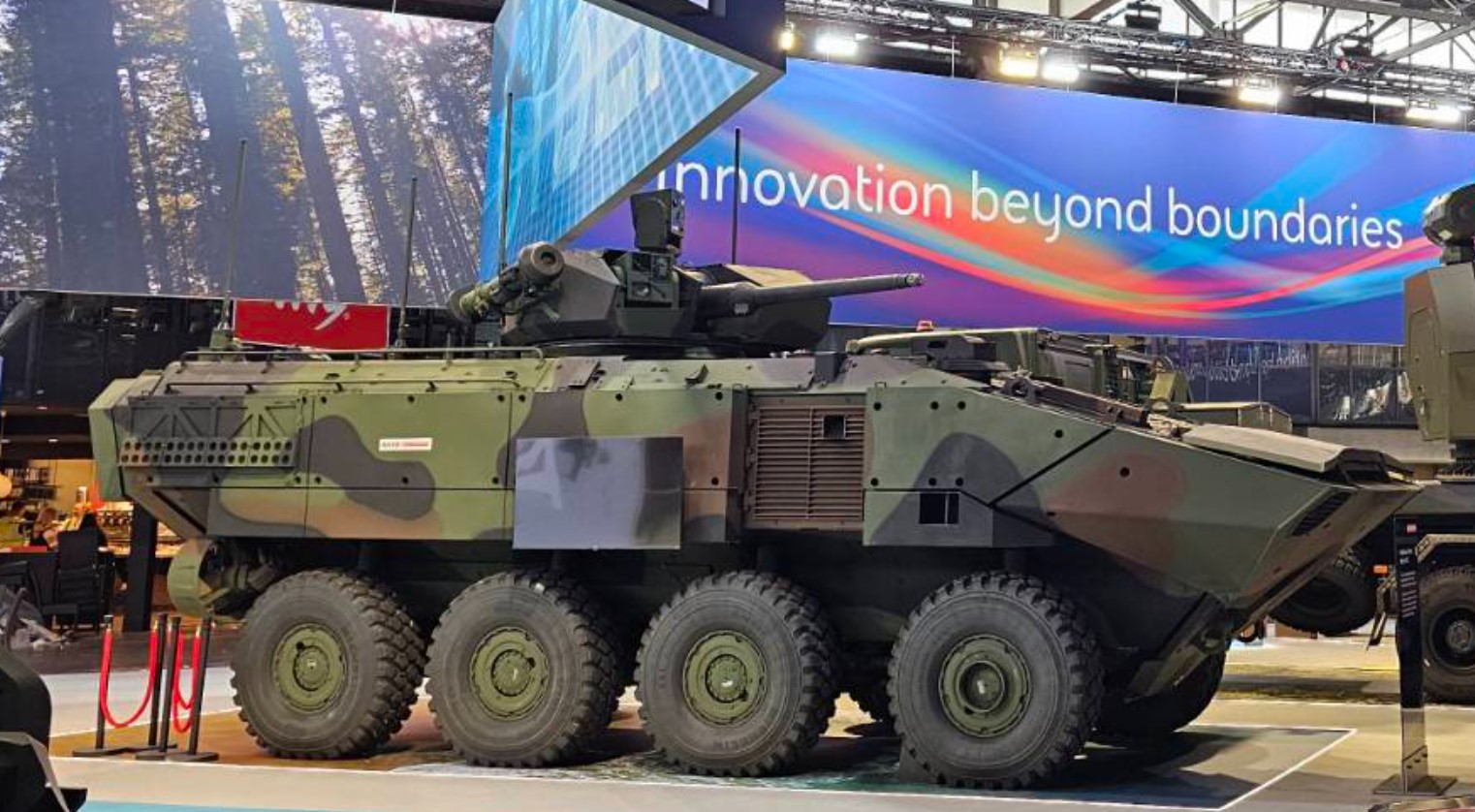

ACV 30

ACV-30 was designed for the USMC to replace its aging Amphibious and wheeled vehicle fleet, it is meant to fight in areas with uncertain terrain. USMC has accepted the contract and is gradually replacing their LAV 25’s and AAV’s.

Armament
Main: 30mm XM813
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM
Mobility
Iveco Cursor 16 700hp engine
Misc
Full stabilizer
Thermals
LRF

M3A2

M3A1 upgraded after the Gulf war to include a 600hp engine, a eye safe LRF and improvements to the 25mm Bushmaster ammo selection.

Armament
Main: 25mm M242 Bushmaster
Ammo: APDS(M791), APFSDS(M919)
Secondary: .30 cal
Mobility
VTA903 600hp engine
Misc
Full stabilizer
LRF
Armor Package
Thermals

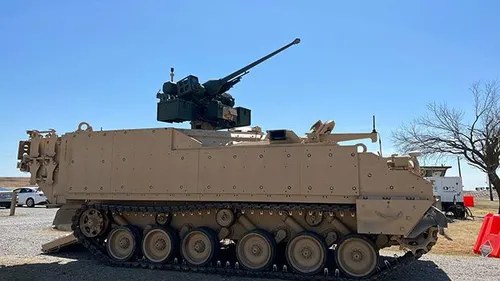

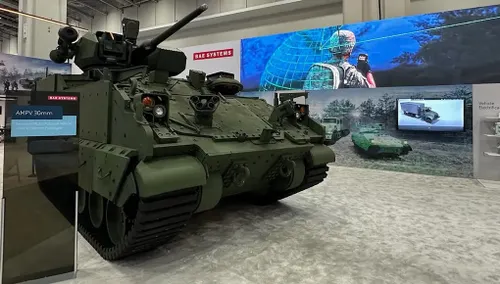

AMPV UT30

AMPV with UT30 turret to showcase it’s versatility while being cheaper than other options.

Armament
Main: 30 Mk44S Bushmaster
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM
Secondary: .30 cal
Mobility
VTA903E-T675 676hp engine
Misc
Full stabilizer
Thermals
Tracking
LRF

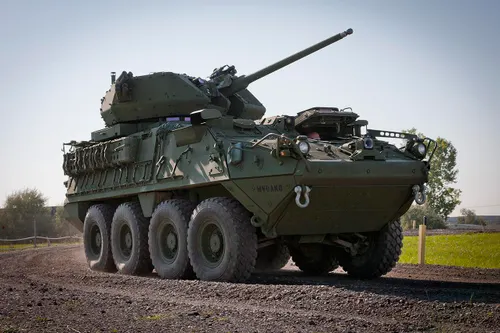

M1296 Dragoon RT40

M1296 with RT40 unmanned turret, this is the final product and production of the M1296 after it was given it’s designation from XM1296.

Armament
Main: 30mm XM813
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM
Mobility
Caterpillar C7 350hp engine
Misc
Full stabilizer
Thermals
LRF

Bradley CVAST

The CVAST turret was a proposed upgrade for the M2 Bradley infantry fighting vehicle. It was designed around an ARES Talon 35 mm gun, which was a dual-feed cannon compatible with existing Oerlikon stocks of ammunition, as well as a new APFSDS round. Uses the same Tow missiles on the M2A1 but they are in a fixed position so they will not move.

Armament
Main: 35mm ARES Talon, BGM-71 TOW
Ammo: APFSDS, API, HEI, SAPHEI, TOW-2
Secondary: .30 cal
Mobility
VTA-903T 600hp engine(likely)
Misc
LRF
Full Stabilizer
Thermals

Bradley CTA 40

In 1999 the CTAS 40 turret developed by France and U.K was fitted onto a Bradley to test the firepower, it gave the U.S incentive to make its own upgrades and made the 40mm Bushmaster II. Most likely uses TOW-2 missiles, maybe Tow 2B.

Armament
Main: 40mm CTAS 40, BGM-71 TOW
Ammo: APFSDS(CTAS 40), Airburst(A3BT), TOW-2
Secondary: .30 cal
Mobility
VTA-903T 600hp engine
Misc
LRF
Thermals
Full stabilizer

Bradley COMVAT

The Bradley COMVAT 45mm was developed in the early 1980s. This program aimed to upgun the M2 Bradley with larger autocannons using Cased Telescoped Ammunition (CTA). One of these variants was equipped with an Ares XM295 45mm autocannon, utilizing a new 45x305 telescoped ammunition and a fixed Tow launcher with the same missiles as M2A1.

Armament
Main: XM295 45mm, BGM-71 TOW
Ammo: APFSDS, APDS, HEI, Airburst, TOW-2
Secondary: .30 cal
Mobility
VTA-903T 600hp engine
Misc
LRF
Thermals
Full stabilizer

HIMAG-A 90

Part of the HIMAG program for the USMC, supposed to be the USMC equivalent to the HSTVL. I couldn’t find too much info but a 90mm gun was developed but was never fitted onto the HSTVL due to it being too big. It had the same 5 round magazine with a 36 round carousel, supposedly it could fire APFSDS, HEAT-FS, HE and HESH though info could be misleading.

Armament
Main: 90mm ARES XM-275
Ammo: APFSDS, HEAT-FS, HE, HESH
Mobility
AVCR 1360-2 1500hp engine
Misc
Thermals
Full stabilizer
Autoloader
LRF

HIMAG-A

USMC version of the HSTVL, same as HIMAG-A-90 but actually had a 75mm ARES gun.

Armament
Main: 75mm ARES XM-274
Ammo: HE-P(XM884), APFSDS(XM885)
Mobility
AVCR 1360-2 1500hp engine
Misc
Thermals
Full stabilizer
Autoloader
LRF

M8 MPF

Updated version of the XM8, it was suppose to compete with the M10 Booker but wasn’t completed in time for the U.S trials so the M10 Booker won. It gets better ammo(M900), APS and Thermals.

Armament
Main: 105mm XM35
Ammo: APFSDS(M735, M774, M900), HESH(M393A2), HEAT-FS(M456A2)
Mobility
MTU diesel engine 550hp engine
Misc
LRF
Full stabilizer
APS
Thermals
Autoloader

LAV 700 XM913

LAV 700 developed by Canada tested by the U.S and mounted with a 50mm XM913 cannon. Could also get LAV700 AG(with Cockerill 3015 turret) as it was tested by the U.S.

Armament
Main: XM913 50mm
Ammo: APFSDS, HE-P
Mobility
Caterpillar C13 711hp engine
Misc
LWS
LRF
Full stabilizer
thermals

M8 Lightning bolt

M8 Thunderbolt was developed in 2003 with a different engine and a 120mm gun instead of the 105mm used on the M8, APS and better thermals.

Armament
Main: 120mm XM291
Ammo: KEP (XM866), HEAT-FS(XM831)
Mobility
Hybrid Electric Drive system 750hp
Misc
APS
Thermals
Full stabilizer
LRF

M10 BOOKER

It was developed from the GDLS Griffin II armored fighting vehicle as the winner of its Mobile Protected Firepower (MPF) program in June 2022. it was supposed to enter service this year but was cancelled in 2025 due to it not meeting new military requirements.

Armament
Main: M35 105mm
Ammo: APFSDS(M735, M774, M900), HESH(M393A2), HEAT-FS(M456A2)
Secondary: .50 cal
Mobility
MTU 8V199 TE23 800hp engine
Misc
possible APS
LRF
Full stabilizer
Thermals

RDF-LT LAV

RDF-LT turret on LAV hull(actually a prototype of the Piranha hull) done by AAI for future options of the HSTVL.

Armament
Main: 75mm Ares XM274
Ammo: HE-P(XM884), APFSDS(XM885)
Secondary: .30 cal
Mobility
6V53T 300hp engine(probably)
Misc
Thermal
Full stabilizer
Autoloader
Tracking
LRF

M551 ELKE

M551 armed with a ARES 75mm gun, it was done by Pacific Car and Foundry after their proposal lost in the HSTVL program. The army liked their idea and gave them another chance with the ELKE but AAI was already marketing to the army so the ELKE stopped testing. Looks like the gun had to be manually loaded from the hatch though i could be wrong.

Armament
Main: 75mm ARES XM-274
Ammo: HE-P(XM884), APFSDS(XM885)
Mobility
6V53T 300hp engine
Misc
LRF
Thermals
Tracking
Full stabilizer

GRIFFIN-TD

The first Griffin model developed in 2016 based on CV90120 and Rheinmetall designs, it wasn’t meant for service but for entry into the FCS program.

Armament
Main: XM360 120mm
Ammo: APFSDS(M829, M829A2/3), HEAT-FS(M830, M830A1, M908)
Secondary: .50 cal
Mobility
MTU Freidrichshafen 800hp engine
Misc
Add on armor
APS
Thermals(possible)
Full stabilizer
LRF

RDF/LT III

RDF/LT with redesigned turret for a more compact tank, other than that nothing else changes.

Armament
Main: 75mm Ares XM274
Ammo: HE-P(XM884), APFSDS(XM885)
Secondary: .30 cal
Mobility
6V53T 350hp engine(possibly 650hp Lycoming 650)
Misc
Thermal
Full stabilizer
Autoloader
Tracking
LRF

RDF/LT IIII

RDF/LT III with stinger pods(possibly mock up, though would still be cool to add in game)

Armament
Main: 75mm Ares XM274
Ammo: HE-P(XM884), APFSDS(XM885)
Secondary: .30 cal
Mobility
6V53T 350hp engine(possibly 650hp Lycoming 650)
Misc
Thermal
Full stabilizer
Autoloader
Tracking
LRF

Line 2(Medium tanks)

Open

MARK VIII LIBERTY

MARK VIII Liberty is a upgrade codeveloped by the U.S and Britain for the MARK VIII set to arm the European front but was only developed after WW1. The major change to the Tank was that it gained a Liberty engine and .30 cals.

Armament
Main: 2x 57mm Hotchkiss 6pdr
Ammo: QF AP, QF HE
Secondary: 5x .30 cal
Mobility
V-12 Liberty 300hp engine

T5 Phase III

Part of the T5 series tank and the only actual model without a dummy gun or wooden armor. T5 was the prototype of the M2 medium tank developed in the late 1930’s.

Armament
Main: 37mm T3
Ammo: AP(M74 shot), APCBC(M51B1 shot)
Secondary: 7x .30 cal
Mobility
346hp Wright Radial engine

T5E2

Development from the T5 series and a M2 prototype carrying a 75mm howitzer in its hull as well as a optical rangefinder.

Armament
Main: 75mm M1 howitzer
Ammo: HEAT(M66), HE(M48)
Secondary: 5x .30 cal
Mobility
346hp Wright Radial engine
Misc
Optical rangefinder

T6 Medium

In the summer of 1940 U.S army began to develop a new medium tank for the U.S army after the development of the M3 Lee, they wanted a turret with a 75mm gun that could traverse 360 degrees. With this idea in mind they started the T6 project in 1941, it wasn’t as successful as they hoped but it had done the job they wanted it to do. They would develop the T6 into the M4 Sherman after major modifications to fit the U.S army requirements.

Armament
Main: 75mm M2
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: 2x .30 cal
Mobility
Wright R975 EC2 350hp

M4A4E1

M4A4E1 began development in 1943 and was the basis of the 105mm Shermans, the M4A3 105 would replace it due to better overall performance. it differentiates to the one in game as it has Power traverse and a Gyro stabilizer.

Armament
Main: 105mm M2 howitzer
Ammo: HE(M1), HEAT(M67), Smoke(M84)
Secondary: .30 cal
Mobility
Chrysler multibank 425 hp engine
Misc
Gyro-stabilizer

M3A1 Lee

M3 lee with cast iron hull, these M3 Lee’s were mainly for training and designed to be cheaper and production proficient compared to other tanks of the similar role.

Armament
Main: 37mm M5
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Secondary: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)Mobility
Mobility
R975 EC2 400hp engine
Misc
Gyro stabilizer

T76

The U.S was in need of a engineering vehicle to clear obstacles in 1943, they wanted it to be heavy and reliable so they chose the M4A1 Sherman as the base. They heavily modified it with a T73 launcher capable of launching 7.2 inch unguided rockets. The project stopped after the U.S army realized that it would need support from other tanks for it to do its job since it had to get within 300 meters for it to fire.

Armament
Main: T76 183mm launcher
Ammo: 7.2IN rocket
Mobility
R975 C1 400hp engine

M4 Composite

In 1943 the U.S army was looking for cheaper development for the M4 Sherman so they Split a cast iron Sherman with a base M4 Sherman. This resulted in less materials needed and a lesser mold for the Sherman.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
R975 C1 400hp engine
Misc
Gyro-stabilizer

M4A1(T23)

M4A1 fitted with the T23 turret from the T20 series, it gets a 75mm instead of the 76mm used on these prototypes and later Sherman variants.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
R975 C1 400hp engine
Misc
Gyro-stabilizer

M4A3 (75) W

Introduced in late 1943 it was designed to be the peak of Sherman engineering with better engine performance and designed for crew safety priority.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
Ford GAA 500hp engine
Misc
Gyro-stabilizer

M4A1 (76M1)

Prototype of the 76mm Sherman variants, instead of the T23 turret this tank features the base Sherman turret which was more cramped resulting in a much slower reload speed and traverse due to the extra weight of the gun.

Armament
Main: 76mm M1
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M64)
Secondary: .30 cal
Mobility
R975 C1 400hp engine

M4A3 17PDR

U.S army Shermans sent to the U.K for Firefly configurations, these would be used by U.S troops and not British. These Shermans consisted of M4 and primarily M4A3 variants and were upgunned with British 17pdr guns, since these configurations were at the end of the war they had access to APDS rounds.

Armament
Main: 17 pounder gun(76.2mm)
Ammo: AP(MK.6), HE(MK.1), APC(MK.4), APCBC(MK.8), APDS(SV MK.1), SMOKE(SS MK.1)
Mobility
Ford GAA 500hp engine

T23E3

The T23 Medium Tank was a prototype medium tank developed by the United States Army during World War II, intended to succeed the M4 Sherman. 248 T23’s were built but never entered service, the turrets would later be used on the 76mm Sherman tanks. The E3 variant used torsion bar suspension.

Armament
Main: 76mm M1
Ammo: AP(M72 shot), HE(M48), APCBC(M61), APCR(M93)
Secondary: .50 cal
Mobility
Ford GAA V8 500hp engine
Misc
Gyro-stabilizer

T23E4

T23E4 uses T25 hull and M4A3E8 turret.

Armament
Main: 76mm M1
Ammo: AP(M72 shot), HE(M48), APCBC(M61), APCR(M93)
Secondary: .50 cal
Mobility
Ford GAA V8 500hp engine
Misc
Gyro-stabilizer

T20E3

Replaced HVSS with Torsion bar suspension

Armament
Main: 76mm M1
Ammo: AP(M72 shot), HE(M48), APCBC(M61), APCR(M93)
Secondary: .50 cal
Mobility
Ford GAA V8 500hp engine
Misc
Gyro-stabilizer

T42

prototype medium tank developed by the United States in the immediate postwar period, specifically between 1948 and 1953. It was designed to have at least the equal firepower of the M46 Patton tank but with superior protection

Armament
Main: 90mm T119
Ammo: APBC(M318), HE(M71), APCBC(M82), APCR(M304, M332), HEAT-FS(M348), Smoke(M313)
Secondary: .50 cal
Mobility
AOS-895-3 500hp engine
Misc
stereoscopic rangefinder

M46E1

M46 with T42 turret, it was used to test as a possible upgrade to the M46 but would later be abandoned for newer projects.

Armament
Main: 90mm T119
Ammo: APBC(M318), HE(M71), APCBC(M82), APCR(M304, M332), HEAT-FS(M348), Smoke(M313)
Secondary: .50 cal
Mobility
AVDS-1790-5A V12 810hp engine
Misc
stereoscopic rangefinder

M47E1

Development of the T42 and M47 Patton, it incorporated elements that weren’t added from the T42 onto the M47 like the stabilizer.

Armament
Main: 90mm T119
Ammo: APBC(M318), HE(M71), APCBC(M82), APCR(M304, M332), HEAT-FS(M348), Smoke(M313)
Secondary: .50 cal
Mobility
AVDS-1790-5A V12 810hp engine
Misc
stereoscopic rangefinder
Full stabilizer

T48

Early M48 with Chrysler cupola.

Armament
Main: 90 mm M41
Ammo: APCR(M332), APCBC(M82), HEAT-FS(M431), HESH(T142E3), HE(M71), SMOKE(M313)
Mobility
AV-1790-5B 810hp engine
Misc
stereoscopic rangefinder

M48A5

Attempt to up arm the M48 with a 105mm gun to bring it up to M60A1 standard, this would also replace the engine with the M60 engine.

Armament
Main: 105mm M68
Ammo: APDS (M392A2), HESH(M393A2), HEAT-FS(M456), SMOKE(M416)
Secondary: .50 cal
Mobility
Continental AVDS-1790-2 V12 750hp engine
Misc
stereoscopic rangefinder

M60A1

The M60 entered service in 1962, it used the turret from the T95E7 after the project was abandoned for the M60.

Armament
Main: 105mm M68
Ammo: APDS (M392A2), HESH(M393A2), HEAT-FS(M456), SMOKE(M416)
Secondary: .50 cal
Mobility
Continental AVDS-1790-2 V12 750hp engine
Misc
stereoscopic rangefinder

T95E2

Developed in 1953 utilizing components from the T96 but due to late production of the turrets a few were equipped with M48A2 turrets in 1957 and proved to be equal to the M48 so development of the M48 turrets were stopped.

Armament
Main: 90mm M41
Ammo: APCR(M332), APCBC(M82), HEAT-FS(M431), HESH(T142E3), HE(M71), SMOKE(M313)
Mobility
AV-1790-5B 810hp engine
Misc
stereoscopic rangefinder

M48A5(FGSTB)

M48A5 upgraded in 1980 with AOS upgrades including a stabilizer and APFSDS similar to M60A1 RISE+.

Armament
Main: 105mm M68
Ammo: APDS(M728), HESH(M393A2), HEAT-FS(M456), SMOKE(M416), APFSDS(M735)
Secondary: .50 cal
Mobility
Continental AVDS-1790-2 V12 750hp engine
Misc
stereoscopic rangefinder
Full stabilizer

M551(M68)

M551 upgraded with a M68 gun, couldn’t find too much info on it but it possibly has a LRF and a full stabilizer.

Armament
Main: 105mm M68
Ammo: APDS(M728), HESH(M393A2), HEAT-FS(M456), SMOKE(M416), APFSDS(M735)
Secondary: .50 cal
Mobility
6V53T 300hp engine
Misc
LRF
Full stabilizer

Stingray

Cadillac Gage developed a airborne tank for export to foreign countries, it is most known for in Thai service but the U.S also trialed it from Gage but never accepted it. it can fire all types of NATO ammo as it carries a L7A3 tank gun.

Armament
Main: 105mm L7A3
Ammo: HESH(M393A2), HEAT-FS(M456), SMOKE(M416), APFSDS(M735A1, M426)
Secondary: .50 cal
Mobility
Allison 8V-92TA 535 hp engine
Misc
LRF
Full stabilizer
Thermal

STINGRAY II

Cadillac Gage upgraded version of the Stingray light tank, it was meant to increase sales for foreign countries that weren’t interested in the Stingray tank. This included integrated Thermals and LRF, better engine and armor.

Armament
Main: 105mm L7A3
Ammo: HESH(M393A2), HEAT-FS(M456A2), SMOKE(M416), APFSDS(M735A1, M426)
Secondary: .50 cal
Mobility
8V-92TA 550hp engine( as well as a 650hp engine)
Misc
LRF
Thermal
Full stabilizer
Add on armor

M60AX

Teledyne Continental was looking to extend the M60 lifespan after the U.S was looking into more MBT options, it was heavily modified with composite armor but was not picked due to lack of interest.

Armament
Main: 105mm M68A1E2
Ammo: HESH(M393A2), HEAT-FS(M456A2), SMOKE(M416), APFSDS(M735, M774, M833)
Secondary: .50 cal
Mobility
AVCR-1790-1B 1200hp
Misc
Full stabilizer
Thermals
LRF

Leopard 2AV 120

Krauss-Maffei had marketed the Leopard 2AV to the U.S for their new MBT program, they sent Leopard 2AV’s over to the U.S armed with 105mm guns to replicate what the U.S needed. After the trials and the rejection of the vehicle from the U.S Krauss-Maffei armed a 2AV with a 120mm L/44 to show the U.S it was possible but was soon dismantled and shipped back to Germany. This COULD go to the U.S as it was modified in the USA and presented to the U.S for its own trial and wasn’t adopted in Germany, of course it doesn’t mean it’s a U.S tank so it could go to Germany instead or both countries.

Armament
Main: 120mm L/44
Ammo: HEAT-FS(DM12), APFSDS(DM13, DM23)
Secondary: MG34
Mobility
MTU MB 873 Ka-501 1500hp engine
Misc
LRF
Full stabilizer

RDF/LT I

The first of AAI’s RDF/LT prototypes armed with a autoloaded 76mm M32 gun capable of firing APFSDS from Denmark’s M41 DK-1. Other than that i couldn’t find too much about it.

Armament
Main: 76mm M36
Ammo: APFSDS, HEAT-FS
Mobility
6V53T 350hp
Misc
LRF
Full stabilizer
Autoloader
Thermals?

Stingray AGS

Stingray modified for the AGS program, it includes a autoloader in place of the fourth crew member, better ammo such as M900 as it uses the LAV 105 turret and improved armor.

Armament
Main: 105mm XM35
Ammo: APFSDS(M735, M774, M833, M900), HESH(M393A2), HEAT-FS(M456A2)
Secondary: .50 cal
Mobility
6V92 DDEC TA 550hp engine
Misc
LRF
Autoloader
Full stabilizer
Thermals

Object 478BEM-1

Modified Object478DU9(T-84) for the U.S made by Ukraine, the U.S purchased 4 for OPFOR missions. The DU9 slightly downgrades itself by removing the Shorta-1 system and due to it being shipped off before getting newer ammunition, it gets access to 3BM42 as it’s best round. the U.S did purchase GL-ATGM’s from Ukraine in 2020 for the Object 478’s, also was originally thought to not include Thermals but it does have it.

Armament
Main: 125mm KBA3 Smoothbore Gun
Ammo: APFSDS(3BM44U), HEAT-FS(3BK18M), HE-FRAG(3OF26), GL-ATGM
Secondary: 12.7mm
Mobility
KMDB 6TD-2E 1200hp engine(can go 32km in reverse)
Misc
LRF
LWS
Thermals
Full stabilizer
APS

M1 TTB

M1 TTB is a M1A1 modified with a low profile turret and better hull armor.

Armament
Main: 120mm M256
Ammo: HEAT-FS(M830, M830A1, M908), APFSDS(M829, M829A1)
Secondary: .50 cal
Mobility
AGT-1500 1500hp engine
Misc
LRF
Thermals
Full stabilization

M1A1HA+

M1A1 with second generation depleted uranium armor

Armament
Main: 120mm M256
Ammo: HEAT-FS(M830, M830A1, M908), APFSDS(M829, M829A1)
Secondary: .50 cal
Mobility
AGT-1500 1500hp engine
Misc
LRF
Thermals
Full stabilizer

M1A1SA

M1A1 modified with a Situational Awareness system, it gets 3rd gen DU armor, better thermals, Red-Blue detection system, improved transmission and suspension.

Armament
Main: 120mm M256
Ammo: HEAT-FS(M830, M830A1, M908), APFSDS(M829, M829A2/A3)
Secondary: .50 cal
Mobility
AGT-1500 1500hp engine
Misc
LRF
Thermals
Full stabilizer
Red-Blue detection

M1A1 FEP+

M1A1 FEP is a USMC modification of the M1A1 Abrams, it gets better situational awareness, target locater, DU3 armor and improved thermals. regular FEP can also be added in the game with DU2 armor.

Armament
Main: 120mm M256
Ammo: HEAT-FS(M830, M830A1, M908), APFSDS(M829, M829A2/A3)
Secondary: .50 cal
Mobility
AGT-1500 1500hp engine
Misc
LRF
Thermals
Full stabilizer

M1A2 XM291

M1A2 modified with a 140mm XM291 rifled gun. This is not the M1A2 M256E1 as some people say, the M256E1 was never pictured.

Armament
Main: 140mm XM291
Ammo: KEP (XM866), HEAT-FS(XM831)
Secondary: .50 cal
Mobility
AGT-1500 1500hp engine
Misc
LRF
Thermals
Full stabilizer

M1 CATTB

M1 CATTB was a tech demonstrator for the U.S armies capabilities. it gets access to a 140mm gun, aps, better engine, spall liners, composite armor and LWS.

Armament
Main: 140mm XM291
Ammo: KEP (XM866), HEAT-FS(XM831)
Secondary: .50 cal
Mobility
XAP-1000 diesel 1450hp engine
Misc
LRF
Thermals
Full stabilizer
LWS
Autoloader
APS

Line 3(Medium/Heavy tanks)

Open

CTMS-1TB1

Developed by Marmon-Herrington in the 1930’s it was meant to equip the Dutch east indies company with new armor. It was also used by the U.S but was received poorly and was deemed insufficient penetration, poor accuracy, poor armor and engine.

Armament
Main: 37mm AAC
Ammo: AP, HEI
Secondary: 4x .30 cal
Mobility
Hercules RLXDI 174hp engine

MTLS-1G14

CTMS-1TB1 with dual 37mm ACC autocannons.

Armament
Main: 2x 37mm AAC
Ammo: AP, HEI
Secondary: 4x .30 cal
Mobility
Hercules RLXDI 174hp engine

T21 AC

Studebaker Corporation submission for new GMC(Gun Motor Carriage) vehicles for the army. This prototype was so successful that the U.S decided to upgrade it and give the designation of T22, which would become the M8 greyhound.

Armament
Main: 37mm M6
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Secondary: .30 cal
Mobility
Hercules JXD 112hp engine

T17E1

Designed and produced by Chevrolet for the lend lease act and British army needs. Produced in the U.S but never saw service other than military police corps.

Armament
Main: 37mm M6
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Secondary: .30 cal
Mobility
2x GMC 270 194hp engine
Misc
Gyro stabilizer

LVT(A)-5

LVT(A)-4 with a gyro stabilizer and powered turret.

Armament
Main: M2 75mm howitzer
Ammo: HEAT(M66), HE(M48), SMOKE(M64)
Secondary: .50 cal
Mobility
W-670-9A 250hp engine
Misc
Gyro-stabilizer

M7

First prototype of the M7 series which was designed to replace the Stuart light tanks. This variant features a Welded hull, five-speed hydromantic transmission, volute spring suspension based on the M3/M5’s. With a similar turret to the M3 Lee.

Armament
Main: 37mm M5
Ammo: AP(M74 shot), APCBC(M51B1 shot)
Secondary: .30 cal
Mobility
Continental R975 C1 400hp engine
Misc
gyro-stabilizer

M5

M7 with redesigned hull and turret made to accept the weight and size of the 57mm 6pdr MKIII.

Armament
Main: 57mm 6pdr MKIII
Ammo: AP(MK.5), APC(MK.8), APCBC(MK.9), HE(MK.10)
Mobility
Wright R-975 Engine 400hp engine

M7E2

Improved T7E2 armed with a 75mm gun, redesigned for the lightest possible castings. Power train revisions, torque converter modifications, final drive gear ratio changed from 2.5:1 to 2.685:1, 13 tooth sprocket replaced the 14 tooth sprocket.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .30 cal
Mobility
Continental R975E-C2 400hp engine
Misc
Gyro-stabilizer

M4A6

M4 Composite with a enlarged chassis like the M4A4 for the bigger engine compartment carrying a 500hp engine. only 75 were made and unlike the composite it was discontinued since the U.S wanted to focus on gasoline powered engines.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
RD-1820 500hp engine
Misc
Gyro-stabilizer

M4A3 Calliope

M4A3 modified with the Calliope mount

Armament
Main: 75mm M3, Calliope mount
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89), 4.2In rockets
Secondary: .30 cal
Mobility
Ford GAA V8 500hp engine
Misc
Gyro-stabilizer

T22E1

T22(same as T20 but with M4 transmission at the end instead of the front) armed with a 75mm autoloader with a 3 second reload.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .30 cal(possible .50 cal as well)
Mobility
Ford GAN 500hp engine
Misc
Gyro-stabilizer
Autoloader

M4E6

M4E6 is a M4 composite fitted with a T23 turret carrying a 76mm gun, it was actually the first Sherman to carry the T23 turret.

Armament
Main: 76mm M1
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M64)
Secondary: .50 cal
Mobility
Continental R-975 400hp engine
Misc
Gyro-stabilizer

M45

M26 Pershing armed with a 105mm Howitzer for support. It can get APDS-HE which is pretty much like APHE but with 129mm of pen.

Armament
Main: 105mm M4
Ammo: HE(M1), HEAT(M67), APBC-HE(T24E1), APDS-HE(T28)
Secondary: .50 cal
Mobility
Ford GAF 500hp engine
Misc
Gyro-stabilized

M4A3E8 Field Expedient

Field modification of the M4A3E8 with a Panther UFP on the front of the tank including around the turret.

Armament
Main: 76mm M1
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M64)
Secondary: .50 cal
Mobility
Ford GAA 500hp engine
Misc
Gyro-stabilizer

T25 P1

first pilot of the T25 featuring a gyro stabilizer.

Armament
Main: 90mm M3
Ammo: APBC(T33), HE(M71), APCBC(M82), APCR(M304)
Secondary: .50 cal, .30 cal
Mobility
Ford Gaf 500hp engine
Misc
Gyro stabilizer

T26

T26 with improved armor, the U.S wanted a better tank with more armor for the European theatre but the tank was still too heavy for weight requirements for U.S army so they decided to move onto the T26E1 where it would later be classified as a heavy tank.

Armament
Main: 90mm M3
Ammo: APBC(T33), HE(M71), APCBC(M82), APCR(M304)
Secondary: .50 cal, .30 cal
Mobility
Ford GAF 500hp engine

T26E1

T26 with upgraded hull which would later become standard for the M26 Pershing production.

Armament
Main: 90mm M3
Ammo: APBC(T33), HE(M71), APCBC(M82), APCR(M304)
Secondary: .50 cal, .30 cal
Mobility
Ford GAF 500hp engine

T25E1(T14)

T25 upgraded to T26E3 standard with a T14 90mm gun, project was abandoned for the M26.

Armament
Main: 90mm T14
Ammo: APBC(T33), HE(M71), APCBC(M82), HVAP(T30E16)
Secondary: 3x .50 cal
Mobility
Ford GAF 500hp engine

T29E1

T29 pilot 1 with Allison V1710-E32 engine.

Armament
Main: 105mm T5E1
Ammo: APCBC(T32, T13), HE(T30E1), APCR(T29E3)
Secondary: 3X .50 cal
Mobility
Allison V1710-E32 850hp engine

T29E3

T29 pilot 8 with a coincidence rangefinder.

Armament
Main: 105mm T5E1
Ammo: APCBC(T32, T13), HE(T30E1), APCR(T29E3)
Secondary: 3X .50 cal
Mobility
FORD GAC 750hp engine
Misc
Coincidence rangefinder

T30E1

T30 with a semi-automatic system, it also added a ejection hatch for the shells and extended the cupola.

Armament
Main: 155mm T7E1
Ammo: APBC(M112B1), APCBC(T29E1), HE(M107), SMOKE(M110)
Secondary: .50 cal, 2x .30 cal
Mobility
AV1790-5A 810hp engine
Misc
Autoloader

T69

T69 began development from the T71 tank, it uses the T42 hull with a modified version of the T54E1 turret. Unlike the T54E1 this one is modified with a 90mm gun instead of the 105mm gun, this means it can fire the same ammo as the M48.

Armament
Main: 90mm T178
Ammo: APCR(M332), APCBC(M82), HEAT-FS(M431), HESH(T142E3), HE(M71), SMOKE(M313)
Secondary:.50 cal, .30 cal
Mobility
AOS-895-3 500hp engine
Misc
stereoscopic rangefinder
Autoloader

T57

T57 is part of the oscillating turret prototype and has access to a 120mm autoloaded gun. The turret and hull(T43/M103 hull) were made and put together but it far exceeded the weight requirement so they were scrapped. Though no pictures were taken, this was a real tank.

Armament
Main: 120mm T179
Ammo: HEAT-FS(M469), APBC(M358)
Secondary: .50 cal
Mobility
AV-1970-7 810hp engine
Misc
Stereoscopic Rangefinder
Autoloader

T95E3

T95 hull fitted with T54E2 turret, still retains the 105mm gun.

Armament
Main: 105 mm T140
Ammo: APBC(T182E1), HEAT-FS(T298E1), APDS(T278)
Secondary: .50 cal
Mobility
GM12V71T 560hp engine
Misc
Stereoscopic Rangefinder

T95 Medium

T95 with stabilizer

Armament
Main: 90mm T208E9
Ammo: APFSDS(T320), HE(T340E14H), SMOKE(T339E14)
Secondary: .50 cal
Mobility
GM12V71T 560hp engine
Misc
Stereoscopic Rangefinder
Full stabilizer

T95E8 Delta

After the T95 program was shut down the U.S began researching new experimental APFSDS, they decided to test one of their new APFSDS, the DELTA 8, on the T95E7 which they modified to carry a stabilized 120mm smoothbore gun.

Armament
Main: 120mm Delta
Ammo: APFSDS(DELTA-8)
Secondary: .50 cal
Mobility
GM12V71T 560hp engine
Misc
Full stabilizer
Stereoscopic Rangefinder

Jaguar MBT

in the 1980’s Cadillac Gage and NORINCO companies tried to make a affordable tank for the export market. NORINCO provided the Type 59 for the base tank and Cadillac Gage provided the upgrade. The upgrades included improved engine, firepower, FCS and armor. Due to poor relations and rising cost the project was cancelled.

Armament
Main: 105mm M68
Ammo: HESH(M393A2), HEAT-FS(M456A2), SMOKE(M416), APFSDS(M735, M774)
Secondary: .50 cal
Mobility
8V-92TA 750hp engine
Misc
LRF
Full stabilizer
TA-1 add on armor
NVD

M1E1(Early)

M1 upgraded with a 120mm gun and steel plates to simulate the turret weight of the IPM1, this tank gets access to M829 as its best round.

Armament
Main: 120mm XM256
Ammo: HEAT-FS(M830,M830A1), APFSDS(XM829)
Secondary: .50 cal
Mobility
AGT1500 1500hp engine
Misc
LRF
Thermals
Full stabilizer

M1 XM291

Base M1 Abrams with XM291 140mm autoloaded gun.

Armament
Main: 140mm XM291
Ammo: KEP (XM866), HEAT-FS(XM831)
Secondary: .50 cal
Mobility
AGT1500 1500hp engine
Misc
LRF
Thermals
Autoloader
Full stabilizer

M1A2 M256E1

M1A2 with the M256E1(L/55) cannon which was meant to improve on the M256(L/44), the stabilization system for the Abrams differed from the Leopard 2(Tank in which the L/55 was developed for) so it meant the gun wasn’t stabilized on the M1A2.

Armament
Main: 120mm M256E1
Ammo: HEAT-FS(M830, M830A1, M908), APFSDS(M829, M829A2)
Secondary: .50 cal
Mobility
AGT1500 1519hp engine
Misc
Thermals
LRF

M1A2 SEPV3(Early)

M1A2 upgraded with VHMS, LRMs, ADL, Counter IED package, next gen armor, M829A4 round, APU, M1147 AMP round and IFLIR systems.

Armament
Main: 120mm M256
Ammo: HEAT-FS(M830, M830A1, M908), APFSDS(M829, M829A3/A4), AMP(M1147)
Secondary: .50 cal
Mobility
AGT1500 1519hp engine
Misc
Thermals
Full stabilizer
APS
LRF
Add on armor

M1A2 SEPV3(Late)

M1A2 SEPV3 with enhanced LRF, Sensors and LWS.

Armament
Main: 120mm M256
Ammo: HEAT-FS(M830, M830A1, M908), APFSDS(M829, M829A3/A4), AMP(M1147)
Secondary: .50 cal
Mobility
AGT1500 1519hp engine
Misc
Thermals
Full stabilizer
APS
LRF
Add on armor
LWS

Abrams-X

Americas newest MBT development, presented by General Dynamics the Abrams-X features a new 120mm gun, 30mm autocannon, APS, armor and engine

Armament
Main: 120mm XM360
Ammo: HEAT-FS(M830, M830A1, M908), APFSDS(M829, M829A3/A4), AMP(M1147)
Secondary: 30mm XM914
Mobility
1630hp hybrid engine
Misc
LRF
APS
Full stabilization
Thermals

Line 4(SPAA)

Open

Willys MB

Willys MB was built in 1941 by ford for U.S army’s need of a light utility vehicle. The most common armament of the Willys MB is the .50 cal but also had Bazooka mounts for anti tank purposes.

Armament
Main: .50 cal
Mobility
Willys L134 60hp engine

LVT(A)-2

LVT with dual .50 cals on the front, as well as having additional armor on the front of the craft which slightly affected the swimming performance.

Armament
Main: 2x .50 cal
Secondary: .30 cal
Mobility
W-670-9A 250hp engine

T17E2

Anti air version of the T17E1 with dual .50 cals.

Armament
Main: 2x .50 cal
Mobility
2x GMC 270 194hp engine

M34 40mm GMC

M15A1 CGMC with it’s 37mm replaced with a 40mm during the Korean war because of abundance of 40mm ammo.

Armament
Main: 40mm M1
Ammo: HEI(40mm MK.2), AP(M81A1)
Mobility
White 160AX 148hp engine

M15 “SPECIAL”

M15 with it’s main gun replaced with a 40mm, this modification kept the gun shield unlike the M34.

Armament
Main:40mm M1
Ammo: HEI(40mm MK.2), AP(M81A1)
Mobility
White 160AX 148hp engine

T69 MGMC

M8 Greyhound modified with a quad .50 cal mount, part of the efforts for a mobile anti-air unit but would eventually lose traction due to better options like the M16 and M17.

Armament
Main:4x .50 cal
Mobility
Herculies JXD 110hp

T60E1

T54E1 Half track development, it adds 2 more .50 cals onto the 40mm platform.

Armament
Main: M1 40mm
Ammo: HEI(40mm MK.2), AP(M81A1)
Secondary:2x .50 cal
Mobility
White 160AX 148hp engine

T36 GMC

1941 attempt to arm a M3 Lee with a 40mm gun, it replaced it’s 37mm with a 40mm and removed the 75mm hull gun. It was abandoned after complaints of limited space and ammo storage.

Armament
Main: 40mm M1
Ammo: HEI(40mm MK.2), AP(M81A1)
Mobility
R975 EC2 400hp engine

T68

Half track with dual 40mm mountings but was abandoned after recoil problems.

Armament
Main:2x M1 40mm
Ammo: HEI(40mm MK.2), AP(M81A1)
Mobility
White 160AX 148hp engine

T10E1

Attempt to up gun anti aircraft vehicles, 2 twin 20mm hispanos were added to the top of a M3 half track. 110 M16’s were converted but were returned to original status after the war.

Armament
Main: 2x 20mm Hispano Mark IV
Ammo: HE, AP
Mobility
White 160AX 148hp engine

T52 MGMC

Development from the T36, it converted a M4A2 Sherman into a SPAA by replacing the turret with a 40mm and 2 attachable .50 cals. it would be later abandoned due to poor design of the turret.

Armament
Main: M1 40mm
Ammo: HEI(40mm MK.2), AP(M81A1)
Secondary: 2x .50 cal
Mobility
G-41 Engine 375hp engine

T85

M5 Stuart with dual 20mm hispano guns, would be discontinued in favor of the dual 40mm M42 based on the Chaffee.

Armament
Main: 2x 20mm Hispano Mark IV
Ammo: HE, AP
Mobility
Cadillac Series 42 220hp engine

M2 ELECO B-6

Half track with quad 20mm hispano mounting with dual .50 cal, it was liked but due to weight restrictions it was abandoned.

Armament
Main: 4x 20mm Hispano Mark IV
Ammo: HE, AP
Secondary: 2x .50 cal
Mobility
White 160AX 148hp engine

T85E1

T85 with a quad 20mm mount

Armament
Main: 4x 20mm Hispano
Ammo: HE, AP
Mobility
Cadillac Series 42 220hp engine

V-100(20)

Designed by Cadillac-Gage for export in the 1960’s the V-100 has a access to 2x .50 and .30 cal or a 20mm gun.

Armament
Main: 20mm Oerlikon
Ammo: HE, AP
Secondary: .30 cal
Mobility
Chrysler 361 210hp engine

XM-765

Built in the late 1960’s by the FMC corporation for the MICV-65 program, this M113 has access to a 20mm.

Armament
Main: 20mm Oerlikon
Ammo: HE, AP
Mobility
Chrysler 75M 210hp engine

XM808

part of the XM800 series, it gets access to a stabilizer but doesn’t get APDS.

Armament
Main: 20mm Oerlikon
Ammo: HE, AP
Mobility
2x Chrysler/Corvair V8 582 hp engine
Misc
Full stabilizer

M114A2 CRC

M114 with a stabilized 20mm, the M114 was designed for fast and stealthy recon and would retire in 1979.

Armament
Main: 20mm Oerlikon
Ammo: HE, AP
Mobility
V8 160hp engine
Misc
Full stabilizer

LAV 300-20

LAV 300 equipped with a 20mm from LAV-150.

Armament
Main: 20mm Oerlikon
Ammo: HE, AP
Mobility
VT-504 270 hp engine

M19 MGMC

M19 MGMC with a shortened autoloaded 75 M51 Skysweeper.

Armament
Main: 75mm Skysweeper
Ammo: HE, HE-VT
Mobility
V8 220hp engine
Misc
Autoloader

XM163

M163 with its radar system removed to test on ground units since aircraft hadn’t been spotted in over 75 days.

Armament
Main: 20mm Vulcan
Ammo: API, HEFI
Mobility
GM 6V53 212hp engine

M42(Radar)

M42 tested with a radar and FCS was changed to include tracking.

Armament
Main: 2x 40mm M2
Ammo: HEI(40mm MK.2), AP(M81A1)
Mobility
6 cylinder 500hp engine
Misc
Radar/tracking

T100 STINGER

T100 uses the chassis of the T37 and is redesigned with the purpose of taking out strafing aircraft. U.S engineers redesigned German 15mm(.60 cal) and fitted it on the new turret along with a radar.

Armament
Main: 4x .60 cal
Ammo: AP, HE, APCR
Mobility
AOS-895-1 500hp engine
Misc
Radar/tracking

T249

37mm rotary cannon on a modified m113, it was meant to replace the M42 but abandoned due to poor ammo count(192 rounds) with a high RPM(3000).

Armament
Main: 37mm T250
Ammo: AP, HE
Mobility
Chrysler 75M 210hp engine
Misc
Radar/tracking

M163A2 PIVADS

Improved M163, better tracking and gets access to APDS.

Armament
Main: 20mm Vulcan
Ammo: AP, HE, APCR
Mobility
Chrysler 75M 210hp engine
Misc
Radar/tracking

SMC VULCAN

M163 turret on a wheeled chassis, designed to replace the M163 but wasn’t put into service.

Armament
Main: 20mm Vulcan
Ammo: AP, HE, APCR
Mobility
V8 135hp engine
Misc
Radar/tracking

XM701 GLAADS

Designed in 1970 for a replacement of the M163, it incorporates dual PFB-25mm similar to the Oerlikon AA on a XM701 which was part of the MICV-65 program.

Armament
Main: 2x 25mm PFB
Ammo: AP, HE
Mobility
8V71T 425hp engine
Misc
LRF
Radar/tracking

EAGLE ADS

Made for export for Shah of Iran but was cancelled due to Iranian revolution. It is based on the M548 cargo carrier it has access to dual 35mm and uses the same ammo as the Gepard.

Armament
Main: 2x 35mm TALON
Ammo: HEI(DM11A1), API(DM13), APDS(DM63)
Mobility
6V53 204hp engine
Misc
Full stabilizer
Radar/tracking

Centurion C-RAM

C-RAM mounted on a HEMTT truck, gets access to airburst ammo and APDS.

Armament
Main: 20mm C-RAM
Ammo: HEIP, AP, HE
Mobility
CAT C15 515hp engine
Misc
Radar/tracking

T249 DIVAD

DIVAD version of the T249, the chassis was changed to the M48 and the gun was rechambered for 35mm, ammo count was also increased to 1,463 rounds.

Armament
Main: 35mm T250
Ammo: HEI(DM11A1), API(DM13), APDS(DM63)
Mobility
AVDS 1790 V12 750hp engine
Misc
Radar/tracking

NIM-46 MAULER

M113 with NIM-46 missiles, development began in the early 60’s and used naval RIM-46A as the basis for the mauler.

Armament
Main: NIM-46 launcher
Secondary: NIM-46A
Mobility
Chrysler 75M 210hp engine
Misc
Radar/tracking

EAGLS Counter-UAS

Humvee modified with a 70mm rockets for anti drone needs in the middle east.

Armament
Main: 70mm EAGLS
Ammo: APKWS II
Mobility
V8 160hp engine
Misc
Radar

AN/TWQ-1 Avenger(early)

Early development of the Avenger began in 1984 and test firing would begin in that year with stinger MANPADS, the U.S army was happy with the results and the first Avengers were put into service in 1989.

Armament
Main: 2x Stinger MANPADS
Ammo: FIM-92A and B
Secondary: .50 cal
Mobility
V-8 160hp engine
Misc
Gyro stabilizer

HMMWV SETTER

Humvee with stingers and SPIKE missiles

Armament
Main: SETTER system
Ammo: FIM-92A/B
Secondary: 6x SPIKE hypervelocity rockets(unguided, not spike missiles)
Mobility
V8 160hp engine

MWS

Pre development of the LAV AD, it began in 1984 and had a 30mm GAU-13 and early stinger missiles.

Armament
Main: 30mm GAU-13, 4x Stinger missiles
Ammo: HVAP, HEI, FIM-92A
Mobility
6V53T 300hp engine
Misc
Full stabilizer
LRF

Avenger Guardian

Boeing and Matra development, Avenger is equipped with Mistral missiles.

Armament
Main: Mistral MANPADS
Ammo: Mistral
Secondary: .50 cal
Mobility
V-8 160hp engine
Misc
Gyro stabilizer

Defender II

Defender II was developed by General Electric for u.s armys need of anti air, they chose the Humvee to be the platform and added Stinger missiles and a 25mm.

Armament
Main: 25mm GE, Stinger MANPAD
Ammo: TP, HEL, API, APDS, FIM-92A
Mobility
V-8 160hp engine
Misc
Full stabilizer
LRF

AVENGER DEW

Avenger with a 30mm and modern stingers tested in 2004 with laser weapons and the turret could now move 360 degrees.

Armament
Main: 30mm Bushmaster, Stinger MANPADS
Ammo: APDS, APFSDS(MK258), HEI(MK266), FIM-92J and K
Mobility
V-8 160hp engine
Misc
Full stabilizer
LRF

M6 Linebacker

M2A2 ODS with it’s tow launcher replaced with a stinger pod for low flying targets.

Armament
Main: 25mm Bushmaster, Stinger MANPADS
Ammo: APDS(M791), APFSDS(M919), FIM-92D and E
Secondary: .30 cal
Mobility
VTA903 600hp engine
Misc
LRF
Thermals
Full stabilizer

Avenger Starstreak

Boeing and Thales project with Avenger mounting Star streak missiles.

Armament
Main: Starstreak MANPADS
Ammo: Starstreak
Secondary: .50 cal
Mobility
V-8 160hp engine
Misc
Gyro stabilizer

Stryker C-UAS DE

Stryker with SHORAD capabilities presented in AUSA 2024 by Leonardo DRS and BlueHalo. It has access to R400 and anti drone rockets with a radar.

Armament
Main: 30mm Mk44S Bushmaster, 70mm APKWS
Ammo: Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM, APKWS II
Secondary: 26kW Locust Laser Weapon System
Mobility
Caterpillar C9 450hp
Misc
Radar
Full stabilizer
Thermals
LRF

Lav Blazer

LAV with a Blazer turret.

Armament
Main: 25mm GAU-12, Stinger MANPAD
Ammo: HVAP, HEI, FIM-92D and E
Mobility
6V53T 300hp engine
Misc
LRF
Full stabilization
Radar/tracking

M113 Blazer

M113 with Blazer turret.

Armament
Main: 25mm GAU-12, Stinger MANPAD
Ammo: HVAP, HEI, FIM-92D and E
Mobility
Chrysler 75M 210hp engine
Misc
Radar/tracking
Full stabilizer
LRF

Bradley Blazer

Bradley with Blazer turret.

Armament
Main: 25mm GAU-12, Stinger MANPAD
Ammo: HVAP, HEI, FIM-92D and E, RBS-70
Mobility
VTA-903T 600hp engine
Misc
LRF
Radar/tracking
Full stabilizer

ACV-30 UAS

Anti drone version of the ACV-30 for the USMC.

Armament
Main: 30mm XM813, Javelin, 70mm APKWS
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM, Javelin, APKWS II
Secondary: CLWS
Mobility
Iveco Cursor 16 700hp engine
Misc
Full stabilizer
Thermals
LRF
Radar
APS

IM-SHORAD

Stryker with Hellfire missiles,30mm and Stingers, it was designed by Leonardo DRS and was accepted into service due to it being cheap and reliable.

Armament
Main: 30mm bushmaster
Ammo: APDS, APFSDS(MK258), HEI(MK266), FIM-92J and K, Hellfire II and L
Mobility
Caterpillar C9 450hp
Misc
LRF
Full stabilizer

AFPS

Upgraded version of the Avenger Humvee by Boeing, it includes Hellfire II missiles, Aim-9x/Stingers and a 25mm gun.

Armament
Main: 25mm Bushmaster, FIM-92 Stinger, Hellfire launcher
Ammo: APDS(M791), APFSDS(M919), Hellfire II/L, FIM-92J/K
Secondary: AIM-9X, .50 cal
Mobility
V-8 160hp engine
Misc
Full stabilizer
LRF

M1047A

improved chapparal based on the LAV, it gets 6 NIM-72’s or 4 NIM-72’S and 2 HYDRA-70’s.

Armament
Main: Improved Chapparal system
Ammo: NIM-72G, Hydra 70
Mobility
6V53T 300hp engine
Misc
LRF
Full stabilizer

STRYKER MSL

Stryker with Hellfire missiles and AIM-9X introduced in 2017 to protect frontline troops from modern strike aircraft.

Armament
Main:AIM-9X and Hellfire system
Ammo: AIM-9X, Hellfire II and L
Mobility
Caterpillar C7 350hp

HVSD/ADAMS

Partnership between General Dynamics USA and Raphael Israel, the base is the CIWS but it equipped with Israeli BARAK missiles.

Armament
Main: 20mm CIWS, BARAK missile system
Ammo: HEIP, AP, HE, BARAK-1
Mobility
CAT C15 515hp engine
Misc
Radar/tracking

M113 LIBERTY FAADS

M113 with 6x Crotale missiles part of the FAADS program.

Armament
Main: Crotale missile system
Ammo: VT-1
Mobility
Chrysler 75M 210hp engine
Misc
Radar/tracking

LAV AMRAAM

Lav with AMRAAM missiles

Armament
Main: AMRAAM
Ammo: AIM-120C
Mobility
6V53T 300hp engine

Falcon ADS

Development between Germany(Diehl), Sweden(SAAB) and the USA(LOCKHEED). USA provided the Skysweeper, Germany the missile launcher and Sweden provided the radar.

Armament
Main: IRIS-T SLM SAM
Ammo: IRIS-T SLM
Mobility
?
Misc
Radar/tracking

Multi-Mission Launcher

Development began in 2016 but was tested in 2019 by the U.S army, the army decided it would be part of the Enduring shield program to protect the U.S mainland.

Armament
Main: MSL
Ammo: FIM-92J and K, Hellfire II, AIM-9X, TAMIR
Mobility
CAT C7 275hp engine

M901 Patriot

Raytheon developed the M901 Patriot in 1981 and designed for high and medium ranged targets, the latest upgrade involves Raphael David’s sling defense system.

Armament
Main: NIM-104 system
Ammo: PAC 3, PAC 3 MSE and PAC 4
Mobility
6CTA8.3 240hp engine

Line 5(Tank Destroyer)

Open

M3 ATG

Anti tank variant of the M3 halftrack, designed for early war needs of a tank destroyer by the U.S.

Armament
Main: 37mm M3
Ammo: AP(M74 shot), APCBC(M51B1 shot)
Secondary: .50 cal, .30 cal
Mobility
White 160AX 148hp engine

T30 HMC

Developed in 1941 for assault gun needs of the U.S army, 500 were produced but received poor remarks due to low firepower and gun velocity and were replaced before the European theatre.

Armament
Main: 75mm M1 Howitzer
Ammo: HEAT(M66), HE(M48)
Mobility
White 160AX 148hp engine

T19 HMC

U.S stop gap for self propelled artillery, 300 units were produced in 1942 but would eventually be replaced by the M7 Priest and was declared obsolete in 1945.

Armament
Main: M2A1 105mm
Ammo: HE(M1), HEAT(M67), Smoke(M84)
Secondary: .50 cal
Mobility
White 160AX 148hp engine

T48 GMC

Developed for English-American need of a self propelled anti tank gun in 1941, it was designed for the Lend-lease act but would also see U.S service.

Armament
Main: 57mm M1
Ammo: AP(M70), APCBC(M86)
Mobility
White 160AX 148hp engine

M3(M8 rockets)

M3 halftrack equipped with 2 M8 rockets, experimental halftrack made at the Bengal air depot by the U.S air force.

Armament
Main: 2x M8 rockets
Ammo: M8 Rocket
Mobility
White 160AX 148hp engine

M37

M24 Chaffee with a 105mm gun found the Sherman, it was built to do what the M7 Priest couldn’t. Built in 1943 but didn’t see full scale production until 1945 after the war but would see action in Korea.

Armament
Main: 105mm M4
Ammo: HE(M1), HEAT(M67), Smoke(M84)
Secondary: .50 cal
Mobility
44T24 220hp engine

M7B1

Designed to improve upon the failures of the T19 HMC, the first prototypes used the M3 Lee chassis but would later be changed to the M4 Sherman before production.

Armament
Main: 105mm M2
Ammo: HE(M1), HEAT(M67), Smoke(M84)
Secondary: .50 cal
Mobility
Ford GAA 400hp engine

T24

The T24 was a experimental version of the M3 LEE, removing the turret and hull gun replacing it with a 76mm anti aircraft gun.

Armament
Main: 76mm M7
Ammo: AP(M79 shot), HE(M42A1 shell), APCBC(M62)
Mobility
Continental R-975-EC1 340hp engine

T49 GMC

The T49 was developed in 1942 and was designed to be a low profile and more mobile version of the M10. The U.S liked the designed and asked GM for another design for the 75mm gun due to poor performance of the 57mm.

Armament
Main: 57mm M1
Ammo: AP(M70), APCBC(M86)
Mobility
twin Buick 330hp engine

M37 HMC

M37 with it’s .50 cal replaced with a 75mm anti tank recoilless rifle firing 100mm pen Heat rounds.

Armament
Main: 105mm M2
Ammo: HE(M1), HEAT(M67), Smoke(M84)
Secondary: 75mm ATRR
Ammo: HEAT
Mobility
44T24 220hp engine

M4A3 T2

M4A3 with T2(T40) rocket launcher firing 7.2 inch rockets, the main gun was removed and would be used for testing the T31.

Armament
Main: T2 Launcher
Ammo: 7.2In rocket (T37)
Secondary: .30 cal
Mobility
Ford GAA 500hp engine

M4 T105

Experimental M4A1 Sherman with T105 launcher, a railgun firing 7.2in rockets. This launcher boosts the rocket but still had a insufficient range of 300m. The U.S lost interest and began putting effort into the T31 project.

Armament
Main: 183mm T105
Ammo: 7.2 IN rocket(T37)
Mobility
R975 9 400hp engine

M10A1

M10 based on the M4A3 chassis to improve protection of the crew and give the M10 better turret traverse and maneuverability.

Armament
Main: 76mm M7
Ammo: AP(M79 shot), HE(M42A1 shell), APCBC(M62)
Secondary: .50 cal
Mobility
Ford GAA 500hp engine

M41 Gorilla

155mm howitzer on a extended M24, development began from the T64E1 and was suppose to be a reliable mobile howitzer for the U.S army in ww2 but never saw action until the Korean war.

Armament
Main: 155mm M1
Ammo: HE(M101), Smoke(M104), APCBC(M112)
Mobility
2x 44T24 110hp(220hp) engine

M40

M4 Sherman with 155mm M1A1, only a few saw service in WW2 due to late production but would see some action in Korea.

Armament
Main: 155mm M1A1
Ammo: HE(M101), Smoke(M104), APCBC(M112)
Mobility
R975 EC2 400hp engine
Misc

T93 GMC

T92 with a 203mm gun instead of the 240mm, it was designed for the bombardment of mainland Japan to support an invasion but Japan surrendered before it saw use.

Armament
Main: 203mm(8-in) M1
Ammo: HE
Mobility
Ford GAF 470hp engine

M110

Began service in 1963 and would see service until the gulf war where it was retired for the M270.

Armament
Main: 203mm M201A1
Ammo: HE(M106), ABM(M404)
Mobility
8V71T 405hp engine

M55

M47 with components reversed and a 203mm gun facing towards the engine.

Armament
Main: 203mm M47 howitzer
Ammo: HE(M106),
Mobility
AV-1790-5B 704hp engine

T53E1

M4A4 with a 90mm anti aircraft gun mounted on it, the back and turret were removed and the engine was moved to the center of the tank on the early variant. the T53E1 gun was moved to the center and installed a gun shield on it.

Armament
Main: 90mm M3
Ammo: AP(M77), HE(M71), APCBC(M82), SMOKE(M313)
Mobility
R975 9 400hp engine

T92 GMC

T93 with a 240mm gun.

Armament
Main: 240mm M1
Ammo: HE
Mobility
Ford GAF 470hp engine

M107

After the M55 the U.S wanted a lighter version of it with a easier to maintain gun, a new hull was built for the M107 and later used on the M110.

Armament
Main: 175mm M113
Ammo: HE(M437A1)
Mobility
8V71T 405hp engine

M36B1

90mm gun and turret from the M36 on a M4A3 chassis.

Armament
Main: 90mm M3
Ammo: AP(M77), HE(M71), APCBC(M82), APCR(M304), HEAT-FS(T108), SMOKE(M313)
Secondary: .50 cal
Mobility
Ford GAA 500hp engine

M109

M109 with short barrel M126.

Armament
Main: 155mm M126
Ammo: HE(M107), HE-VT(M107PF), SMOKE(M110)
Secondary: .50 CAL
Mobility
8V71T 405hp engine

T39

M46 with a 165mm demolition gun and a engineering crane on the back.

Armament
Main: 165mm M135
Ammo: HESH(M123)
Secondary: .50 cal
Mobility
Ford GAF 500hp engine

M24 106

M24 with 4x 75mm or 106mm anti tank recoilless rifles.

Armament
Main: 106mm RR
Ammo: HEAT
Mobility
44T24 220hp engine

T-162

M53 with a 175mm gun, it was deemed too heavy and the project was shelved

Armament
Main: 175mm T181
Ammo: HE
Mobility
AV-1790-7B V-12 704hp

T118E1

prototype of the M728 CEV, based on the T95 instead of the M60.

Armament
Main: 165mm M57
Ammo: HESH(M123)
Secondary: .50 cal
Mobility
AOI-1195 550hp engine

M110A2 PIP

M110 with a long barrel and more crew protection.

Armament
Main: 203mm M201A1
Ammo: HE(M106), ABM(M404)
Mobility
8V71T 405hp engine

T113E2 SS.11

Prototype M113 with 4 SS.11 launchers.

Armament
Main: 4x SS.11 launcher
Ammo: SS.11
Secondary: .50 cal
Mobility
6V-53 215hp engine

M548 SLUFAE

Prototype mine clearing vehicle developed in the 1970’s, it is equipped with 30 45kg rockets with he maximum range of a km.

Armament
Main: XM130 SLUFAE
Ammo: XM130 SLUFAE rocket
Mobility
GM 6V53T 375hp engine

XM66D

M48 with a 152mm XM81 gun and XM66 turret which was a modified T95 turret.

Armament
Main: 152mm XM81
Ammo: ATGM(XM13), HE, HEAT
Secondary: .50 cal
Mobility
AVDS-1790-2 75-hp engine
Misc
possible stabilizer but unlikely

M109-52

M109 with Rheinmetall L52 155mm developed by BAE systems, the same gun used on the Panzerhaubitze 2000.

Armament
Main: 155mm L52
Ammo: HE(M107), HE-VT(M107PF), SMOKE(M110)
Mobility
V903 675hp engine
Misc
Autoloader

XM998 III

Third prototype of the M998 Humvee armed with a 25mm Bushmaster.

Armament
Main: 25mm M242 Bushmaster
Ammo: APDS(M791) HEI(M792)
Mobility
V-8 160hp engine
Misc
Full stabilizer

M109 HFHTB

M109A2 with a stabilizer, 25mm, autoloader and 750hp engine developed by US Army Human Engineering Laboratory.

Armament
Main: 155mm M185
Ammo: HE(M107,M795), HE-VT(M107PF), SMOKE(M110)
Secondary: 25mm
Ammo: AP, HE,(possible APDS)
Mobility
750hp GT601 gas turbine
Misc
Autoloader
Stabilizer
Possible LRF but unlikely

XM2001

XM2001 was developed in the 1990’s for a overall improvement of the M109 and to replace the M109A6, it was cancelled due to some officials wanting a lighter artillery pieces.

Armament
Main: 155mm XM297E2
Ammo: HE(M982), HEAT(M267A2), SMOKE/WP
Mobility
LV100 1500hp engine
Misc
Autoloader
Stabilizer
LRF

LAV AT

LAV 25 with it’s turret replaced with the M901 dual launcher for anti tank needs of the USMC.

Armament
Main: M901 Hammerhead system
Ammo: TOW-2
Secondary: 7.62mm
Mobility
6V53T 300hp engine

M901A3

M901 with improved Tow missiles and mobility.

Armament
Main: M220 System
Ammo: TOW-2A, TOW-2B
Mobility
6V53T 275hp engine
Misc
Thermals

HMMWV HAL

Humvee with Hellfire launcher

Armament
Main: Hellfire Advanced Launcher
Ammo:AGM-144A
Mobility
V-8 160hp engine
Misc
Full stabilizer

LAV ATA1

LAV AT with improved tow missiles.

Armament
Main: M901 Hammerhead system
Ammo: TOW-2A, TOW-2B
Mobility
6V53T 300hp engine
Misc
Thermals

LAV-600

Lav 300 with a 105mm gun and Stingray turret, developed in the 1980’s but didn’t get any sellers.

Armament
Main: 105mm L7A1
Ammo: HESH(M393A2), HEAT-FS(M456), SMOKE(M416), APFSDS(M735A1, M426, possible M774)
Mobility
Cummins VT-504 270hp engine
Misc
Full stabilizer
Thermals
LRF

LTV Crossbow

In the 1980’s the USMC wanted a vehicle that could hit low flying targets so chose to use Stingers on a Humvee and add Hydras 70’s for close targeted aircraft.

Armament
Main: Stinger launcher, 2x Hydra 70 pod
Ammo: FIM-92A
Mobility
V-8 160hp engine

LAV 105

The U.S army was looking into Wheeled assault guns alongside the XM8 program. The LAV-25 became a contender with it’s 25mm replaced with the 105mm XM35. The LAV 105 was tested in 1993 and saw positive reactions but was ultimately cancelled.

Armament
Main: 105mm XM35
Ammo: APFSDS(M735, M774, M833), HESH(M393A2), HEAT-FS(M456A2)
Mobility
6V53T 275HP engine
Misc
LRF
Full stabilizer
Autoloader
Thermals

M1134

Anti armor variant of the Stryker to cover other Strykers supporting infantry if there are armor threats nearby.

Armament
Main: ETS
Ammo: TOW-2, TOW-2A, TOW-2B
Mobility
Caterpillar 3126 350hp engine
Misc
Thermals
Full stabilizer

HMMWV MGM-166

Humvee with LOSAT missiles on top of it.

Armament
Main: LOSAT system
Ammo: 4x MGM-166A
Mobility
V8 160hp engine

M998 Hellfire

Humvee with early hellfire missiles.

Armament
Main: GLH-L
Ammo: AGM-144A
Mobility
V8 160hp engine

LAV T7

Joint project between South Africa and the U.S to improve the lethality of 155mm artillery, the U.S dropped out of the project to focus on others and South Africa would test it a bit more before abandoning it.

Armament
Main: 105mm LEO
Ammo: HE, PFF HE, Smoke, possibility it can fire M900 hence the 9.7 br(8.7 without M900)
Mobility
Caterpillar 3126 350hp engine
Misc
Full stabilizer
LRF
Thermals

Humvee ADVO

Humvee with advanced tow launcher

Armament
Main: Advanced Tow Launcher
Ammo: TOW-2A, TOW-2B
Mobility
V8 160hp engine
Misc
Full stabilizer

Humvee Avenger/Hellfire

Humvee Avenger with Hellfire II ATGM’s

Armament
Main: Avenger Hellfire II mount
Ammo: Hellfire II
Secondary: .50 cal
Mobility
V8 160hp engine
Misc
Gyro stabilizer

M3 LOSAT

M3 Bradley with LOSAT missiles

Armament
Main: LOSAT system
Ammo: 4x MGM-166A
Mobility
Cummins VTA-903T 600 hp engine

ACV-30 LAV 25

USMC ACV-30 prototype with upgraded LAV-25 turret including a Tow launcher

Armament
Main: 25mm M242 Bushmaster, TOW-2 launcher
Ammo: APDS(M791), APFSDS(M919), TOW-2A/B
Secondary: .30 cal
Mobility
Iveco Cursor 16 700hp engine
Misc
Full stabilizer
Thermals
LRF

EOS R400S MK2

EOS system mounted on a Humvee.

Armament
Main: 30mm M230LF
Ammo: APFSDS, APDS, HEI, HE-VT
Secondary: 4X JAVELIN missiles, optional TOW-2A/B
Mobility
V8 160hp engine
Misc
Full stabilizer
LRF

AMPV MCT

AMPV prototype by BAE with MCT-30 turret with Javelin missile

Armament
Main: 30mm MK44S Bushmaster, Javelin launcher
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM, Javelin
Secondary: .30 cal
Mobility
VTA903E-T675 676hp engine
Misc
LRF
Full stabilizer
Thermals

ACV-30 MCT

USMC ACV-30 with MCT-30 turret and Javelin launcher

Armament
Main: 30mm MK44S Bushmaster, Javelin launcher
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM, Javelin
Secondary: .30 cal
Mobility
Iveco Cursor 16 700hp engine
Misc
LRF
Full stabilizer
Thermals

Stryker R400

Stryker equipped with R400 made by EOS

Armament
Main: 30mm MK44S Bushmaster, Javelin missile
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM, Javelin
Secondary: .30 cal
Mobility
Caterpillar C9 450hp engine
Misc
LRF
Full stabilizer
Thermals

M113 GLH-H

M113 with Hellfire missiles

Armament
Main: GLH-H
Ammo: AGM-144AF
Mobility
6V53T 275hp engine

JLTV AVENGER

JLTV with Hellfire missiles and a 30mm chain gun

Armament
Main: 30mm M230
Ammo: APFSDS, APDS, HE-VT
Secondary: HELLFIRE II system
Ammo: Hellfire II/L
Mobility
866T 400hp engine
Misc
Full stabilizer
LRF

M1304/ICCVA1

Prototype of the Stryker Dragoon with a dual Javelin system on top to deal with modern tank threats.

Armament
Main: 30mm XM813
Ammo: APFSDS(MK 258), HEI(MK 238), MPLD-T(Mk 264), HEAB-T(MK 310)
Secondary: 2x Javelin system
Mobility
Caterpillar C9 450hp
Misc
IRST
Full stabilizer
LRF
Thermals

JLTV AVENGER 25

JLTV Avenger with 25mm Bushmaster and 2 Javelin missiles

Armament
Main: 25mm M242 Bushmaster, dual Javelin launcher
Ammo: APDS(M791), APFSDS(M919), Javelin
Secondary: .30 cal
Mobility
866T 400hp engine
Misc
Full stabilizer
Thermals
LRF

JLTV AVENGER 30

JLTV with 30mm gun and quad javelin launcher

Armament
Main: 30mm MK44S Bushmaster
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM, Javelin
Mobility
866T 400hp engine
Misc
LRF
Thermals
Full stabilizer

AMPV R600MC

AMPV with EOS R600MC.

Armament
Main: 30mm Mk44S Bushmaster, Quad Javelin launcher
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM, Javelin
Mobility
VTA903E-T675 676hp engine
Misc
Full stabilizer
Thermals
LRF
Radar/IRST
Tracking

XM1202

uncomplete prototype of the XM1202 part of the XM1200 family, it was suppose to be a lighter version of the M1A2 Abrams but would eventually be shelved alongside the XM1200’s when the project was cancelled.

Armament
Main: 120mm XM360
Ammo: APFSDS(M829A3), HEAT-FS(M830, M830A1), MRM(XM1111 MRM-KE, XM1111 MRM-CE)
Secondary: 40MM grenade launcher, .50 cal
Mobility
5L890, unknown horsepower
Misc
LRF
Thermals
Full stabilizer
APS
Add on armor

Line 1(Prem/event)

Open

CTM-3TBD

ITB1 modified by the USMC with 2x .50 cals and a diesel engine in 1941, they would later be scrapped in 1943 in Samoa.

Armament
Main: 2x .50 cal
Ammo: AP, API
Secondary: 3x .30 cal
Mobility
DRXBS 123hp engine

T27 AC

Developed to replace the M8 greyhound in 1944 and was superior to it but was cancelled for the T28(M38) development.

Armament
Main: 37mm M3
Ammo: AP(M74 shot), APCBC(M51B1 shot)
Secondary: .30 CAL
Mobility
Cadillac gasoline 8-cylinder 110hp engine

T18E1

Heavy armored car developed in 1941 at the request of the army, this variant has 8 roadwheels and a 37mm gun which was later up gunned to 57mm on the E2.

Armament
Main: 37mm M6
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Mobility
GMC 6-cylinder 250hp engine
Misc
Gyro-stabilizer

M2 AT

Experimental version of the M2 light tank built in 1937, it was given a 47mm automatic gun but development stopped due to poor accuracy and penetration.

Armament
Main: 47mm
Ammo: AP
Mobility
R-6709A 250hp engine

M4A1 Hedgehog

Modified M4A1 with 20 anti submarine Hedgehog rockets used to clear fortifications or mine clearing.

Armament
Main: 20x anti submarine mortar
Ammo: Hedgehog anti submarine mortar
Mobility
R975 9 400hp engine

POA-CWS-H5

M4A3(105) with a flamethrower mounted on the turret, used in both Korea and the Pacific theatre. The 105mm ammo was reduced to 20 to give more capacity to the flamethrower.

Armament
Main: 105mm M4 Howitzer
Ammo: HE(M1), HEAT(M67), Smoke(M84)
Secondary: H5 Flamethrower
Mobility
Ford GAA 500hp engine

T32(7.2IN)

U.S 1 1/2 ton truck with array of 7.2IN rockets on the back

Armament
Main:T32 Launcher
Ammo: 7.2IN rockets
Mobility
BV1001 235 83hp engine

M24(4.2IN)

M24 with 16 4.2In rockets on the side of the turret.

Armament
Main: 75mm M6
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M64)
Secondary: .50 cal
Mobility
44T24 220hp engine
Misc
Gyro stabilizer

M4 RHINO

M4 with Rhino modification to clear obstacles used commonly throughout western europe.

Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
R975 C1 400hp engine
Misc
Gyro-stabilizer

M4 T90

M4A1 with 155mm T9 mortar in place of the 75mm gun.

Armament
Main: 155mm T9 Mortar
Ammo: HE
Secondary: .50 cal
Mobility
R975 C1 400hp engine

M4A3 (75) W (HCR2)

M4A3 with HCR2 plastic armor to counter German handheld anti tank weapons.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
Ford GAA 500hp engine
Misc
Gyro-stabilizer

M59(SS.11)

M59 with 2 SS.11 ATGM’s

Armament
Main: 2x SS.11 ATGM launcher
Ammo: SS.11 ATGM
Secondary: .50 cal
Mobility
2x GMC Model 302 292hp(total) engine

M48(SS.11)

M48A3 with 4 SS.11 ATGM

Armament
Main: 90mm M41, 4x SS.11
Ammo: APCR(M332), APCBC(M82), HEAT-FS(M431), HESH(T142E3), HE(M71), SMOKE(M313)
Secondary: .50 cal
Mobility
AV-1790-5B 810hp engine
Misc
stereoscopic rangefinder

T95 XM66D

T95 with XM66 turret

Armament
Main: 152mm XM81
Ammo: ATGM(XM13), HE, HEAT
Secondary: .50 cal
Mobility
GM12V71T 560hp engine
Misc
possible stabilizer but unlikely

T95E8

T95 with M48 turret, much like the T95E2 but with 12V71T diesel engine.

Armament
Main: 90mm M41
Ammo: APCR(M332), APCBC(M82), HEAT-FS(M431), HESH(T142E3), HE(M71), SMOKE(M313)
Secondary: .50 cal
Mobility
GM12V71T 560hp engine
Misc
stereoscopic rangefinder

M48(M60A2)

M48 with M60A2 turret.

Armament
Main: 152 mm M162 gun
Ammo: HEAT(M409A1), HE(M657A2), MGM-51B Shillelagh
Secondary: .50 cal
Mobility
AV-1790-5B 810hp engine
Misc
LRF
Stabilizer

T58

T58 was suppose to be a improvement from the 120mm T54’s, it got cancelled before it’s completion in favor of MBT’s to counter the Russian IS series tanks. it differed a fair bit from the other series as it had to have 2 piece ammo instead of one piece so they built a different autoloader for it.

Armament
Main: 155mm T7
Ammo: HEAT-FS, HESH
Secondary: .50 cal
Mobility
AV-1790-7 810hp engine
Misc
stereoscopic rangefinder

EFV

After the failure of other AAAV developments for the USMC they decided a gun priority AAAV. General Dynamics got a contract from the USMC to develop a AAAV with that purpose in early 2000’s. After successful trials the USMC decided to produce LRIP quantity of EFV’s.

Armament
Main: 30mm MK44 Bushmaster
Ammo: APDS, APFSDS(MK258), HEI(MK266)
Secondary: 7.62mm
Mobility
MT 883 Ka-524 V-12 850hp engine
Misc
Stabilizer
LRF
Thermals

M41 105

M41 with Stingray turret tested by Cadillac gage but never got any buyers.

Main: 105mm L7A3
Ammo: HESH(M393A2), HEAT-FS(M456), SMOKE(M416), APFSDS(M735A1, M426)
Secondary: .50 cal
Mobility
AOS-895-3 500hp engine
Misc
LRF
Full stabilizer
Thermals

CAV-ATD

U.S experiment of composite armor over aluminum armor and wanted to prove that it could withstand hits from Russian 30mm autocannons and 14.5mm MG from the sides. They began testing composite armor on the Bradley’s after these trials but the composite armor was too heavy so the U.S chose to abandon the project when General defenses contract was over.

Armament
Main: 25mm M242 Bushmaster
Ammo: APDS(M791), APFSDS(M919), TOW-2A/B
Mobility
560hp engine
Misc
Full stabilizer

M2 XM813

Up gunned M2 Bradley with a 30mm.

Armament
Main: 30mm XM813
Ammo: APDS, APFSDS(MK258), HEI(MK266)
Secondary: .30 cal
Mobility
Cummins VTA-903 600HP engine
Misc
LRF
Thermals
Full stabilzier

M2A2 ODS

M2A2 with ODS upgrade package to counter threats after the Iraq war.

Armament
Main: 25mm M242 Bushmaster, BGM-71 TOW launcher
Ammo: APDS(M791), APFSDS(M919), TOW-2, TOW-2A, TOW-2B
Secondary: .30 cal
Mobility
Cummins VTA-903 600HP engine
Misc
LRF
Thermals
Full stabilizer
Armor package
APS

Stryker Cockerill 3030

Stryker tested with Belgium’s Cockerill 3030 turret, it is meant to showcase it’s interchangeable weaponry on a Stryker platform.

Armament
Main: 30mm XM813
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM
Secondary: .30 cal
Mobility
Caterpillar C9 450hp engine
Misc
Full stabilizer
LRF
Thermals
Tracking

M2 GE BLAZER

GE and Boeing development of the M2 Bradley for the LOS-F-H program, it features a GE Blazer turret, it lost the competition to the ADATS due to it being late and the ADATS being better.

Armament
Main: 25mm GAU-12, Stinger MANPADS, RBS-70 MANPADS
Ammo: HEI, SAPHEI-T(PGU-32), HVAP(PGU-20U), FIM-92J/K, RBS-70
Mobility
Cummins VTA-903 600HP engine
Misc
LRF
Tracking
Thermals
Full stabilizer

Bradley Chapparel

M3 Bradley with Chaparral turret.

Armament
Main: Chaparral system
Ammo: NIM-72E/G
Mobility
Cummins VTA-903 600HP engine

Griffin III

variant of the M10 Booker by General Dynamics, 105mm gun is replaced by a 50mm and has access to ironfist APS.

Armament
Main: 50mm XM913
Ammo: APFSDS, HE-P
Secondary: .30 cal
Mobility
MTU 8V199 TE23 800hp engine
Misc
LRF
APS
Full stabilizer
Thermals

M1 THUMPER

M1A1 Abrams with a 140mm autoloaded gun and redesigned turret, it was a experimental prototype in the late 1980’s, though would be cancelled due to similarity to the M1A1

Main: 140mm XM291
Ammo: KEP (XM866), HEAT-FS(XM831)
Secondary: .50 cal
Mobility
AGT-1500 1500hp engine
Misc
LRF
Thermals
Full stabilizer
Autoloader

M8 Thunderbolt

M8 with a 120mm Kinetic gun.

Armament
Main: 120mm XM291
Ammo: KEP (XM866), HEAT-FS(XM831)
Secondary: .30 cal
Mobility
Hybrid Electric Drive system 750hp
Misc
Thermals
Full stabilizer
LRF

Object 478BEM-2

Object 478 with a air conditioning unit.

Armament
Main: 125mm KBA3 Smoothbore Gun
Ammo: APFSDS(3BM44U), HEAT-FS(3BK18M), HE-FRAG(3OF26), GL-ATGM
Secondary: 12.7mm
Mobility
KMDB 6TD-2E 1200hp engine(can go 32km in reverse)
Misc
LRF
LWS
Thermals
Full stabilizer

Line 2(Prem/event)

Open

M113 M8(ARVN)

M113 modified by the ARVN(South Vietnam) with a M8 Greyhound turret.

Armament
Main: 37mm M6
Ammo: AP(M74B1 shot), APCBC(M51B1 shot)
Secondary: .50 cal
Mobility
6V53T 275hp engine

T18 HMC

Developed on the chassis of a M3 Stuart in 1941, it sought to give the U.S a mobile 75mm howitzer but would eventually be replaced by the M8 Scott and destroyed in 1947.

Armament
Main: 75mm M1A1 howitzer
Ammo: HE(M48), HEAT(M66), SMOKE(M64)
Mobility
W-670-9A 262hp engine

T17E3 Staghound

T17 with a borrowed turret from the M8 Scott, it was meant to go into full production to supply the British through the lend-lease act but never saw development past the prototype.

Armament
Main: M2 Howitzer
Ammo: HE(M48), HEAT(M66), SMOKE(M64)
Secondary: .50 cal
Mobility
GMC 270 194hp engine

T76E1

T76 development using a longer gun and chassis was changed to the M4 Sherman, still has the same range as the T76.

Armament
Main: T76 183mm launcher
Ammo: 7.2IN rocket
Mobility
R975 C1 400hp engine

Sd.Kfz.251 Calliope

Captured Sd.Kfz.251 by the U.S army equipped with a calliope launcher on the PAK40, 4 would be built and put into service in 1944.

Armament
Main: 75mm PAK/40
Ammo: APCBC(PzGr 39), HE(Sprgr. 34), HEAT(HI.Gr 38B), APCR(PzGr 40), SMOKE(K.Gr. Rot. Nb)
Secondary: T34 Calliope mount
Ammo: M8 rockets
Mobility
Maybach 42 100hp engine

M4 Hedgehog

M4 Sherman with Hedgehog anti submarine spigots on the front of the hull.

Armament
Main: 75mm M3, Hedgehog anti submarine mortar
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89), Hedgehog ASM
Secondary: .50 cal
Mobility
R975 C1 400hp engine
Misc
Gyro-stabilizer

M4A2 Avenger

M4A2 field modified with extra steel plates and improvised track armor around the turret.

Armament
Main: 75mm M3
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
R975 C1 400hp engine
Misc
Gyro-stabilizer

T16E1 GMC

Lengthened M24 chassis with a 114mm howitzer on top of it built in 1942 but would be replaced by the T64 155mm prototype and eventually scrapped in 1944.

Armament
Main:114mm 4.5 inch gun
Ammo: HE(M65)
Mobility
44T24 220hp engine

T55-3IN-GMC

T55 with a larger hull to cover the crew and a .50 cal.

Armament
Main: 76mm M7
Ammo: AP(M47), HE(M42A1), APCBC(M62)
Secondary: .50 cal
Mobility
Cadillac V8 296hp engine

M4A3R3

M4A3 with R3 zippo flamethrower mounted in the turret.

Armament
Main: 75mm M3, R3 ZIPPO
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
Ford GAA 500hp engine
Misc
Gyro-stabilizer

T40/M17 WHIZBANG

M4A3 with 7.2IN Whizbang rocket mount, it saw limited use in WW2 as it was suppose to provide artillery support in the allied invasion of France but was only deployed in Italy.

Armament
Main: 75mm M3, T40 Whizbang
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89, 7.2In rockets
Secondary: .50 cal
Mobility
Ford GAA 500hp engine
Misc
Gyro-stabilizer

T33

M4A3E2 with a weaker redesigned turret to accommodate the flamethrower. It was suppose to provide heavy armor in the Pacific but the war ended before it could finish production so it never saw combat nor was produced beyond the 3 T33’s.

Armament
Main: 75mm M6, E12-7R1 Flamethrower
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M89)
Secondary: .50 cal
Mobility
Ford GAA 500hp engine
Misc
Gyro-stabilizer

M4A3 76 T99

M4A3(76) tested with the T99 rocket mount before it was placed onto a M26 Pershing.

Armament
Main: 76mm M1
Ammo: AP(M72 shot), HE(M48), APCBC(M61), SMOKE(M64)
Secondary: .50 cal
Mobility
Ford GAA 500hp engine
Misc
Gyro-stabilizer

T49(XM551)

T49 chassis with a XM551 turret.

Armament
Main: 152mm XM81
Ammo: HEAT(M409A1), HE(M657A2)
Secondary: .50 cal
Mobility
Continental AOS-895-3 500 hp

M113 90V

M113 with a LAV-150 turret carrying a Cockerill MK3.

Armament
Main: 90mm Cockerill MK3 low pressure
Ammo: HEAT-FS(M620A1), SMOKE(M618A1), HESH(M625A1)
Secondary: .30 cal
Mobility
6V53T 275hp engine

V-150 Vulcan

V-150 with 20mm Vulcan

Armament
Main: 20mm Vulcan
Ammo: AP, HE, APDS?
Mobility
361 eight-cylinder petrol 210hp
Misc
Radar/tracking

HMMWV RED-T

Developed by AM General for a alternative to heavier IFV’s, it was suppose to provide support and scouting while being able to destroy armored targets. unfortunately they couldn’t get any buyers so development stopped.

Armament
Main: M242 25mm Busmaster
Ammo: APDS(M791) HEI(M792)
Mobility
V8 160hp engine
Misc
Full stabilizer

M47 SS.11

M47 with 4x SS.11 ATGM’s

Armament
Main: 90mm M36, 4x SS.11 ATGM
Ammo: APBC(M318A1), HE(M71A1), APCBC(M82), APCR(M304, M332), HEAT-FS(M431), Smoke(M313)
Secondary: .50 cal
Mobility
AVDS-1790-5A V12 810hp engine
Misc
stereoscopic rangefinder

T77

T48 with T57 turret developed in 1950’s but would be cancelled in 1957 due to changing armor doctrines.

Armament
Main: 120mm T179
Ammo: HEAT-FS(M469), APBC(M358)
Secondary: .50 cal
Mobility
AV-1970-7 810hp engine
Misc
Stereoscopic Rangefinder
Autoloader

M60E1

M60A2 prototype with a M60 using the XM66’s turret along with a 20mm.

Armament
Main: 152mm XM81
Ammo: ATGM(XM13), HE, HEAT
Secondary: .50 cal
Mobility
Continental AVDS-1790-2 V12 750hp engine
Misc
stereoscopic rangefinder

M551(25)

M551 with a 25mm Bushmaster, not sure the date of this vehicle so I’m going low estimates with early Bushmaster ammo.

Armament
Main: 25mm M242 Bushmaster
Ammo: APDS(M791) HEI(M792)
Secondary: .30 cal
Mobility
6V53T 300hp engine
Misc
Full stabilizer

T95E8A2

T95 with hydraulic suspension and turret from M60A2.

Armament
Main:152mm M81E1
Ammo: HEAT(M409A1), HE(M657A2), MGM-51B Shillelagh
Secondary: .30 cal
Mobility
GM12V71T 560hp engine
Misc
LRF
Full stabilizer

M551 Stingray

M551 with Stingray turret to see it’s potential to replace the M551 as part of the AGS program.

Armament
Main: 105mm L7A3
Ammo: HESH(M393A2), HEAT-FS(M456), SMOKE(M416), APFSDS(M735A1, M426)
Secondary: .50 cal
Mobility
6V53T 300hp engine
Misc
LRF
Full stabilizer
Thermal

DRAGOON LFV-90

Dragoon 300 with a 90mm Cockerill gun, it was marketed towards foreign nations and eventually Venezuela would buy some as a way to cheaply modernize it’s military.

Armament
Main: 90mm Cockerill MK IIIM-A1
Ammo: APFSDS(M652A1), HEAT-FS(M620A1), HESH(M625A1), HE(M616A1)
Secondary: .30 cal
Mobility
6V-53T 300hp engine
Misc
LRF
Full stabilizer
Thermals

XM1128

Early variant of the M1128 Stryker, at this stage it didn’t have access to M900 so it gets M883 as it’s best round.

Armament
Main: 105 mm M68A1
Ammo: HEAT-FS(M456A2), APFSDS(M774, M833)
Mobility
Caterpillar C7 350hp engine
Misc
LRF
Thermals
Autoloader
Full stabilizer

M1296 Dragoon

Stryker equipped with a 30mm Bushmaster and MCT-30 turret. it was developed for the MGS program the U.S army approved 30mm to be mounted on Stryker’s, the army was happy with the development and began production in 2016.

Armament
Main: 30mm XM813
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM
Secondary: .30 cal
Mobility
Caterpillar C7 350hp engine
Misc
Full stabilizer
Thermals
LRF

AMPV R800S C-UAS

EOS upgrade of the AMPV with their own R800 C-UAS weapon system designed to counter drones.

Armament
Main: 30mm Mk44S Bushmaster
Ammo: APDS, APFSDS(MK258), HEI(MK266), ABM
Mobility
VTA903E-T675 676hp engine
Misc
Full stabilizer
Thermals
LRF
Radar/IRST
Tracking

LAV ATM

Lav variant of the M1134.

Armament
Main: ETS
Ammo: TOW-2, TOW-2A, TOW-2B
Mobility
Detroit Diesel 6V53T 275hp engine
Misc
Thermals
Full stabilizer

Linebacker SHORAD

SHORAD version of the M6 Linebacker, this variant carries a radar, a jammer on top, Stingers/AIM-9X and features a 30mm Apache gun.

Armament
Main: 30mm M230E1, Stinger pod
Ammo: HEDP, FIM-92J/K (some sources say it can carry AIM-9X, though unlikely)
Secondary: .30 cal
Mobility
VTA903 600hp engine
Misc
LRF
Radar
Tracking
Thermals
Jammer
APS
Full stabilizer

M2 Bradley 35

M2 Bradley prototype with 35mm Bushmaster to test lethality of the new gun.

Armament
Main: 35mm Bushmaster II
Ammo: APDS, API-T(DM-13), HEI(DM11A1), APFSDS
Secondary: .30 cal
Mobility
VTA903 600hp engine
Misc
LRF
Thermals
Full stabilizer

XM1108 CHAPFIRE

Chapfire system on a XM1108 Roadrunner

Armament
Main: Improved Chapparal system
Ammo: NIM-72G, Hydra 70
Mobility
6V53 202hp engine
Misc
Full stabilizer

M2A4E1

M2A4 Bradley with APS, better engine and armor.

Armament
Main: 25mm M242 Bushmaster, BGM-71 TOW launcher
Ammo: APDS(M791), APFSDS(M919), TOW-2, TOW-2A, TOW-2B
Secondary: .30 cal
Mobility
VTA903E-T675 675hp engine
Misc
LRF
Thermals
Full stabilizer
Armor package
APS

Centurion MK.5 LPT

Centurion supplied by Britain but modifications done in the U.S for the AGS program, the U.S upgraded the engine, internal components and added a AGS turret and autolaoder.

Armament
Main: 105mm M68A1
Ammo: HEAT-FS(M456A2), APFSDS(M774, M833), HESH(M393A2), SMOKE(M416)
Secondary:
Mobility
908hp engine
Misc
LRF
spaced armor
add on armor
Thermals
Full stabilizer

[UMBRAL_STALKER-psn]

Here before mods

[Necronomica]

If you want to make suggestions you should do so in that section, it is pre-moderated so it might take some time before suggestions are approved to be posted.

Suggestions

You also need to follow the rules and guidelines for suggestions as described here: ( Rules, Guidelines & Tips For Creating Suggestions (Check Before Creating A New Suggestion!) )
