Eurofighter Typhoon (UK versions) - Technical data and discussion (Part 2)

[Sean74218]

Also I think aim120 control surfaces (closest to the fuselage on the double pylon) would collide with the GBU48 mounted next to it, when launched.

[HakwHunt]

what is an ECRS and what are thw differencws between the mk1 and mk?

[Morvran]

ECRS is CAPTOR-E

Mk1 has 180x180 FoV

Mk0 and Mk2 have 200x200 FoV

Gunjobs break down on the other differences:

@Gunjob

Mk.0 is the CAPTOR-M backend so can’t do the fancy combined modes. Mk.2 is capable of A2A, A2G and E-War at the same time.

I believe Mk.1 lacks the combined E-War elements that were added to Mk.2. But since Germany intends to put the first batch of ECRS Mk.1 on their new Eurofighter EK’s and then later to the rest of the fleet. I suspect the E-War focus is solved by the fancy Arexis jammers.

[Gunjob]

[DirectSupport]

Can you guys put in a report stating that the radar should not lose lock of targets when switching modes since there should be simultaneous radar mode capability?

I.e. air targets shouldn’t disappear if changing it to another air mode or if changing it to an air to ground mode

[Gunjob]

Maybe I’ll see what I can cook up this weekend.

[HITkiller]

You obviously don’t take into account the size difference between the two. The size of the Mark 1 is even smaller than that of the Rafale, which means that its power will only be much less than mk2

[dotSHINI]

@Gunjob do the italian and uk efts have the adapted nose cons? is gajin aware they even need a new nose for mk 2?

And with that likely a slightly changedf flight performance?

[Sean74218]

Too much work

[MythicPi]

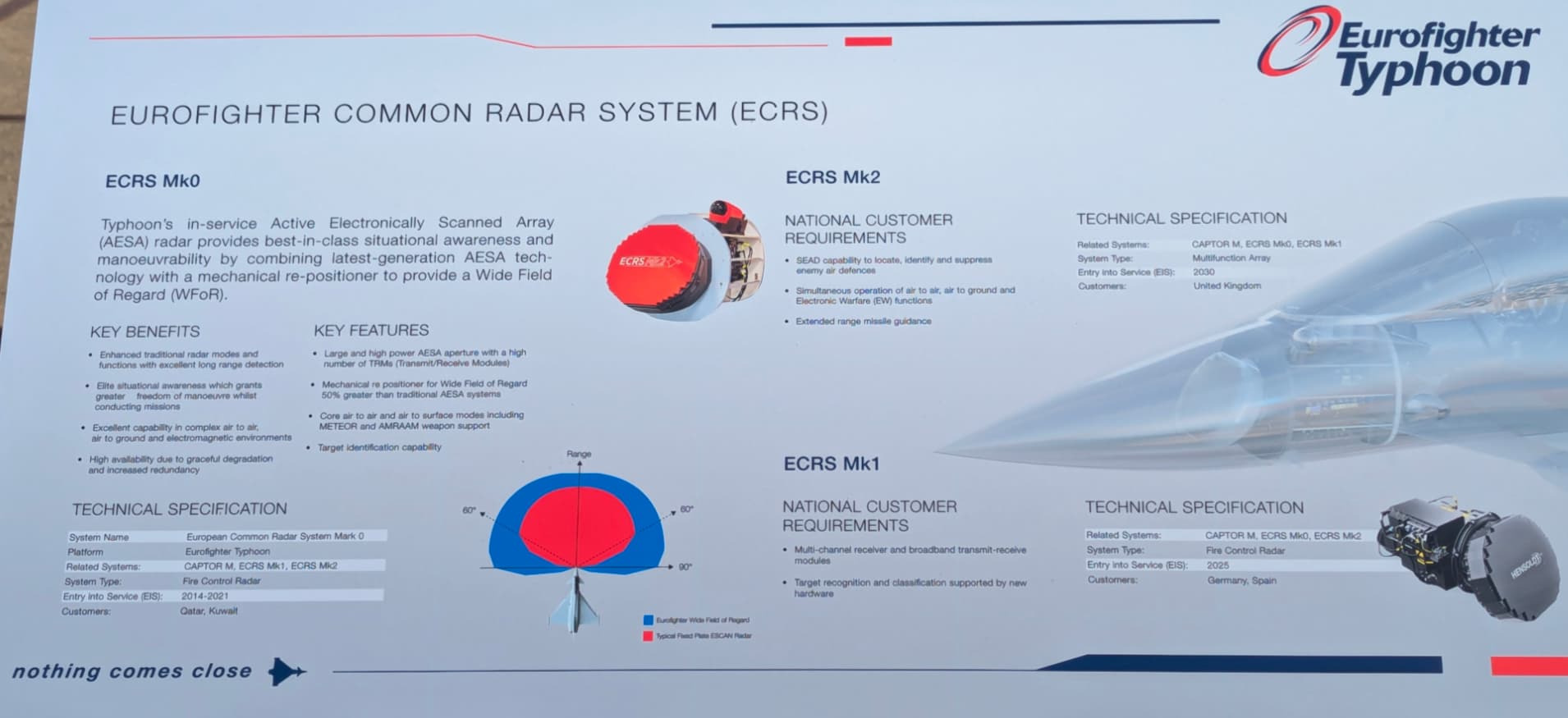

Would be nice if this could be used to unnerf the Mk1. Also seems to support my theory.

[HITkiller]

If the dimensions in the picture are correct.mk1 is such a small radar

The mk2 is much larger.

[Metaltank1990]

To no surprise, the 8x 120c has literally no effect on combat effectiveness because you can still dodge them ridiculously easily lol

[Morvran]

I just did a match and found it really useful. Where normally id be RTB because i ran out of AMRAAM I had 2 left for the last guy

[Morvran]

Please support this thread:

Eurofighter Typhoon - Additional upgrade options

The advantage of a seperate airframe means that ASRAAM/IRIS-T and METEOR can be added later and the Current Typhoons with CAPTOR-M can stay put, avoiding a gap. I dont mind the delay between airframe and weapon systems, but they could do more than just CAPTOR-E this update. Especailly as some items like SAL Brimstone 2s should have come 15 months ago

[luque13]

They should also add the 8 120s to Typhoon now, having to wait 2+ weeks for the main server to be upgraded kinda sucks

[Metaltank1990]

I’ve encountered quite the hilarious bug, if you just use a missile with no lock and the selector disabled you get the 9M HMD, but then it launches a 120 allowing you to basically just ACM aim120s with no lock lol

[Sean74218]

Why can’t I use PIRATE to fire aim120?
And also why does it take multiple attempts to lock a rear aspect mig in the test drive using HMS IR?

[dotSHINI]

btw, is the middle search option useable by now, or is everyone still using narrow?

[Morvran]

Uh… I think I use 30x8? most of the time. Id have to load up and check

[dotSHINI]

ah i used 60/4 might have been another problematic thing
