CVR(T) Series - Technical Data and Discussion

The Combined Sight housing is a different shape with a chunky armoured cover. The Sight head inside is also rather different looking with distinct channels for the day and thermal sights

Images




fv102-striker-missile-carrier_4

Video of the Combined Sight cover
The combined sight was installed before the SWIG upgrade

1 Like

I think the video may have given something away there. Good pictures, thanks.

That’ll be the one.
https://www.worthpoint.com/worthopedia/striker-swingfire-sight-43-mk1-946858910

1 Like

Mr Donovan’s Striker appears to have an old sight fitted into a new housing.

1 Like

Hah! I was actually looking for that worthpoint link because I knew I’d seen it before and that it had the designation for the sight - which I couldn’t remember.
No.43 is indeed the original Swingfire optical sight and not the CS thermal sight

1 Like

So… would this be the CS, later mounted in the missile controller’s position on Striker? Being used in the dismounted role from FV438.

1 Like

Looks like it
swing
Swing2

And as-installed inside a Striker (same privately owned VRL354S/08FF07 shown in my other post)


2 Likes

Personally I’d prefer Sabre as a premium. Didn’t the British add power traverse eventually on the Mk 2? Whereas the regular Scimitar never got it.

1 Like

Here is some info on some sights on the Scimitar (and maybe Scorpion). It also is a good visualisation of the different sighting systems. While not to specific on the capabilities and specs of each sight, it is a good overview.

1 Like

@AblativeKitten you have been spotted.

2 Likes

I was wondering if that was you lmao

1 Like

Could you please add my suggestion to the list?

Thanks :)

2 Likes

Added, and then corrected!

One more remark, the Scorpion trialed both the Cockerill Mk.III gun and the Cockerill Mk.III A1 / Cockerill Mk 3 M-A1 gun.

grafik

Cockerill Mk. III gun with the typical triple-baffle muzzle brake seen on Cockerill guns, here on the Belgian prototype and the Malaysian Scorpion 90.




Cockerill Mk. III A1 gun with the MECAR single-baffle muzzle brake, here on the last stage of the British prototype and the Venezuelan Scorpion 90.


Evidently it doesn’t change much, as the difference is mostly in the gunbreach and the muzzle break, but it does mean that one can fire APFSDS-T and the other not.

2 Likes

Lets talk about that missing amor lol.
Considerable amounts of frontal armor and turret armor just doesn’t exist as gaijin didn’t look into the hull enough.
I can tell you that is more than 35mm and it is flush all the way down until the floor after the radius.
CVR(T) family armor protection // Gaijin.net // Issues
More details and a full explanation here.


1 Like

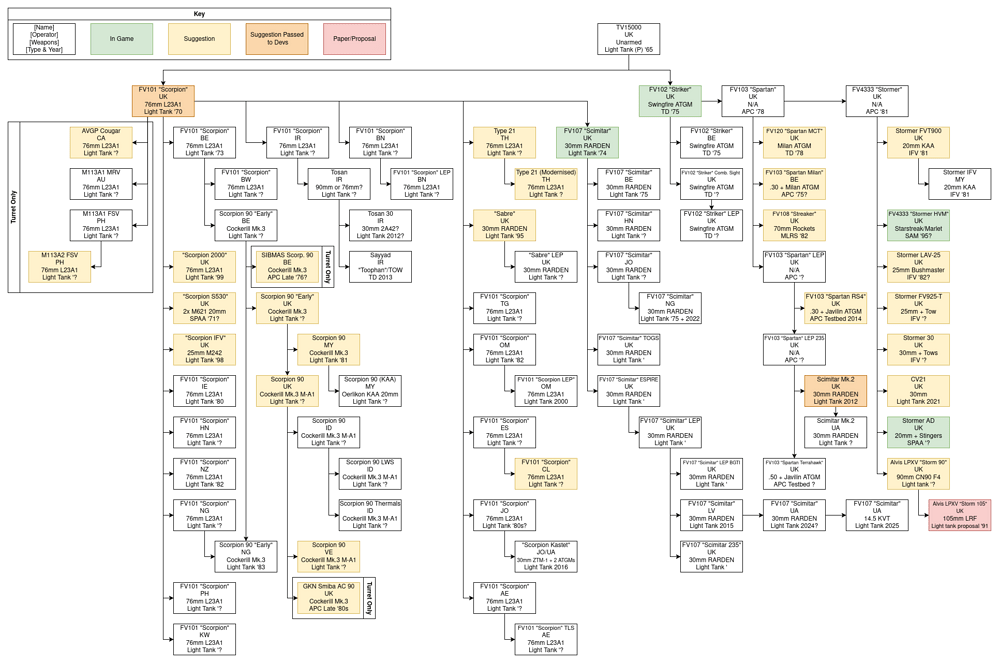

The Complete Family of CVRTs:

v1.2

As always let me know if there’s anything missing, any errors, or missed suggestions. (Or if you know service dates I’m missing!)

Change Log

13/10/24 - v1.2:

  • Added in some more dates
  • Clarified Scimitar variants (Thanks @da12thmonkey)
  • Clarified the Nigerian Scorpion 90, They operated the Belgian upgrade.

12/10/24 - v1.1:

  • Moved to correct thread
  • Fixed some incorrect parenting
  • Fixed incorrect country codes
  • Added some Scorpion 90 turreted vehicles (SIMBAS Scorp. 90 + Smiba AC90)

Scimitar should have one more branch for the LEP version with BGTI (normal LEP version and its derivatives had ESPIRE)
As far as I know, the Scimitars sold to Latvia were normal LEPs, not 235s.

There were LEP versions of Striker and Spartan (and the other non-combat versions like Samaritan, Sultan and Samson).
It’s a bit redundant for the Striker as they didn’t have a Plasan armor kit before they were retired and the Combined Sight that added the thermals we have ingame, was done before the LEP (the ingame model doesn’t have the correct sight modelled). But from LEP, there was a 235hp versions of Spartan (and Sultan, Samaritan and Samson), and Scimitar Mk2 is derived from Spartan 235.
The Spartan with the Kongsberg RWS and Javelin is definitely a Spartan LEP but I don’t know if it was a LEP 235 or not. There was also one with an MSI RWS, which looks more like it was a Spartan 235
https://x.com/thinkdefence/status/1749521097538580550

I have a question, can the 30mm Rarden cannon fire continuously like the 40mm Bofors? Or does it have to use up the 3-round clip before adding the next one, which would mean there would be a delay between each clip.

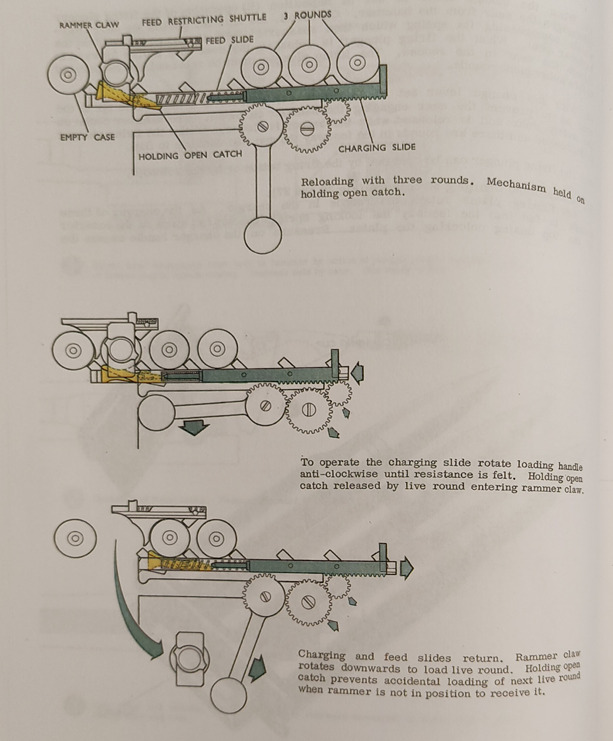

There are 3 rounds inside the gun, and 3 rounds on the feed tray. Firing cycles the feed system mechanically.

If at any point you have a blank space in the feed (eg. either 4, 5, or all 6 rounds have been fired), the gun needs to be manually cycled using the crank handle at the rear in order to cross the gap in the feed, which can cause a significant delay in fire rate.

In order to avoid this, turret crews will load 3, fire 3, load 3, fire 3, etc, so that the 3 internal rounds are always present.

1 Like

My bad, I kinda assumed given the time-frames, Gov press releases[1], and them appearing to be ESPRIE not BGTI models. But to be completely honest I have a bit of love goggles for the Scimmie, it’s may be my favourite tank but I’ve never really cared for the differences, a Scimmie is a Scimmie and they bring me joy.

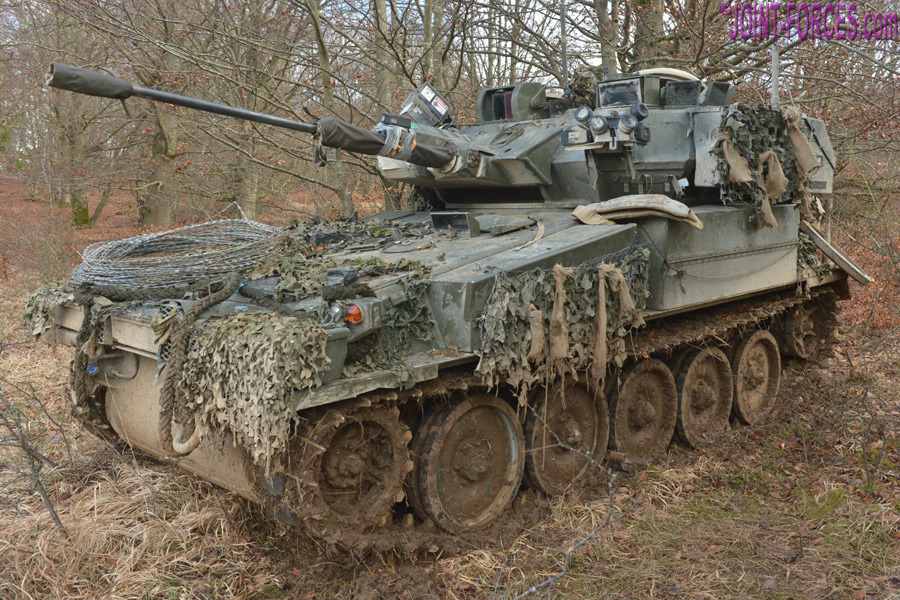

Latvian Scimitar


Found a walk around too if that helps anyone pick out anything that makes it a LEP or a 235

https://www.youtube.com/watch?v=3L0o2etZXs4

Ah thank you for the Clarification!

Added it in!

[1] “The highly-mobile UK vehicles have been sold to the Latvian army in a package worth £39.4 million, including their overhaul and refurbishment.” - Latvian army purchases UK armoured combat vehicles - GOV.UK

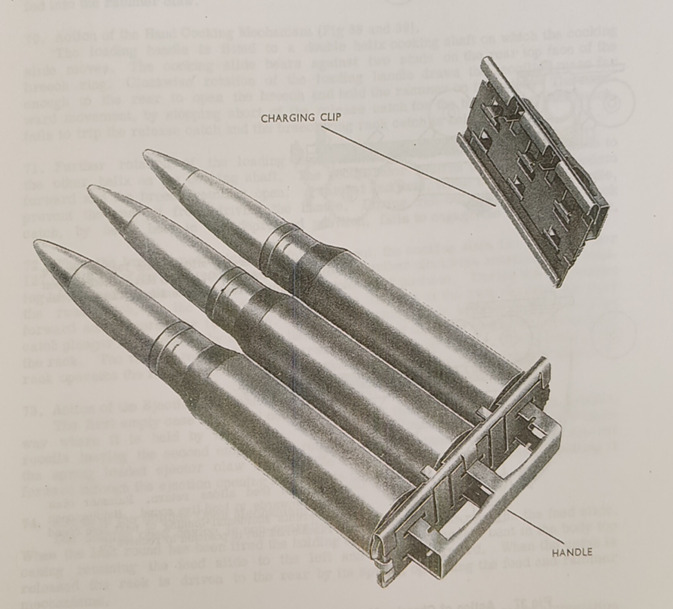

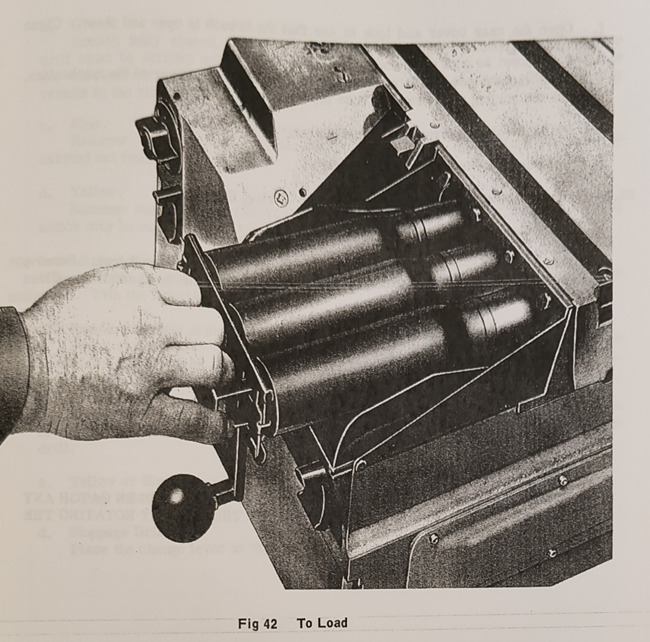

Can hold 6 rounds at a time and can be reloaded in clips of three. First three have to be moved along the mechanism by a hand crank, from then on the firing of the gun cycles the mechanism itself.

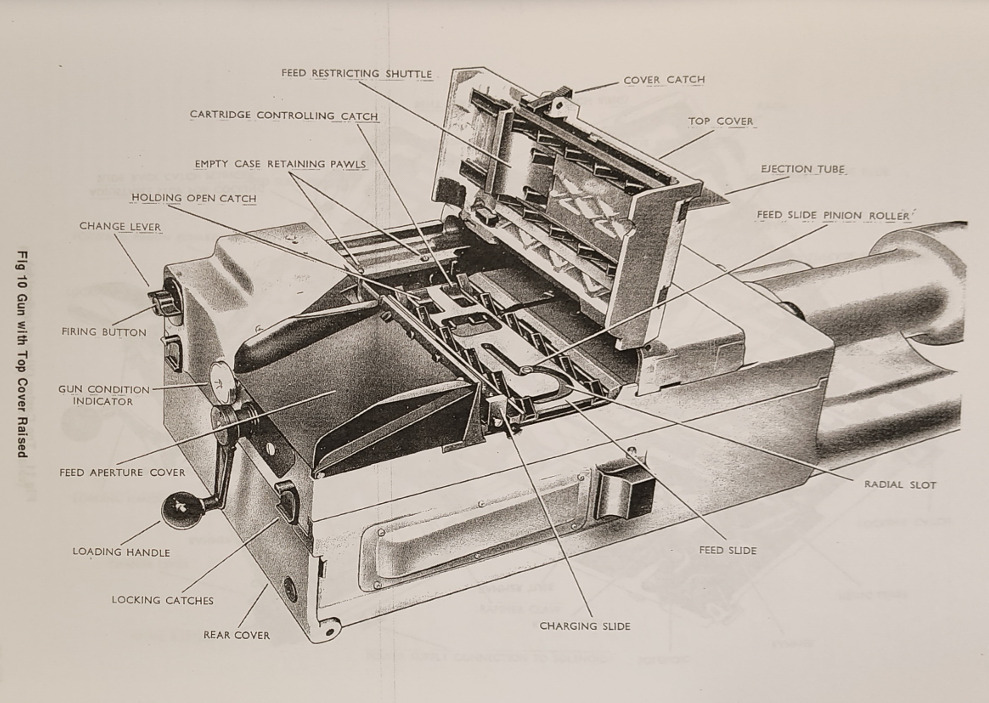

screenshots from the RARDEN user handbook
