RG35 ifv (TRT-25)

Tim_TeaDrinker · July 21, 2026, 11:36pm

Would you like to see this in game

Yes
No

0 voters

History
The RG35 is a family of the South African mine resistant ambush protected vehicles developed in 2009 by Land Systems OMC, a subsidiary of BAE Systems.

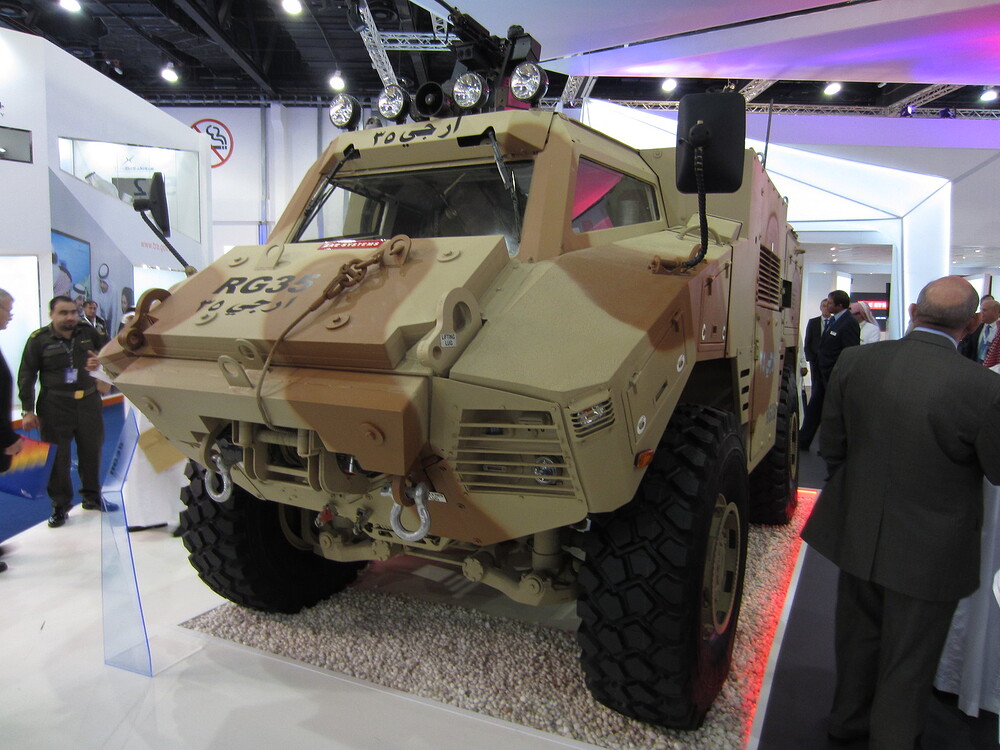

The vehicle’s first public appearance was in September 2009 at the Defence Systems and Equipment International (DSEi) exhibition in London. It was a 6x6 variant. The next RG35 4x4 was already in development and was ready in 2011.
In 2012 at the Africa Aerospace and Defence Exhibition (AAD) was shown the first heavy armed RG35 6x6 IFV variant with the TRT-25.
In 2014 at Eurosatory was shown the last vehicle of the RG35 family, called MIV (Motorised Infantry Vehicle). It was an extended 4X4 version.
In 2015 RG35 IFV was chosen to be the demonstrator for the TRT-R30 turret. It even became the cover for the TRT-R30 brochure.

Despite desperate attempts to advertise the RG35 family, no one bought them. It did not find a place even in the domestic market. This vehicle could have remained as many other vehicles without successful operational history. But in November 2015, UAE company NIMR Automotive bought the rights of RG35. The vehicle was modernized for the needs of the UAE. RG35 received a new name: “Jais” and was adopted into the service.

Vehicle design

Spoiler

RG35 design is based on the development experience of RG31 and Iklwa.
From RG31 it takes MRAP capabilities, and the idea of covering the vehicle’s exterior space by storages.

Spoiler

From Iklwa the RG35 has a side mounted powerpack. This design solution increases the internal volume and allows to change powerpack in less than 1 hour.
The RG35 was developed as cross-over between APC and IFV: high protection, huge internal volume, high payload, excellent survivability, and capability of carrying heavy weapons.
Modularity allows to customise vehicle for any role.

RG35 Specifications

Spoiler

Dimensions:
Length 7,161 mm
Width 2,600 mm
Height 2,658 mm
Hump radius 1,924 mm
Wheelbase 1,550 / 3,030 mm
Ground clearance 420 mm
Angle of approach (min) 53°
Angle of departure (min) 44°

Mass:
Tare (basic) 15,500 kg
Payload 8,500 kg
Gross Vehicle Mass (GVM) 24,000 kg

Volume under armour 12 m3
Seating
Driver + 13
The commander sits next to the driver, the gunner sits behind the commander, next to the engine.

Maximum speed 105 km/h
Gradeability >60%
Turning circle/radius - 16m/8m
Step climbing 600 mm
Trench crossing 1,050 mm

Protection Levels:
Ballistic protection Up to STANAG
4569 A Level 4 (against 14.5×114mm API / B32 at 200 meters with 911 ± 20 m/s)
Mine protection Up to STANAG
4569 B Level 4A/4B
IED side protection level undisclosed
Spall liner

Engine:
Cummins ISL
Maximum power 336 kW / 450 hp
Maximum torque 1,620 Nm @ 1,995 lbf.ft

Transmission:
ZF HP602; 6-speed automatic
Transfer Case: BAE Systems (Gear Ratio)
2-speed; permanent

Steering System:
ZF Servocom Hydraulically assisted
Axles: AxleTech

Spring damper: Hydro-pneumatic strut
Suspension: Double control arm, independent
4-stage ride height adjustment with max height increase: 250mm

Service brake: Wabco air actuated disc brakes
Emergency brake:
Spring actuated Pneumatic release;
60% gradeability

Road Wheels and Tyres:
Michelin 16.00R20 XZL
Run-flat Hutchinson RFI
CTIS Syegon 4-circuit

Electrical System:
Voltage 28V DC
Power generation Up to 600A

This RG35 IFV variant is equipped with the TRT-25. It’s a Tactical Remote Turret armed with a 25mm M242 Bushmaster. It was developed for light vehicles and armored personnel carriers. TRT-25 has an incredible 103°/s of traverse speed and 80°/s elevation speed. It also has smoke launchers, stabilizer, laser range finder, and auto tracking. Due to its lightness and small FCS, it can be installed on any vehicle. The FCS is so portable that it can even be taken out of the vehicle. As it is shown below.

TRT-25 Specifications

Spoiler

(ZAF)-TRT-25_(2)
(ZAF)-TRT-25_(1)
Weapons
25 mm M242 Bushmaster 260 ready rounds
(dual feed)
There is no source about used ammunition, I suggest using PMB 090 from a 25mm M242 Bushmaster on the Desert Warrior.

Spoiler

7,62 mm Machinegun 1,000 ready rounds
Height 1,013 mm
Width Under 1,322 mm
Weight 850 kg
(complete with weapons & ammunition)

Smoke launchers 4 x 76 mm

Traverse 360º
Elevation -10º to +65°

Performance:
Traverse speed 103º/s
360º in 3,5 sec
Elevation speed 80º/s

Fully stabilised for firing
on the move
Auto track with manual lock-on

Sight, Control & Display:
Day B&W or colour CCD camera/thermal night
camera for detection of target at 7,600 m at
night
“Game-boy” controls with 10.4 LCD display
(position at any location)
Optional independent commander sight

Total

The RG35 TRT-25 has extremely high potential as a multi purpose vehicle. The turret’s good vertical aim angles, insane guidance speed and target auto tracking, will allow it easily fit the SPAAG role. While acceptable penetration, well protected front part, and fast speed, could be very useful for close combat scouting. Ride height adjustment (with 250mm height increase) will also help to find unexpected firing positions. In the future, RG35 IFV TRT-25 can be a really useful vehicle for the infantry game mode, by its troop carrier capabilities.

UPD
i found out, that STANAG 4569 lvl4 protection in the brochure isn’t for the base vehicle configuration, but with add on armor on the UFP and LFP. It means protection and more weight is optional. Additional armor should be implement as researchable modification inside vehicle, to provide players a chose of being faster or more armored.
The first two pictures with it and the last one is without it.

Example
